High-Bay Racking Steel Structure Warehouse for High Density Automated Storage and Logistics

Product Description

Steel Structure Solutions
Specification

Our complete one-stop solution includes global installation guidance and hassle-free service, enabling you to cut down project lead times efficiently.

Structure Material Details
Main Structure Frame Columns and Beams Q235B/Q355B Automatic Submerged Arc Welding
End Wall Column Q235B/Q355B -
H-beam welding (columns and beams) Automatic Submerged Arc Welding
Rust Removal Shot Blasting
Surface Processing Alkyd Paint / Epoxy Zinc Rich / Galvanized
High-Strength Bolt Grade 10.9 / 8.8
Common Bolt Grade 4.8
Secondary Structure Flange Brace Angle Steel
Horizontal Support Angle / Round Steel
Vertical Support Angle / Round Steel
Tie Rod Angle / Round Steel
Tie Bars Round Steel / Casing / Shaped Steel
Purlin Galvanized Z-beam / C-beam
Enclosure System Roofing Materials 360° Locking Seam System / Locking Screw System / Composite Panel Roofing / Rockwool Maintenance System
Daylighting Band FRP Plate
Gutter (inside/outside) Stainless Steel / Colored Steel Plate
Rain Pipe PVC Pipe / Colour Steel Rainwater Pipe
Wall Materials Locking Screw System / Composite Panel Wall / Rockwool Maintenance System
Accessories Sealant, Self-tapping Self-drilling Screws, etc.
Edge Flashing Color Plate / Stainless Steel
Others Ventilator Powered / Unpowered Axial Flow Ventilators Customizable
Ventilation tower Finished Product Customizable
Door Electric Rolling Door / Sliding Door / Fireproof door Customizable
Window Aluminum Alloy / Plastic Steel Window / Fireproof Window Customizable
Technical Index Design Standard Verification
Dead Load 0.30 KN/㎡ PASSED
Live Load 0.50 KN/㎡ PASSED
Wind Load 0.50 KN/㎡ (Customizable) PASSED
Snow Load 0.65 KN/㎡ PASSED
Seismic Intensity 8.0 Magnitude PASSED
Product Description

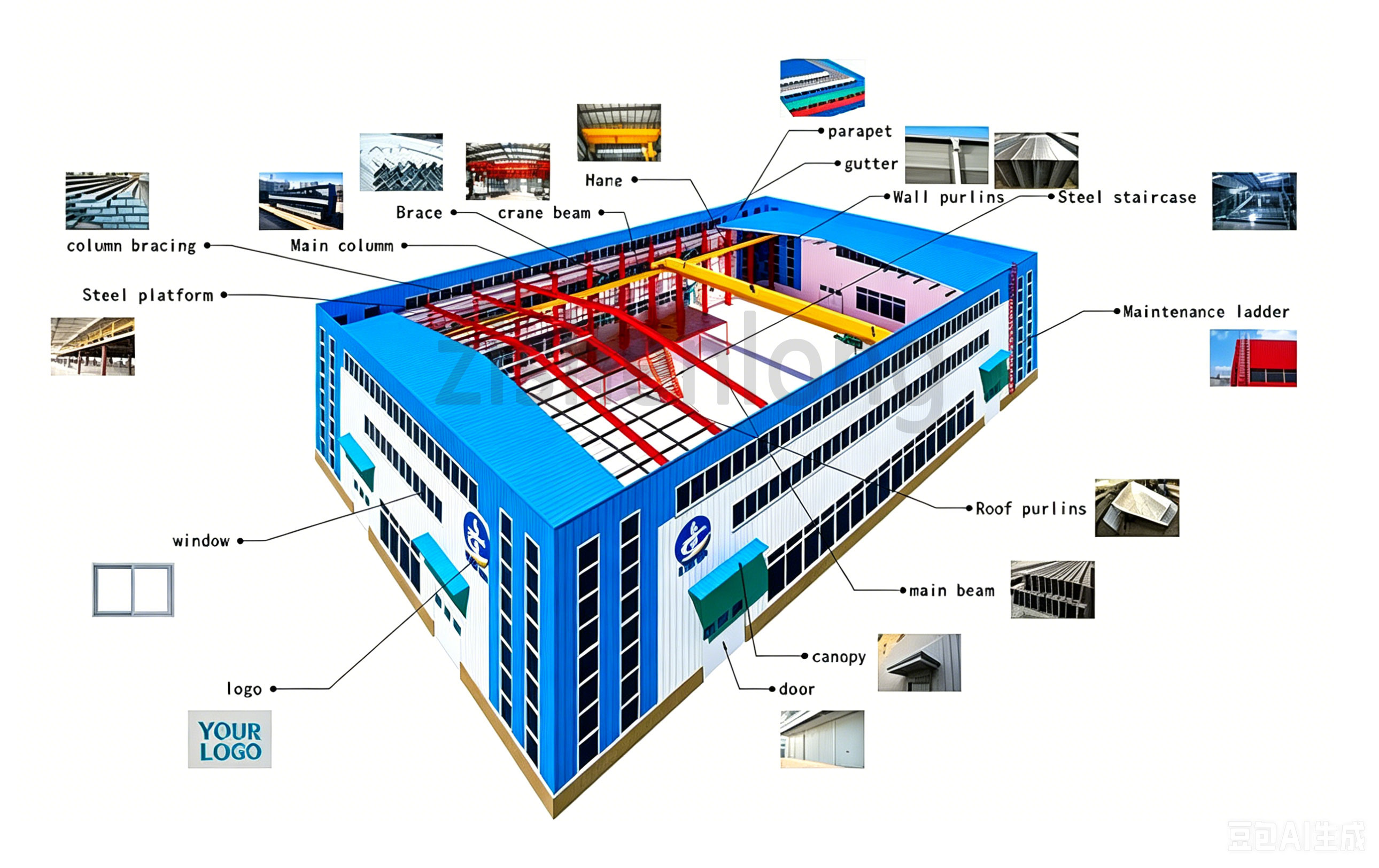

Steel Structure Overview
Steel Structure Design
Engineering Detail

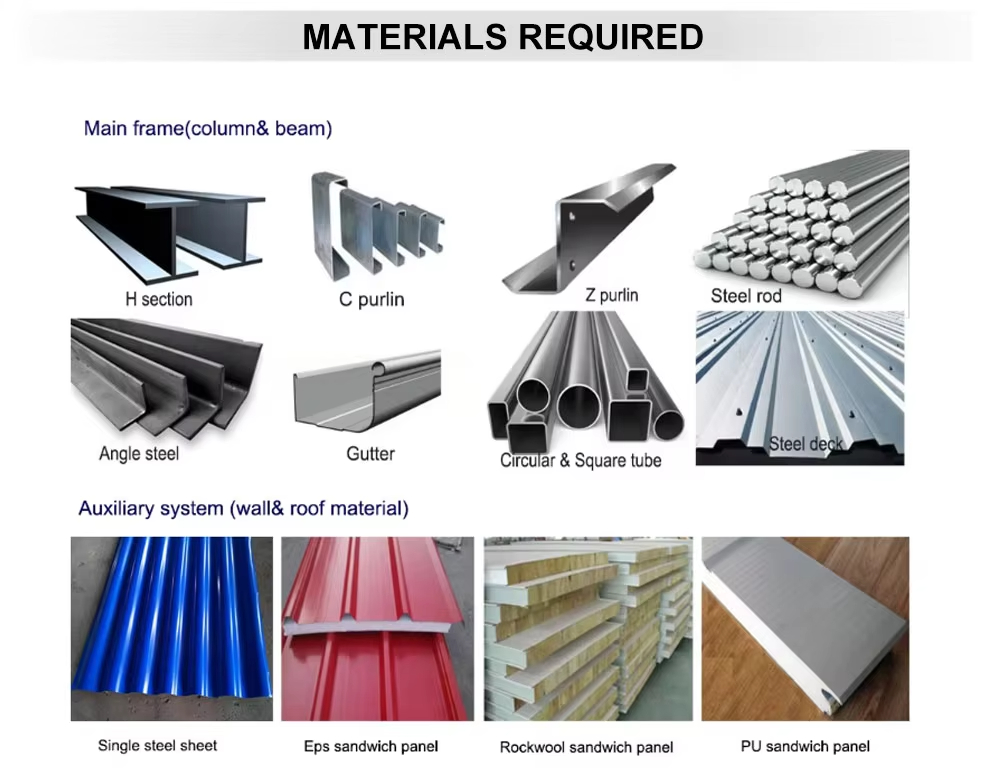

Steel Structure Component
Steel Building Layout

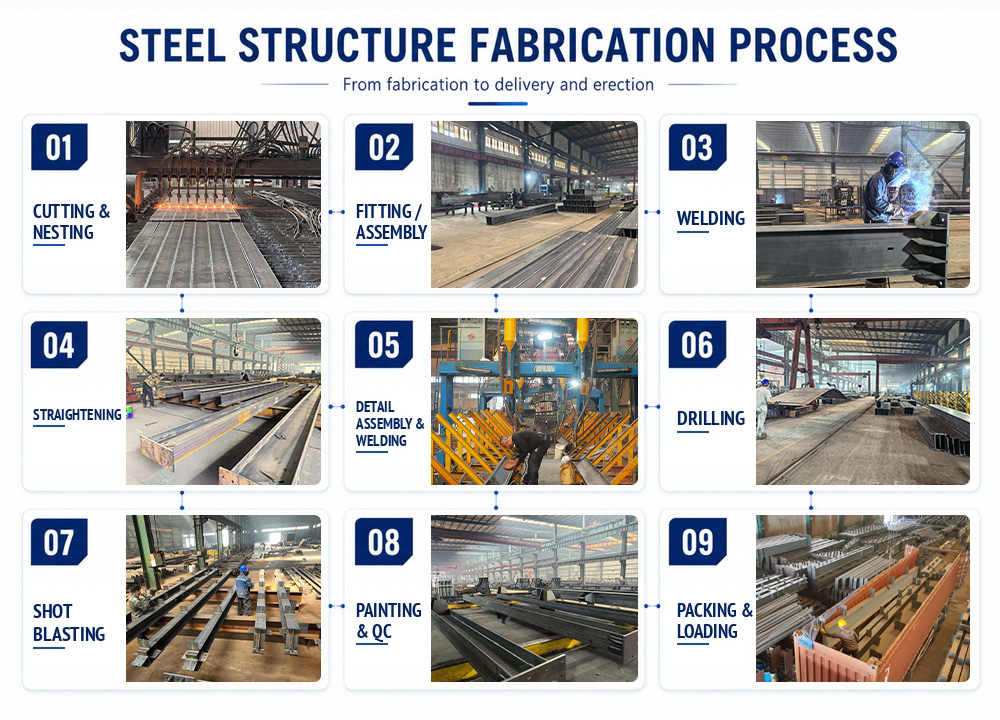

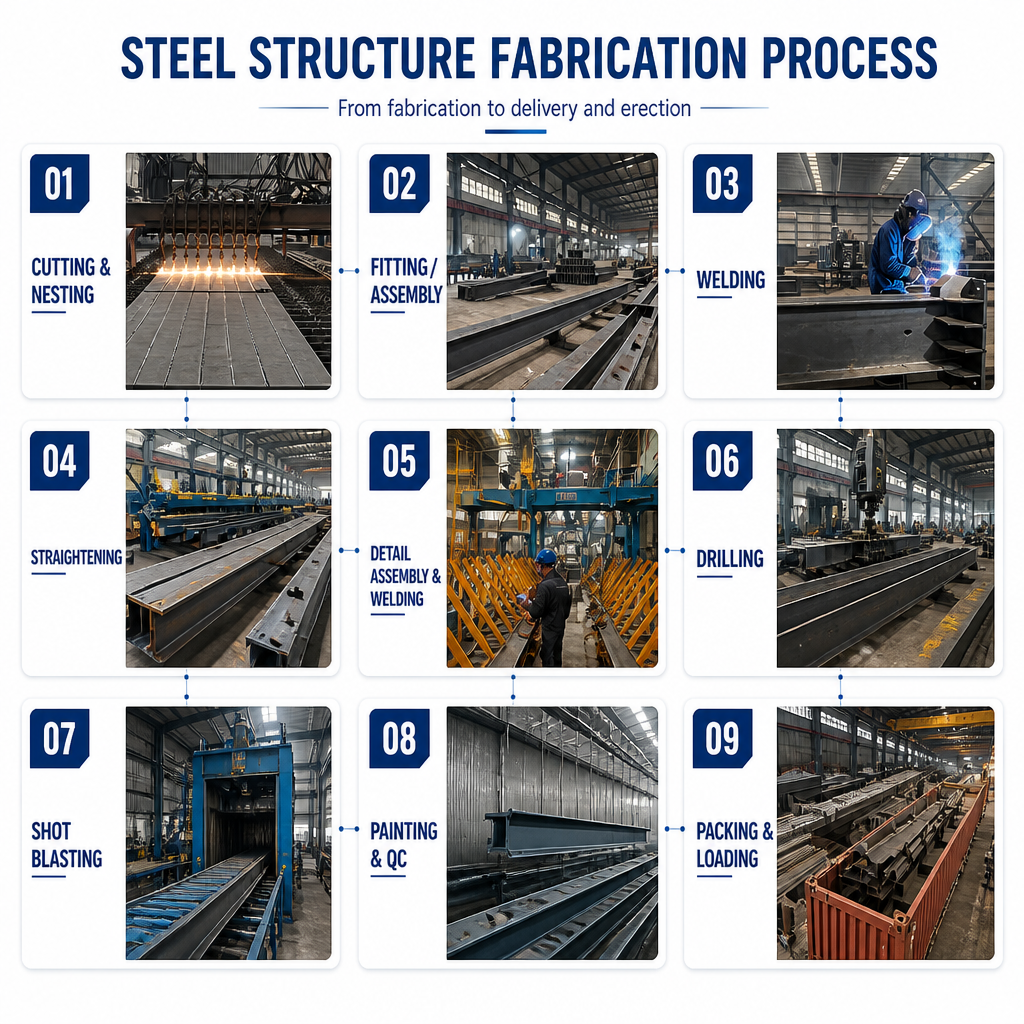

Steel Frame Fabrication
Why Steel Structure Buildings Are the Smarter Choice

If you are planning a factory, warehouse, workshop, hangar, or commercial building, you have two fundamental options: build it in concrete, or build it in steel. Here is why the world's fastest-growing economies, most demanding industries, and largest construction projects consistently choose steel.

Faster to Build, Faster to Revenue

A steel building goes up in half the time of an equivalent concrete structure — and sometimes even faster. The secret is parallel workflow. While your site team pours foundations, your steel members are being cut, welded, drilled, and coated in a factory under controlled conditions. When the two streams converge on site, assembly is straightforward: lift, bolt, repeat. No formwork to build and strip. No concrete to pour and wait for. No curing time, period. This speed translates directly to money. A factory that opens three months earlier generates three extra months of revenue. A warehouse that is operational sooner starts recovering its investment sooner. Financing costs drop. In commercial real estate, earlier tenant occupancy means earlier rental income. Speed is not just a convenience — it is a financial instrument.

Lighter Structure, Lower Foundation Cost

Steel weighs roughly one-third of reinforced concrete for the same load-bearing performance. That means your building imposes far less dead load on the ground beneath it. Smaller footings. Fewer or shorter piles. Less excavation. Less concrete in the substructure. Foundation costs routinely come in 20% to 30% lower for steel-framed buildings versus concrete alternatives. On a large project, that is a significant six-figure saving before the first column even goes up.

Big Open Spaces Without Columns

Concrete beams get heavy fast as spans increase. Steel does not. A standard steel truss or portal frame can clear 30, 50, 80, even 100 meters without a single intermediate column. For a warehouse, that means more pallet positions and unobstructed forklift aisles. For a factory, it means flexible production line layouts that you can reconfigure tomorrow without structural constraints. For an aircraft hangar, it means the only practical way to build. For a sports hall or exhibition center, it means the soaring, column-free volume that defines the experience. Steel does not just accommodate big spaces — it makes them economically viable.

Earthquakes Happen. Steel Handles Them.

Concrete is brittle. It cracks. Under seismic loading, it can fail suddenly and catastrophically. Steel is different. It yields. It bends. It absorbs energy through controlled plastic deformation rather than sudden fracture. This is not theory — it is consistently confirmed in post-earthquake damage surveys worldwide. Steel-framed buildings routinely survive seismic events that reduce neighboring concrete structures to rubble. If you build in any seismically active region, this alone justifies choosing steel.

How to Get Quotes
How to get quotes
If you have drawings, welcome to share drawings with us, quotation will be done based on your drawings. Our excellent design team will design the steel structure workshop warehouse for you. If you provide the following information, we will deliver a satisfactory customized drawing:
  • 1Location: Where will it be built? (Country & City)
  • 2Size: Length * Width * Eave height (mm * mm * mm)
  • 3Wind Load: Max. Wind speed (kn/m², km/h, or m/s)
  • 4Snow Load: Max. Snow height (kn/m², mm) & temperature range
  • 5Anti-Earthquake: Seismic level requirement
  • 6Brickwall: Needed or not? (1.2m high, 1.5m high, or other?)
  • 7Thermal Insulation: EPS, fiberglass wool, rockwool, PU sandwich panels, or bare metal sheets
  • 8Doors: Quantity & size (units, width mm * height mm)
  • 9Windows: Quantity & size (units, width mm * height mm)
  • 10Crane: Needed or not? (units, max. lifting weight in tons, max. lifting height in meters)

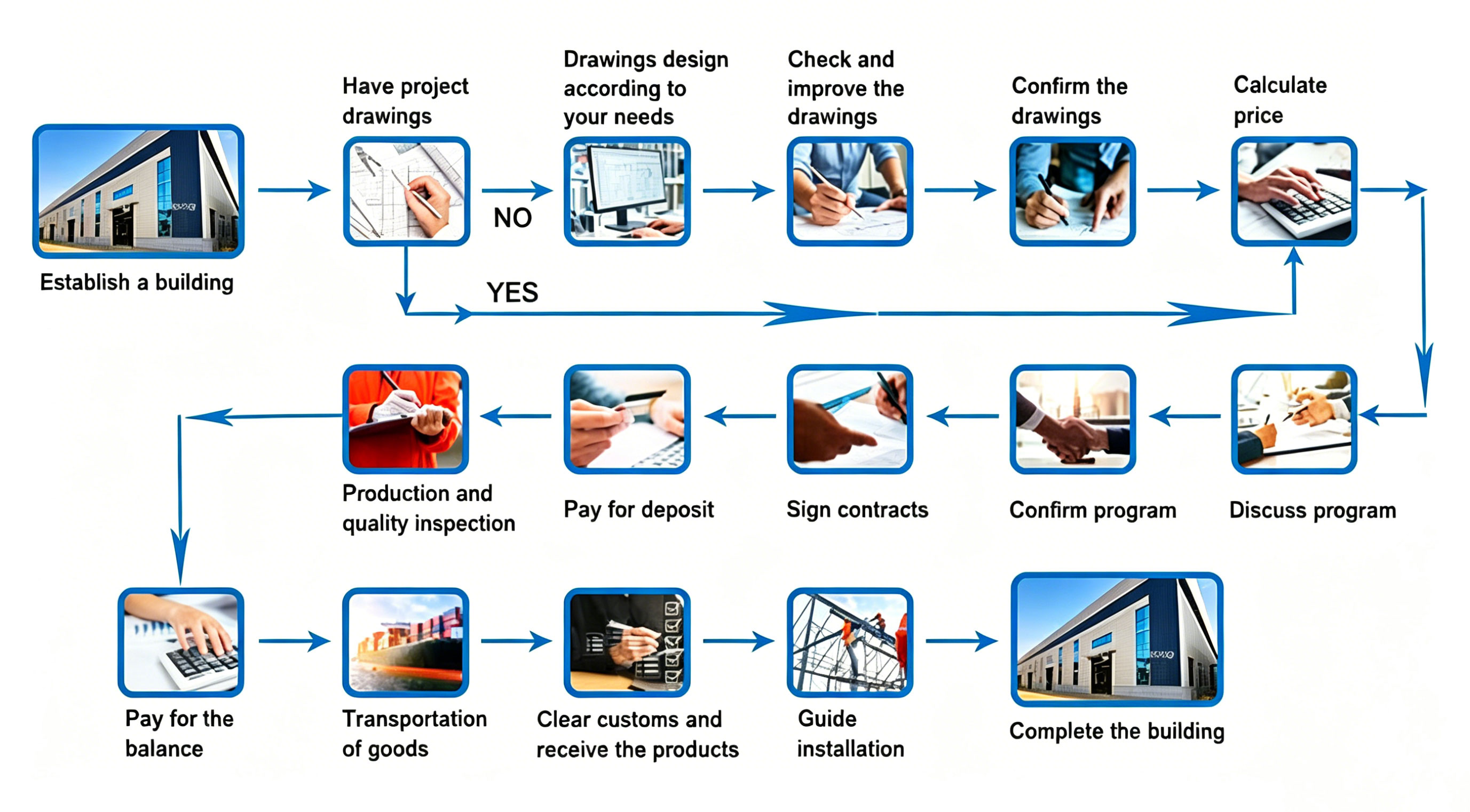

Quotation Workflow Process
Company Profile

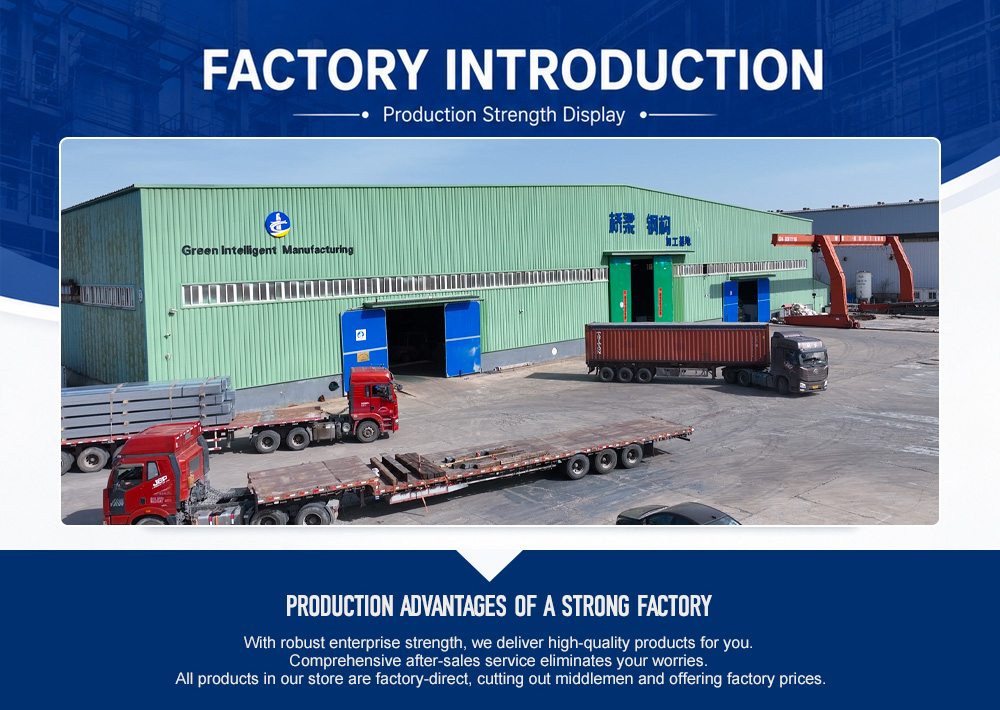

Shenyang Zishenlong Factory
Shenyang Zishenlong Light Steel Color Plate Co., Ltd. was established in 2011. The current facility covers an area of 20,000 square meters and has more than 400 employees. The company's projects cover more than 130 countries around the world, including Southeast Asia, Europe, Oceania, Asia, and North America, and it has achieved sustained and stable cooperation. We have now become a diversified international enterprise integrating R&D, design, production, installation, construction, and service. In order to better serve the global market, the company has obtained CE, ISO, and other certifications. At present, the company's products include steel structure buildings, poultry houses, container houses, various types of color steel plates, sandwich panels, and other building materials. Relying on steel structures, the company continues to innovate in many aspects and achieve new breakthroughs.

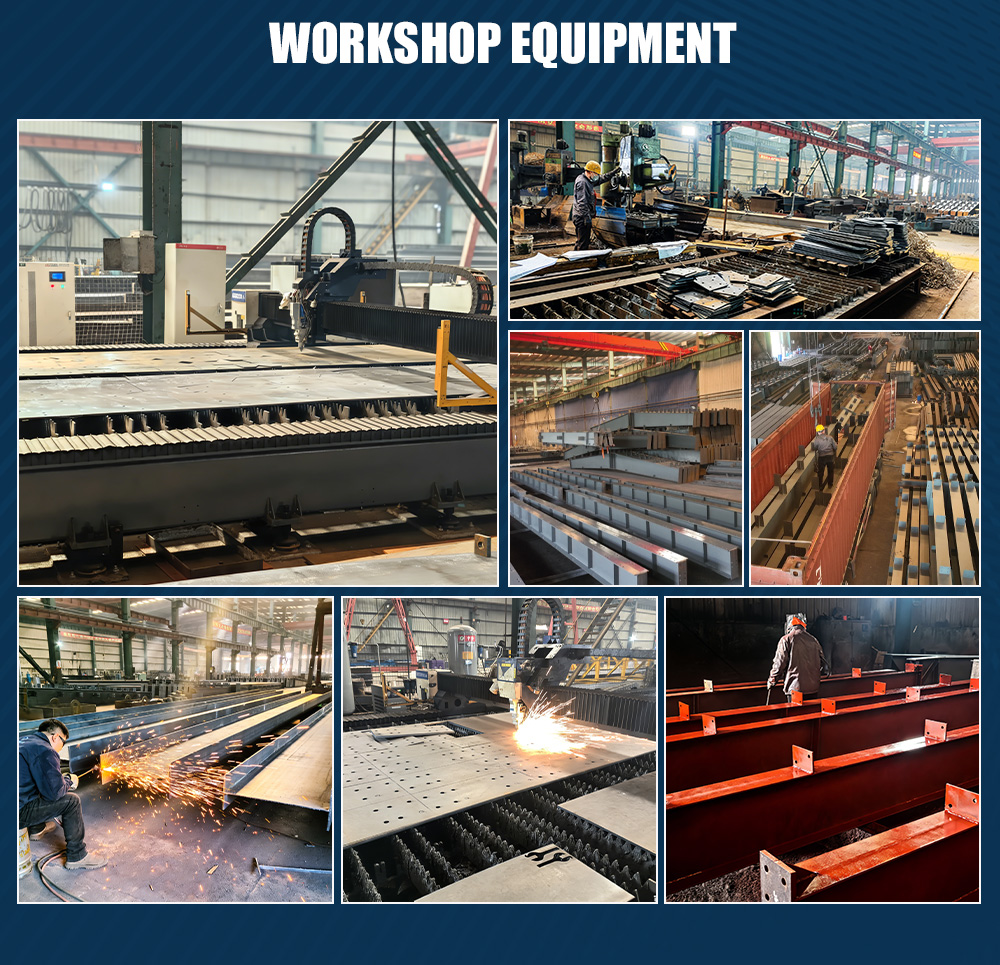

Production Facility
Manufacturing Line
Warehouse Overview
Material Storage
Processing Equipment
Finished Materials
Steel Structure Components
Workshop Construction
Quality Inspection
Company Qualifications
Frequently Asked Questions
Q1 Can your buildings withstand high wind/snow loads in my region?

Yes. We customize every design based on your local climate data (e.g., 120mph wind speed or heavy snow loads).

Q2 Do you provide installation services overseas?

We provide detailed 3D manuals and can send a technical supervisor to your site if required for large-scale projects.

Q3 What is the lifespan of your steel structures?

Our primary frames are designed for a 50+ year lifespan with proper maintenance.

Q4 How long is the use life of roof cover?

The use life of PE coating is usually 10-25 years.

Q5 How do we cooperate on a certain project?

Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge. Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your confirmation. Finally we make a deal on alibaba.com with Trade Assurance.

Q6 What international certifications does your company hold?

To serve the global market efficiently, Shenyang Zishenlong has obtained CE, ISO, and other relevant international industry certifications.
