Every facility presents unique ceiling clearances, floor slab loadings, and workflow dynamics. Guangzhou Heda Shelves Co., Ltd. manufactures four primary industrial mezzanine classes tailored to your distribution, e-commerce, or manufacturing demands.
TYPE 01
Built with heavy I-beams, H-sections, and robust hollow structural columns. Creates vast open spans below for dynamic forklift traffic, production lines, or prefabricated cleanroom and office enclosures above.
Wide-Span Clear Space
TYPE 02
Leverages heavy-duty pallet racking frames directly as supporting structural uprights. Integrates high-volume palletized storage on the lower floor with fast piece-picking, staging, or carton flow lines on elevated decking.
Dual Pallet & Pick Utility

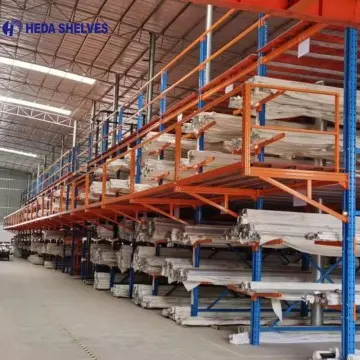

TYPE 03
An innovative synthesis of cantilever racking columns supporting an upper walkway or bulk floor. Engineered specifically for lumber, extrusion profiles, steel tubing, and oversized building supply inventories.
Optimized for Bulky Goods

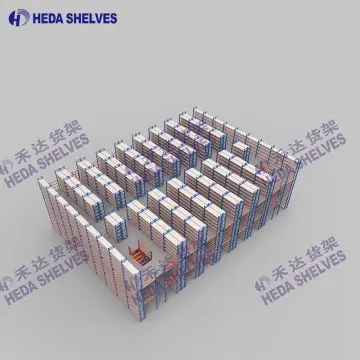

TYPE 04
Utilizes multi-tier medium or heavy-duty shelving frameworks as structural posts. Designed specifically for automotive aftermarket distribution, apparel fulfillment, electronic components, and small-item picking.
High-SKU Pick EfficiencySelecting the proper deck profile is vital for fire protection sprinkler compliance, ventilation, wheeled cart traction, and concentrated load safety.
| Decking Type | Permissible Load Range | Fire & Light Penetration | Wheel Resistance | Recommended Applications |
|---|---|---|---|---|
| Galvanized Open Steel Grating | 500 – 1,500 kg/m² | Maximum (>75% Open) | Moderate (Steel Wheels) | Sprinklered facilities, flammable goods storage, multi-tier HVAC zones |
| Solid Cold-Rolled Steel Planks | 300 – 1,000 kg/m² | Zero Penetration | High (Flat Pallet Jacks) | Dust-isolated picking zones, electronics, moisture-sealed inventory |
| Embossed Anti-Slip Checker Plate | 500 – 2,000 kg/m² | Zero Penetration | Superior (Heavy Carts) | Heavy tool rooms, assembly bays, high-traction oily environments |
| B-Deck + Plywood / ResinDek | 300 – 800 kg/m² | Zero Penetration | Very High (Quiet Rollers) | Office mezzanines, e-commerce garment picking, manual hand-cart lanes |
Procuring an international structural mezzanine requires precision modeling, rigorous material validation, and complete technical coordination. Guangzhou Heda Shelves Co., Ltd. provides full engineering documentation before fabrication begins.
Submit your clear building measurements, column grids, and floor slab ratings. Our senior storage engineers calculate structural spans, stair positioning, safety gates, and seismic clearances within 48 to 72 hours.
We generate 3D CAD visualization models demonstrating human clearances, material drop gates, forklift operating corridors, and conveyor feedpoints to eliminate costly field adjustments during installation.
Components are pre-numbered, banded, and mapped into 40ft high-cube ocean containers. Every beam bundle is marked with assembly coordinates and accompanied by English installation guides.
From industrial manufacturing to high-velocity third-party logistics (3PL), examine how Guangzhou Heda Shelves Co., Ltd. solves severe cubic footprint bottlenecks worldwide.
Equipped with pallet rack uprights, integrated safety swing gates, galvanized open grating for fire compliance, and 12-foot clear lower pallet staging corridors.
Integrated over 35,000 small and medium bin locations across three functional levels, tripling pick throughput while utilizing existing warehouse ceiling height.

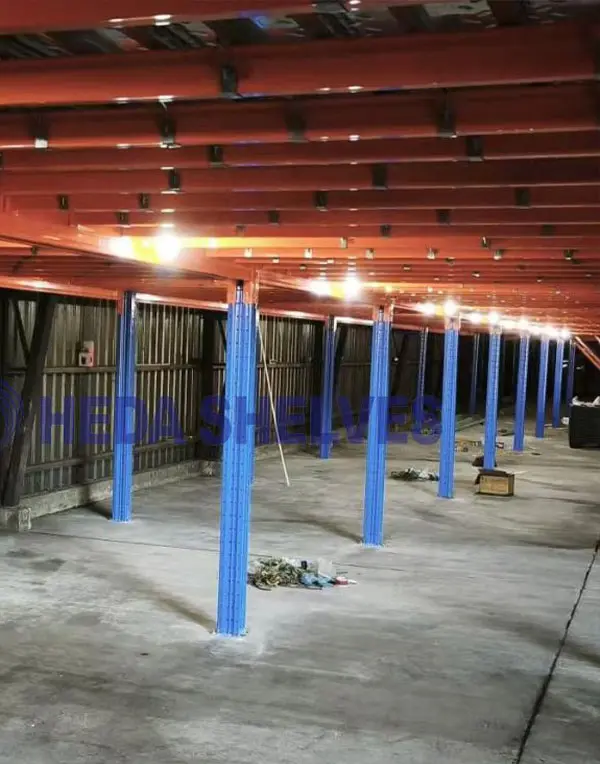

Engineered with 1,200 kg/m² uniform distributed live load ratings to support mechanized floor buffers, testing lines, and supervisory workstations overhead.
Our standard mezzanine load ratings range between 300 kg/m² and 1,000 kg/m² (approx. 60 to 205 PSF). For heavy automated machinery, stamping presses, or concentrated pallet loads, Guangzhou Heda Shelves Co., Ltd. custom designs heavy-duty structural steel platforms rated for up to 2,000 kg/m² (400+ PSF) with point-load finite element analysis (FEA).
We perform full structural calculations based on project seismic zone ratings, slab thickness, and dynamic operating forces. Detailed calculation sheets, material mill test certificates (MTC), and shop drawings are provided to support review and local municipal permit approvals.
Yes. All Guangzhou Heda Shelves Co., Ltd. mezzanine systems utilize 100% bolted structural connections without permanent on-site field welding. If your lease expires or your operations expand, the entire structure can be disassembled, re-configured, or extended with new beam bays.
We supply safety pivot gates, sliding pallet gates, OSHA-compliant handrails with 4-inch kickplates, heavy-duty industrial stairs with non-slip treads, vertical pallet chutes, and integration attachments for goods lifts and conveyors.
With an active monthly output exceeding 30,000 metric tons, standard mezzanine projects are fully fabricated, powder-coated, and packed within 20 to 30 calendar days. Direct container freight is scheduled to major North American, European, and global ports.
Send your building dimensions, clear height, and intended storage loads to our structural team. Guangzhou Heda Shelves Co., Ltd. will supply a cost-effective, code-ready mezzanine design and transparent quotation.
