Jracking Industrial Warehouse Storage Shelves Rack Durable Heavy Duty Cantilever Racks For Industrial Material Organization
Product Description
✓ Product Specifications
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI / CE / ISO / TUV / AS4084-2012 | ||
| MOQ | One 20ft / 40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

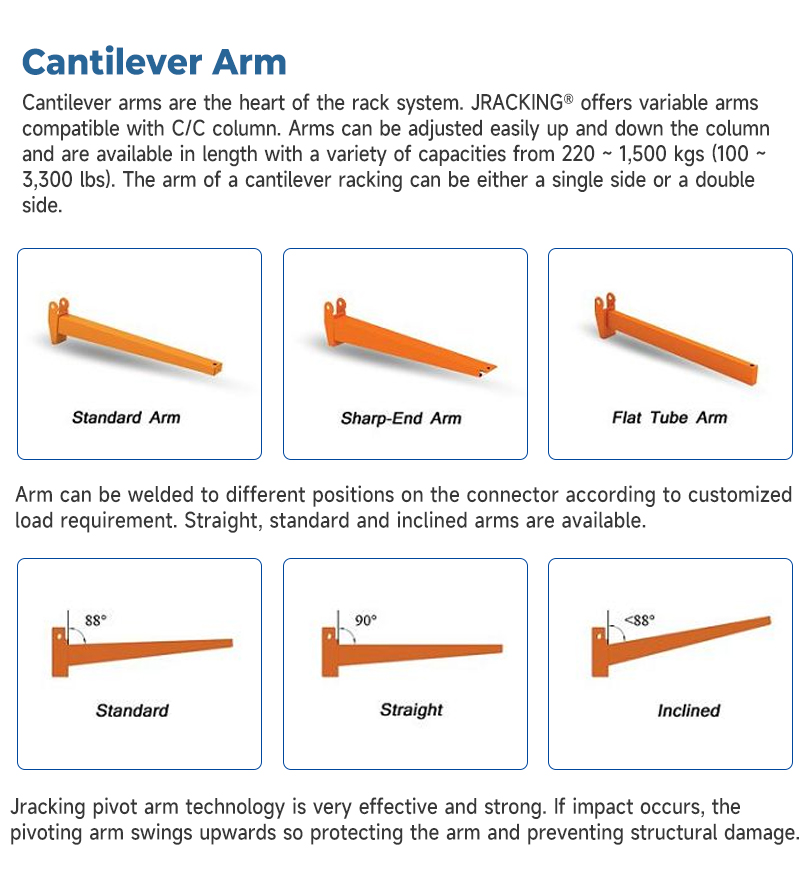

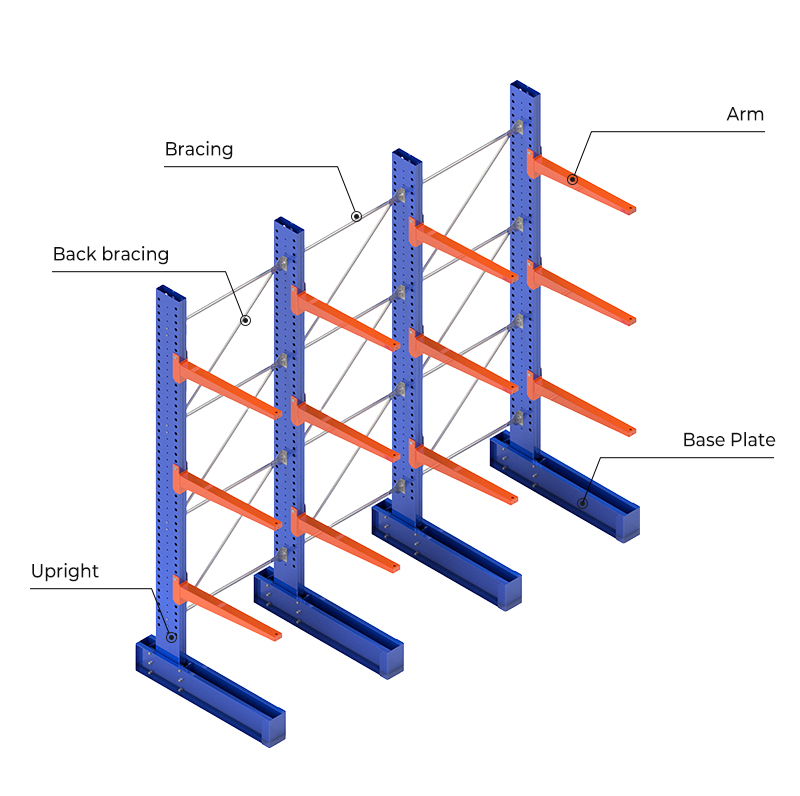

★ Component Details
⚙ Installation Steps

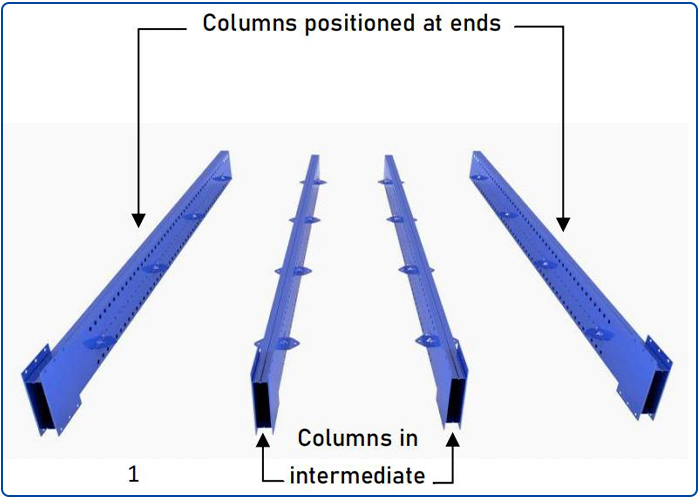

Step 1
Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.

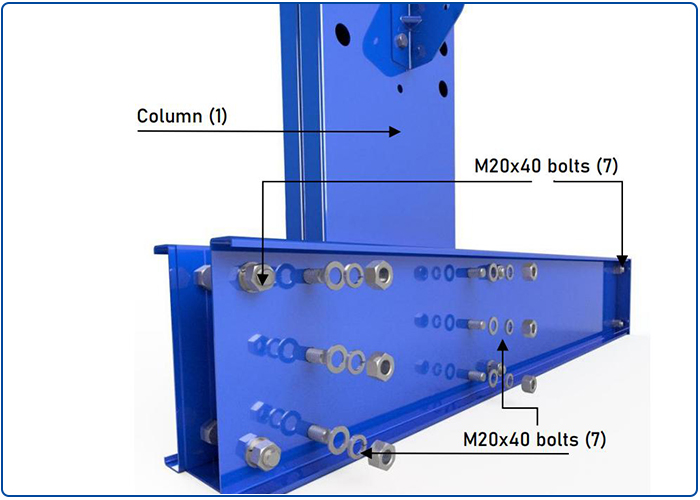

Step 2
Position the column (1) vertically. Position the column (1) into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fastening the other M20x40 bolts (7) on the base. Recommended torque: 86~103N.M.

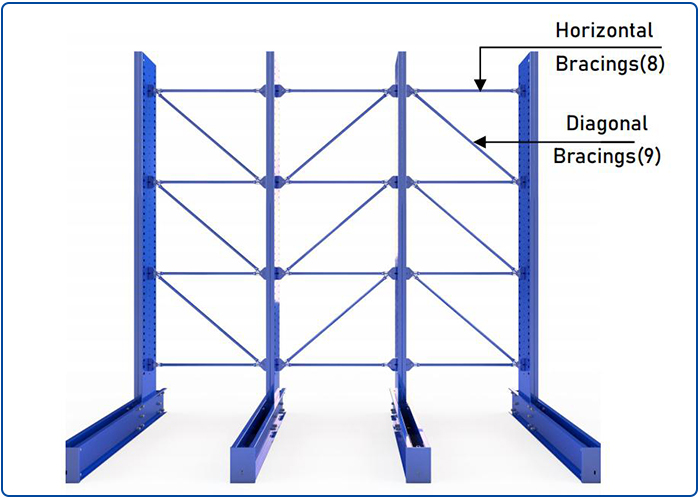

Step 3
The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.

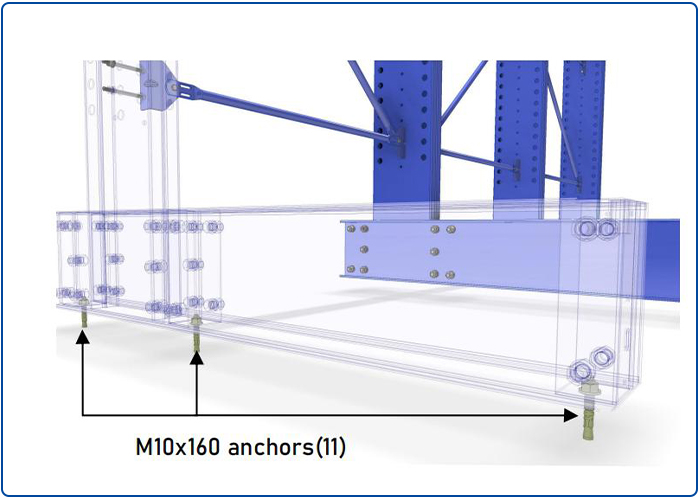

Step 4
The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts (7) on the base front as indicated in step 2. Using the drill-holes in the bases for fastening them to the floor, use a 014 bit and drill a hole with a minimum depth of 100 mm. Remove drilling remains and carefully hammer in fastening M10x160 anchors (11). Firmly bolt fastening plate in place. Recommended torque: 50 MN.

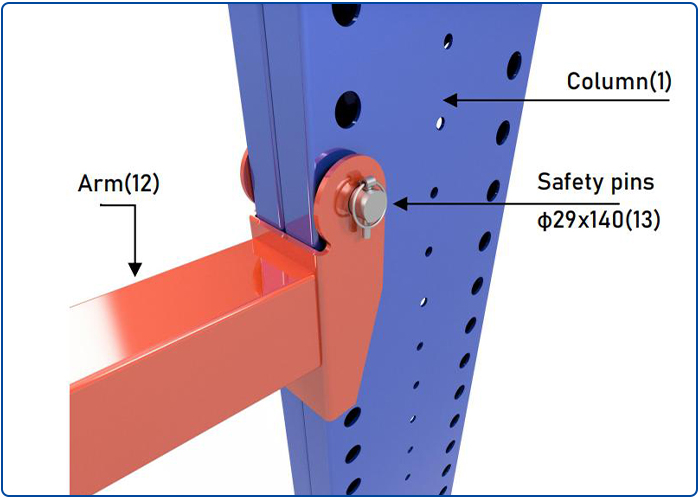

Step 5
The arm (12) is fastened to the column (1) using safety pins. Fit the arms (11) according to the heights and distribution shown on the corresponding project drawing, where applicable.

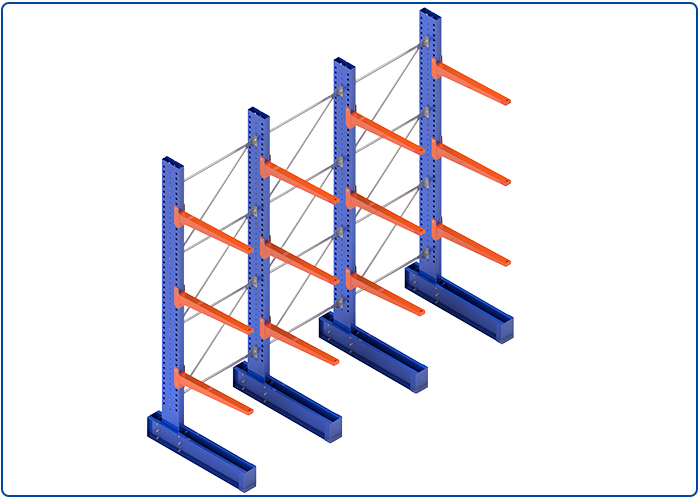

Step 6
Finally, the completed structure should look like the illustration.

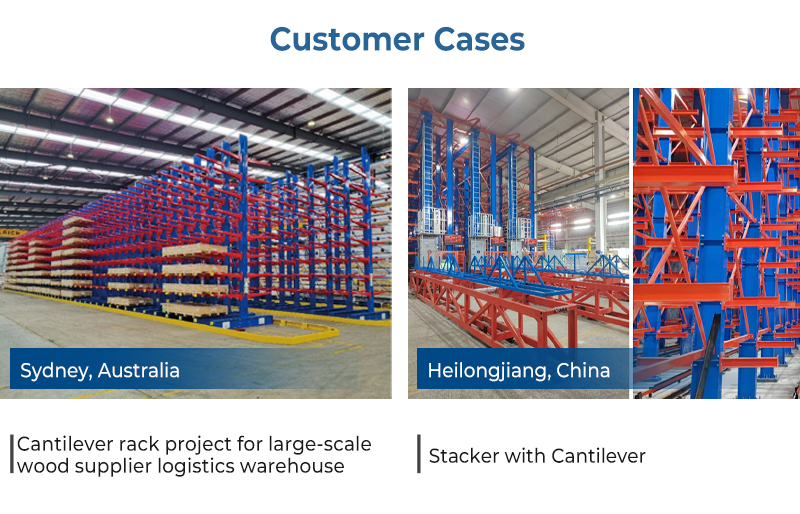

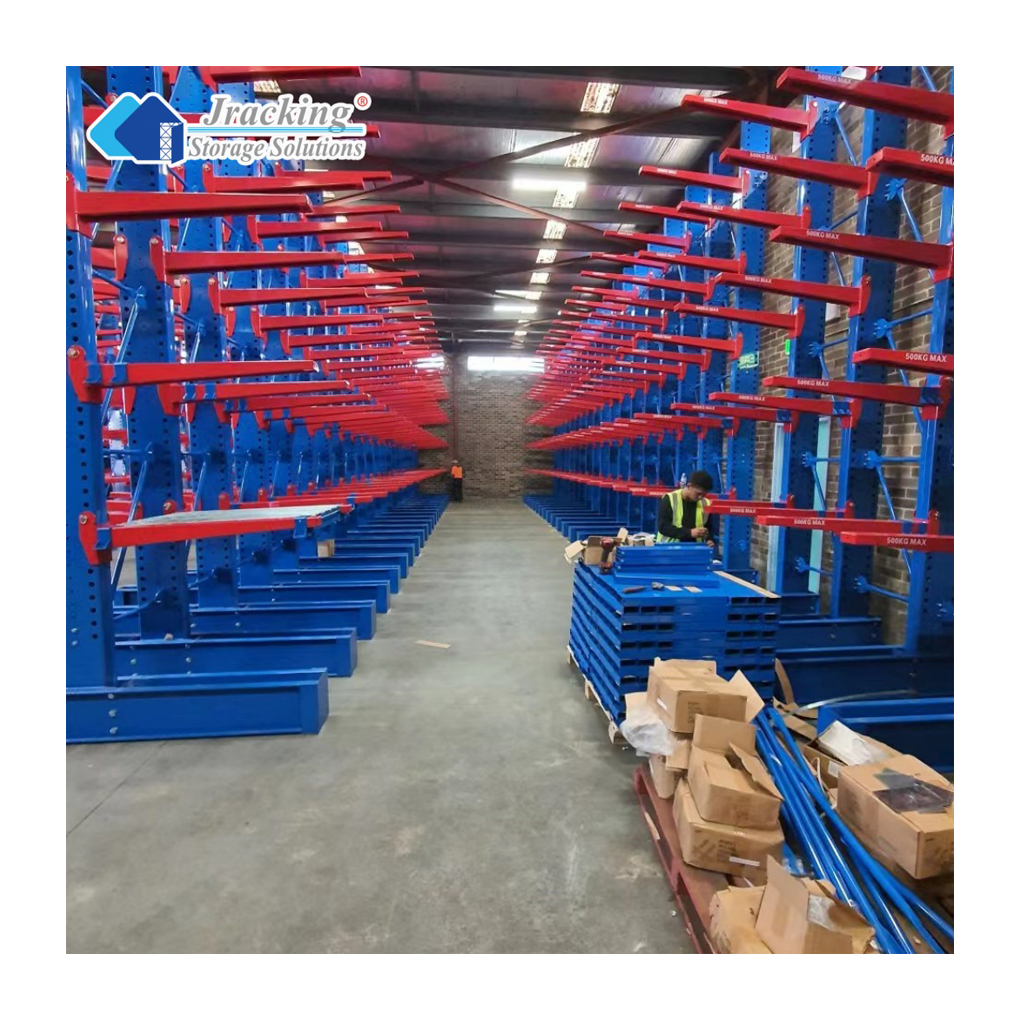

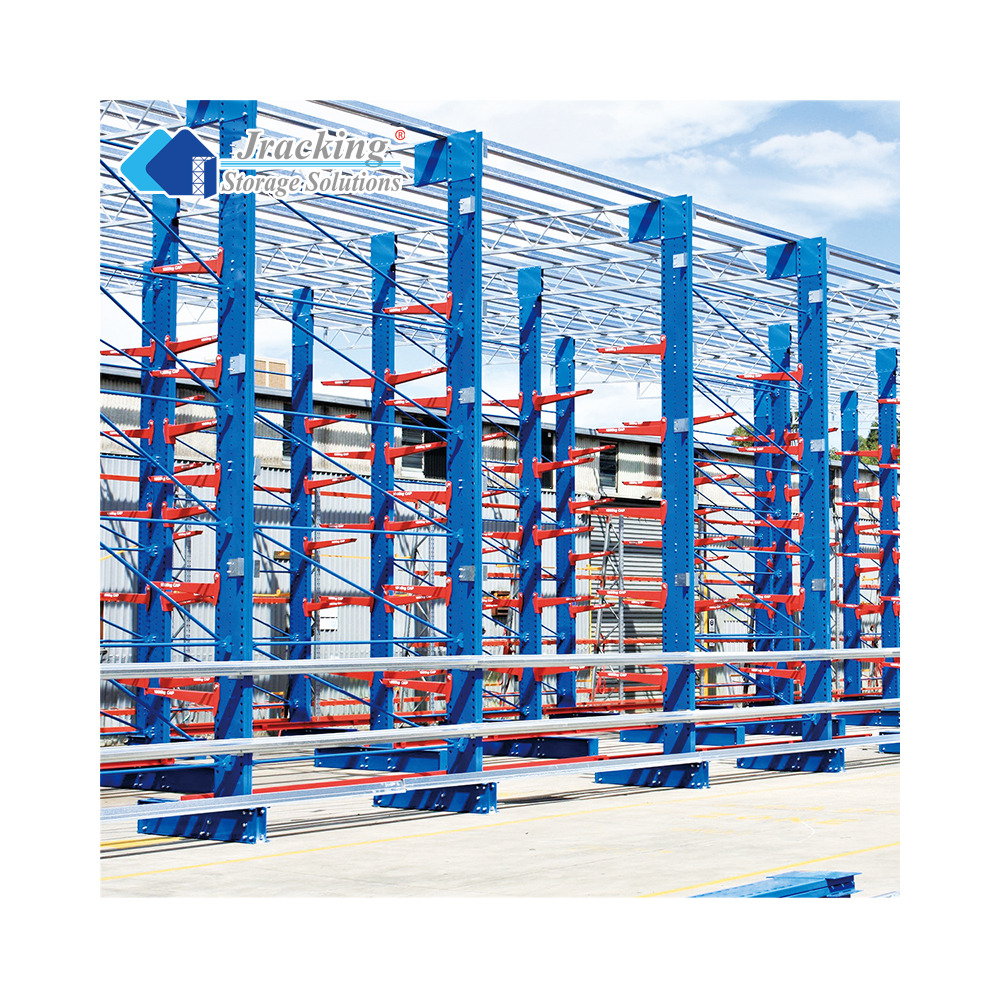

▦ Product Gallery & Applications
? Frequently Asked Questions
Q
What are your trading and payment terms?
A
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are available for each model and can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer competitive discounts for large quantities.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are available for each model and can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer competitive discounts for large quantities.
Q
How can my goods be delivered?
A
1) Sea freight: We will update sea freight once we know your destination seaport.
2) Agent designated by client: Please provide contact details for your shipping agent, and we will coordinate delivery.
2) Agent designated by client: Please provide contact details for your shipping agent, and we will coordinate delivery.
Q
What customer services do you provide?
A
1) Inquiries related to products or pricing will be answered within 12 hours.
2) Well-trained and experienced staff to address all inquiries in fluent English.
3) OEM & ODM services to support custom racking designs.
4) Experienced professional engineers to formulate the best storage solutions.
2) Well-trained and experienced staff to address all inquiries in fluent English.
3) OEM & ODM services to support custom racking designs.
4) Experienced professional engineers to formulate the best storage solutions.
Q
What is the standard order and purchasing process?
A
Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → QC inspection → Pay balance → Shipping.
Q
What competitive advantages do you offer?
A
1) Flexible payment: Available O/A 40-60 days.
2) Lead time: Fast turnaround on rush orders.
3) Factory price: Direct factory sales offering competitive market rates.
4) Warranty: Two-year warranty with replacement parts shipped directly.
2) Lead time: Fast turnaround on rush orders.
3) Factory price: Direct factory sales offering competitive market rates.
4) Warranty: Two-year warranty with replacement parts shipped directly.
Q
Does Jracking have an MOQ limitation or mold fee policies?
A
There is no strict MOQ limit, though higher volume delivers better pricing (we recommend regular orders fit at least one 20ft container / approx. 15 tons). For custom tooling, mold costs are charged prior to the initial order and are partially or fully refunded once specified order volume tiers are reached.
