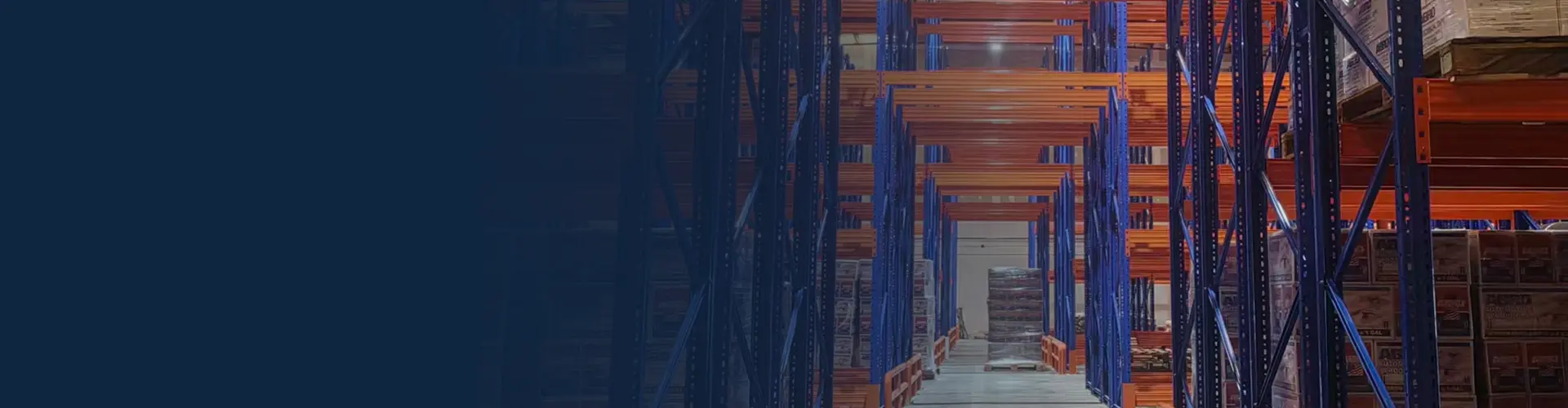

Manufactured by Guangzhou Heda Shelves Co., Ltd., our heavy-duty racking portfolio delivers modular, scalable, and high-density storage configurations suited for 3PLs, cold chain distribution, manufacturing logistics, and automotive inventory management.

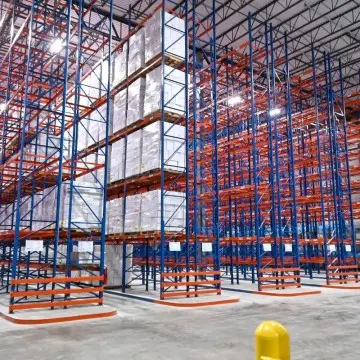

01 Engineered for tight aisle profiles (5 to 6 ft) working with turret trucks. Delivers 100% pallet selectivity while increasing usable cubic storage volume by up to 40% and reaching heights up to 60 ft.

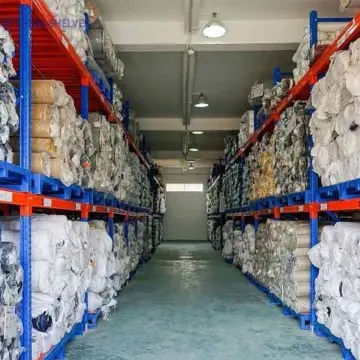

02 Custom-fabricated cradle and support bracket racking engineered specifically for non-standard cylindrical stock including carpets, paper reels, fabric bolts, and coiled industrial materials.
03 The global benchmark for multi-SKU warehousing. Provides unimpeded direct access to every pallet bay, full compatibility with 48″ × 40″ GMA pallets, and seamless integration with standard forklifts.
04 Eliminates individual work aisles to create continuous high-density storage lanes. Ideal for high-volume, uniform SKUs operating on a Last-In, First-Out (LIFO) cycle or seasonal surge staging.
05 Sloped roller track lanes utilize natural gravity to advance pallets from the rear loading aisle to front discharge faces. Enforces true First-In, First-Out (FIFO) stock rotation with integrated centrifugal speed brakes.
06 Semi-automated deep lane storage deploying independent battery-powered shuttles. Forklifts drop pallets at lane entrances while shuttles index loads automatically, protecting rack frames from equipment impact.
07 Utilizes low-profile nested carts on inclined structural steel channels to store 2 to 6 pallets deep per lane. Delivers high storage density while maintaining accessible picking faces across multiple SKUs.

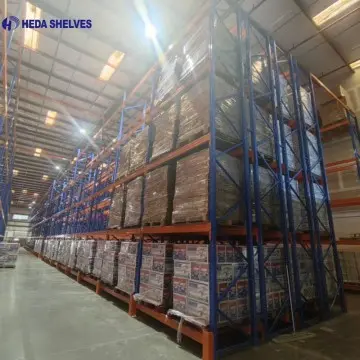

08 Arranges pallet positions two deep from a single aisle using pantograph or deep-reach forklifts. Increases total warehouse capacity by up to 40% compared with conventional single-row selective racking.
Guangzhou Heda Shelves Co., Ltd. provides complete technical documentation to support your engineering of record, local permitting, and material handling logistics before production starts.
Send your building dimensions, clear roof heights, column grids, and pallet specifications. Our in-house engineering team returns full architectural CAD layouts and beam loading tables within 24 to 72 hours.
Visualize clearance heights, flue spaces, travel pathways, and vehicle turning radiuses with comprehensive 3D system renders before releasing project fabrication.
From selective bays and pick tunnels to multi-tier mezzanines and wire mesh decking, we coordinate complete facility storage configurations tailored to your operating volume.
Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered turnkey storage solutions across 120+ countries, combining industrial-grade cold-rolled steel fabrication with precision quality control.
Dedicated warehouse storage and steel rack manufacturing since 2001, serving distributors, integrators, and industrial end-users globally.

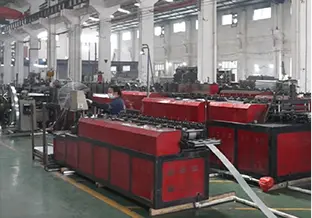

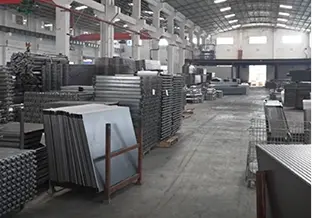

Modern 323,000 sq ft manufacturing facility with automated roll-forming, laser cutting, robotic welding, and high-speed powder coating lines.
Single-source accountability covering initial space optimization, structural calculation, precision production, ocean export packaging, and field assembly manuals.
Proven reliability across high-seismic zones, sub-zero cold chain freezers, high-cube e-commerce centers, and heavy raw material yards.
Our raw steel coil, continuous weldments, and powder-coated surface treatments undergo rigorous structural testing to meet strict safety and durability mandates.

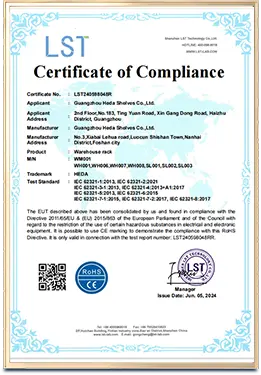

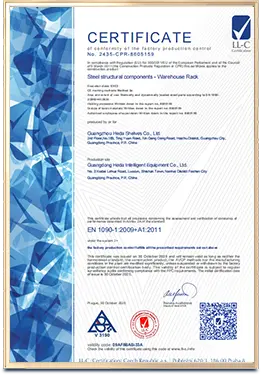

CE Marking (CPR)

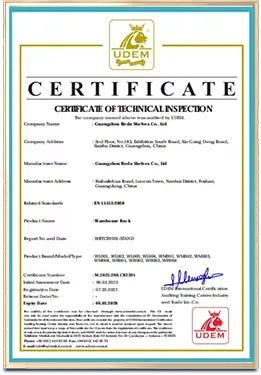

ISO 9001:2015

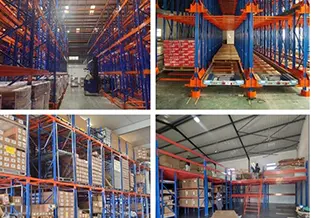

RoHS Compliance EN 1090 Steel Norms Strict Factory QC Heavy Duty Durability Review real-world implementations engineered, manufactured, and shipped to international commercial and logistics facilities.
Reinforced upright columns and customized heavy-duty cross beams engineered for liquid drum pallets and heavy IBC containment units.
High-bay selective pallet racking integrated with walkable overhead picking levels, multiplying usable SKU slots without expanding building footprint.
Automated shuttle lanes maximizing pallet density in cold temperatures, reducing refrigerated space refrigeration load per pallet stored.
Guangzhou Heda Shelves Co., Ltd. manufactures selective pallet racking, double deep racking, drive-in systems, push back racks, gravity pallet flow, radio shuttle racks, and very narrow aisle (VNA) systems. We supply individual racking modules as well as hybrid zoned configurations.
Yes. Send your warehouse dimensions, clear height, pallet weights, and forklift specifications. Our engineering team prepares complete CAD layout drawings, 3D renderings, and structural loading calculations tailored to your local building parameters.
Standard heavy-duty selective beam levels support from 2,200 lbs to 11,000 lbs (1,000 kg to 5,000 kg) per pair. High-density dynamic systems like drive-in, push back, and radio shuttle lanes typically support 2,200 lbs to 6,600 lbs (1,000 kg to 3,000 kg) per pallet position based on your engineering requirements.
Yes. Beam clear spans, frame depths (typically 42″ to 44″ for standard GMA pallets), and heavy-duty wire mesh decking or cross support bars are engineered around North American pallet standards as well as bespoke skid dimensions.
To prepare an accurate engineering quote, provide pallet dimensions (W × D × H) including product overhang, maximum pallet weight, ceiling clear height, forklift model or mast height, and any seismic criteria applicable to your site.
Partner with Guangzhou Heda Shelves Co., Ltd. for factory-direct engineering, ISO 9001:2015 certified steel manufacturing, and comprehensive export logistics to major North American ports.
