Customizable Heavy-Duty Portable Steel Stacking Racks
- Corrosion-protected Q235B steel frame
- Demountable posts reduce dead space
- Load rating: 1,000–2,500 kg/tier
2001+
Established Heritage
Over two decades of structural cold-formed steel manufacturing.
30,000t
Monthly Throughput
Guaranteed supply chain continuity and continuous roll-forming output.
323,000sq ft
Advanced Production Site
Fully integrated CNC stamping, robotic welding, and automatic coating.
10,000+
Global Deployments
Engineered for RMI, ANSI MH16.1, and Canadian CSA S16 compliance.
Engineered Warehouse Platforms
Factory-Direct Pallet Racking & Modular Platform Systems
Our heavy-duty certified structural series offers high structural safety margins, scalable footprint expansion, and precision compatibility with standard 48" × 40" GMA pallets, Euro containers, and automated shuttle equipment.
HEDA Steel Pallet Racking System Heavy Duty
- 100% selective individual pallet access
- Multi-cllaw beam safety connectors
- Customized imperial and metric spans
Industrial Cantilever Racking System (Up to 5000kg)
- Obstacle-free horizontal frontal access
- Engineered for pipes, timber & extrusions
- Single or dual-sided upright towers
Customized Automatic Heavy Duty Vertical Cargo Rack
- High-bay tight deflection tolerance tolerances
- Compatible with stacker cranes and lifts
- Maximizes vertical cubic utilization
High Quality 500kg 5-Layer Adjustable Storage Racks
- Modular bolt-free beam pitch adjustments
- Versatile steel deck or wire mesh insert
- Fast installation for dynamic inventories

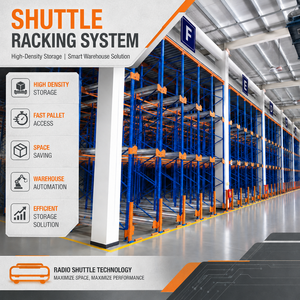

Radio Shuttle Pallet Racking Deep-Lane System
- Remote control bidirectional shuttle carrier
- Cold storage rated to -25°C environment
- Eliminates forklift aisle travel hazards

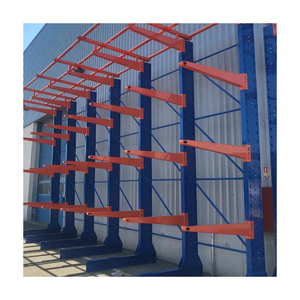

Customized Q235B Structural Cantilever Racks
- High bending resistance under uneven loads
- Tapered column design prevents deflection
- Custom zinc-galvanized or epoxy finishes
Heavy Duty Round Steel Pallet Stillage Feet
- Heavy-gauge stamped cup design for nesting
- Ensures stability under multi-tier stacking
- Seamless arc-welded load integration
Enterprise Manufacturing Capabilities
Why Enterprise Operations Trust Our Rack Platform Engineering
Direct from our 323,000 sq ft manufacturing campus in Guangzhou, we deliver turn-key engineering, parametric CAD simulation, and rigorous structural quality controls designed to streamline municipal permitting across North America.
25+ Years of Rack Engineering Heritage
Operating continuously since 2001, Guangzhou Heda Shelves Co., Ltd. has accumulated design and fabrication datasets across 10,000+ facilities globally. We understand the specific shear, moment, and buckling characteristics of roll-formed cold-rolled structural steel profiles, ensuring high load stability.
Complimentary 24-Hour CAD & 3D Modeling
Our in-house project engineers produce clear CAD floor layouts, slab load point distributions, and full 3D spatial elevations within 24 hours. All project submissions include dimensional data in imperial feet/inches or metric units, ready for immediate review by your local Structural Engineer of Record (EOR).
Automated 10-Stage Surface Treatment
Steel profiles undergo strict surface preparation including automated acid pickling, phosphating, and electrostatic powder coating baked at 200°C. This process delivers high adhesion and corrosion protection against harsh chemicals, humidity, and sub-zero cold storage condensation.
High-Capacity Production Line (30k Tons/Mo)
Equipped with high-precision CNC slitting stations, automated 600-ton hydraulic punching machines, and robotic seam welders, our facility converts top-grade Baosteel and Shougang Q235B/Q355B coils into finished racking sections on strict, predictable lead times.
Verified Certifications & Seismic Design
Our quality management systems hold ISO 9001:2015 certification (Cert #18624Q00169R0M) and European CE Marking (#2435-CPR-8605159) alongside full material traceability. Upright columns and footings are engineered to resist seismic zone accelerations and wind overturning loads.
Container-Optimized North American Freight
We pack upright frames and cross beams using heavy steel bands, timber blocking, and moisture barrier wrap designed for maritime transit. Our logistics specialists arrange break-bulk and 40ft High Cube container shipments directly to major ports including Los Angeles, Houston, Savannah, and Vancouver.
Engineering Whitepaper Extract
Structural Integrity Analysis: Beam-to-Column Connection Mechanics
The safety and operational lifetime of a heavy-duty pallet rack platform depend largely on the rigidity of its beam-to-column beam connector. Under cyclic forklift loading and dynamic impact, welded end connectors must distribute vertical shear forces into the perforated upright without causing local plastic deformation around the punch slots.
HEDA utilizes high-yield cold-formed profiles with multi-tooth interlocking connectors and spring-actuated safety locking pins. Our automated slotting maintains pitch consistency of ±0.2mm across continuous 12-meter upright lengths, providing stable beam seating, resisting dislodgement from upward forklift tines, and delivering measurable seismic moment resistance.
Request Technical Calculation SheetsEngineering Design Criteria
Base Material Grade
Certified Q235B / Q355B Hot-Rolled Strip
Yield Strength (Fy)
≥ 235 MPa / ≥ 355 MPa Structural Yield
Tensile Strength (Fu)
370–500 MPa / 470–630 MPa
Standard Upright Pitch
50mm, 75mm, or 76.2mm (3-Inch US Standard)
Beam Deflection Limit
L/200 standard (or L/240 high precision)
Powder Coating Mil Depth
60–90 μm Electrostatic Thermo-Cured
Seismic Analysis Method
Equivalent Lateral Force & Response Spectrum
System Evaluation Matrix
Engineering Comparison: Choosing Your Optimal Rack Platform Architecture
Selecting the right warehouse platform requires balancing SKU turnover, forklift capital expenditure, vertical headroom, and cubic floor footprint. Use our reference matrix to align your operational flow with the correct storage topology.
| Platform System Type | Density Rating | Pallet Accessibility | FIFO / LIFO Mode | Aisle Requirement | Primary Application Suitability |
|---|---|---|---|---|---|
| Selective Pallet Racking | Baseline (1x) | 100% Direct Selective Access | Both FIFO & LIFO | 10.5 – 12.5 ft (Counterbalance) | High SKU counts, general 3PLs, e-commerce fulfilment hubs |
| Double Deep Racking | Medium-High (1.4x) | 50% Immediate Access | Strictly LIFO | 9.8 – 10.5 ft (Pantograph Reach) | Multi-pallet lot sizes, dry grocery, cold chain secondary staging |
| Drive-In / Drive-Thru | High (1.75x) | Lane-Indexed Batches | LIFO (Drive-In) / FIFO (Drive-Thru) | Forklift enters directly inside rack lane | Seasonal inventory, cold storage freezers, homogeneous bulk SKUs |
| Push-Back Cart Racks | High (1.6x) | Face-of-Lane Access | Strictly LIFO | Standard Forklift Aisle | 2–6 deep positions per lane; fast loading without entering structure |
| Radio Shuttle Automation | Ultra-High (2.2x) | Automated Deep Lane Shuttle | Configurable FIFO or LIFO | Single loading & unloading terminal aisles | Cold storage warehousing, beverage manufacturers, mega distribution hubs |
| Rack-Supported Mezzanine | Maximum Vertical Volume | Multi-Tier Walkable Picking | Multi-Level Flexible Picking | Integrated internal catwalks & stairways | B2C carton fulfillment, apparel, automotive spare parts distribution |
Strategic Sourcing & Procurement Forecast
Future Sourcing Trends for Industrial Pallet Platforms (2025–2030)
Modern logistics facilities are transitioning from static steel structures into flexible, sensor-monitored, semi-automated assets. Understanding these macroeconomic and structural shifts allows procurement leaders to avoid stranded warehouse capital.
1. Structural Integration for AMR & AGV Hybrids
Traditional reach truck aisles are increasingly adapting to Autonomous Mobile Robots (AMRs) and autonomous forklifts. Pallet rack platforms now demand tighter baseplate tolerances (±1.5mm levelness), integrated LiDAR reflective target anchors, and high-impact column wrap guards to allow robotic navigation without structural collision risks.
2. Decarbonization & Circular Steel Sourcing
Procurement teams across North America and Europe are evaluating embodied carbon metrics (Scope 3 emissions) on structural purchases. Leading manufacturers are investing in electric arc furnace (EAF) coiled steel and energy-efficient powder application lines that cut carbon intensity per finished metric ton by over 28%.
3. Stricter Seismic and Dynamic Floor Permitting
Building inspectors enforce rigorous adherence to ASCE 7 and IBC Chapter 22 seismic design provisions. Buyers increasingly require pre-engineered Calculation Packs from manufacturers detailing base plate anchor bolt pullout shear calculations, concrete slab slab-burst capacities, and cold-weather fracture toughness ratings.
Direct Engineering Answers
Frequently Asked Questions on Pallet Platform Procurement
In-depth structural, logistical, and compliance answers from our senior engineering team to guide your project planning and budget review.
How do you verify structural compliance with US (RMI/ANSI MH16.1) and Canadian building codes?
Our structural design team uses advanced finite element analysis (FEA) software that calculates upright compression, beam bending, and connector spring stiffness in accordance with the American ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks) and Canadian CSA S16 standards. For projects requiring municipal permitting, we prepare complete CAD shop drawings, component load charts, base plate reaction forces, and steel mill test reports (MTRs) to support your local Professional Engineer (PE) or Engineer of Record (EOR) during the stamping and approval process.
What concrete slab specifications are needed for heavy-duty structural rack platforms?
For standard selective and drive-in pallet racking installations, a reinforced concrete slab with a minimum thickness of 6 to 8 inches (150–200 mm) and compressive strength of 3,000 to 4,000 PSI (20.7–27.6 MPa) is generally standard. For heavy cantilever installations and multi-level rack-supported mezzanines, point loads beneath the upright base plates can exceed 15,000 to 25,000 lbs. In such scenarios, our engineering drawings specify enlarged footplates, supplementary heavy-duty wedge anchors, or isolated concrete footings to prevent slab punching shear.
Can HEDA manufacture racks compatible with teardrop styles and standard 48" × 40" GMA pallets?
Yes. We manufacture North American standard teardrop punch profiles on a 2-inch vertical pitch, allowing interchangeability with standard US/Canadian teardrop components. Our standard pallet rack beam lengths (such as 96", 108", and 144") and frame depths (typically 42" or 48") are optimized for double-pallet or triple-pallet configurations holding standard 48" wide by 40" deep Grocery Manufacturers Association (GMA) wood pallets, plastic skids, or steel stillages with appropriate flue space clearance.
What is the typical production and ocean transit timeline for North American deliveries?
Standard fabrication time at our factory is typically 15 to 25 business days depending on tonnage and customization needs. Ocean transit times generally average 14 to 20 days to West Coast ports (Los Angeles/Long Beach, Oakland, Vancouver) and 28 to 35 days to Gulf and East Coast ports (Houston, Savannah, New York/New Jersey). Our export documentation includes packing lists, commercial invoices, Mill Test Certificates, Fumigation Certificates (for timber dunnage), and bill of lading (BOL) documentation for customs clearance.
How does HEDA prevent paint flaking and corrosion in cold storage freezer environments?
Cold storage facilities (-20°F to -25°C) face severe thermal expansion cycles and moisture condensation during defrosting. We use a 10-stage immersion pre-treatment with zinc phosphating followed by thermosetting polyester epoxy powder coating cured at high temperature. For outdoor cantilever installations or extreme humidity blast-freezer operations, we also offer hot-dip galvanized (HDG) steel components fabricated to ASTM A123 standards, providing cathodic corrosion protection against rust.
Accelerate Your Warehouse Capacity with Expert Engineering
Send our structural team your building dimensions, clear ceiling heights, pallet sizes, and forklift models. We deliver a complete 2D/3D CAD layout, load capacity calculation sheet, and an itemized factory quotation within 24 hours.
