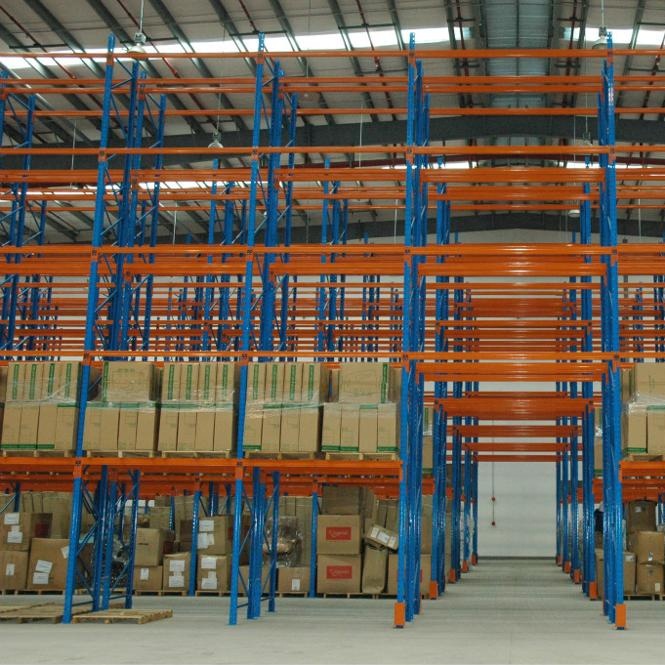

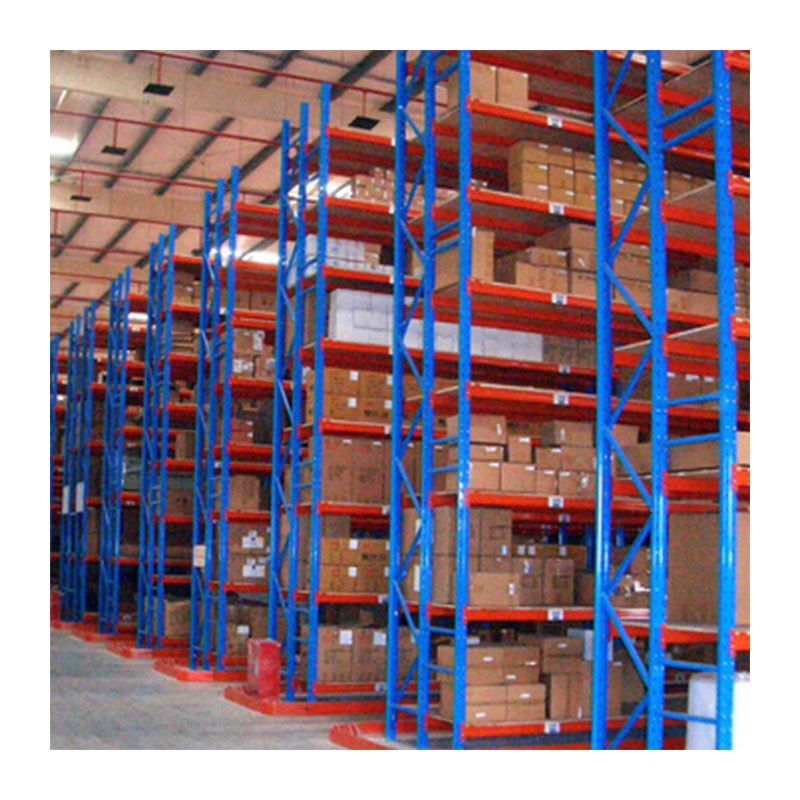

Customized Automatic Heavy Duty Warehouse Vertical Cargo Rack End Pallet Racking Pallet Shelves Racking Systems
Product Description

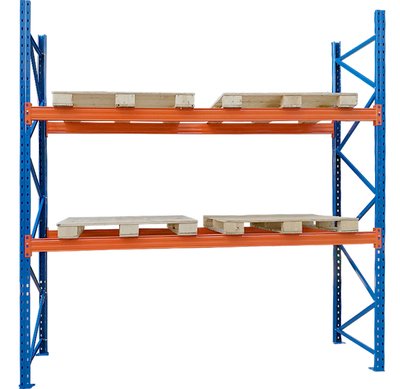

Heavy Duty Pallet Racking

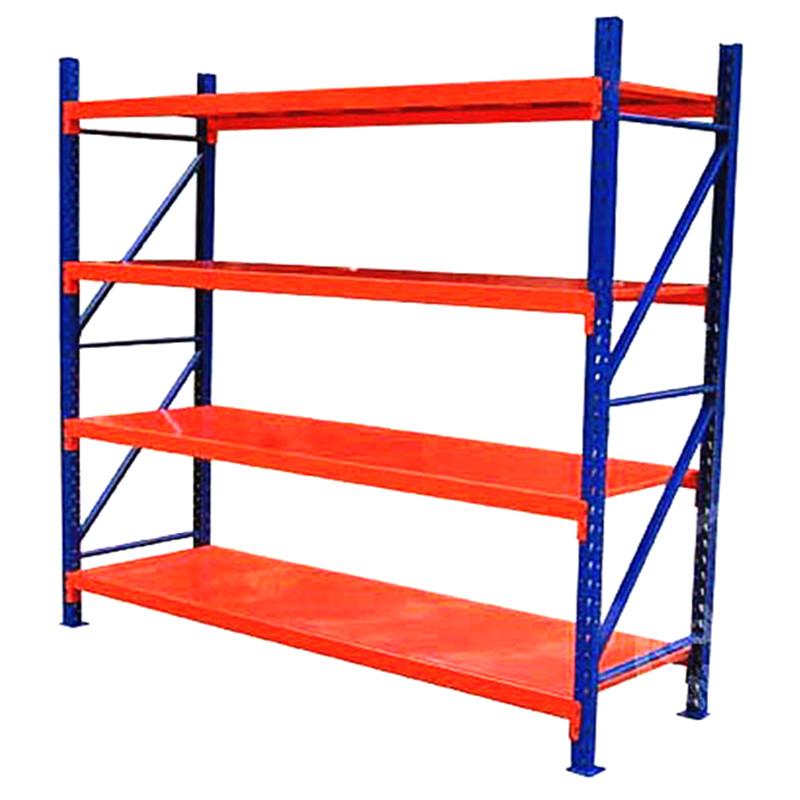

Medium Duty Rack

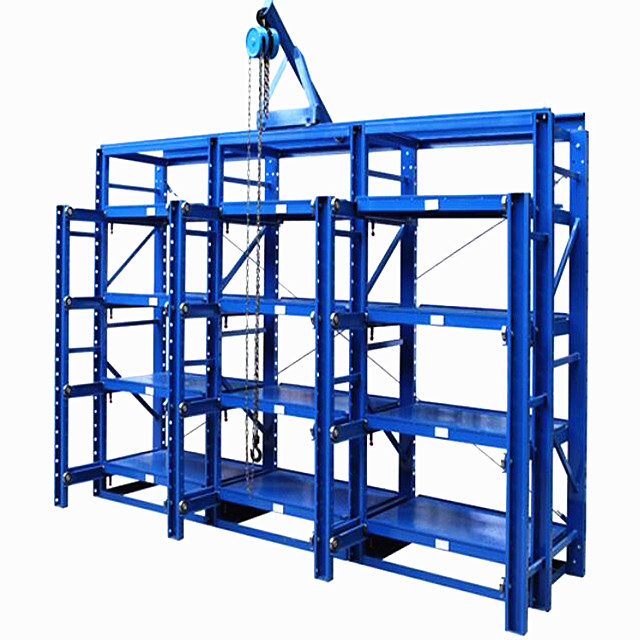

Mould Rack

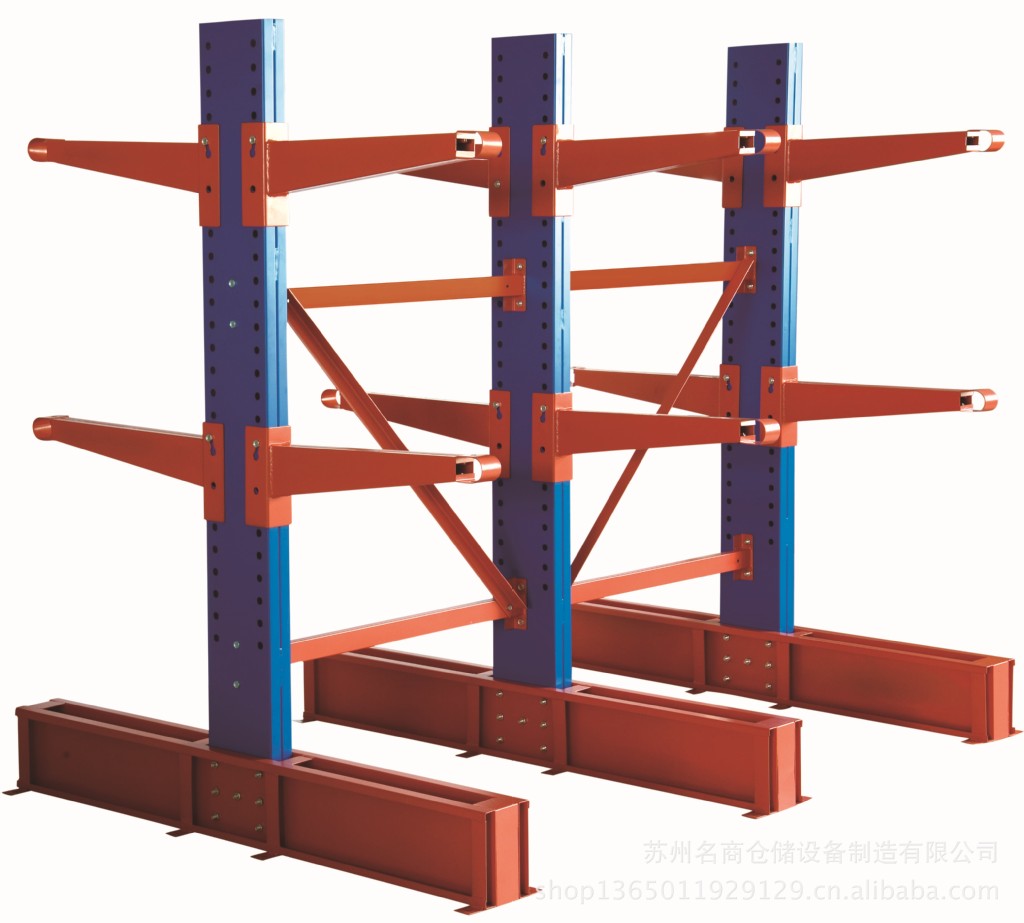

Cantilever Rack

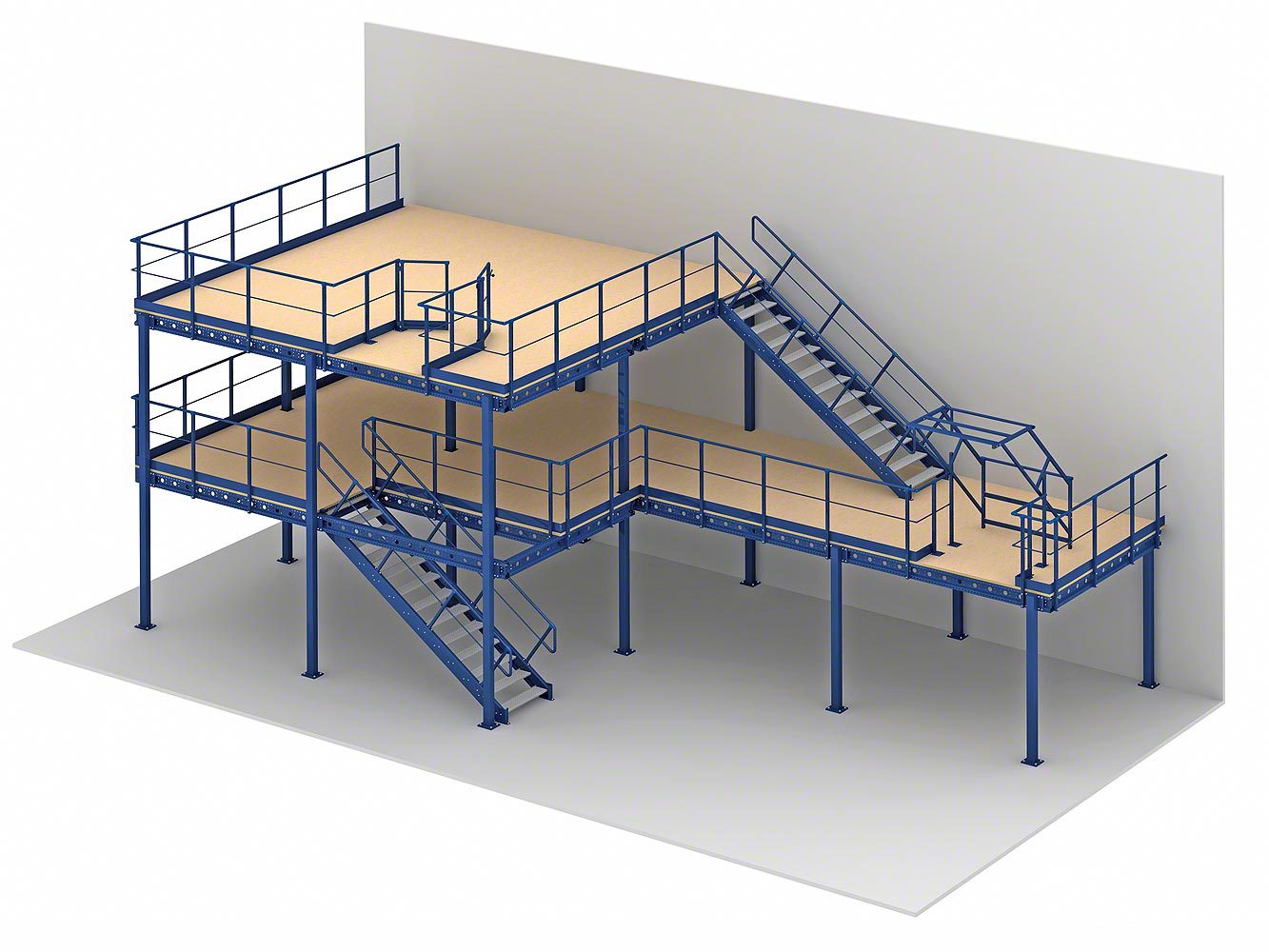

Mezzanine Floor

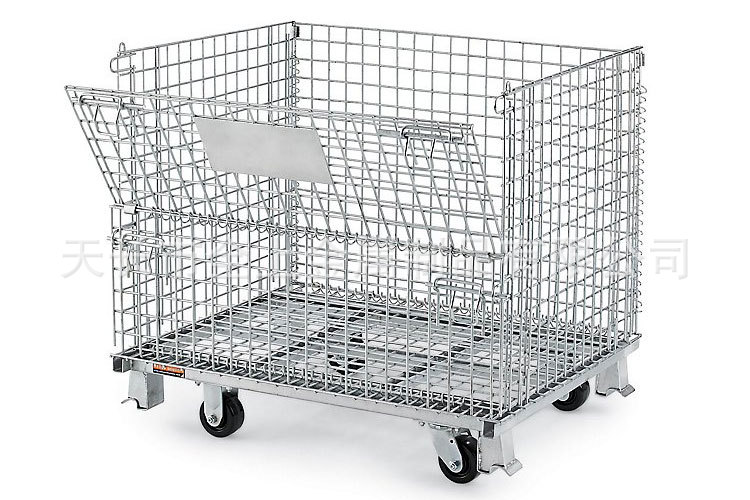

Wire Mesh Container

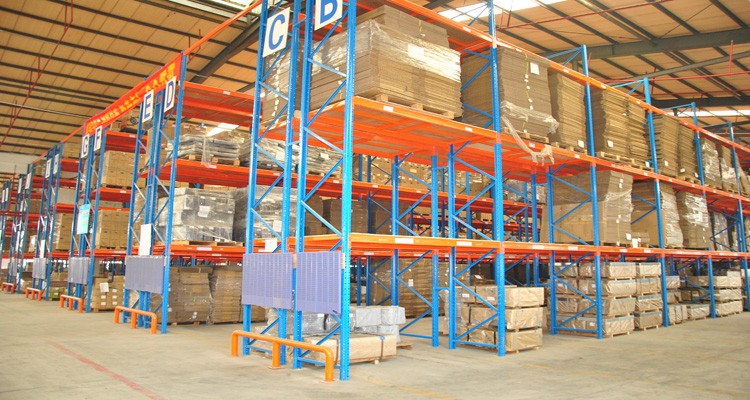

Heavy Duty Rack:
Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouses for its advantages of appropriate height and convenience in accessing goods.
| Brand | XINMIAO |
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange, can be customized. |
| Standards Size | L2300*D1000*H4500 and size can be customized according to your requirement |
| Height | 1500-8000mm or Customized |
| Wide/Depth | 400-1500mm or Customized |
| Length | 1500-3200mm or Customized |
| Upright-Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm etc. |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc. |
| Treatment Surface | Powder coated |

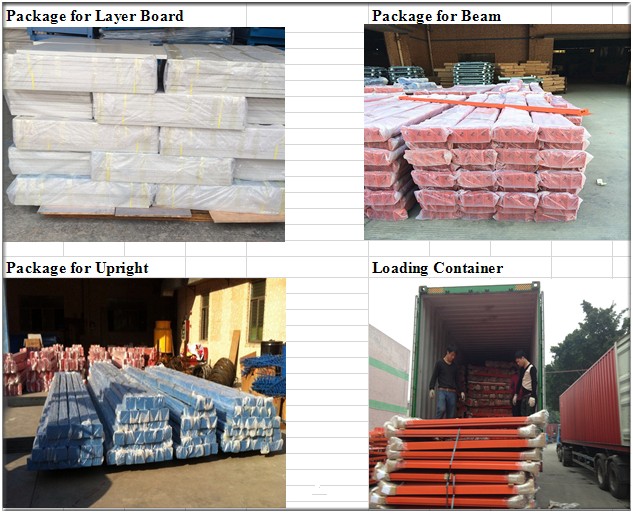

| Packing Term | Air bubble, Wooden Case, etc. |
Key Features

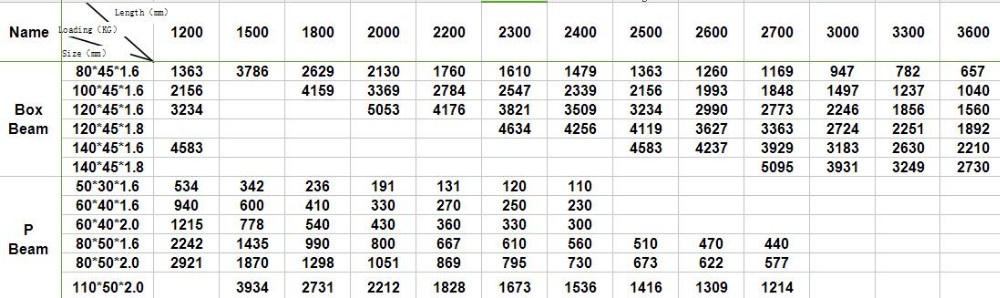

Beam Loading Capacity & Size

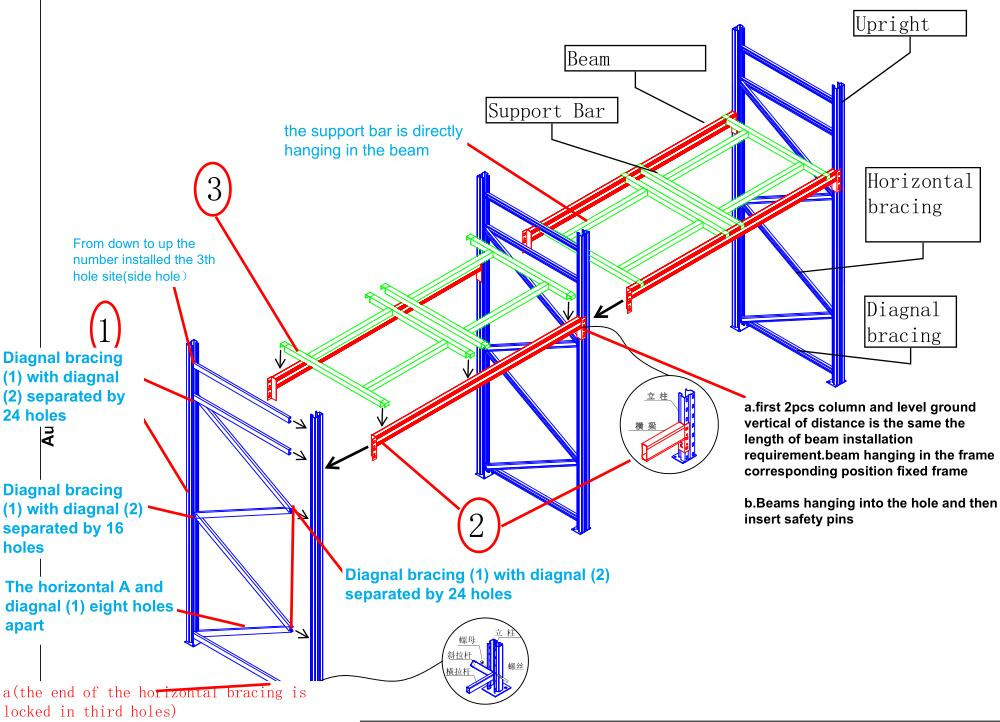

Upright & Beam Installed

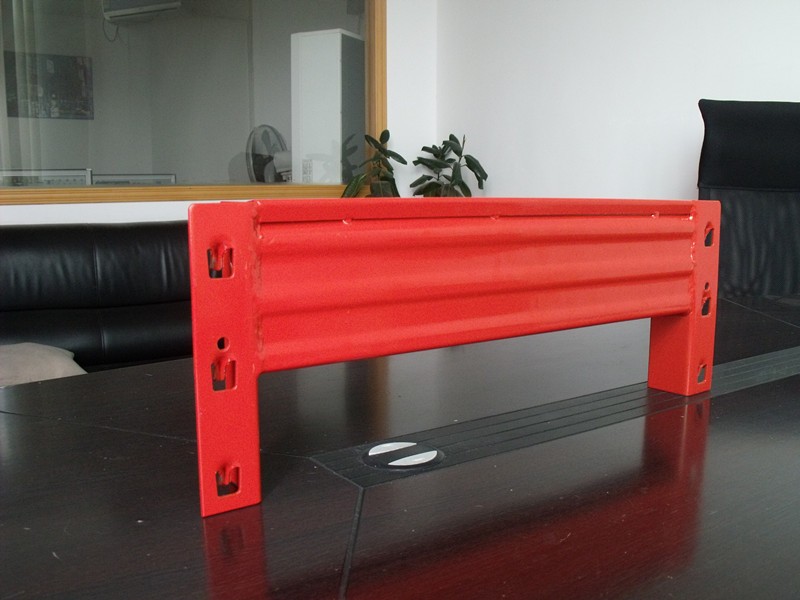

Box Beam

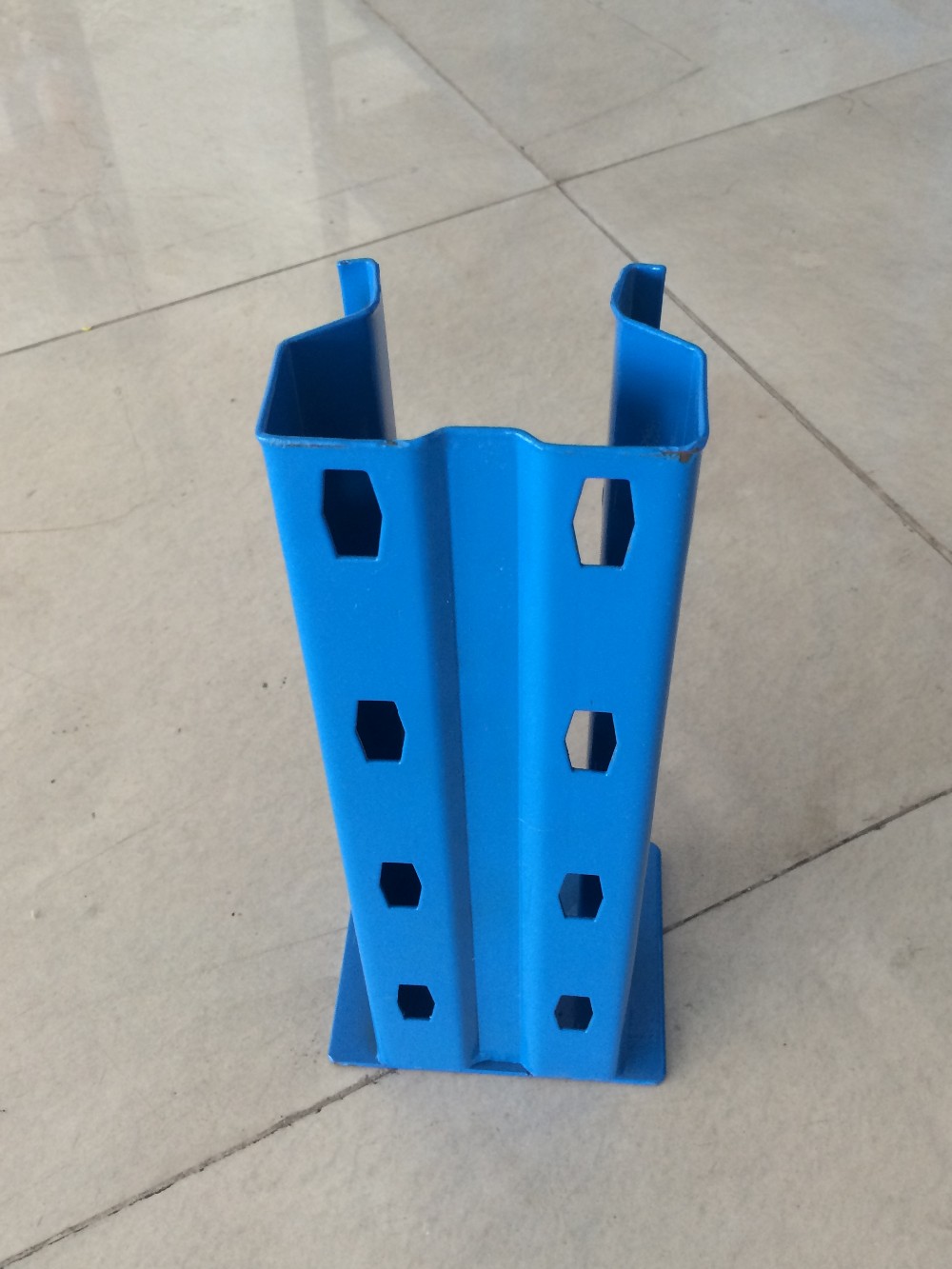

Upright

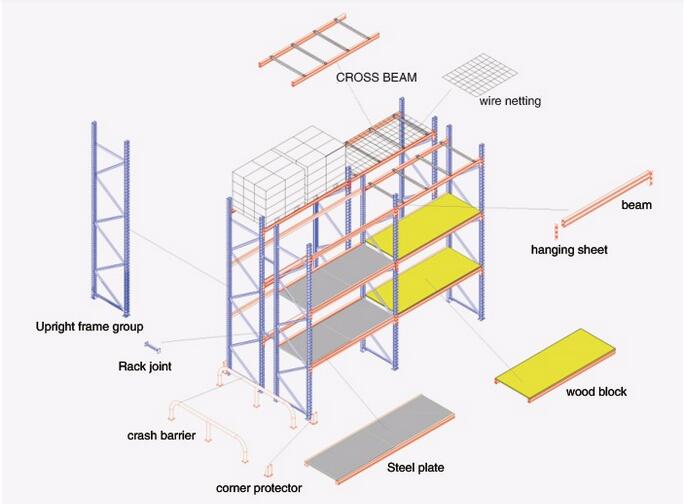

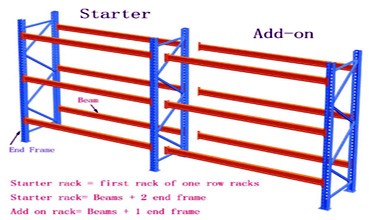

What's Start-bay and Add-bay?
• Start-bay = First rack of one row racks
• Start-bay = 2 end frames + Beams
• Add-bay = 1 end frame + Beams
About XINMIAO
Dongguan Xinmiao Storage Equipment Co., Ltd. devotes itself to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, carton flow rack, stacking racking and other related storage equipment.
Through products and service aimed at providing complete assistance for all warehousing, products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price, as well as rapid delivery time and first-class back-up service.

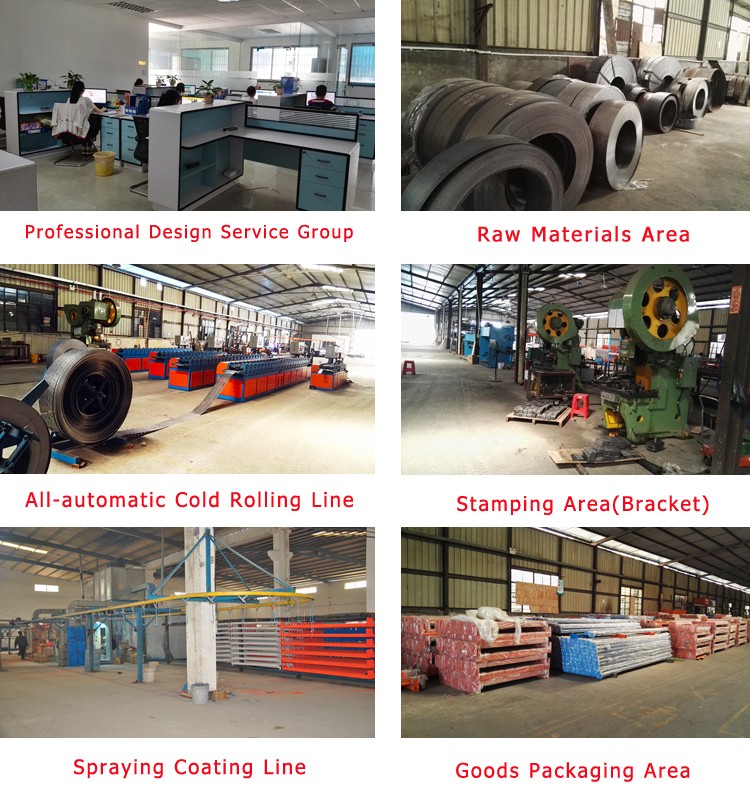

We are a factory specializing in storage equipment design and manufacturing.
Our factory is located in Chang'an City, Guangdong Province, China, near Shenzhen. You can fly to Shenzhen or Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
The primary material is High-Quality Q235 Cold rolled steel. We can also select customized materials according to customer requirements.
We are honored to offer you product samples for quality evaluation.
Quality is our priority. We attach great importance to quality control from the very beginning to the very end. Our factory has acquired ISO9001:2001 and SGS authentication.
