Customized Q235B Steel Structures Cantilever Racks Storage Rack Heavy Duty Cantilever Racks Warehouse Racking
Product Description
Customized Q235B Steel Structures Cantilever Racks Storage Rack Heavy Duty Cantilever Racks Warehouse Racking

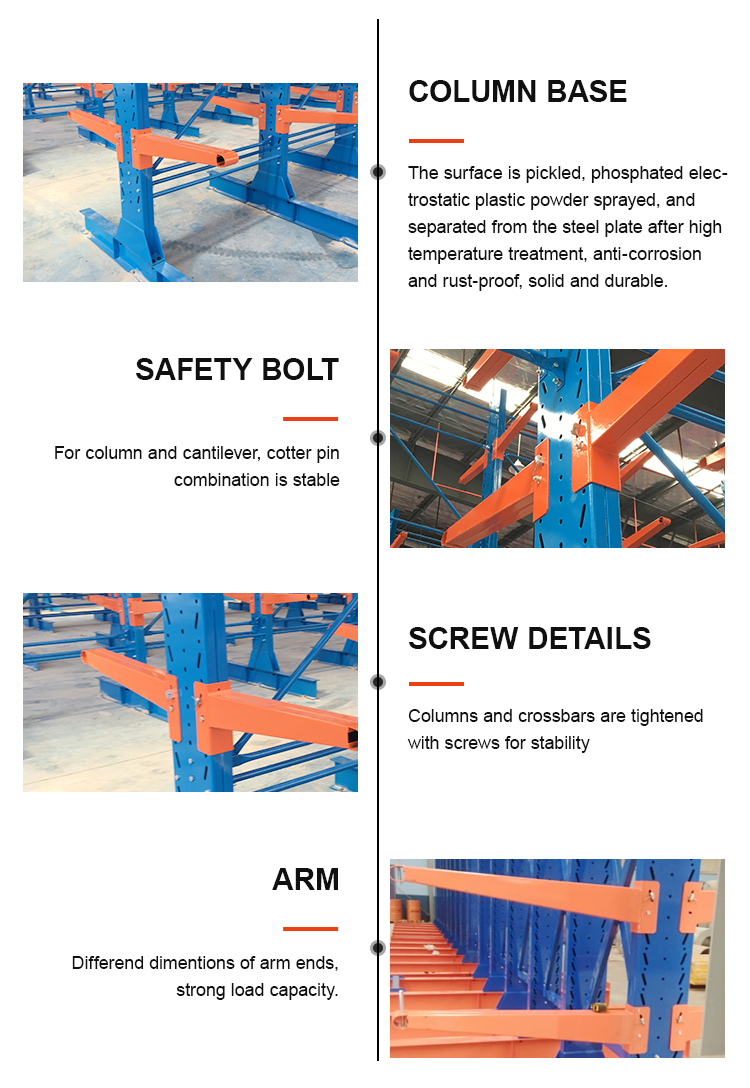

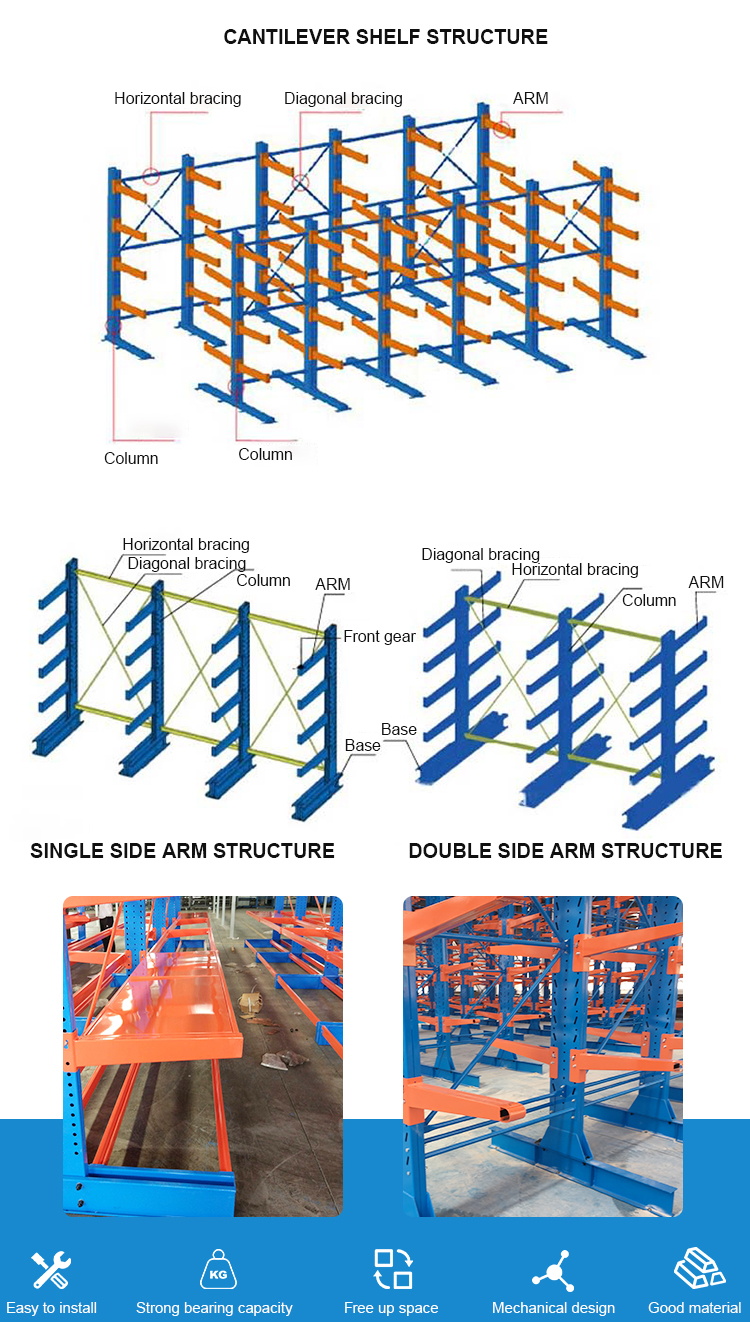

| Structure of Cantilever Racking. | Column, Base, Arm, Bracings |
| Determinant of Cantilever Racking design |
1. The weight of your goods 2. The dimension of your goods together with pallets ( Length Width Height ) 3. The dimension of your warehouse 4. The path of the transportation |
| Advantages of Cantilever Racking |
1). Cantilever racking system is optimal for the storage of long-shaped and bulky materials, profiles, pipe, timber and moulding etc; 2). Constructed of structural H steel and traditional roll-formed style both are available; 3). Single and double sided configuration available; 4). Different column and arm sizes available to suit various loading requirement; 5). Bolted arm and base connection; 6). Surface treatment: Spray-painting; 7). Packing: Neutral paper box or in bulk or upon clients requirements |
| Our Services | You can send us your cad drawing we will give you a quick online quote .Or you just tell us your tridimensional dimension of your warehouse we can design and draw drawings for you within 48 hours. |

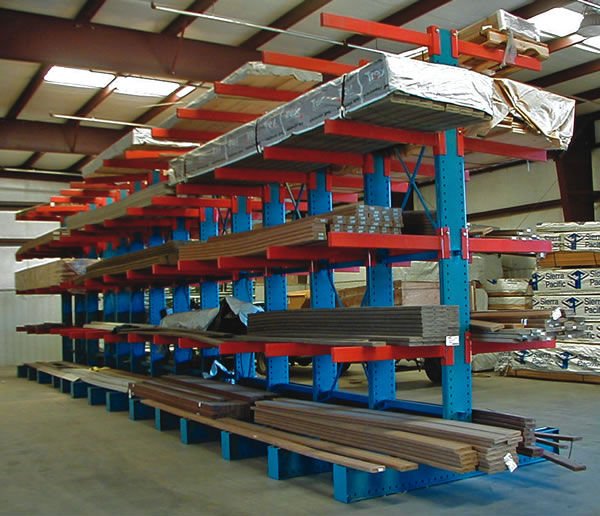

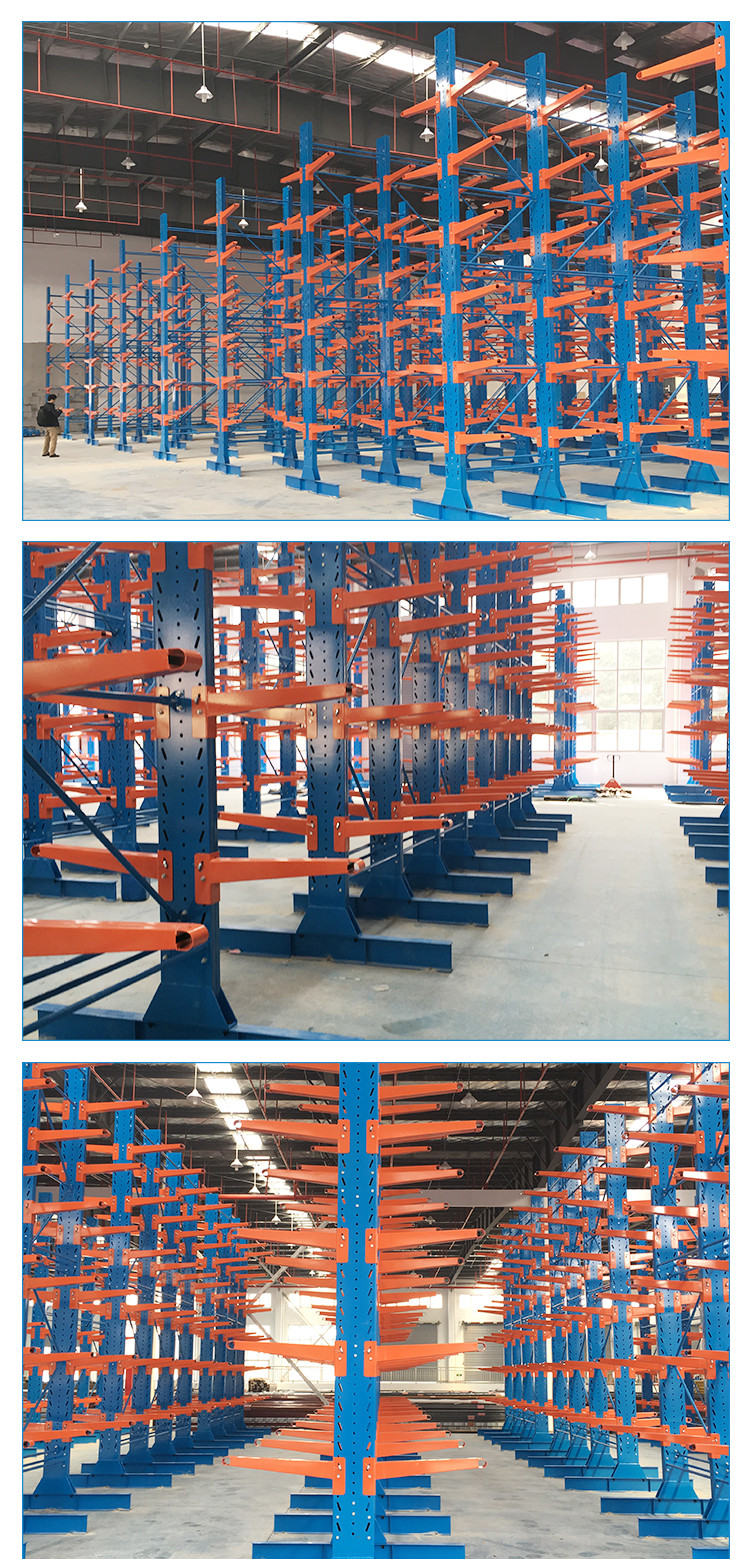

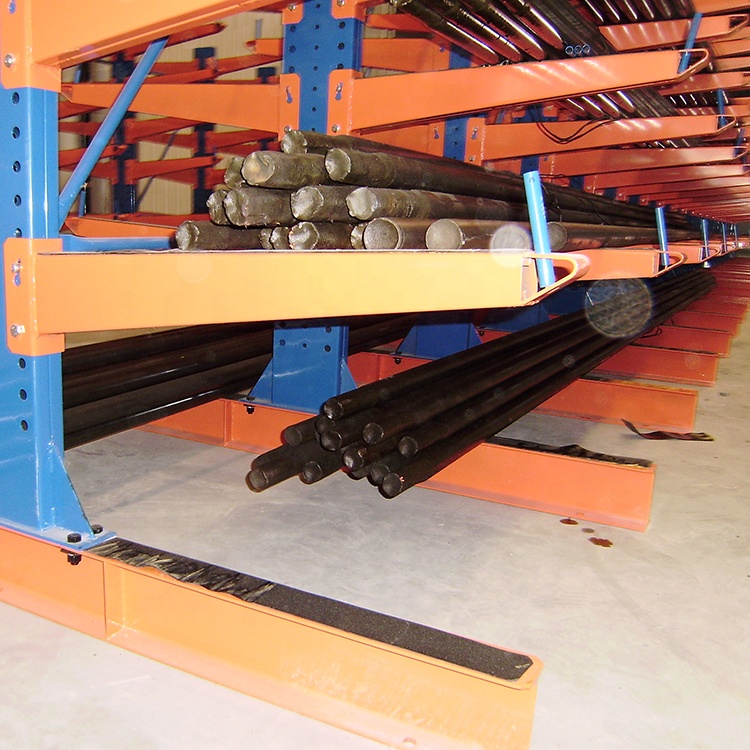

Cantilever racks are specifically engineered for the storage of long, bulky, and irregularly shaped items such as steel pipes, timber, lumber, aluminum profiles, moldings, and heavy sheet materials without the obstruction of front upright columns.

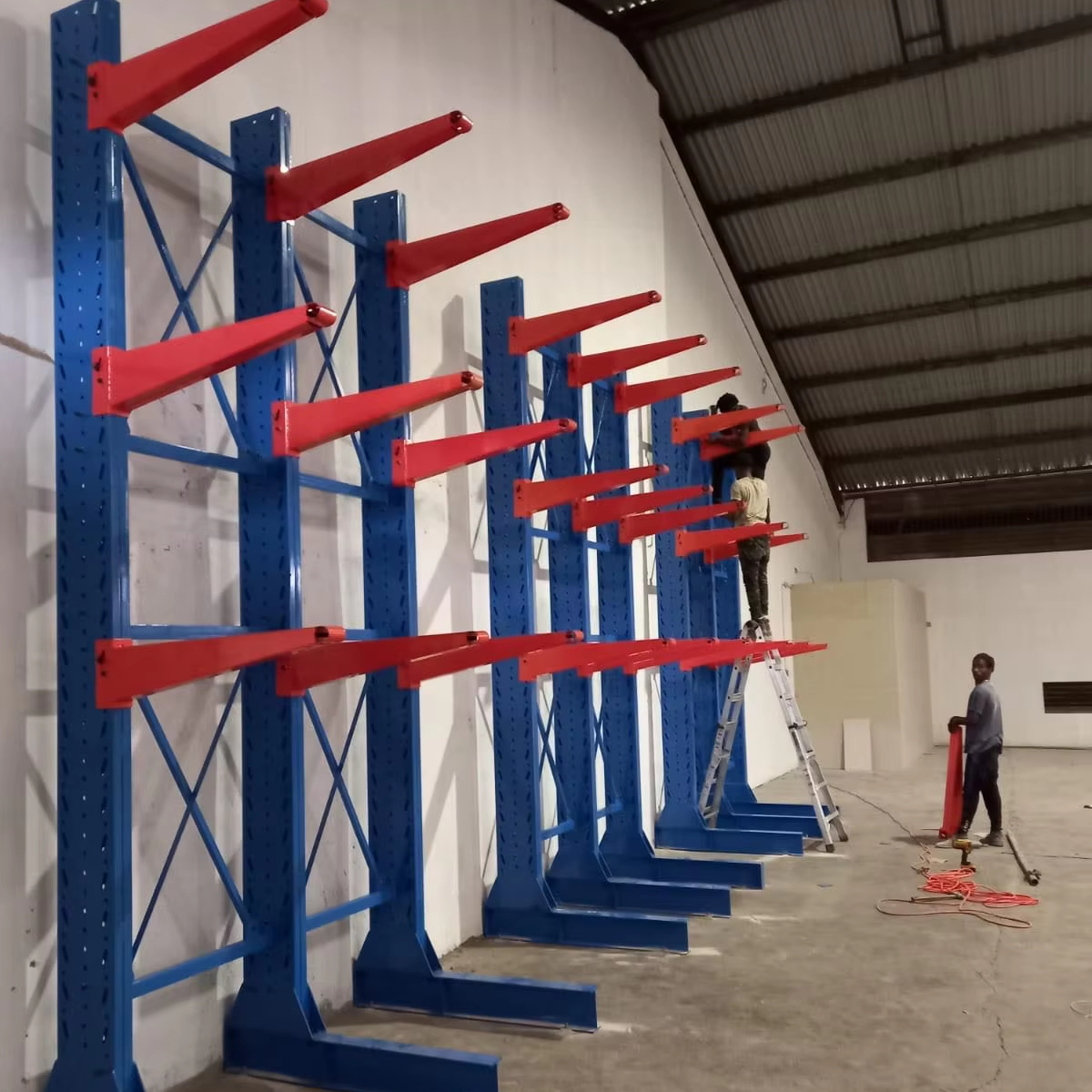

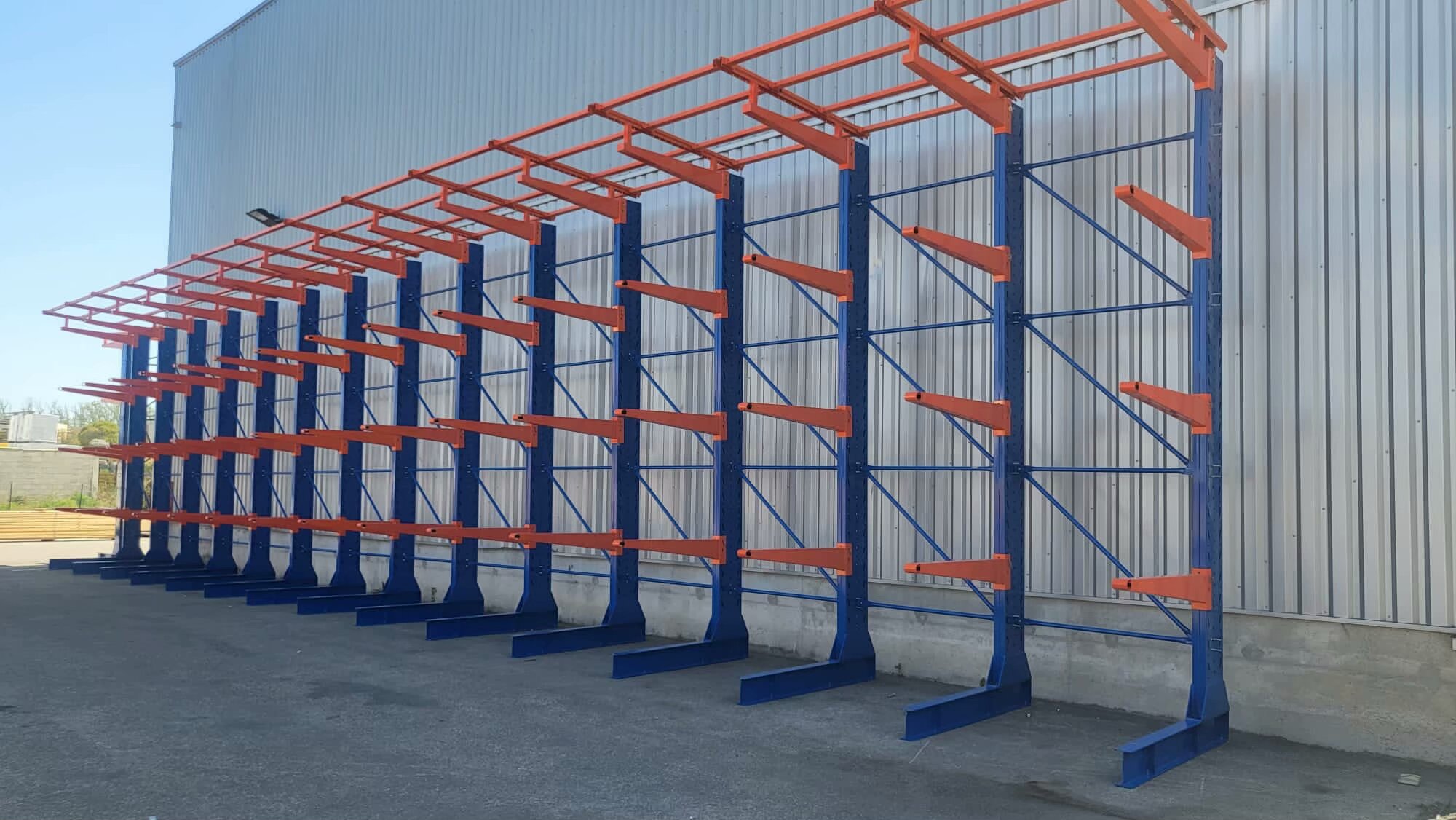

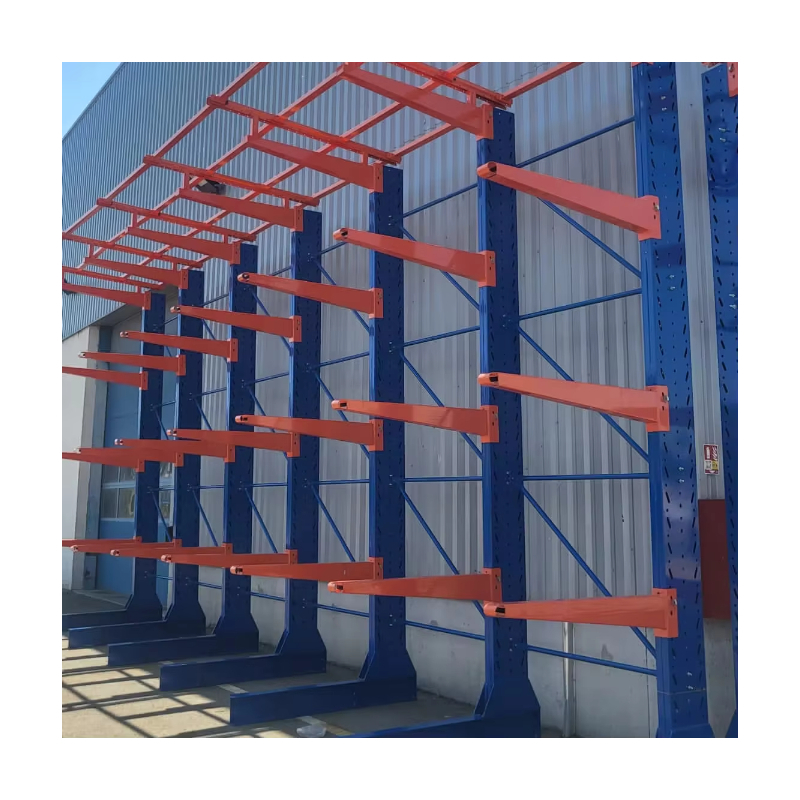

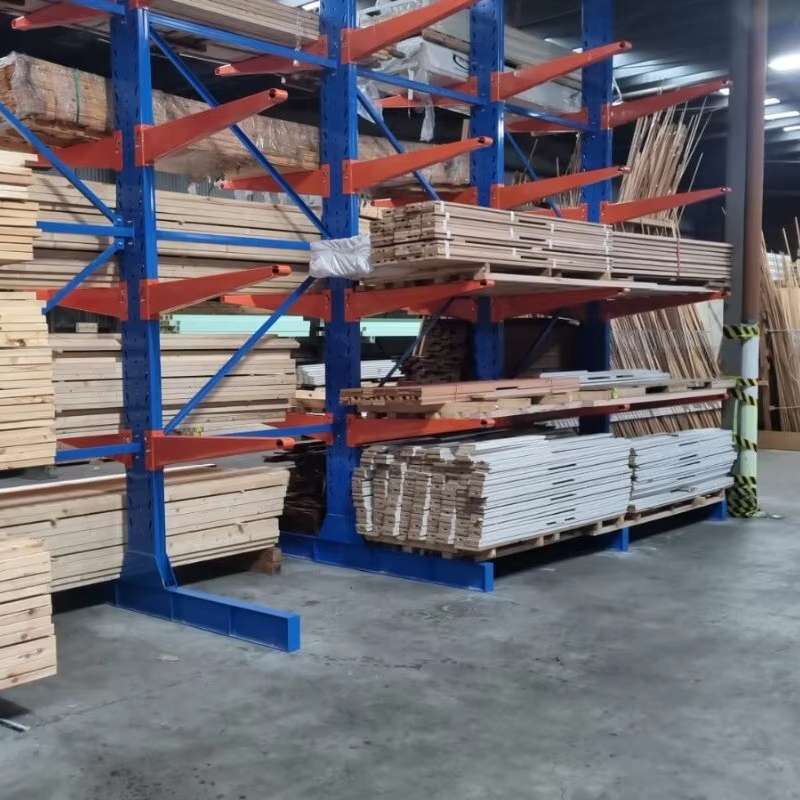

Single-sided cantilever racks are designed to be placed flush against warehouse walls with arms extending only on one side. Double-sided racks feature arms projecting from both sides of the central column, maximizing open floor space and central aisle access.
Load capacity is calculated by dividing the total weight of your items by the number of supporting arms required. We supply structural H steel and roll-formed designs in varied column and arm dimensions to match standard, medium, and ultra-heavy duty demands.
Yes. By providing your existing CAD file or the tridimensional dimensions (length, width, height) of your warehouse facility, our engineering team can generate professional design layouts within 48 hours.

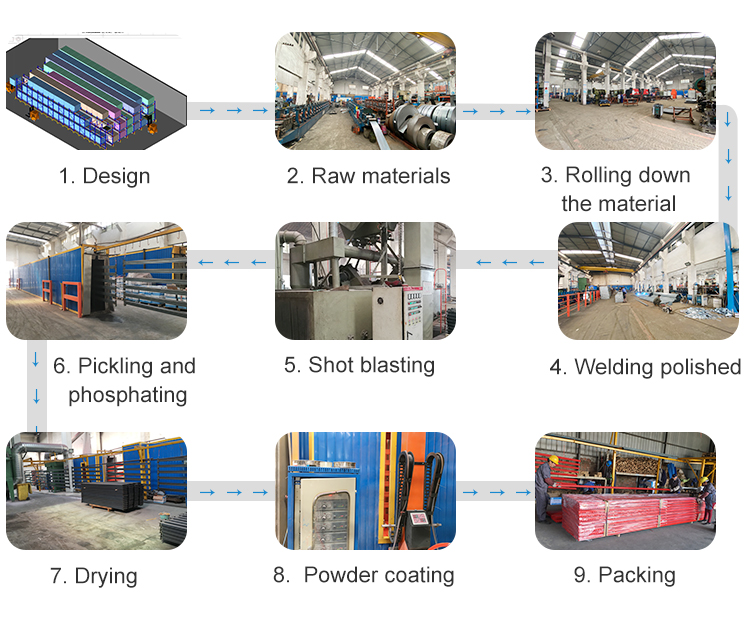

All steel structures undergo high-durability electrostatic spray-painting after pre-treatment, ensuring strong adhesion, high resistance to industrial wear, scratch prevention, and long-term corrosion resistance.
Components are packaged using protective neutral paper boxes or securely bundled in bulk with protective wrapping suited for overseas container shipping, preventing surface abrasions and transit damage.
