High-Efficiency Warehouse Racking & Shelving Systems
Engineered for maximum cubic space utilization, rigorous seismic compliance, and multi-tier loading resilience. Explore our flagship heavy-duty storage configurations trusted by North American and European logistics operators.
5-Layer Adjustable Boltless Warehouse Storage Rack
Precision cold-rolled Q235B steel upright columns with adjustable beam brackets. Designed for fast tool-less assembly and heavy-duty picking durability.
Longspan Heavy-Duty Steel Shelving System
Engineered for bulky, non-palletized inventory in regional fulfillment centers and auto-part hubs. Features heavy step beams with integrated safety pins.
Multi-Level Boltless Medium-Duty Storage Unit
Multi-tier intermediate picking racks designed for e-commerce SKU sorting. High-precision laser-punched butterfly holes ensure seamless shelf level adaptation.
Adjustable Light-Duty Metal Storage Rack
Compact footprint solution for workshop stockrooms, pharmaceuticals, and retail hypermarket backrooms. Pre-treated with electrostatic epoxy finish.
Industrial Selective Warehouse Pallet Racking
Our flagship industrial pallet rack offering 100% selective accessibility. Heavy gauge uprights (up to 12m height) certified for heavy machinery logistics.

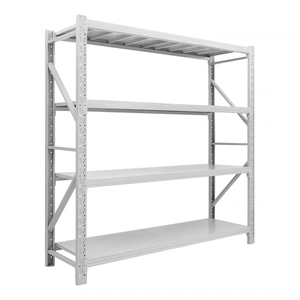

Cold-Rolled Steel Logistics Boltless Shelving
Formulated specifically for third-party logistics (3PL) sorting facilities requiring rapid shelf repositioning. Triple-rib reinforced shelf pans eliminate flexing.
Mobile Wide-Span Structural Storage Racking
Increases storage density by up to 80% through motorized or mechanical-assist mobile bases. Perfect for archival repositories and cleanroom environments.
Industrial High-Capacity Wire Shelving Unit
Self-ventilating open wire design reduces dust buildup and allows complete water penetration from overhead fire suppression systems. Sized with industrial casters.
Precision Steel Metallurgy, FEA Stress Testing & Manufacturing Hegemony
As China’s foremost industrial racking producer since 2001, Guangzhou Heda Shelves Co., Ltd. bridges raw metallurgical engineering with strict western seismic standards. Learn how our certified mill inputs, CNC roll-forming lines, and dual-gun robotic welding eliminate yield failure.
Certified High-Tensile Metallurgy
We source prime cold-rolled coils (Q235B and Q355B structural steel equivalent to ASTM A36 and ASTM A572 Grade 50) directly from Tier-1 state mills like Baosteel. Every incoming heat number receives spectrometer chemical verification and tensile yield testing (minimum yield strength $\ge 235\text{--}355\text{ MPa}$) prior to slit entry.
Automated Continuous Roll-Forming
Our workshop houses 18 automated cold roll-forming lines featuring 22-to-28 precision roller passes. This step-by-step deformation preserves steel molecular orientation, mitigating residual internal stresses and ensuring beam profile thickness variations remain strictly below $\pm 0.05\text{mm}$.
Corrosion-Resistant Surface Chemistry
Components undergo an automated 9-stage surface treatment including high-temperature degreasing, acid pickling, zinc phosphating, and deionized water rinsing. Finished with electrostatically applied thermo-cured epoxy polyester powder at 60–90μm thickness, delivering over 500 hours of ASTM B117 salt spray protection.
Inside Our 10-Stage Precision Production Process
01
Raw Coils QC
Chemical spectrometry & ultrasonic flaw testing of Baosteel coils.
02
Precision Slitting
High-speed CNC slitting lines with micron-level edge trimming.
03
CNC Punching
Synchronous hydraulic punching maintaining 50mm/75mm beam pitch accuracy.
04
Cold Forming
24-stage progressive cold-roll tooling for box and upright geometry.
05
Profile Calibrating
Laser dimension scanning ensures zero warping along 12m upright runs.
06
Seam Polishing
Automated robotic deburring and weld seam mechanical dressing.
07
Robotic Welding
Shielded CO2 dual-torch robots attaching beam connectors with zero spatter.
08
Chemical Pre-treat
9-stage dip line removing micro-scale oils and bonding rust barrier coats.
09
Powder Coating
Nordson automated spray booths curing lead-free polymer coats at 200°C.
10
Container Packing
Steel banded framing with VCI moisture barrier bags for ocean freight.
Future Procurement Trends in Industrial Storage Architecture
Global supply chains are shifting rapidly toward hyper-dense, robotic-assisted, and carbon-audited warehouse layouts. Discover the key engineering procurement trends that will define enterprise steel shelving through 2030.
Interplay with AGVs & Autonomous Mobile Robots (AMRs)
Traditional static racking is increasingly designed with precise baseplate anchoring tolerances and obstacle-free low beam levels to interface with robotic pallet jacks and automated guided vehicles. Upright column punchings now incorporate millimeter-accurate laser cutouts to hold optical reflectors, RFID tags, and QR positioning markers.
Low-Temperature Cryogenic Steels for Cold Logistics
With global pharmaceutical and frozen food cold chains scaling rapidly, procurement managers demand steel racking designed to resist low-temperature embrittlement down to -30°C. HEDA integrates modified micro-alloyed steels with high Charpy V-notch impact toughness values, paired with specialized low-humidity anti-icing powder polymer coats.
Embodied Carbon Accounting & Closed-Loop Coatings
Tier-1 multinational retailers and 3PL conglomerates are mandating Environmental Product Declarations (EPDs). Future steel shelving tenders prioritize manufacturers with low scrap ratios, zero volatile organic compounds (VOC-free) electrostatic powder curing lines, and complete recyclability of all structural bracing and pallet support bars.
FEA Nonlinear Dynamic Seismic Modeling
Seismic zoning updates under ASCE 7-22 and Eurocode 8 mandate advanced finite element modeling (FEA) for all upright racks exceeding 6 meters. Chinese manufacturers are deploying automated calculation engines to verify baseplate anchor pull-out limits, second-order P-Delta beam effects, and rotational stiffness in high-risk zones like California and Japan.
Multi-Tier Rack-Supported Platform Hybridization
Industrial land costs in port gateway hubs have surged over 40% since 2020. Warehouse operators are converting single-level floor plans into 3-tier and 4-tier rack-supported mezzanine picking towers, utilizing structural steel columns that double as walkable flooring stringers, saving up to 60% compared to independent structural buildings.
Direct-from-Factory Container Modularization
Global procurement teams bypass regional distributors by sourcing complete containerized knock-down (CKD) systems directly from China. Standardized bundling with color-coded assembly manifests, unified imperial fasteners, and pre-stamped CAD installation drawings reduces total cost of ownership (TCO) by 30% to 45% landed.
Engineering Specification & Deflection Tolerance Matrix
A technical engineering comparison of industrial shelving and pallet racking formats. Load deflection limits adhere strictly to RMI MH16.1 specifications (beam vertical deflection limited to $L/180$, upright column sway under operational load $< H/200$).
| Racking Type | Primary Material | Load Capacity per Tier | Standard Column Pitch | Deflection Limit ($\delta$) | Recommended Use Case |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B Box Beam | 1,000 – 4,500 kg (9,900 lbs) | 50mm / 75mm (2" / 3") | $L/180$ or $L/200$ | 100% SKU access, FMCG & high-turnover 3PLs |
| Drive-In / Drive-Thru | Heavy-Duty Cold Roll Omega | 1,200 – 2,000 kg/Pallet | 75mm Continuous | $L/250$ (Heavy Rail) | Cold storage, homogenous seasonal stock, LIFO |
| Heavy Longspan Shelving | Step Beam + Q235 Steel Panels | 400 – 1,200 kg/Level | 50mm Butterfly / Diamond | $L/200$ | Manual picking, machine parts, heavy cartons |
| Multi-Tier Mezzanine | C-Section / H-Beam Stringers | 300 – 1,000 kg/m² (Floor) | Engineered Grid Span | $L/300$ (Pedestrian code) | Adding sorting levels without land expansion |
| Cantilever Racking | Structural I-Beam or C-Profile | 500 – 2,500 kg/Arm | 100mm / 140mm Bolt-Pitch | $L/150$ | Lumber, steel tubing, aluminum extrusions |
| Light Boltless Shelving | High-Grade SPCC Strip | 100 – 300 kg/Level | 38mm Teardrop Rivet | $L/150$ | Hypermarkets, pharmaceutical stores, garages |
*All design safety factors conform to EN 15512 ($1.65$ dead weight multiplier, $1.4$ dynamic load multiplier). Seismic calculations available with Professional Engineer (PE) review packets.
Critical Engineering & Export Inquiries for Global Buyers
In-depth responses to the most rigorous technical, commercial, and freight compliance questions encountered when importing Chinese metal warehouse shelving.
How does Chinese Q235B/Q355B steel compare with US ASTM and European EN standards?
Chinese standard GB/T 700 Q235B directly corresponds to ASTM A36 (USA) and EN 10025 S235JR (Europe) in both yield threshold ($235\text{ MPa}$) and carbon ratio ($0.12\text{--}0.20\%$). For high-bay uprights subject to extreme axial compression, we employ low-alloy high-strength Q355B steel, equivalent to ASTM A572 Grade 50 and S355JR ($355\text{ MPa}$ minimum yield). Mill test certificates (MTCs) containing heat number, elongation, and Charpy impact values accompany every sea container.
Can you provide seismic design calculations and permit-ready drawings for US/Canada jurisdictions?
Yes. Our in-house structural engineering team provides complete 2D plan CAD layouts, cross-section elevations, and 3D wireframe FEA calculations formatted in imperial units (inches, feet, pounds). These documents detail baseplate anchor embedment depth, slab concrete PSI requirements, and lateral force coefficients according to ASCE 7 and IBC 2024, expediting local Professional Engineer (PE) stamping.
How do you optimize 40ft High Cube (40HC) container packing to protect powder-coated surfaces?
Uprights are nested back-to-back with high-density EVA foam interleaves, bundled with high-tensile steel strapping, and seated on heavy pine dunnage runner blocks to allow fast forklift entry. Beams and small brackets are palletized in stackable wooden crates with desiccants and moisture-barrier VCI stretch film to prevent white oxidation during 20–35 days of marine transit across Pacific or Atlantic routes.
What is the standard production lead time and typical ocean transit timeline?
Standard fabrication time for a 1-to-5 container order (approx. 50–150 metric tons) is 15–20 business days from approved CAD drawings. Ocean freight transit from our facility via Nansha/Shenzhen/Guangzhou ports requires roughly 14–18 days to US West Coast (LA/Long Beach), 28–35 days to US East Coast (New York/Savannah), and 25–30 days to main European ports (Rotterdam/Hamburg).
Do you support customized hole punchings (Teardrop, Keyhole, Hexagonal) for OEM distributors?
Absolutely. We operate high-precision hydraulic CNC punching tooling for traditional North American Teardrop (compatible with Interlake/Mecalux patterns), Australian Diamond hole systems, European 50mm pitch Omega profiles, and quick-snap butterfly rivet formats. We offer complete private label white-label branding, including custom stamping on beam bodies and custom-tinted RAL powder colors.
What factory quality management certifications and third-party inspection audits apply?
Our manufacturing facility has operated continuously under ISO 9001:2015 certification (Registration No. 18624Q00169R0M) and holds factory CE marking (EN 1090 / EN 15512). We regularly host independent third-party verification audits (SGS, Bureau Veritas, TÜV SÜD) on customer behalf to inspect raw steel mill sheets, robotic weld penetrations, and coating adhesion peel tests.
