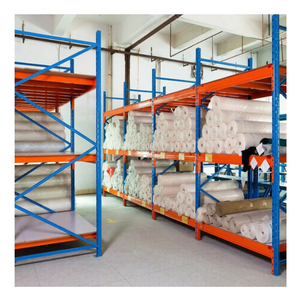

DJ Heavy Duty Fabric Roll Textile Storage System
Adjustable cradle racking optimized for cylindrical textile rolls, non-wovens, and carpet reels. Protects sensitive rolled materials against flat-spot deformation.
Industrial 5-Layer Steel Warehouse Racking System
High-capacity 1000–4000kg payload rating per level with anti-corrosion passivation and electro-statically applied polymer powder finishes.
Heavy Duty Boltless High Pallet Racking
The standard workhorse for FMCG and cold storage logistics. Seamless integration with 48x40-inch GMA and Euro standard perimeter base pallets.

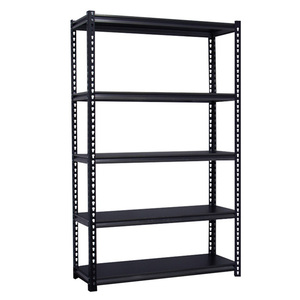

5-Tier Metal Boltless Heavy Duty Storage Shelf
Rapid interlocking upright design for e-commerce pick modules, tool rooms, and back-of-house storage. Zero bolt assembly ensures fast redeployment.
Industrial Metal Shelving with Steel Deck Panels
Reinforced cold-rolled steel deck plates engineered for point-load resistance and non-palletized inventory picking in distribution fulfillment hubs.
Steel Selective Heavy Duty Pallet Racking
Direct manufacturer pricing on certified Q235B structural profiles. Designed for reach trucks, counterbalance forklifts, and narrow-aisle trucks.
Heavy Duty 10–15m Beam Racking for Logistics
Engineered for high-bay multi-level logistics centers. Tight deflection tolerances ensure complete structural compliance with high-mast reach operations.
Engineering Excellence: Structural Dynamics of Warehouse Stacking Racks
In modern high-cube warehousing, unit-load flexibility defines throughput efficiency. As a tier-one China manufacturer specializing in modular stacking racks, selective systems, and custom cantilever structures, we engineer solutions that directly counter the rising cost per square foot of commercial real estate. Stacking racks (often termed post pallets or nestable stacking cradles) represent a distinct hybrid between static selective racking and flexible bulk storage. By taking the weight off the palletized goods and transferring structural loads directly through heavy-gauge steel upright posts, stacking racks eliminate box crush, packaging failure, and floor-level footprint wastage.
Our manufacturing philosophy balances structural rigidity with metallurgical precision. Using cold-rolled structural steel (primarily grade Q235B and high-yield Q355B equivalents), each stacking frame is fabricated with continuous robotic fillet welding, automated structural punching, and rigorous five-stage pre-treatment wash cycles. The resulting load frames deliver extraordinary torsional stiffness, resisting lateral seismic forces, forklift impact shears, and long-term dynamic strain cycles.
Direct bulk floor stacking typically tops out at 2 pallets high due to secondary packaging compression limits, yielding an average cubic utilization of barely 38%. Utilizing 4-way entry modular stacking racks unlocks vertical ceiling heights up to 4 to 6 tiers safely, jumping cubic storage density beyond 82% without bolting down permanent uprights into floor slabs.
Cold-Rolled Integrity
Roll-formed column channels designed with continuous stiffening ribs. High yield strength avoids inelastic buckling under dynamic seismic accelerations.
Passivation & Powder
Automated shot-blasting, pickling, and electrostatic thermo-curing powder lines ensure a minimum 65μm finish thickness, resisting rust even in cold-storage freezers.
Finite Element Stress Checks
Every frame assembly undergoes ANSYS finite element modeling to calculate beam deflection limits at L/200 under maximal stated static and seismic loads.
Future Sourcing Trends for Global Warehouse Stacking Systems (2025–2030)
Procurement directors and 3PL supply chain executives are moving away from purely ad-hoc procurement toward systematically engineered, lifecycle-tested racking assets. When evaluating China's top tier manufacturing plants, international buyers must navigate evolving operational demands:
- Rise of Hybrid AMR/AGV Compatible Bases: Standard manual forklift pockets are transitioning to guided alignment funnels and under-deck laser-reflective channels that allow Autonomous Mobile Robots (AMRs) to dock beneath and transport loaded stacking racks without human intervention.
- Accelerated Cold Chain Decarbonization: Driven by energy costs in deep-freeze logistics (-25°C to -30°C), operations require hyper-dense stacking frames that allow optimal air-curtain circulation while preventing thermal bridging and steel embrittlement through specialized grain-refined steel grades.
- Demand for Complete Imperial Documentation: Sourcing managers across North America increasingly mandate load capacity certifications published in pounds (lbs), dimensions in feet/inches, and shop drawings pre-calculated for local municipal structural engineering permit approvals.
- Circular Pallet Management & Reverse Logistics: Modern stacking frames incorporate demountable corner posts or folding cross-braces, achieving a 4:1 to 6:1 return nesting ratio that drastically cuts backhaul freight expenses on returned packaging loops.
Technical Comparison: Stacking Racks vs. Alternative Warehouse Systems
Selecting the optimal storage layout requires assessing SKU density, accessibility requirements, and floor anchoring constraints. Below is a structural comparison compiled by our applications engineering team:
| Storage System Type | Floor Anchoring | Selectivity | Stacking Height | Relocation Cost | Primary Industrial Use |
|---|---|---|---|---|---|
| Modular Stacking Racks | Zero (Free-standing) | Moderate (By Block) | 3 to 6 Tiers | Zero (Forklift movable) | Bulk goods, seasonal peaks, fabric rolls, tires |
| Selective Pallet Racks | Anchor bolts required | 100% Immediate | Up to 15 Meters | High (Disassembly/Teardown) | High-SKU distribution, e-commerce, FMCG hubs |
| Drive-In Racking | Anchor bolts required | Low (Last-In, First-Out) | Up to 10 Meters | Very High | Cold storage, single-SKU manufacturing batches |
| Rack-Supported Mezzanine | Heavy base-plate anchors | High (Hand-pick tiers) | Multi-Level (2-4 Floors) | Capital intensive | Automotive aftermarket, garment piece picking |
Manufacturing Strengths: Guangzhou Heda Shelves Co., Ltd.
Operating as an international industrial powerhouse since 2001, Guangzhou Heda Shelves Co., Ltd. provides factory-direct engineering, fabrication, and export supply chain solutions. Our production campus covers 30,000 square meters (approximately 323,000 sq. ft.) of dedicated heavy roll-forming and metal fabrication facilities, powered by more than 300 skilled technical personnel and certified engineers. Producing in excess of 30,000 metric tons of finished racking steel each month, our factory reliably meets the compressed timelines demanded by massive 3PL buildouts and multinational brand DCs.
Every order follows an ISO 9001:2015-certified Quality Management System (Cert: 18624Q00169R0M) and carries CE Mark compliance (2435-CPR-8605159). We provide end-to-end transparency: from initial receipt of client architectural DWG files, we furnish free 2D CAD layouts and 3D architectural renderings within 24 hours. Because our manufacturing process encompasses precision slitting, automatic column punching, cold roll forming, robotic welding, shot-blasting, pickling, and electrostatic powder coating in-house, we eliminate intermediate processing markups, delivering up to a 28% total landed cost advantage to our buyers worldwide.
Global Procurement Frequently Asked Questions (FAQ)
What specific steel grade is utilized in your stacking and pallet rack manufacturing?
We primarily utilize certified Q235B and Q355B structural hot-rolled and cold-rolled coil steel from tier-one mills. Mill test certificates (MTC) detailing carbon equivalent, tensile strength, yield points, and elongation percentages accompany every production batch for quality audit verification.
How are stacking racks packaged to prevent sea-freight corrosion and container transit damage?
Every bundle is unitized on steel dunnage blocks, wrapped with multi-layer waterproof stretch film, edge-protected with heavy corrugated board, and bound with high-tensile polyester strapping. For maritime shipping, anti-moisture desiccant packs are inserted to counter condensation cycles across ocean transit corridors.
Can you supply stamped structural engineering calculations for North American permitting?
Yes. Our design engineering department generates comprehensive component stress analyses, base-plate load profiles, and dimensional shop drawings in imperial units (pounds, inches, feet). These calculations serve as the foundation for your local Engineer of Record (EOR) to perform seismic site sign-offs and local municipal permitting.
What is the operational lifespan and maintenance protocol for warehouse stacking racks?
Under recommended operational conditions with non-corrosive indoor ambient storage, our powder-coated stacking frames deliver an engineered service life exceeding 15 years. Routine visual inspections are recommended every 6 to 12 months to verify post straightness, inspect socket weld fillets, and confirm absence of severe forklift impact deflections.
What is the standard production lead time for full-container orders (20GP / 40HQ)?
Typical fabrication lead time for standard standard-spec orders ranges from 15 to 22 working days following final sign-off of CAD production shop drawings. Expedited schedules are available for time-sensitive logistics projects requiring container-staged rolling shipments.
