Factory-Direct Heavy Storage Inventory
High-Efficiency Warehouse Racks & Structural Components
Direct sourcing from certified manufacturers ensures high-tensile Chinese Q235B/Q355B cold-rolled steel, strict batch tolerance, and custom load-bearing compliance for your facility.
Core Manufacturing Capabilities
Why International Buyers Partner With Us
With an integrated production footprint established since 2001, we bridge the gap between heavy structural engineering, competitive Chinese factory pricing, and rigorous international quality standards.
25+ Years of Engineering
Over two decades of precision roll forming, heavy structural fabrication, and supply-chain refinement serving 10,000+ completed installations worldwide.
Free 24h CAD & 3D Modeling
Our senior warehouse engineers deliver structural calculation reports, spatial layouts, and load simulations in metric or imperial units within 24 hours.
Automated Finishing Lines
10-stage automated pickling, phosphating, and electrostatic powder coating deliver superior scratch and corrosion resistance for tough plant operations.
Full Custom OEM/ODM
Bespoke column punching, custom pitch adjustment (50mm, 75mm, 76.2mm / 3"), high-tonnage box beams, and integrated seismic baseplates.
Industrial Whitepaper Excerpt
Engineering Evaluation: Industrial Racks Selection & Mechanics
Selecting industrial storage racks requires a rigorous assessment of beam deflection limits, column buckling behavior, dynamic loading, and aisle geometry. Industrial applications demand structural resilience against accidental forklift impacts, micro-vibrations, and seismic shear stresses. Below is a comparative engineering reference matrix comparing primary structural rack topologies commonly exported from Chinese manufacturing centers.
| System Type | Structural Mechanics | Floor Space Utilization | Pallet Selectivity | Impact Risk Factor | Optimal Operating Sector |
|---|---|---|---|---|---|

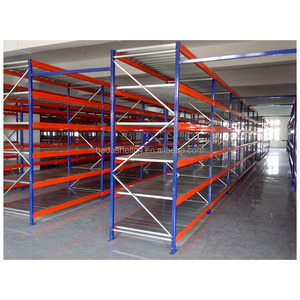

| Selective Pallet Racking | Pure vertical load transfer; twin-column braced frames with hook-in connectors | 35% – 45% (Aisle dependent) | 100% immediate accessibility | Medium (High traffic aisles) | Fast-moving retail, 3PL logistics hubs, automotive assembly |
| Drive-In / Drive-Thru | Cantilevered rail brackets; requires robust top-tie portal bracing | 65% – 75% (Eliminates aisles) | Low (LIFO / Batch FIFO) | High (Forklift operates inside bays) | Cold storage, food beverage processing, single-SKU bulk |
| Push-Back (Cart/Roller) | Gravity-assisted nested cart system on structural slope channels | 55% – 65% | Medium (Lane-face level) | Low (Forktruck remains in main aisle) | Medium turnaround distribution, chemical drumming, dry goods |
| Automated Radio Shuttle | Rail-guided battery shuttle on cold-formed galvanized profiles | 75% – 85% maximum density | Controlled Batch FIFO/LIFO | Very Low (Zero forklift entry) | Deep freeze (-28°C), meat processing, high-throughput distribution |
| Multi-Tier Mezzanine | Integrated cold-formed C/Z purlins on heavy box column supports | 100% – 200% vertical footprint | 100% manual picking access | Low (Protected perimeter guardrails) | E-commerce fulfillment, spare parts, carton picking operations |
Steel Metallurgy & Yield Strength
We utilize cold-rolled Q235B and high-yield Q355B structural steel, conforming to EN 10025-2 and ASTM A36 standards. Controlled hot-dip coil slitting guarantees zero stress cracking along roll-formed flange profiles under rated loads.
Deflection Limits (L/200 vs L/250)
Standard safety factors mandate maximum vertical beam deflection of L/200 under maximum uniformly distributed load (UDL). For automated shuttle and VNA systems, our engineering designs adhere to stringent L/250 to L/300 deflection thresholds.
Impact Protection & Baseplates
Heavy-duty seismic baseplates anchored with dual M12/M16 chemical bolts dissipate kinetic floor energy. Wrap-around column guards and aisle end barriers prevent structural deformation caused by material handling equipment.
Strategic Procurement Trends
The Future of Industrial Racks: Automation, Modularity & Green Supply Chains
Global logistics facilities are adapting to automated intralogistics, changing labor demographics, and compressed lead times. Understanding these macro shifts helps procurement executives hedge material and installation costs.
Shuttle & AS/RS Transition
Warehouses are systematically converting static drive-in bays into high-speed pallet shuttle systems and automated AS/RS racking to maximize vertical cubic volume and lower human labor costs.
Localized Code Compliance
Global procurement teams prioritize tier-1 Chinese exporters capable of pre-certifying structural calculations to American RMI/ANSI MH16.1, Canadian CSA S16, and European EN 15512 specifications.
Modular Boltless Agility
Rapid growth in multi-tenant 3PL warehouses has driven sharp demand for modular, teardrop or boltless interlocking designs that allow bay reconfiguration without structural welding or facility downtime.
Decarbonized Powder Coating
Environmental audits require VOC-free, heavy metal-free powder finishes and scrap-reduction roll forming lines, qualifying international buyers for green building certifications (LEED / BREEAM).
Procurement Knowledge Base
Frequently Asked Questions: Sourcing Racks from China
Comprehensive answers compiled by our international logistics team and senior structural engineers.
What specific structural parameters must be supplied for an accurate load calculation and quotation?
To provide an engineered rack calculation and quotation within 24 hours, our engineering department requires:
- Building Envelope: Floor plan, column grid layout, unobstructed clear ceiling height, slab thickness, and compressive strength (e.g., 3000 PSI concrete).
- Pallet Specification: Overall dimensions (Width × Depth × Height, commonly 40"×48" GMA or 1200×800mm EUR), weight per loaded pallet, and maximum overhanging tolerances.
- Material Handling Equipment (MHE): Forklift turning radius, mast lift height, collapsed mast height, and minimum aisle width requirements.
- Environmental Loads: Local seismic zone coefficient (Ss, S1), operational temperatures (freezer vs ambient), and building egress pathways.
How do Chinese steel grades Q235B and Q355B correlate with American (ASTM) and European (EN) standards?
Q235B possesses a nominal yield strength of 235 MPa, which directly correlates to European S235JR (EN 10025) and functions as an equivalent to ASTM A36 structural carbon steel. Q355B delivers a nominal yield strength of 355 MPa, correlating directly to European S355JR and matching ASTM A572 Grade 50 high-strength low-alloy steel. We provide verified Mill Test Certificates (MTC) with chemical composition and tensile testing reports for every production heat.
How are uprights and box beams bundled to maximize shipping container space and prevent transit abrasion?
Shipping heavy structural steel demands specialized intermodal container packaging:
- Corrosion Barrier: Steel profiles are packaged using vapor-corrosion inhibitor (VCI) plastic film, desiccants, and heavy corrugated edge board.
- Dunnage & Strapping: Uprights and beams are bundled using high-tensile steel strapping over wood dunnage runners that allow rapid forklift offloading at port or job site.
- Container Space Optimization: Upright profiles are nested inside 40ft High Cube (40HQ) containers to reach standard weight limits (approx. 24–26 metric tons per container) without air voids.
Can you supply PE-stamped calculations for warehouse permits in the USA and Canada?
Yes. Our in-house engineering team delivers full static design calculations, load distribution charts, and fabrication shop drawings. For projects requiring municipal building permits in North America, we cooperate closely with US/Canadian certified Professional Engineers (PE/P.Eng) who review, seal, and stamp our structural calculations to ensure full adherence to the International Building Code (IBC) and local seismic regulations.
What surface treatment is best suited for cold chain and high-humidity environments?
For ambient industrial warehouses, our automated 10-step electrostatic epoxy-polyester powder coating (thickness 60–80 microns) provides long-lasting scratch and chemical resistance. For deep-freeze environments (-20°C to -30°C) or open-air loading docks exposed to moisture, we strongly recommend pre-galvanized components or Hot-Dip Galvanizing (HDG) conforming to ISO 1461 / ASTM A123 to permanently prevent oxidation and micro-corrosion.
