Do you ship pallet racking to the United States and Canada?

Yes. Systems are packed for ocean freight in 20 ft and 40 ft containers and shipped to major North American ports such as Los Angeles/Long Beach, Houston, Savannah, New York/New Jersey and Vancouver. FOB and CIF terms are standard, and delivered options can be discussed per project.

Can you provide load ratings in pounds and feet?

Yes. Layouts and load tables can be issued in both imperial (lbs, ft, in) and metric units so your team, installer and engineer of record can review them without conversion.

Do you support permit and seismic review for North American projects?

We supply structural calculations, component specifications and shop drawings for each project. These documents are prepared to support review by your local engineer of record, who stamps drawings and confirms seismic and permit requirements for your jurisdiction.

How fast can I get a layout and quotation?

Send your building dimensions, clear height, pallet size, pallet weight and forklift type. Our engineers typically return a CAD layout, 3D rendering and itemized quotation within 24 hours.

Is racking compatible with standard 48 x 40 inch GMA pallets?

Yes. Beam lengths, frame depths and pallet supports are sized around 48 x 40 inch GMA pallets as well as custom pallet and container sizes used in your facility.

Product Description

Cooperation Model	OEM or ODM
Design	• As per customers specific requirements • Or customers give us specific sample • Or customers' conceptual or preliminary design • Or customer sketched ideas
Acceptable Drawing Format	jpg / .dwg / .igs / .stp etc.
Application Material Standard	If no any specially required by customers, we usually suggest our customers to try the equivalent China National (GB) standard material that our engineer team proposes which to be properly converted from ANSI, ASTM, SAE, EN, DIN, BS, JIS and etc., to contribute the material cost control.
Available Processing	shearing; crimping; laser cutting; bending; stamping; pressing; deep drawing; rolling; forming; fabricating; drilling; tapping; riveting; spot welding; TIG; assembling
Precision	Average level: ±0.05mm, depending on product's size, thickness and material

Important Notes

Products on website are just for reference and our promotion purpose only.
We could provide similar products' custom fabrication service as per drawings.
Any questions about our custom service, please feel free to contact us and we will reply in details within two working days.

Your drawings are warmly welcomed

Our Services

Atlas Metal can provide a “One-Stop Source” for all of your needs on custom metal fabrication.

With over 30 years of knowledge, experiences, practices and know-how on the metal fabrication, Atlas Metal has been building and refining our state-of-the-art metal fabrication services and related metal-working services to produce the best possible parts in the most efficient way for your industry.

Our complete list of industrial metal fabrication services includes:

Metal Cutting Services

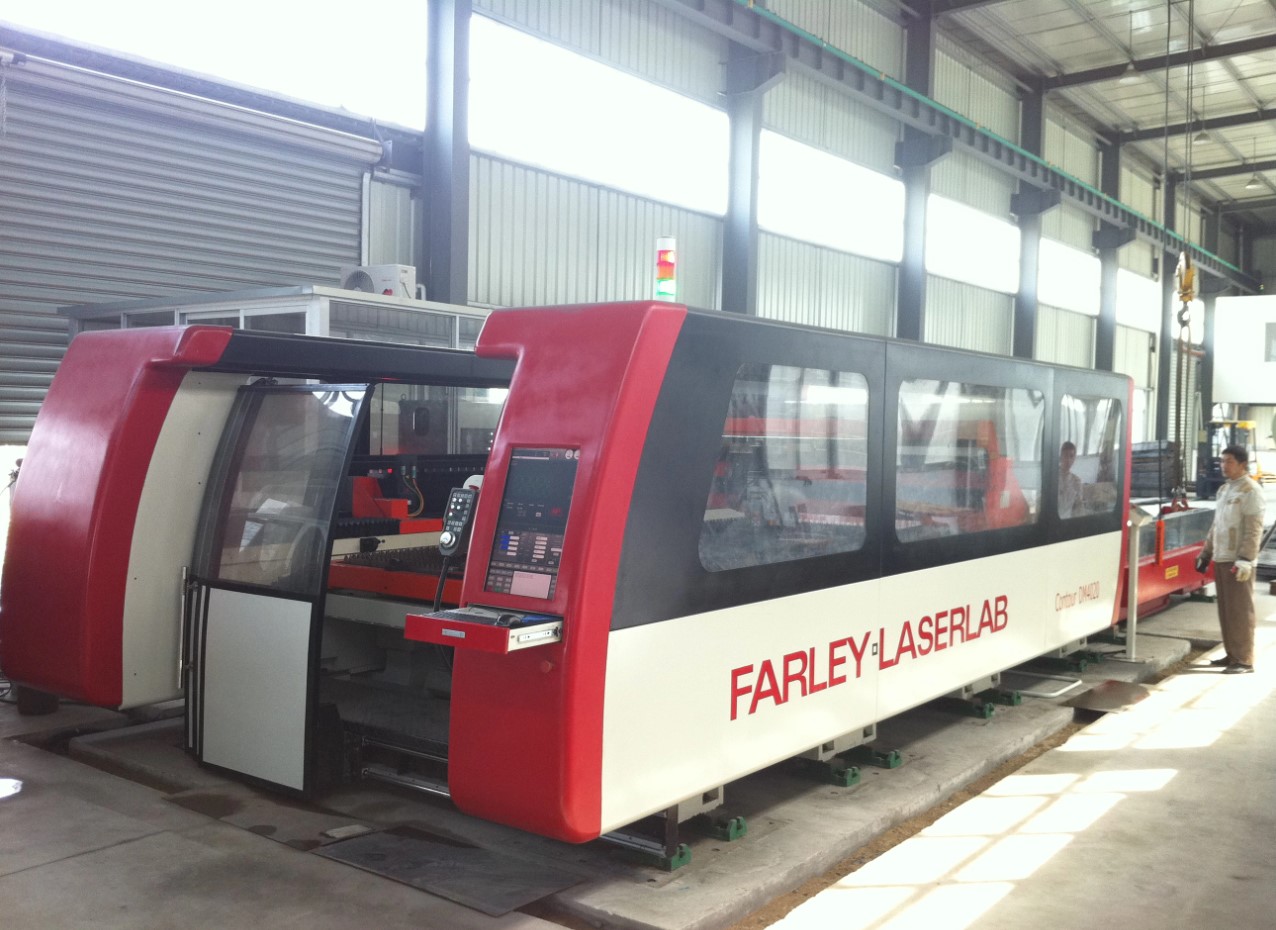

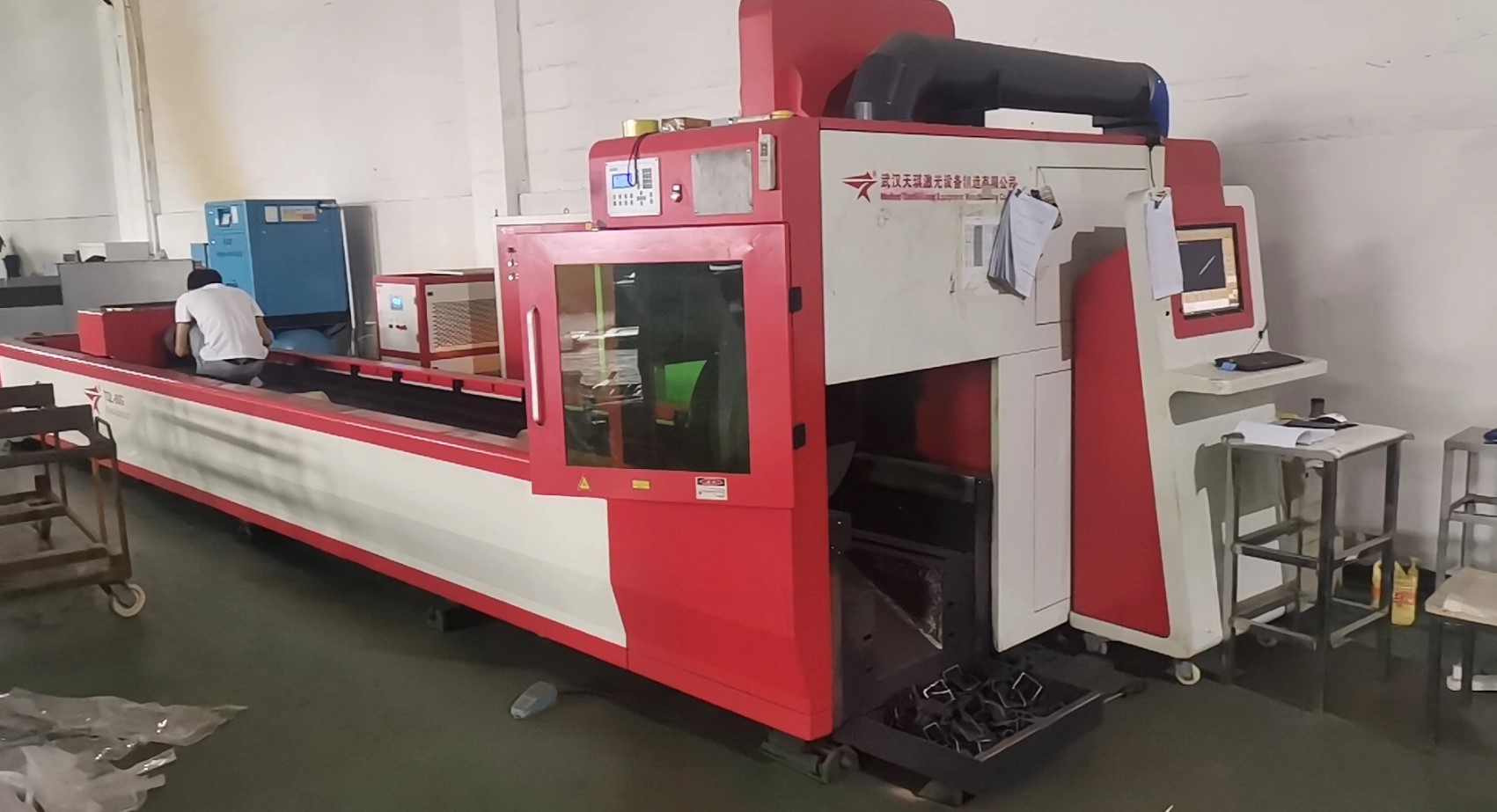

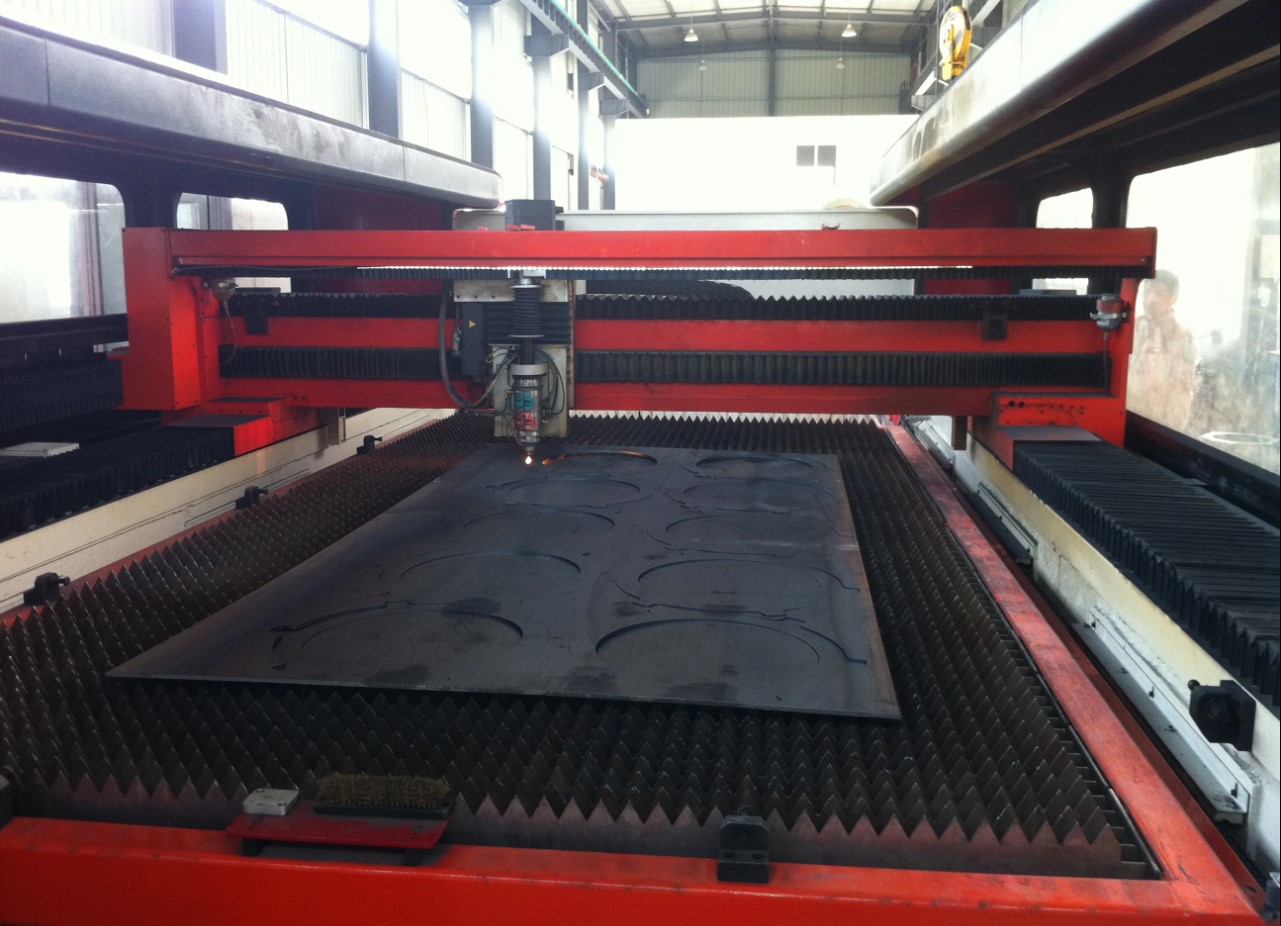

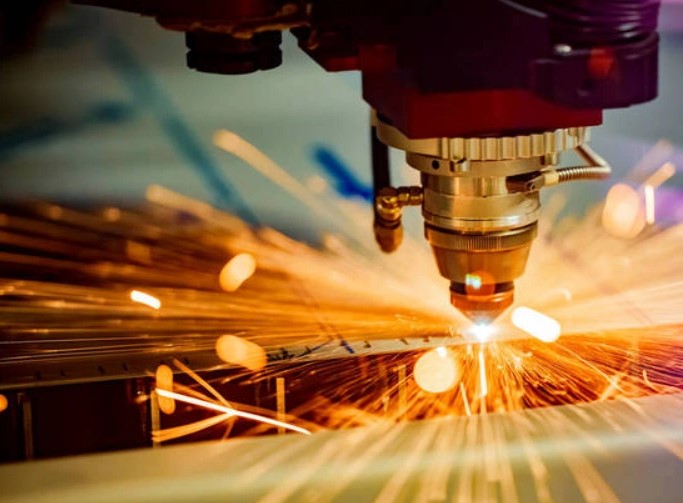

At Atlas Metal we provide custom metal cutting services to include CNC laser cutting for sheet metal and tube, and CNC plasma cutting for steel plates.

- Materials For Laser Cutting: Lasers can cut through many different materials. Atlas Metal works with the following materials:

Carbon steel
High-strength alloy steel
Stainless steel
Abrasion-resistant steel
Aluminum

Atlas Metal specializes in high-quality laser cutting for prototype, low-volume, and high-volume orders.

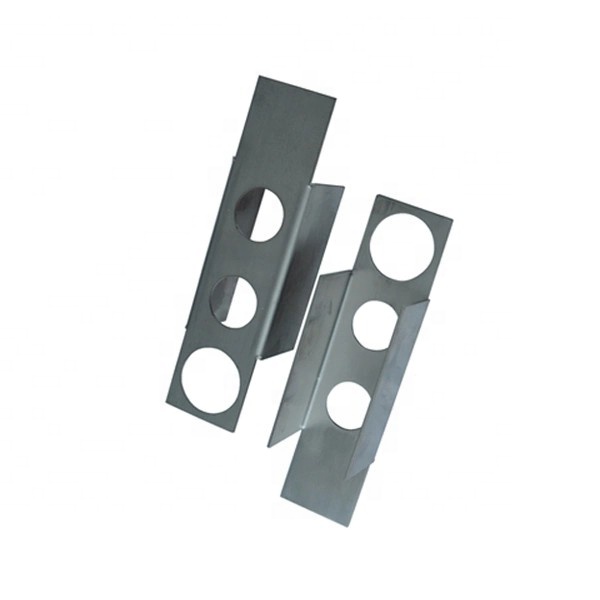

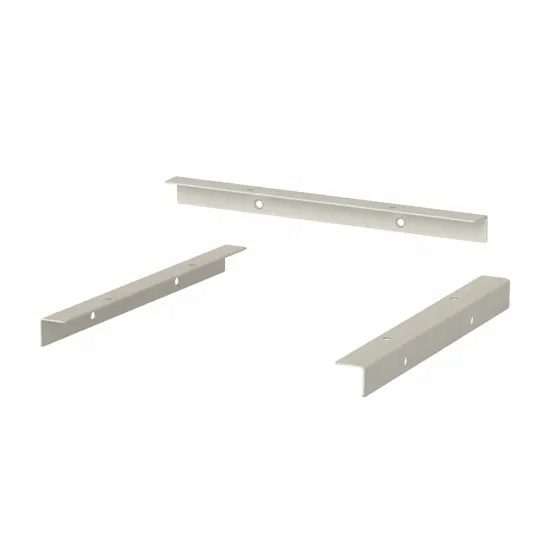

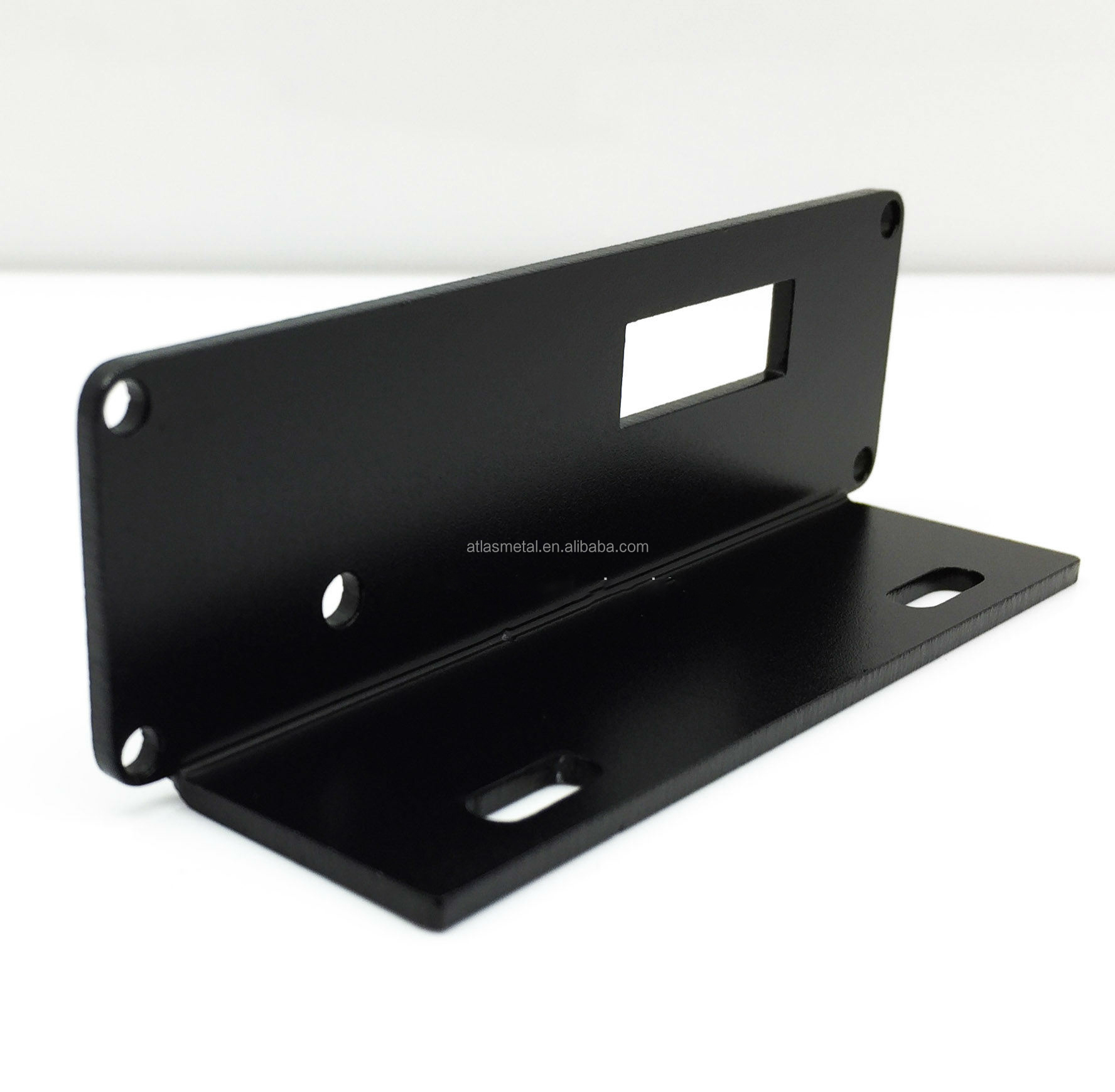

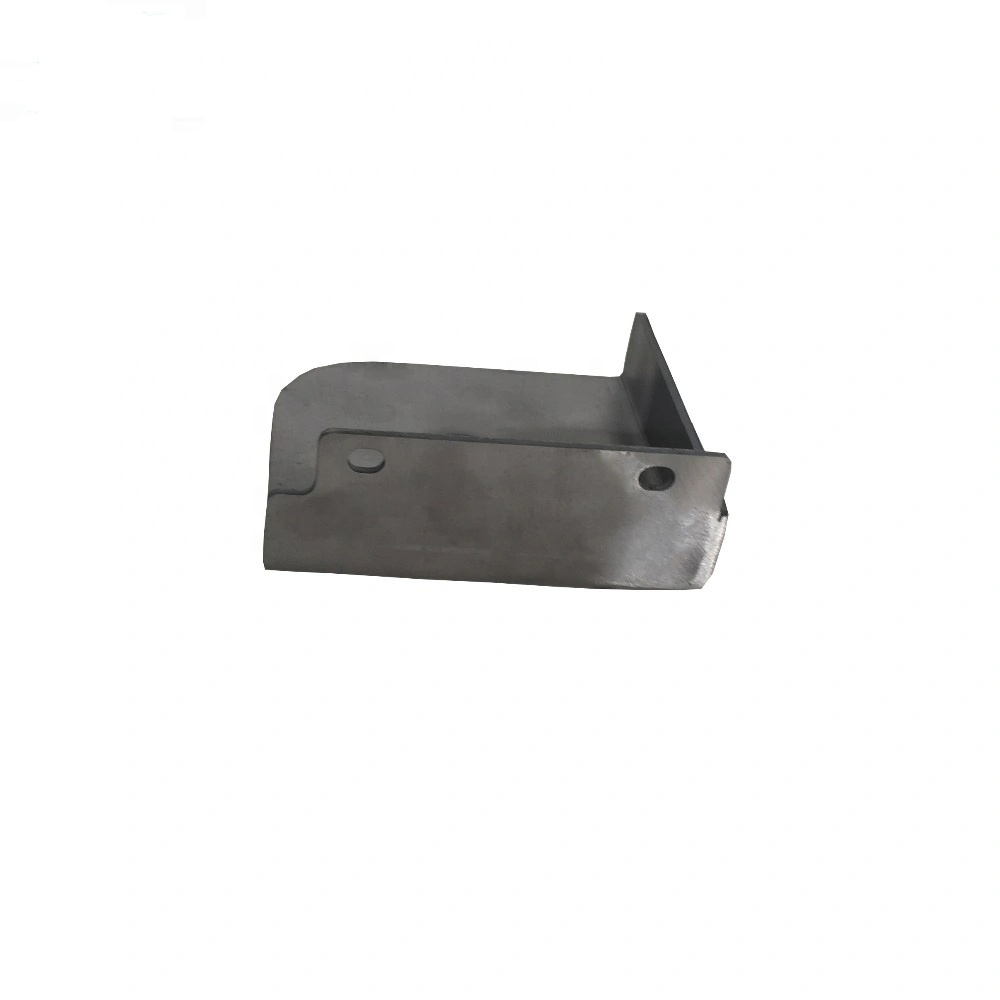

OEM Custom Metal Stamping Parts Steel Punched Shelf Rack Parts Sheet Metal Fabrication Welding Steel Punched Shelf Rack Parts

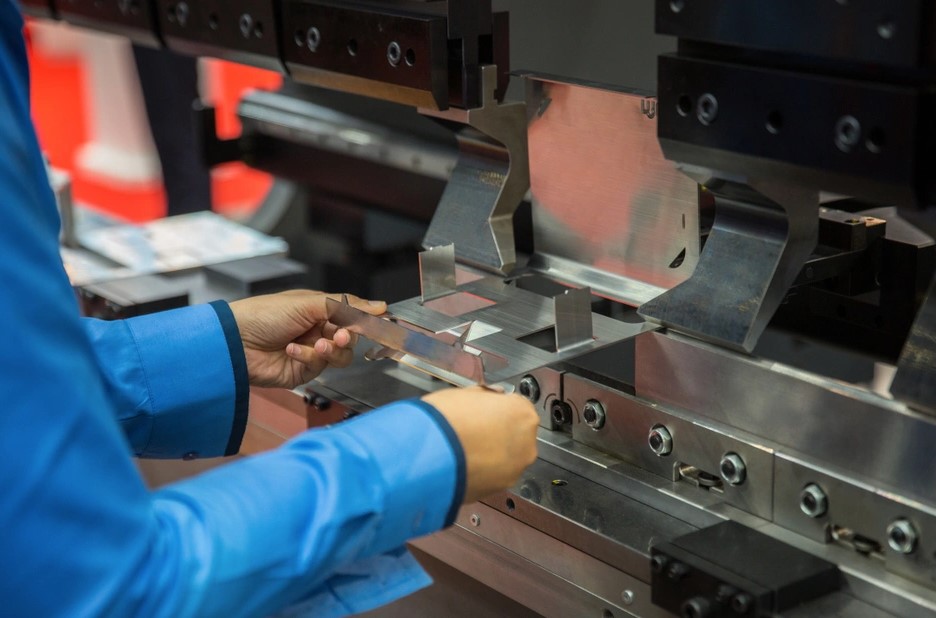

Sheet Metal Fabrication Service

Metal Tube Fabrication Services

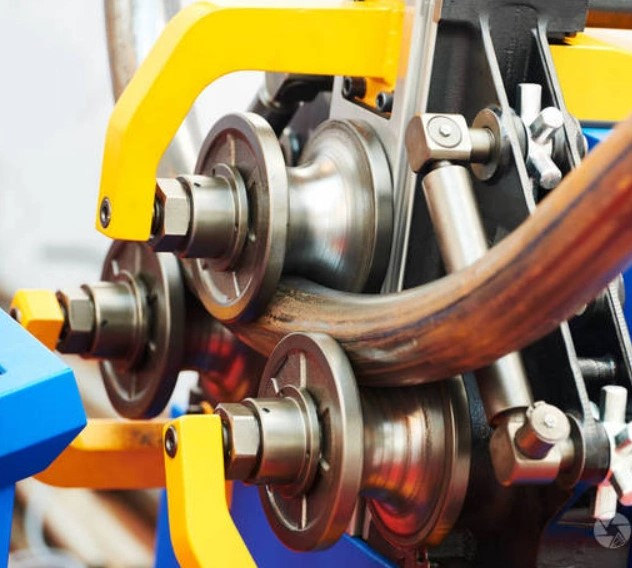

Custom tube metal fabrication is the process of adding operations such as cutting, piercing, bending, reducing, expanding and forming to raw tube metal to meet the part specifications in accordance with customer’s design.

To offer our customer “One-Stop Source”, on the tube metal fabrication Atlas Metal are capable of supply the services to include:

Tube cutting
Tube piercing
Tube bending
Tube necking
Tube flaring
Tube end finishing
Tube welding

We work with a variety of metal such as carbon steel, alloy steel, stainless steel and aluminium and etc. with the different tubing shapes of round, square, rectangle, oval and etc. We are specializing in small and medium diameter tube fabrication and our typical size tube is between 10mm O.D. to 80mm O.D. The wall thickness of the tube can range between 0.5mm to 4mm.

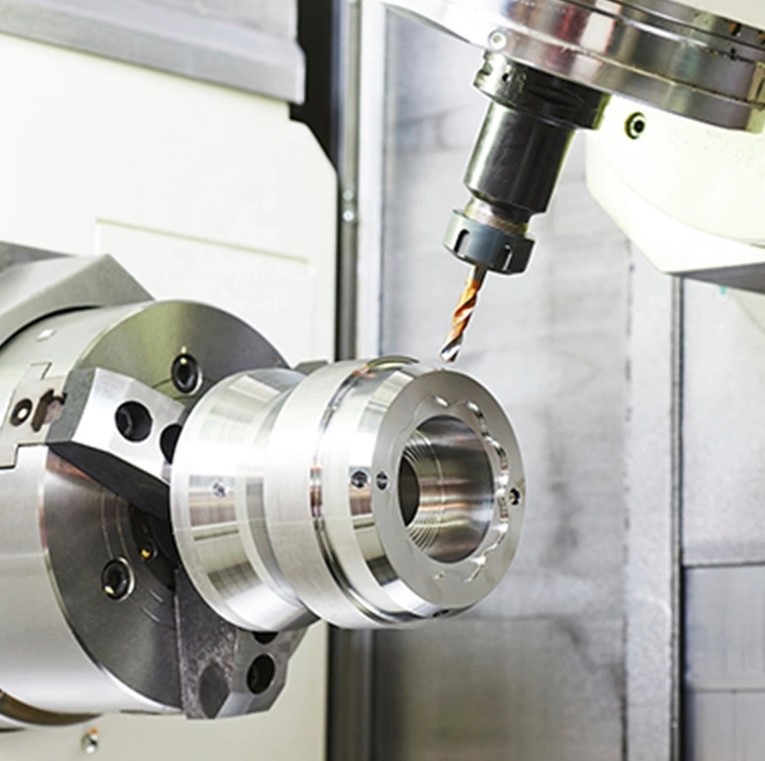

CNC Machining Services

Our CNC Machining can import your drawings at .STEP, .IGES, .X-T and .DXF files, along with .PDF drawing files.

Steel Structure Fabricating and Welding Services

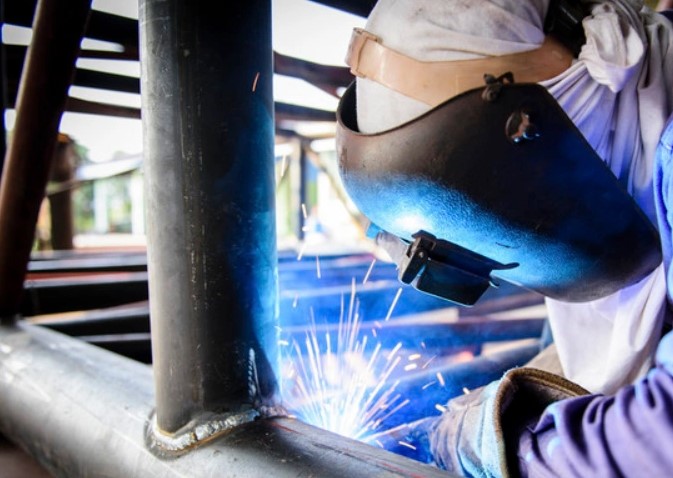

At Atlas Metal, we provide welding services to include spot welding and laser welding for sheet metal fabrication, TIG welding and MIG welding for metal structural assembles.

Equipment

Main Equipment List

CNC Horizontal lathe Dia.400mm X2000mm capacity / 8

Horizontal lathe Dia.500mm X750mm capacity / 2

Vertical lathe Dia.1200mm capacity / 2

CNC Milling machine 250mm x1120mm capacity / 3

Milling machine 320mm x1320mm capacity / 2

Planning machine 650mm capacity / 1

Plane grinding machine 250mm x300mm capacity, precision on and less than 0.016 / 1

Small size high-precision plane grinding machine / 1

Circular grinding machine Dia.250mm x 2000mm / 1

Vertical drilling machine Dia.50mm/M24 capacity / 1

Table drilling machine / 15

Japan Sodick Linear cutting, CNC precision 0.001mm 320mm x400mm / 1

Linear cutting machine, CNC precision 0.015mm 320mm x400mm / 6

Electric discharge machine CNC precision 0.018mm 320mm x500mm / 3

Gear-hobbing machine / 5

Sawing machine / 2

Certificated

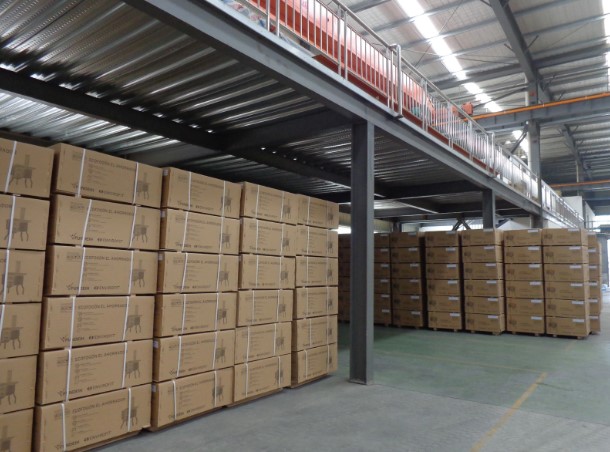

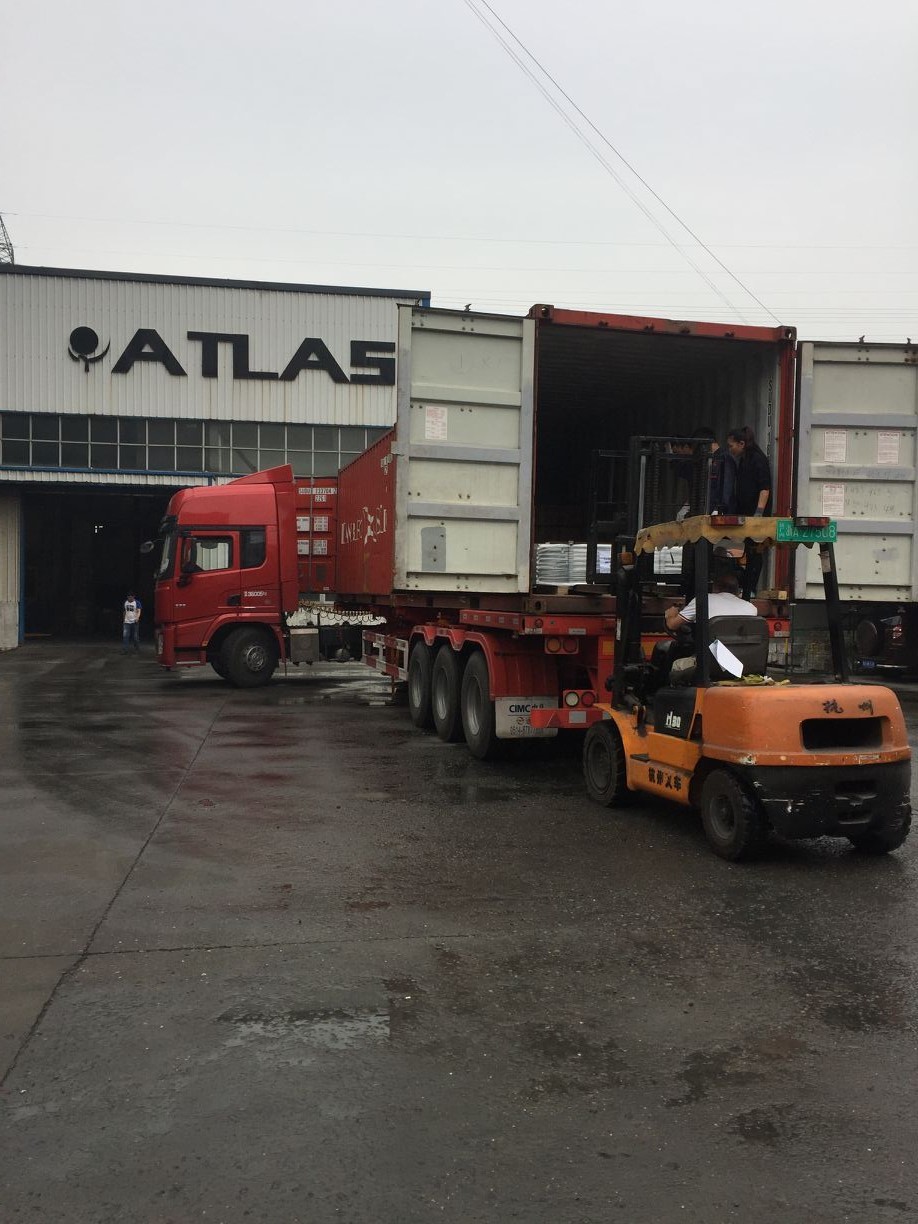

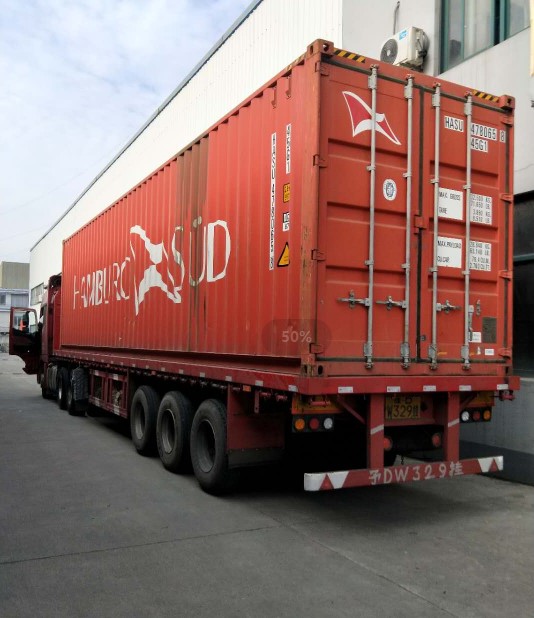

Packaging & Shipping

Strictly in accordance with our customers' specific instruction on packing.

We can package for retail if needed.

If no any specified, generally we would recommend that the parts to be packaged by poly bags, then put in cartons and finally to be on pallets.

The gross weight of one carton is no more than 22KG and pallet size try to approach 120cm X 80cm (Europe size) and 42"X42" (US size).

The package is seaworthy and suitable for export. The wooden package material shall be steamed with the certificated and stamped by CCIB.

Frequently Asked Questions

Q1 Can we have customer references who we can contact for their experience with your quality?

Generally, we have confidential agreements with our clients, especially from the USA and Europe; they do not allow us to disclose our cooperation to any third party. We must honor this commitment and cannot provide customer references. Thank you for your understanding. In fact, we regularly ship large volumes of products to the USA, averaging 2 to 3 20ft containers per month.

Q2 How do you manage revision changes in design, either initiated by the customer or by your own cost down initiative?

We maintain strict document control. A record is created every time an engineering drawing is revised, and older versions are recalled or destroyed upon release of a new revision. For production drawings, we require written sign-off and approval from our customer or their engineers prior to manufacturing.

Q3 What countries do you ship to internationally?

We ship worldwide, including to the USA, UK, Italy, Belgium, Austria, Poland, Germany, Denmark, Japan, Thailand, South Korea, Malaysia, Israel, South Africa, and more.

Q4 How many international shipments have you made in the past 12 months?

We made approximately 63 international shipments in the past 12 months (year of 2010).

Q5 What CAD and drawing file formats do you accept for engineering and CNC machining?

We can import and process a wide variety of formats, including .jpg, .dwg, .igs, .stp, .STEP, .IGES, .X-T, .DXF, and .PDF files.

Q6 What standard materials can you process, and how do you assist with material cost control?

We work with carbon steel, high-strength alloy steel, stainless steel, abrasion-resistant steel, and aluminum. Unless specifically requested otherwise, our engineering team can propose equivalent China National (GB) standard materials converted from ANSI, ASTM, SAE, EN, DIN, BS, or JIS standards to help optimize raw material costs.

Contact Us

We are happy to help!

We want to hear from you! At ATLAS METAL, we value your input and we are here to answer your questions. If you need more information on ATLAS METAL products or services, please do not hesitate to contact the under published ATLAS METAL representative.

The ATLAS METAL representative will respond to your request as soon as possible. Simply indicate whether you want us to contact you by phone or email.

Thank you for your interest in ATLAS METAL.

Mr. Adonis Chen

Tel: +86 571 2282 0016
Fax: +86 571 81131848
Address: 15F, Office Mansion, Taifu Plaza, Xiaoshan District, Hangzhou City, Zhejiang Province 311200, China

OEM Custom Metal Stamping Parts Steel Punched Shelf Rack Parts Sheet Metal Fabrication Welding Steel Punched Shelf Rack Parts

Product Description

Product Description

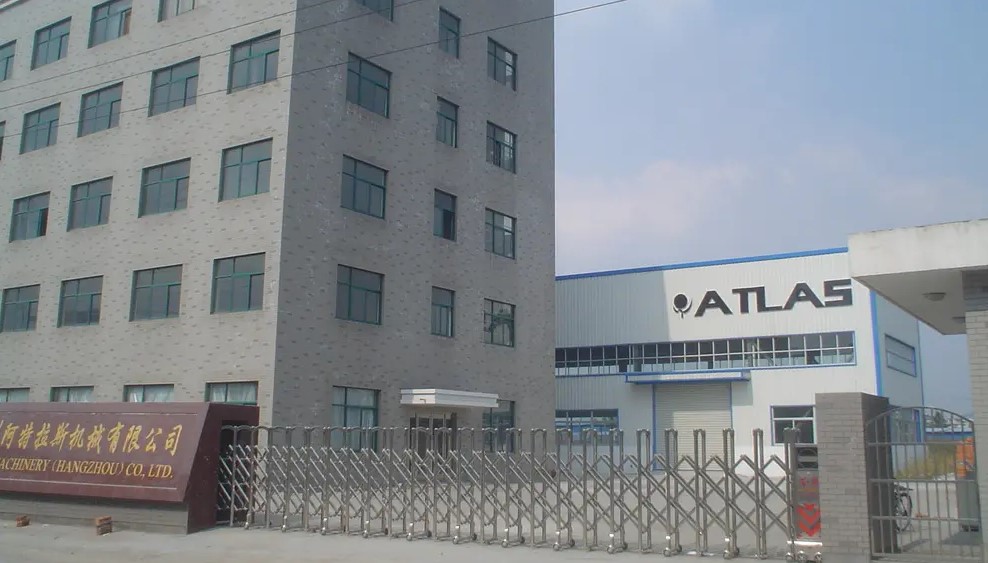

Company Information
