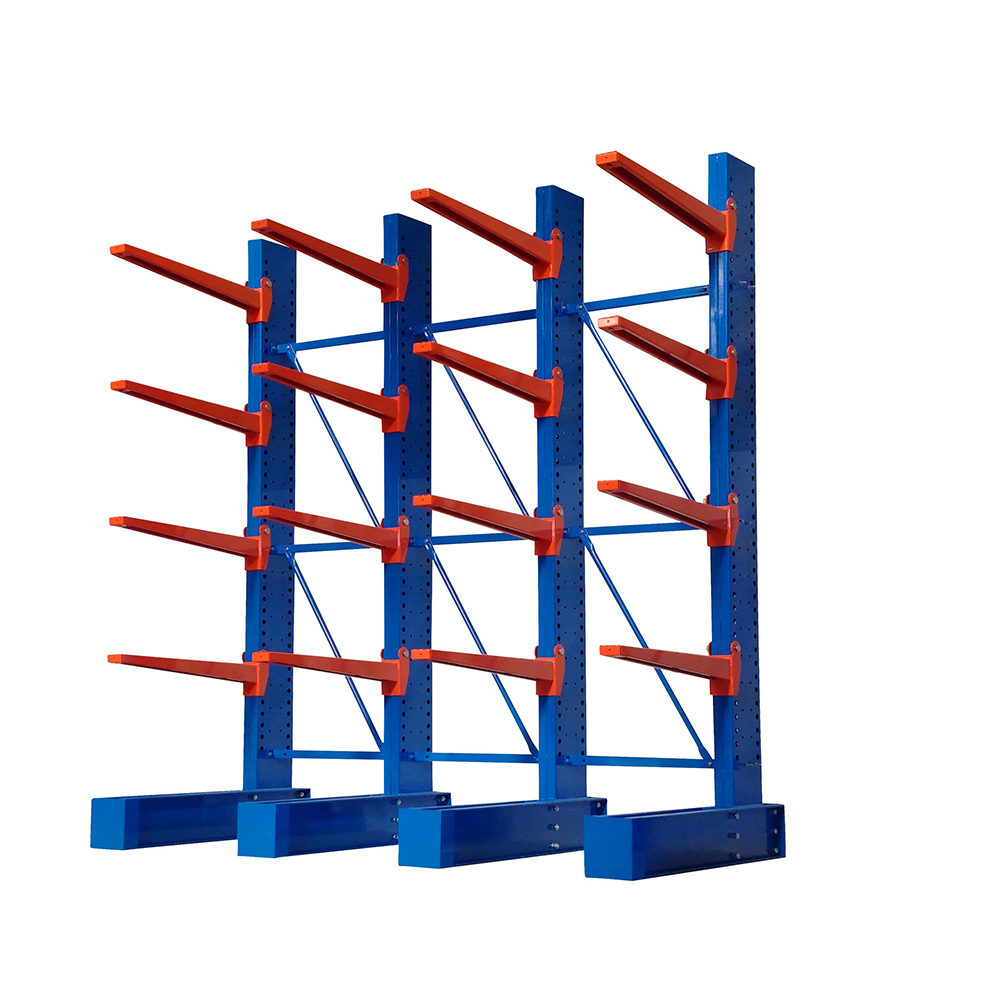

Industry Warehouse Steel Structural Pipe Rack Cantilever Rack for Pipe / Lumber Storage
Product Description

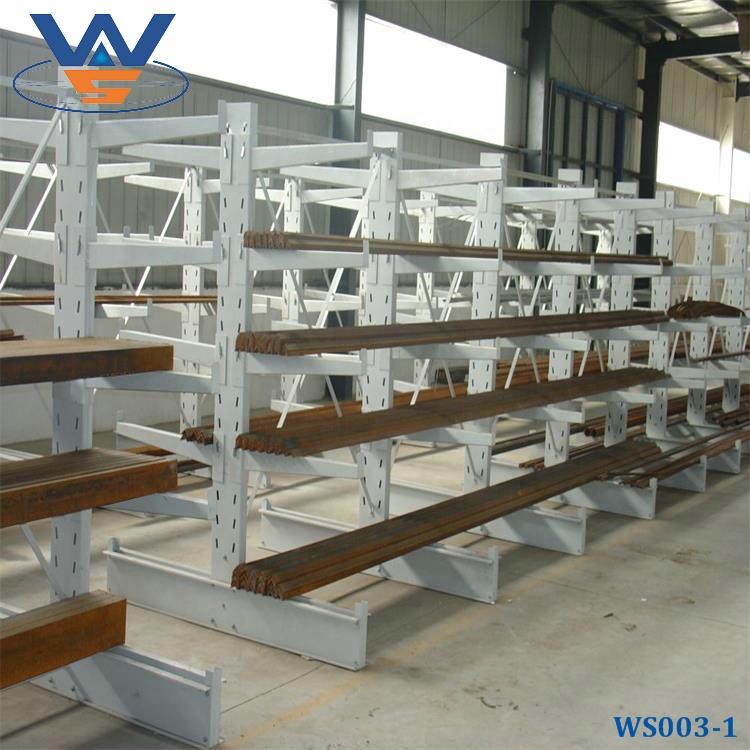

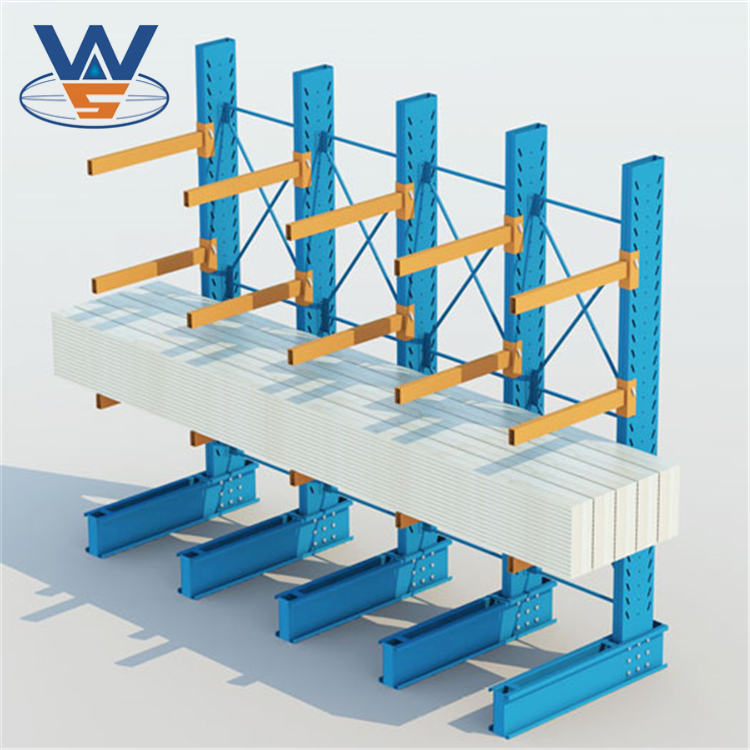

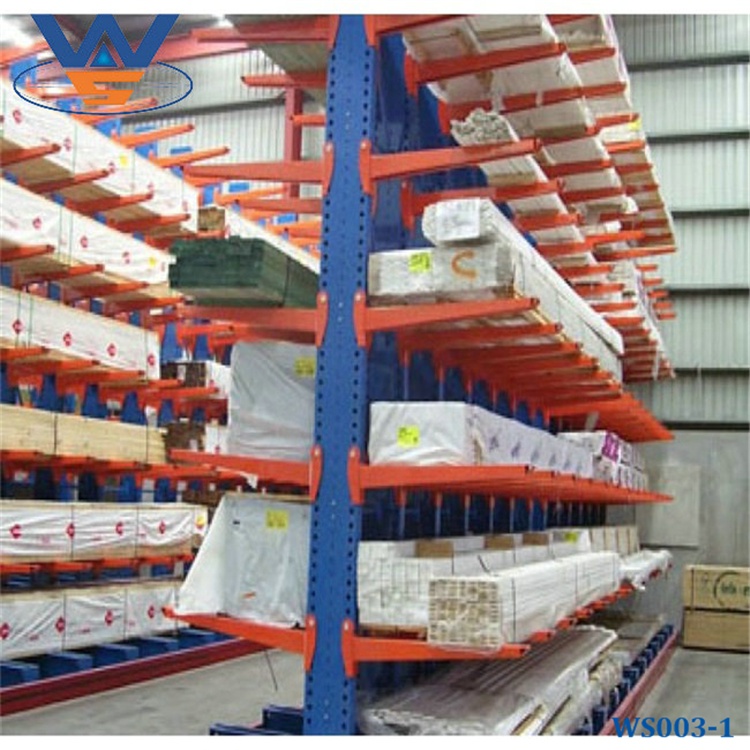

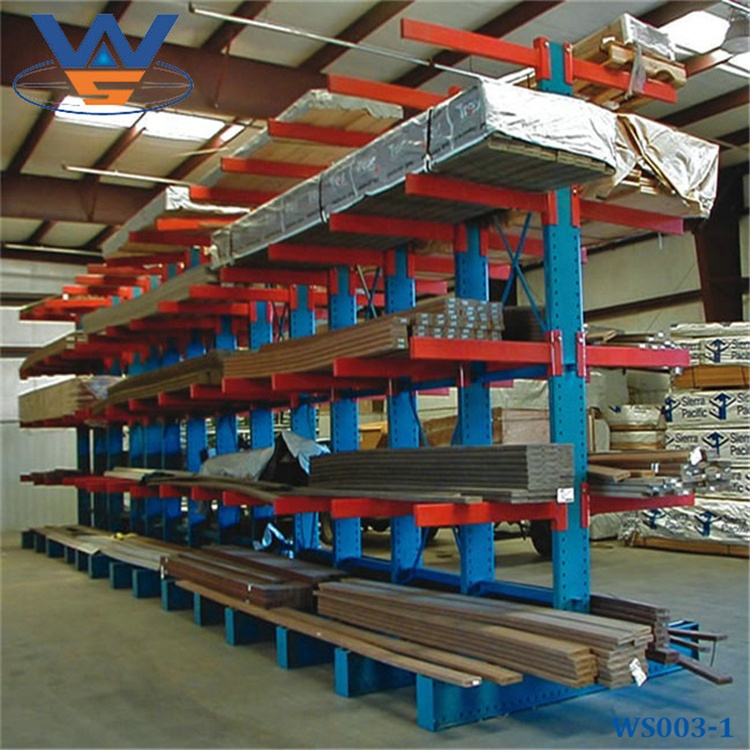

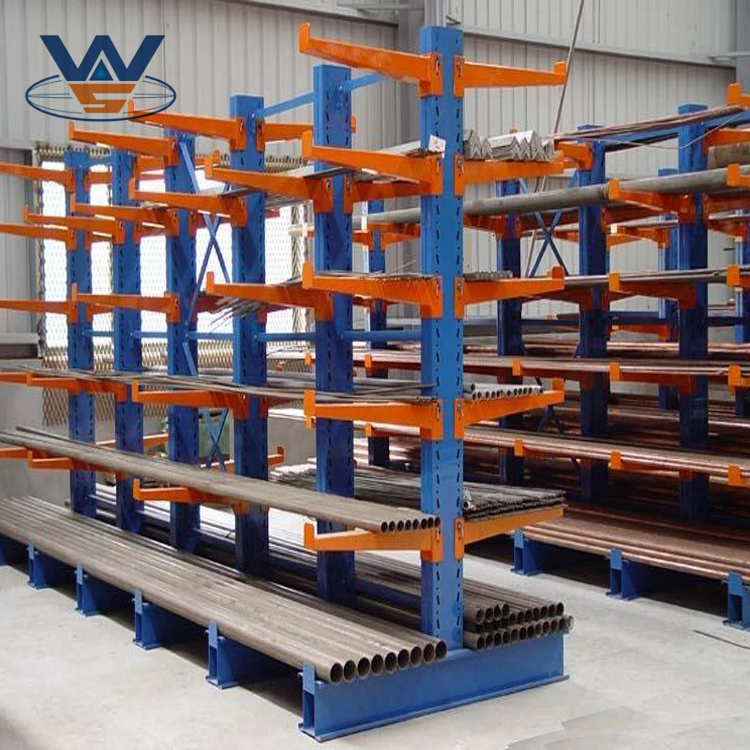

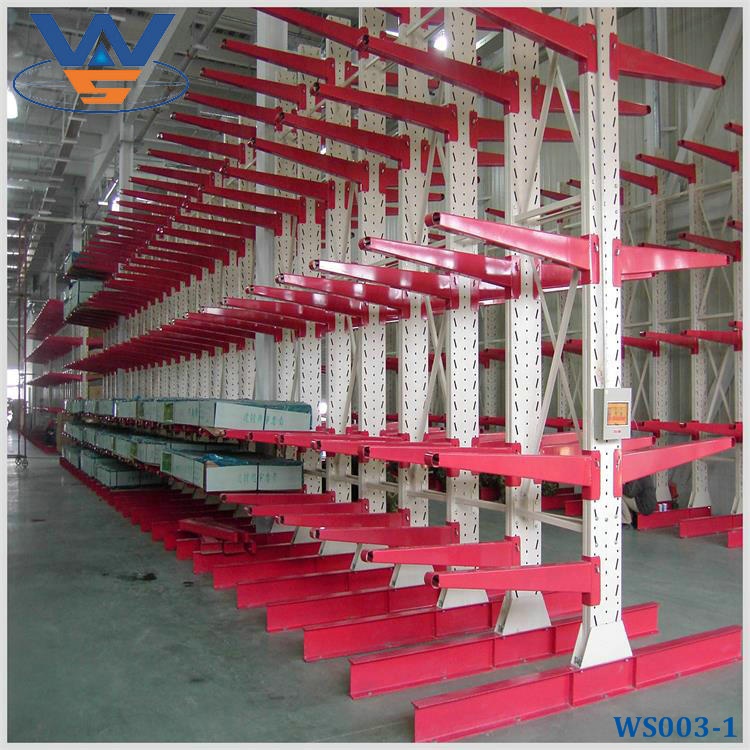

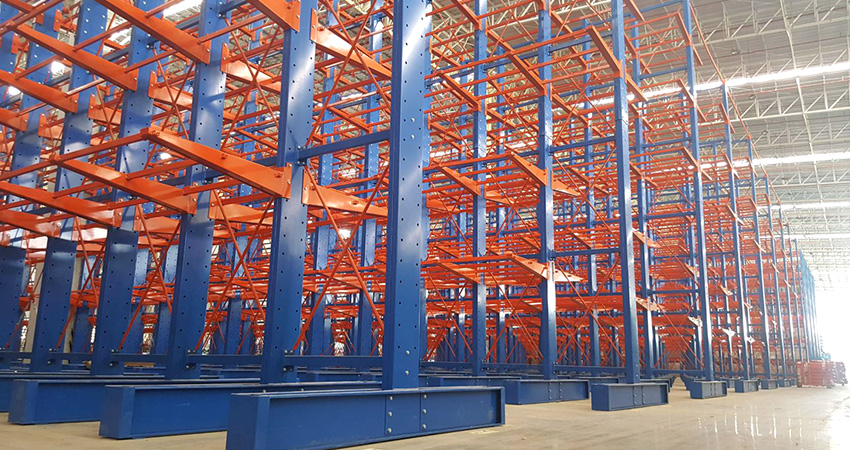

Cantilever rack, which also called arm rack, is ideal solution for storage of long objects like metal extrusions, steel bars, tubes, pipes, carpet rolls, lumber and furniture etc.
Cargos can be completely accessible from the front without any of the horizontal restrictions of traditional pallet racking, loads of differing lengths may be stored on the same rack and even at the same level.

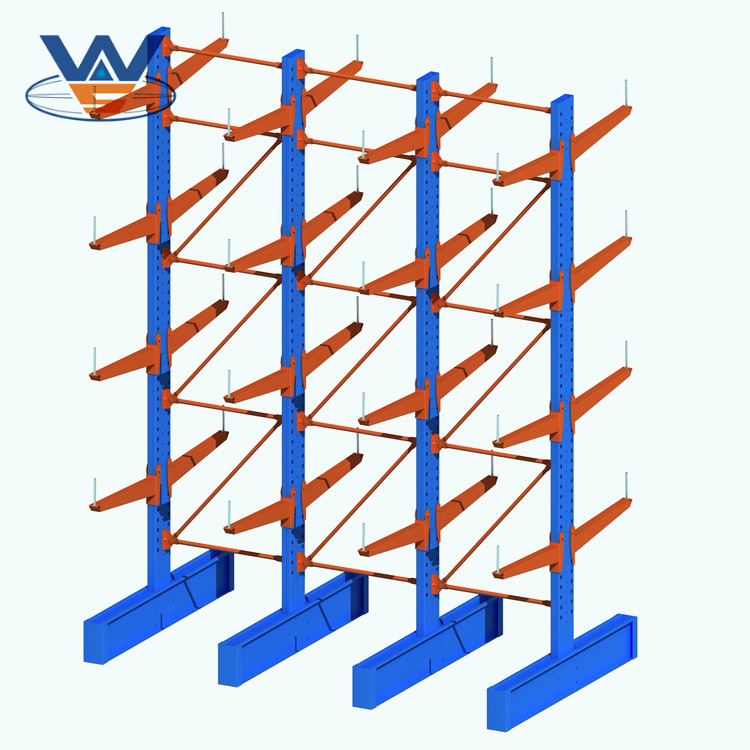

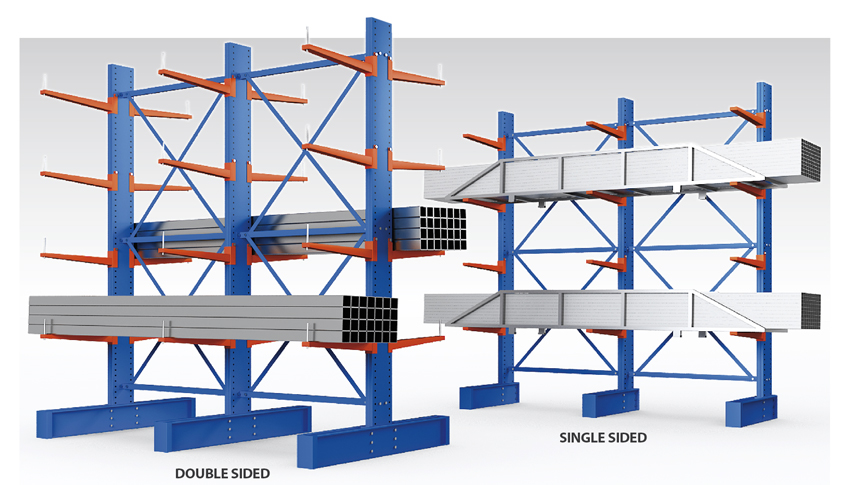

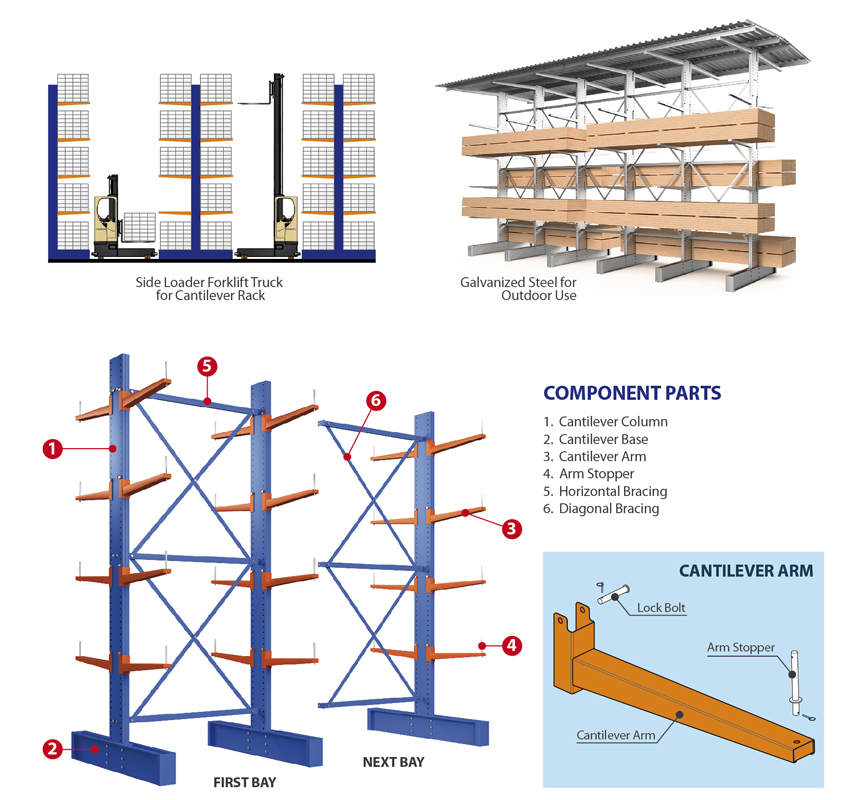

Cantilever rack is designed for single and double sided column use. Columns are pre-punched on both sides for conversion from single-sided to double-sided cantilever layouts, arms are easily adjustable and cantilever rack may be switched between single sided or double sided cantilever. It's mainly used in the mechanical manufacturing industry and markets for building materials.
Quality & Benefits
Cantilever Racks offer the following distinct advantages over standard pallet racks:
Cantilever rack has no front column to interfere with the placement or retrieval of loads, lowering handling time and costs.
Loads may be placed anywhere along the entire length of a row of cantilever rack.
Without a front column, cantilever rack loses less horizontal space to rack structure and handling clearances.
Cantilever rack can store nearly any type of load, but is especially useful with long, bulky or odd shaped loads.
In addition to reduced handling times and increase space utilization, Cantilever becomes more economical as the load length increase, while standard pallet rack increases in cost.
Product Specifications
| Product name | CANTILEVER RACK |
| Model | OR-CR 002 |
| Material | High-quality steel Q235B |
| Size | Height: 1500-6000mm Width/Length: design as your requirement |
| Dimension | Customized (Special sizes also available to specific storage needs) |
| Layers | 2-8 adjustable layers (can be customized) |
| Loading capacity | 300-2000kgs/arm |
| Color | Blue/Orange/Light Grey or as your requirement |
| Guarantee period | 5 years warranty |
| MOQ | 10 sets |
| Structure | Knock down structure, easy assembling, convenient for delivery. |
Frequently Asked Questions (FAQ)
We are a factory. We specialize in all kinds of warehouse storage racks.
Our factory is located in Nanjing City, Jiangsu Province, China. You can fly to Nanjing airport directly. You are warmly welcome to visit us whenever you are available!
The raw material of steel code is Q235. Other steel is also available according to clients' requirements.
TT, LC, and Western Union are available. Delivery time is generally within 15 days after deposit.
We will send you information and photos at different production stages so you get the latest updates in time. We also have professional engineers to calculate dimensions according to your loading request, and our quality control team thoroughly checks all products before shipment.
We provide detailed installation drawings to guide you. If needed, we can also dispatch an engineer to assist with on-site installation instruction (related travel, lodging, and dining costs will be charged to the client).
