Jracking Warehouse Storage Heavy Duty Pallet Rack System Industrial Storage Rack Push Back Steel Rack
Product Description
Product Description

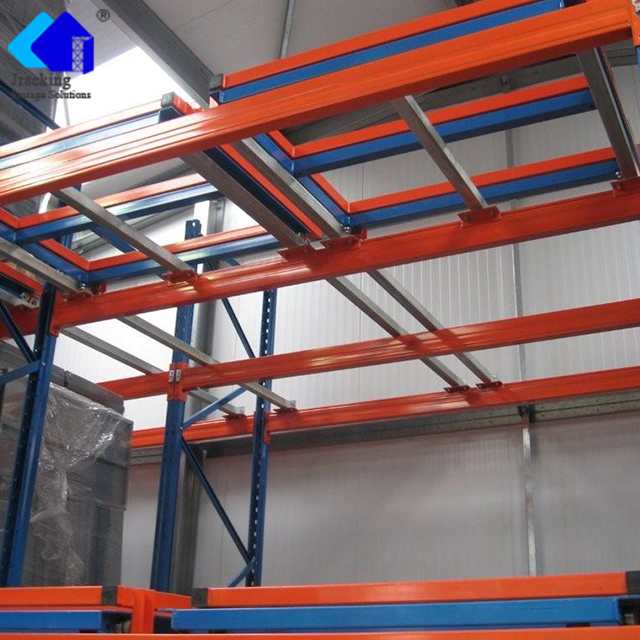

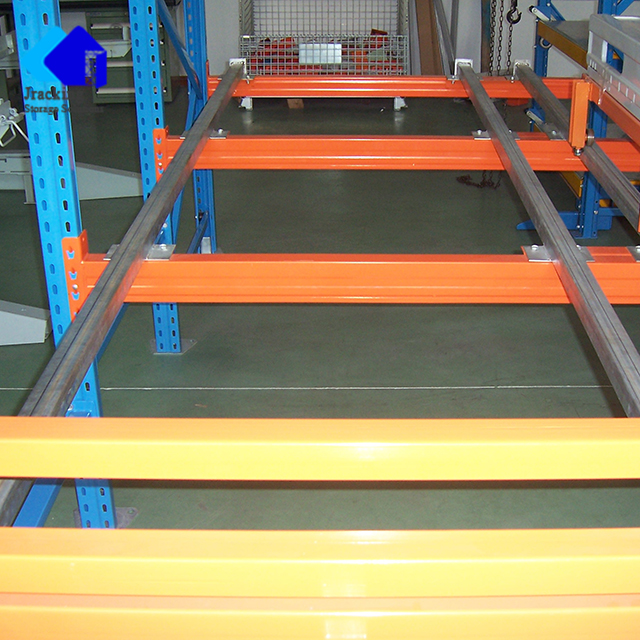

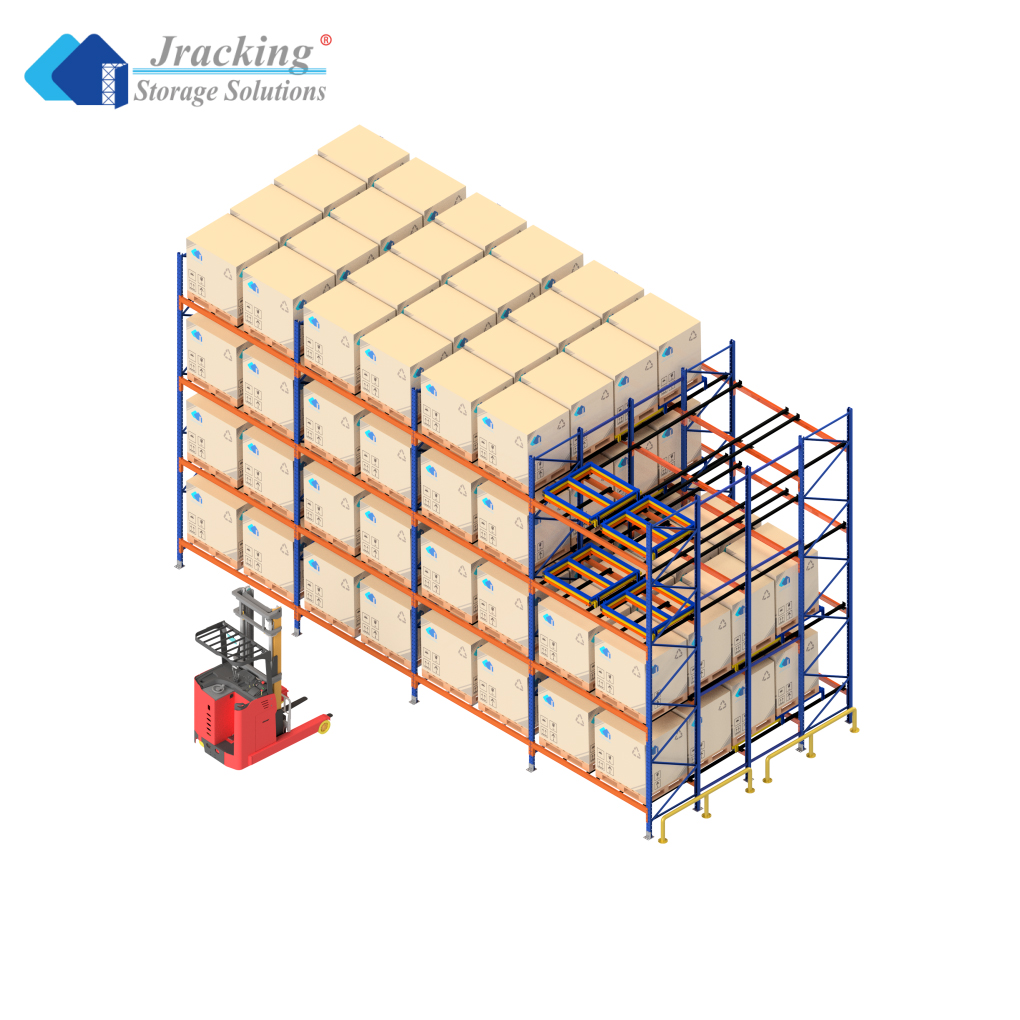

Push Back Racking
Jracking Push Back Rack is composed of pallet rack and combined with trolley and around 2° guide rail. The push back pallet rack uses heavy-duty carts to form 2 to 5-pallets-deep configurations, single pallet loading capacity is less than 1000kg.
| Name | Push back rack | Material | Steel |
| Size | Customized Size | Color | Customized |
| Depth | Customized | Weight Capacity | 500-5000kg |
| Width | Customized | Height | Customized |
| Finish | Powder Coated | ||
| Usage | Warehouse Storage System | ||
| Application | Widely Used | ||
| Certification | CE, AS4084-2012 /CE/ ISO/RMI | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

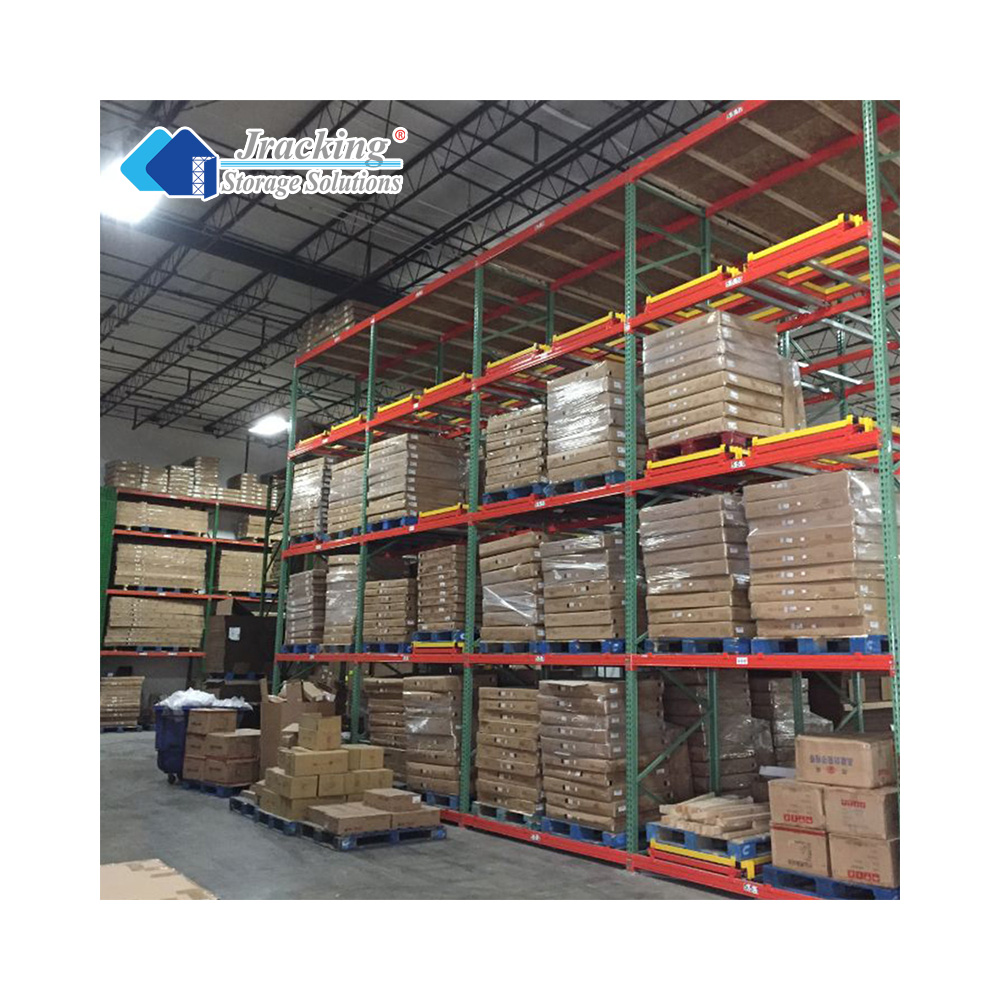

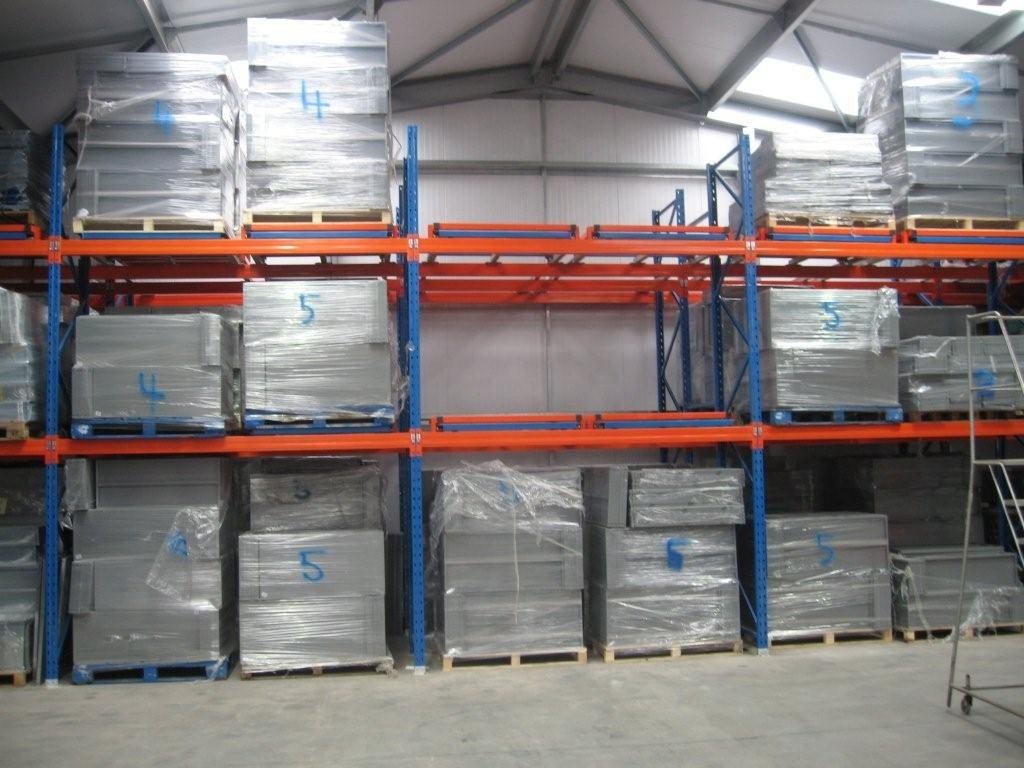

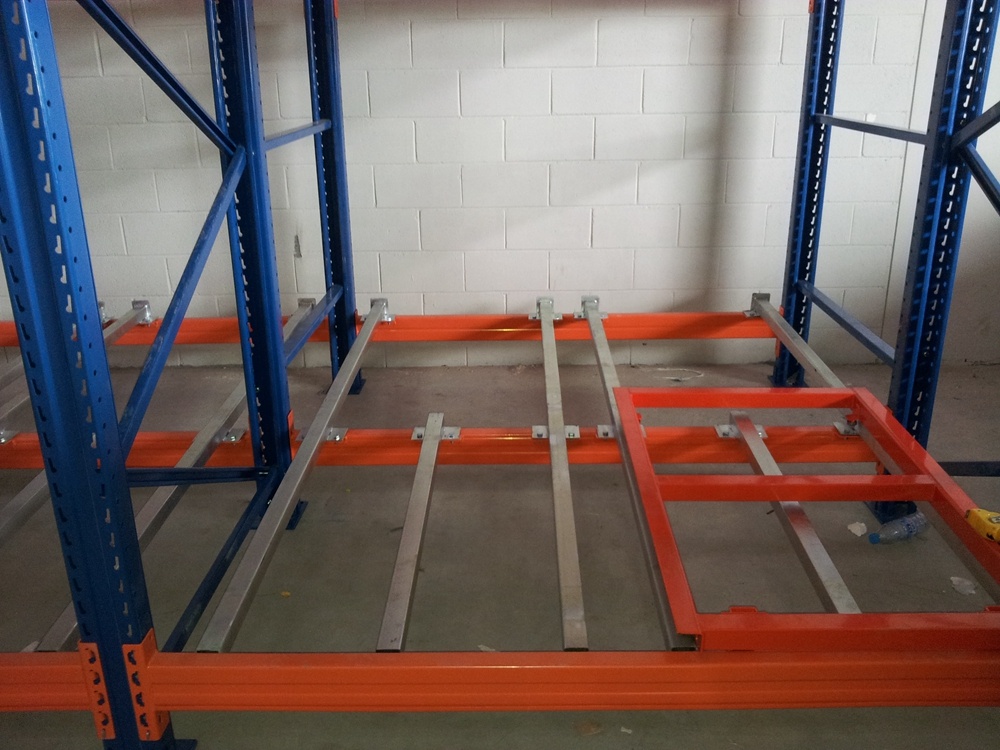

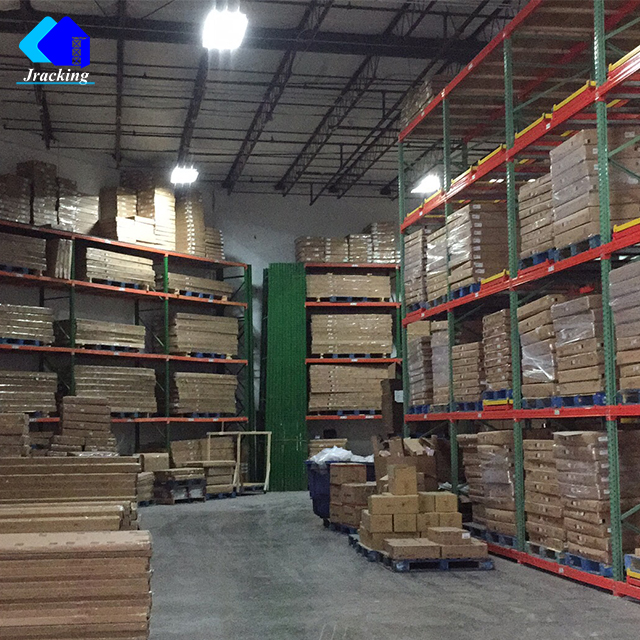

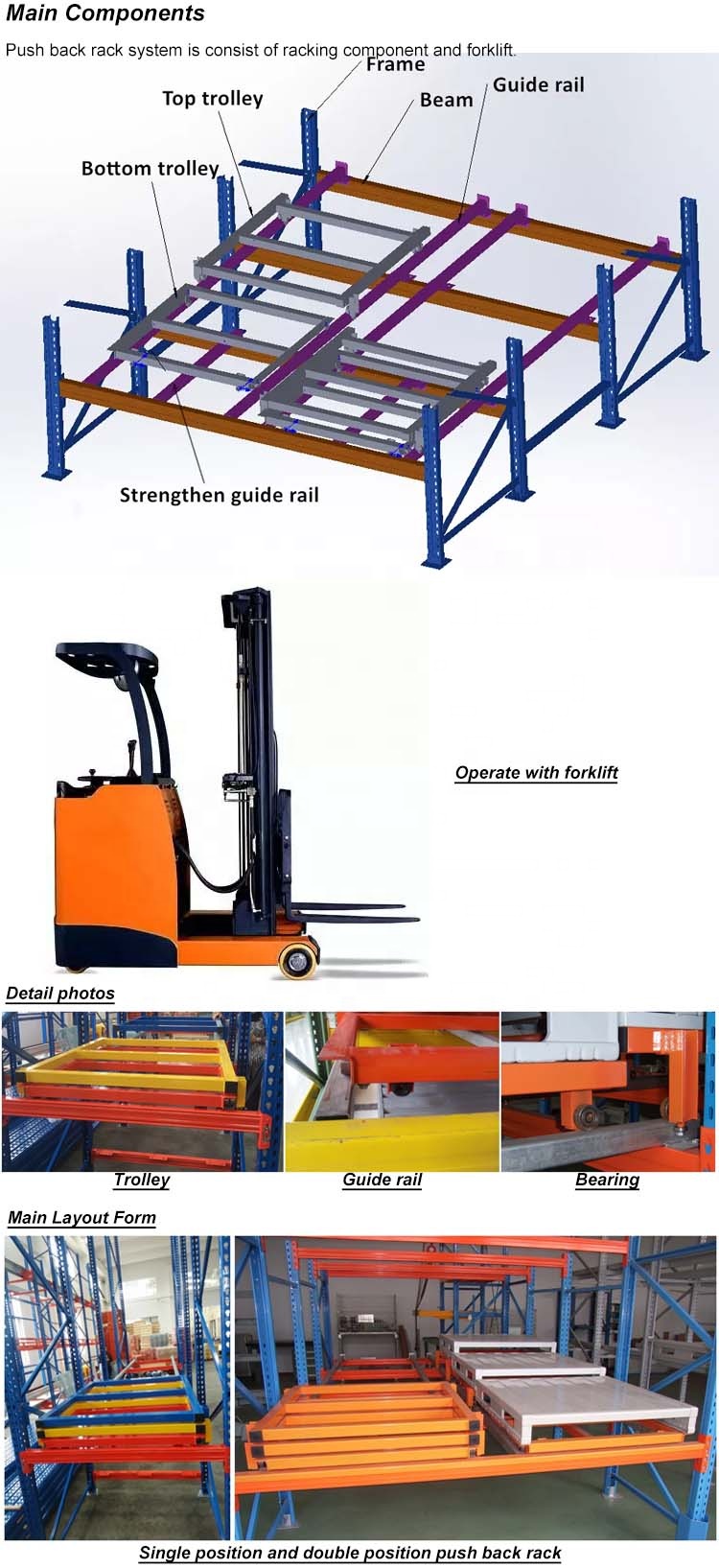

Product Display

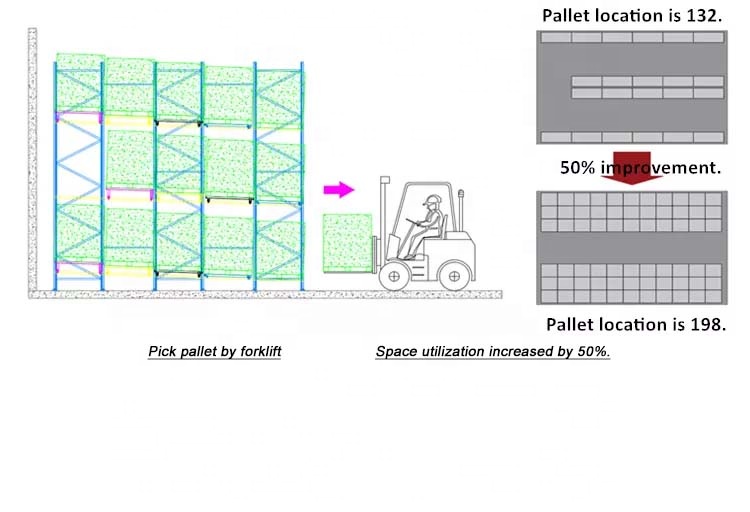

Key Features
Simple operation, high time efficiency, not high requirements for forklift workers, suitable for many industries, especially food, cold storage.
Large volume storage with highly effective space use.
Suitable construction, safety system.
Forklift does not need to enter the rack access, so it is safer to operate.
Inclined rail is designed meeting particular products to make the trolley more safely and smoothly on it.

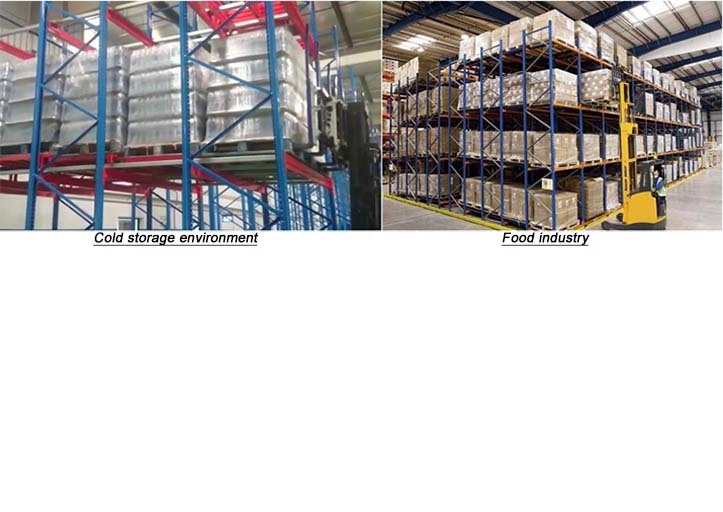

Application
The push back rack is suitable for the products with large quantity and few varieties. Such as:
1. Electronics
2. Food and beverage
3. Tobacco
4. Other industries (Cold storage)
Necessary Info For An Inquiry

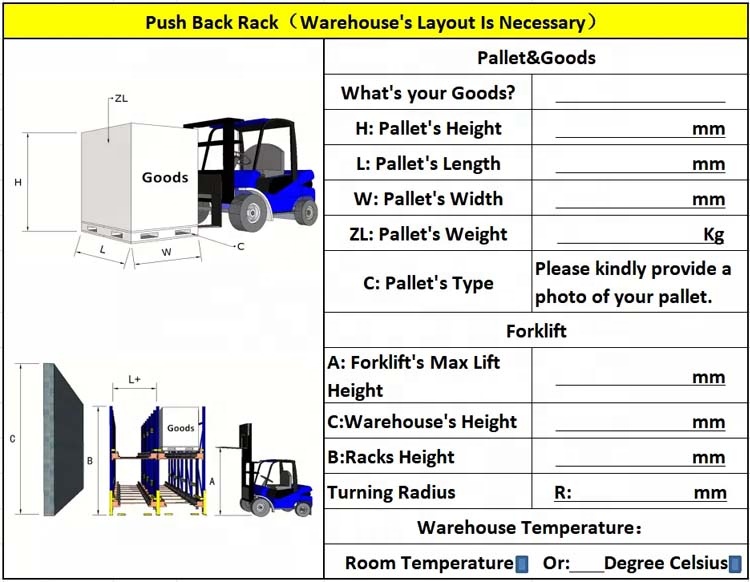

The following chart is intended to show the basic required information for a push back rack quote. To get the most suitable design and cost-effective quote, please feel free to contact our Sales.
Product Categories
Company Profile
Certifications

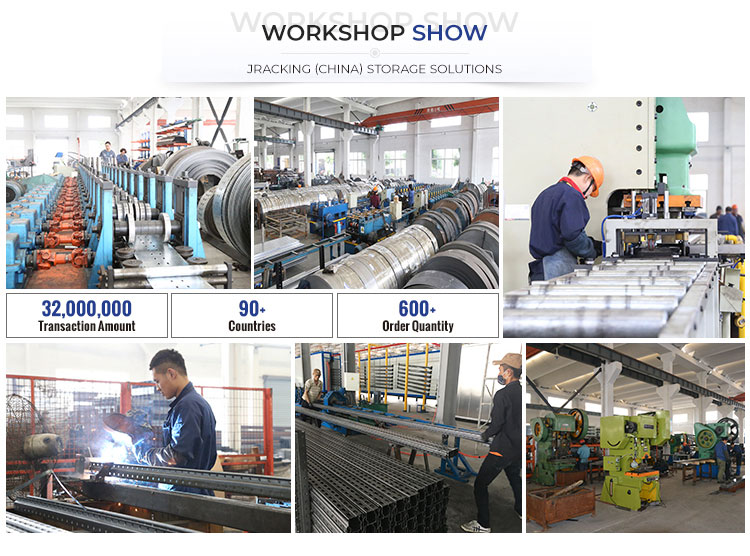

Production Process

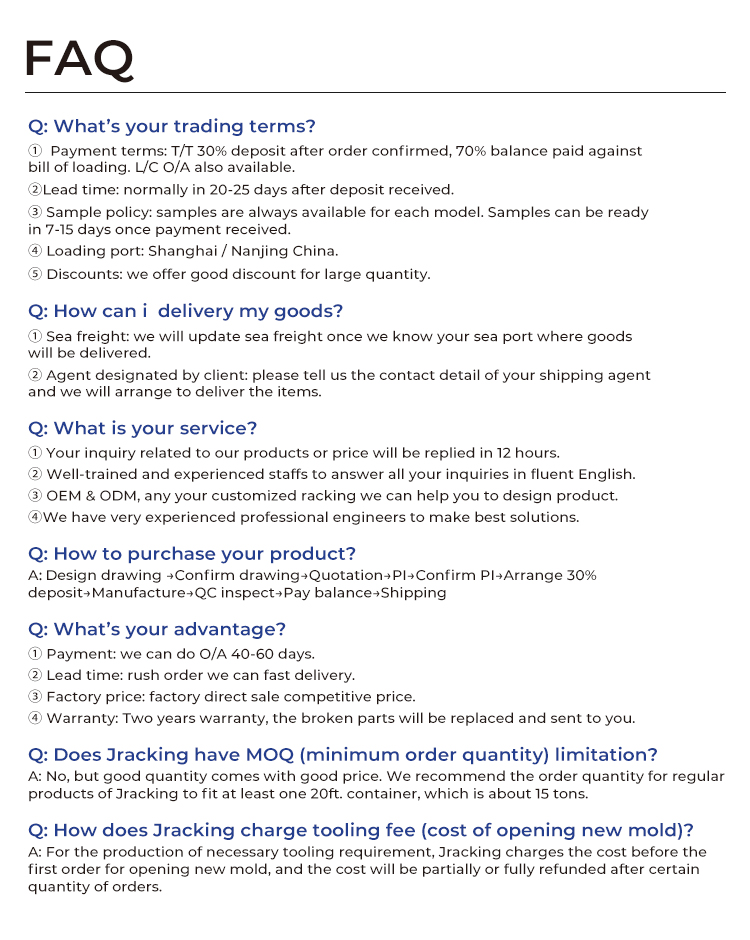

Frequently Asked Questions
Q
How does a push back rack system work?
Jracking Push Back Rack is composed of pallet racks combined with nested trolleys on an inclined guide rail (approx. 2°). When loading, the forklift pushes the initial pallet back to place the next one. On retrieval, gravity brings the rear pallets forward smoothly to the pick aisle.
Q
What is the standard configuration and loading capacity?
The push back system typically forms 2 to 5-pallets-deep configurations. The single pallet loading capacity is rated for under 1000kg, with bay weight capacities engineered between 500kg and 5000kg based on specific storage requirements.
Q
Does the forklift need to drive inside the racking system?
No. Forklifts operate only from the front aisle and do not need to enter the rack lanes. This design protects the upright structures from impact and substantially increases operating safety and cycle efficiency.
Q
Can push back racks be customized for cold storage applications?
Yes. Push back racks are extensively used in cold storage and food beverage applications. Custom sizes, inclined rails, specialized steel grades, and powder-coated finishes are tailored to cold warehouse conditions.
Q
What quality and industry certifications do your products hold?
Our storage racking systems strictly comply with global quality and engineering standards, certified under CE, Australian standard AS4084-2012, ISO, and American RMI specifications.
Q
Are free samples and OEM services available?
Yes, OEM services are fully supported for custom dimensions and branding. Free component samples are available upon request, with delivery costs covered by the buyer.
