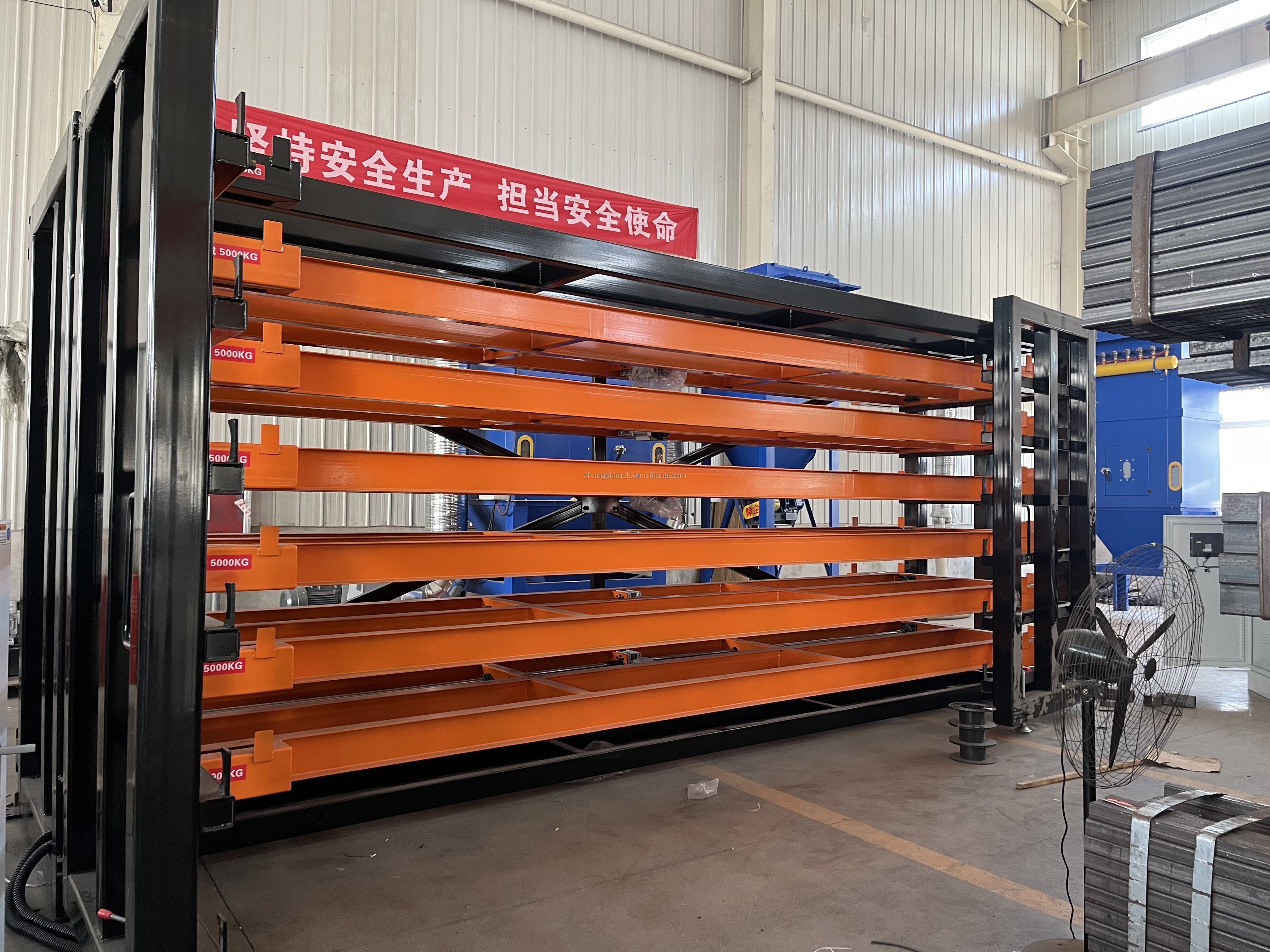

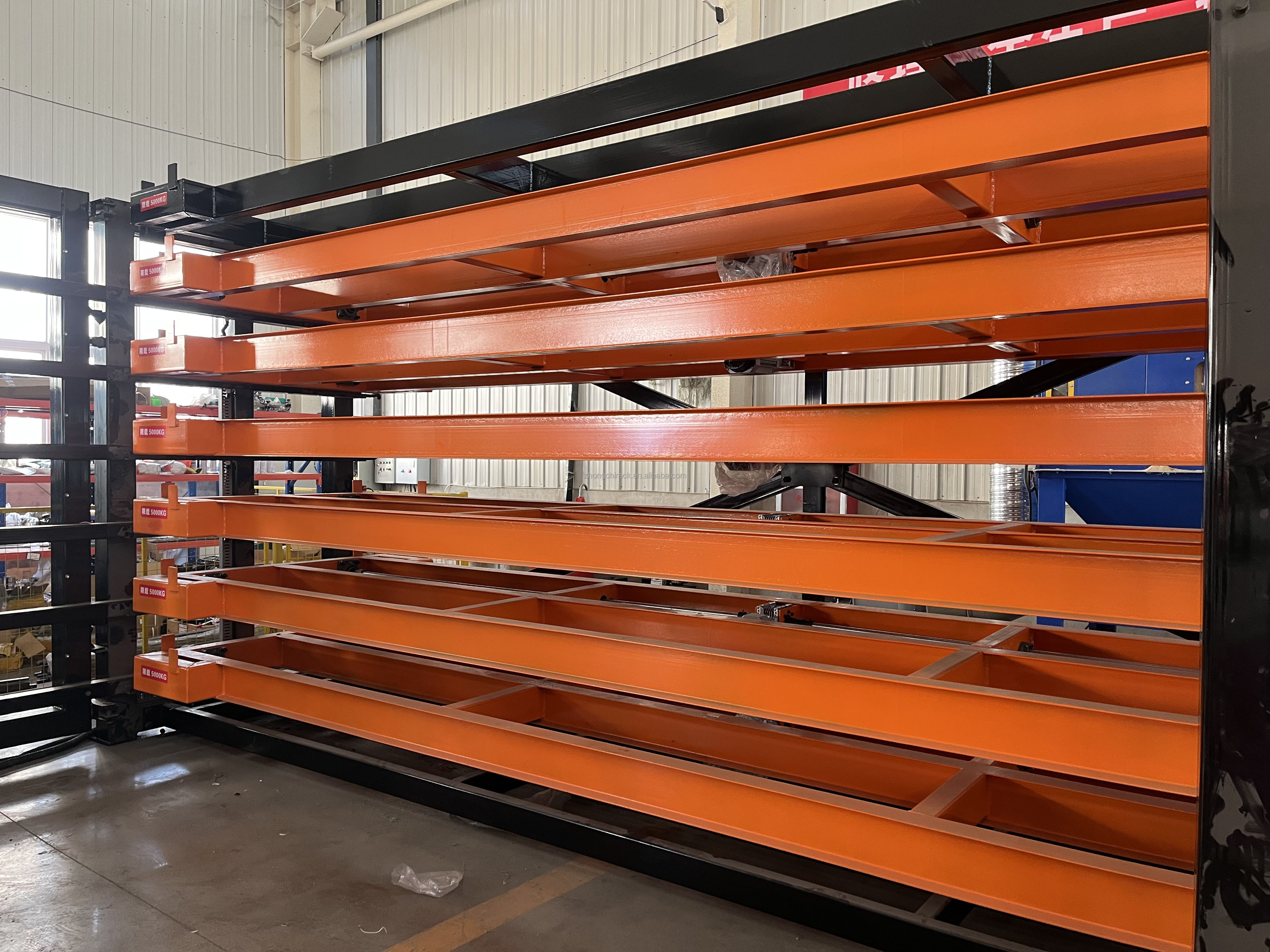

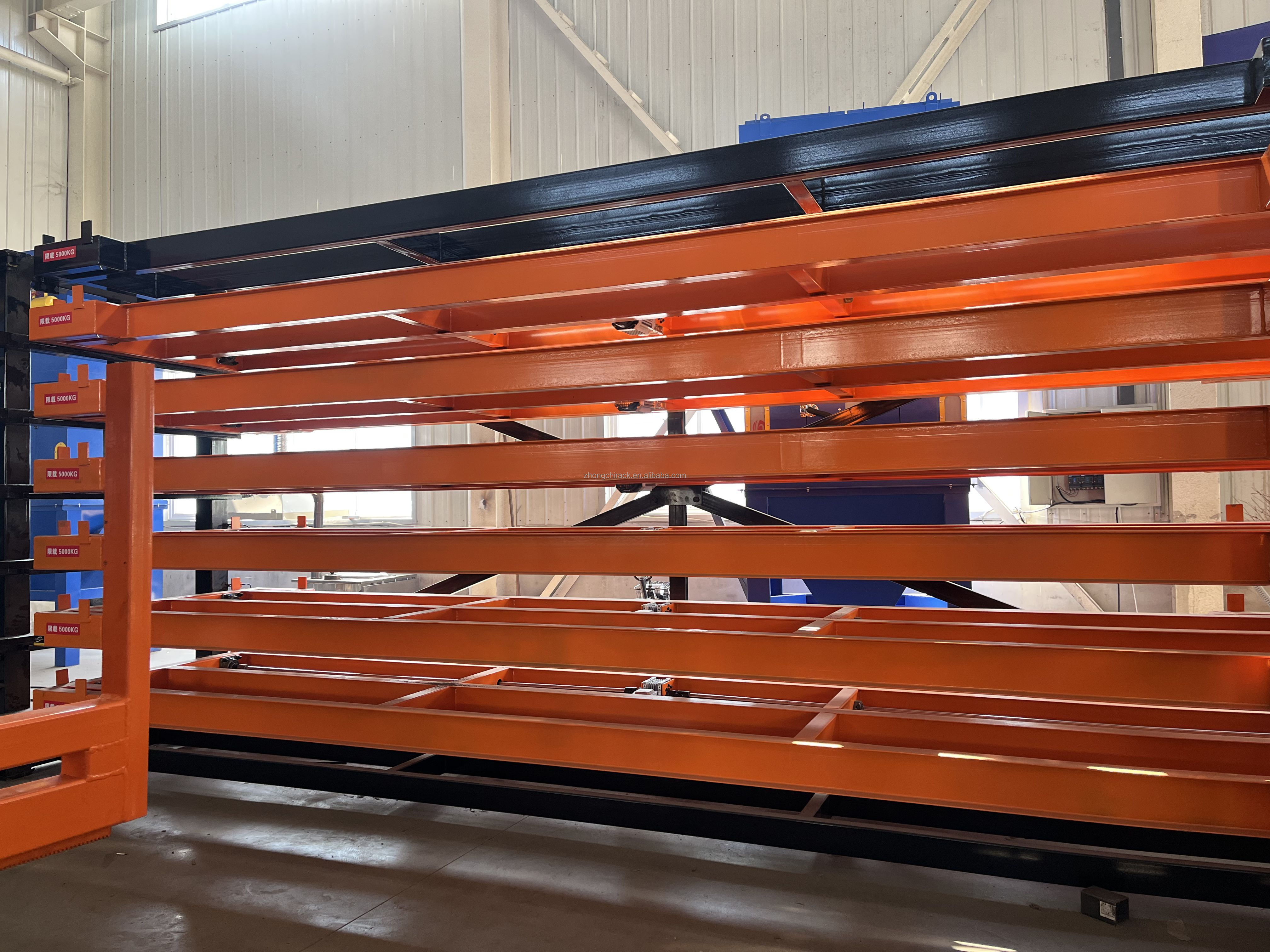

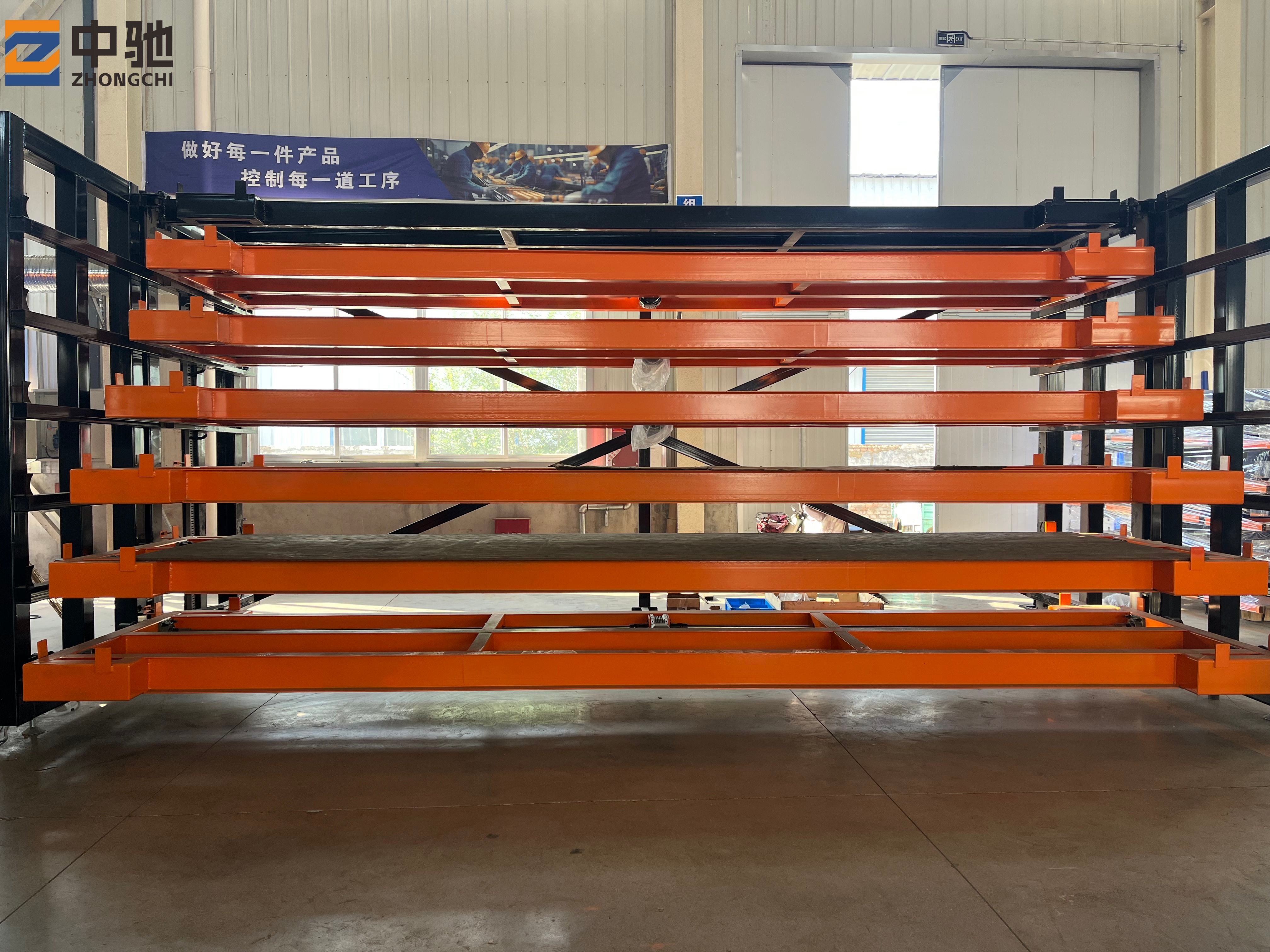

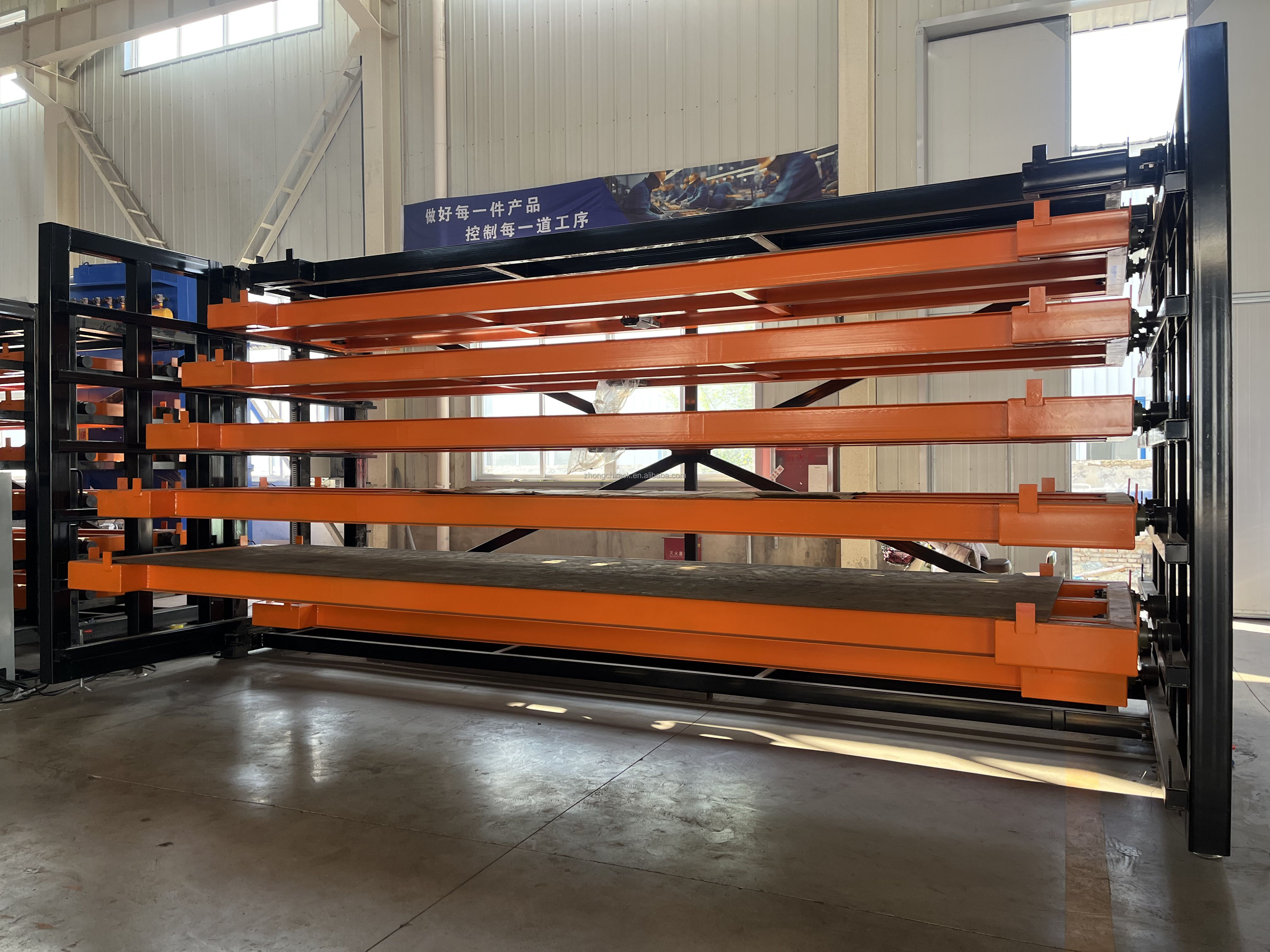

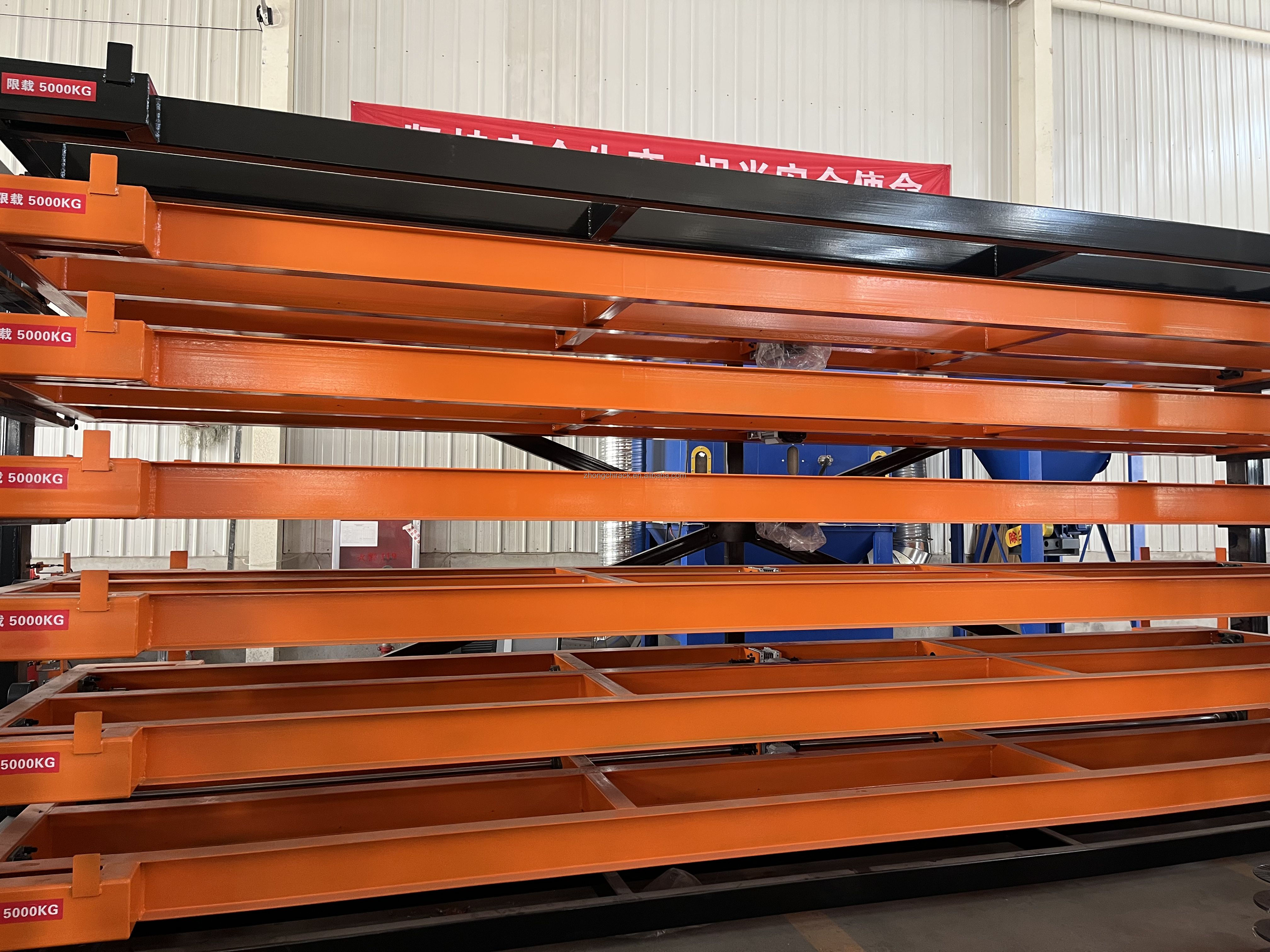

Anti-Deformation Steel Storage Rack Heavy Duty Industrial Rack for Warehouse Long-Term Use
Product Description
| Product Name | Hand Crank Drawer Sheet Rack | Upright Material | Standard 3015mm, 6030mm, extra-large sheets customizable |
|---|---|---|---|
| Applicable Materials | Steel sheet, aluminum sheet, stainless steel plate, stone slab, plastic panel, decorative board | Standard Drawer Layers | 4 -7 layers, adjustable layers |
| Drive Mode | Electric motor drive, one-key independent extension for single drawer | Control System | Electric control buttons, emergency stop, automatic power-off limit switch |
| Single Drawer Load | 2 - 5 Ton optional customizable | Installation Method | Fixed with anchor bolts, suitable for hardened cement floor |
Zhongchi Machinery is a professional heavy-duty storage rack manufacturer based in Jinan, Shandong Province. We integrate independent R&D, mass production and customized sales into one complete business system.

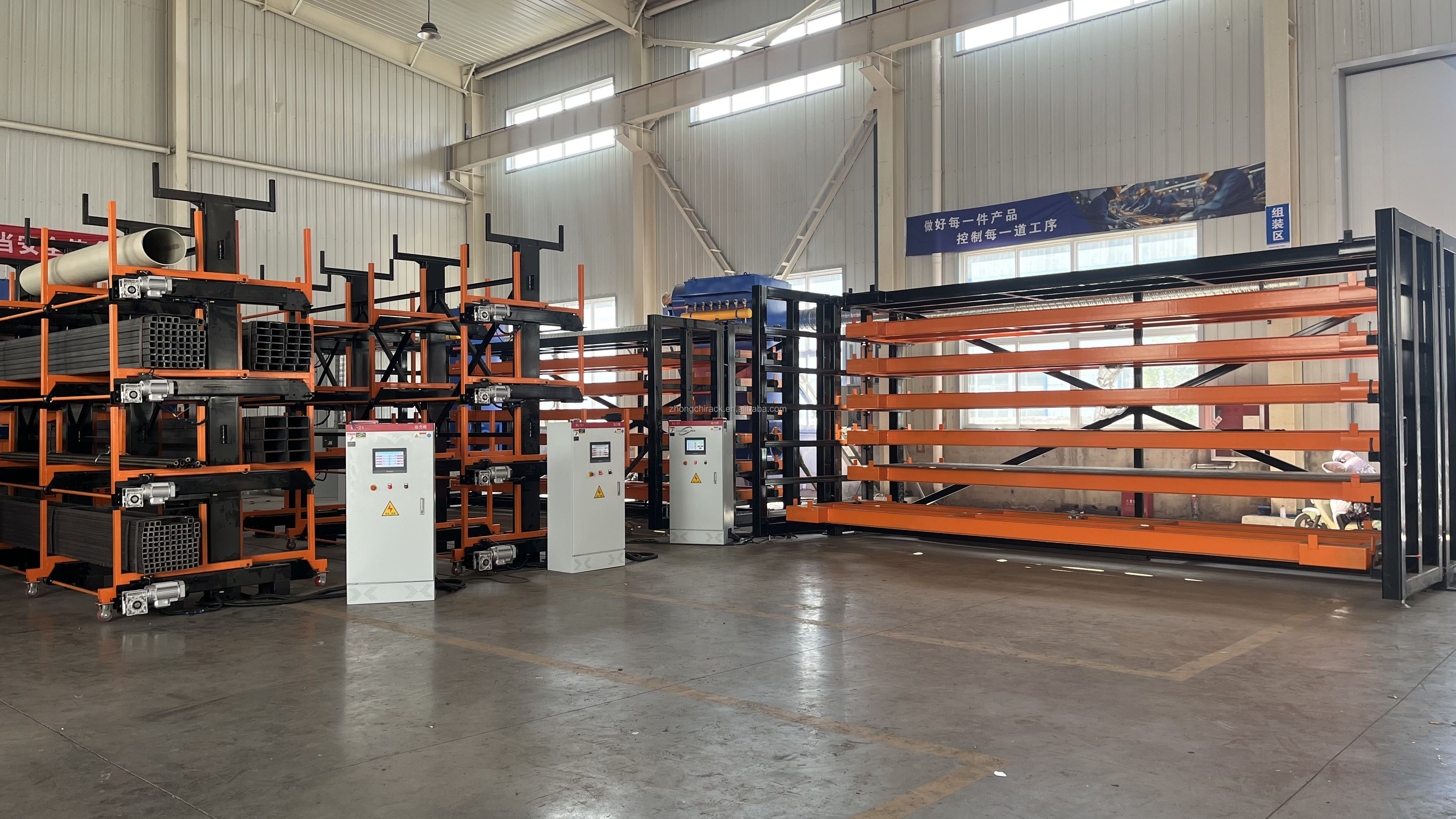

We focus on industrial raw material storage equipment. Our core products include telescopic cantilever racks, drawer sheet racks, beam pallet racks and intelligent automated stereoscopic warehouse systems.
Our factory owns standardized large workshops and fully automatic production lines. We have powerful production capacity and offer flexible one-stop customization solutions for various warehouse storage needs.
All racks are made of national standard thickened Q235 steel. Each product goes through multi-rigorous inspections, electrostatic anti-corrosion spraying and professional load-bearing tests to guarantee stable and long service life.
We provide direct factory supply for warehouse clients from domestic market and all over the world, with reliable product quality and comprehensive after-sales support.
It is suitable for all flat panels including steel sheets, stainless steel sheets, aluminum sheets, copper sheets, acrylic sheets, plastic sheets, sheet metal blanks and laser cutting raw materials. Widely applied in sheet metal factories, laser processing plants, hardware workshops, building material warehouses, mold workshops and stainless steel trading warehouses. It can store bundled long, thin and thick sheets horizontally.
Fully non-standard customized. Standard single-layer load options: 1/2/3/5 tons; heavy-duty versions up to 8-10 tons available. Layer quantity from 3 to 12 as required. Drawer length and width customized according to maximum sheet size (fits 1.5m/2m/3m/4m/6m long sheets) with adjustable layer height.
Flat cement floor with bearing capacity matching the total full load of the rack is required. The rack shall be fixed with expansion bolts on the ground floor. For second floor or mezzanine installation, floor load-bearing data shall be provided for our safety load calculation. Reinforcement work is needed before installation if the floor bearing capacity is insufficient.
Only sheet length plus 0.8m operating space is needed, no forklift turning aisle required. Matched with overhead crane and vacuum suction cups, 1.8-2.5m wide aisle is enough, much narrower than the 4-5m aisle required for cantilever racks.
Equipped with dual electric & manual crank system. Switch to manual crank to pull drawers out when power cuts off without production delay. Motors with built-in brakes lock drawers automatically to prevent sliding out freely when stopped.
The electric control system supports two speed gears (fast & slow). Fast speed for thin light sheets, slow stable speed for thick heavy steel plates with buffer start & stop to prevent sheet sliding and collision.
