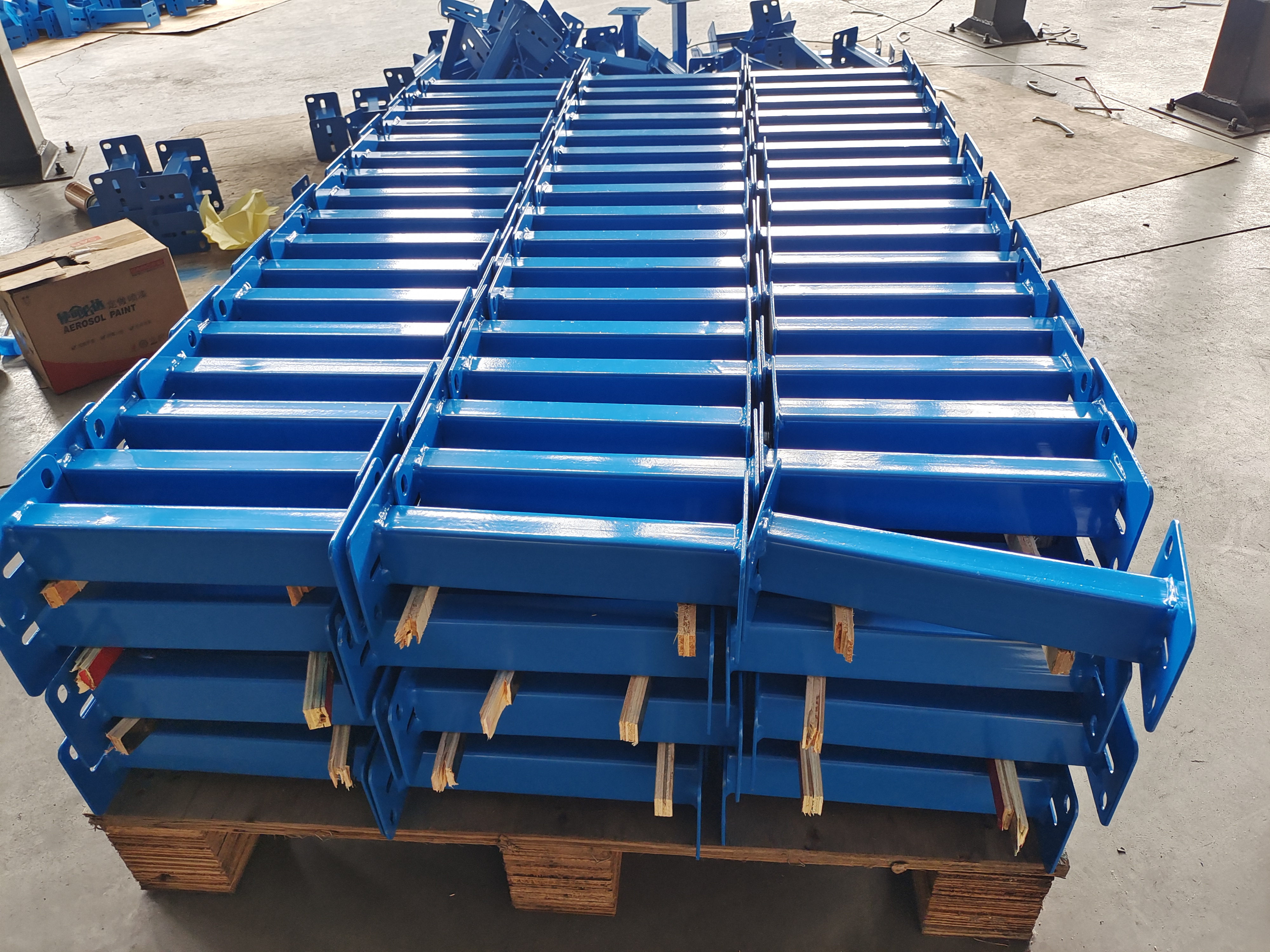

Row Spacer for Selective Pallet Racking Column 5 Layer Corrosion Protection Durable Steel Adjustable Powder Coated Back-to-back
Product Description
Products Description

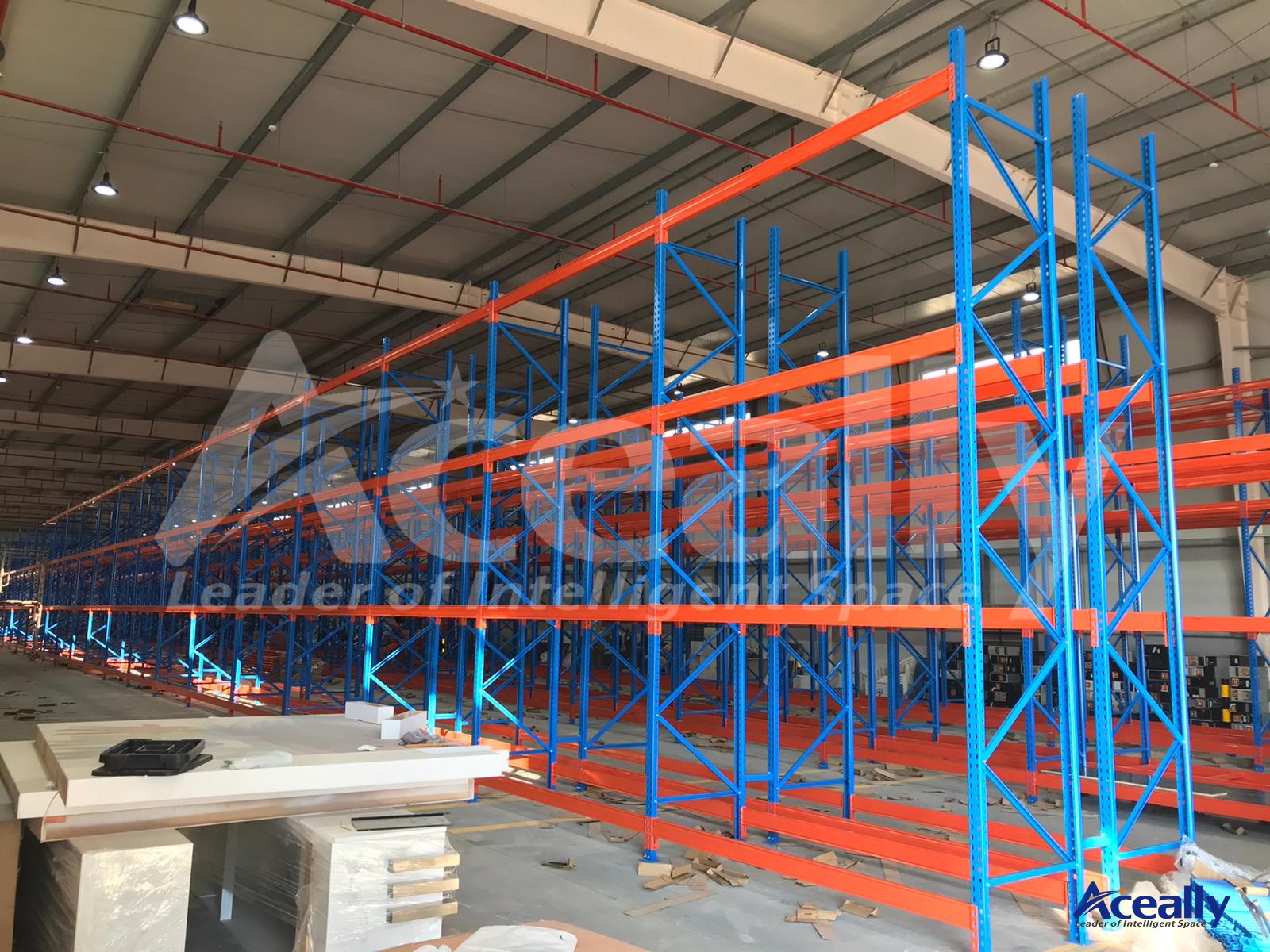

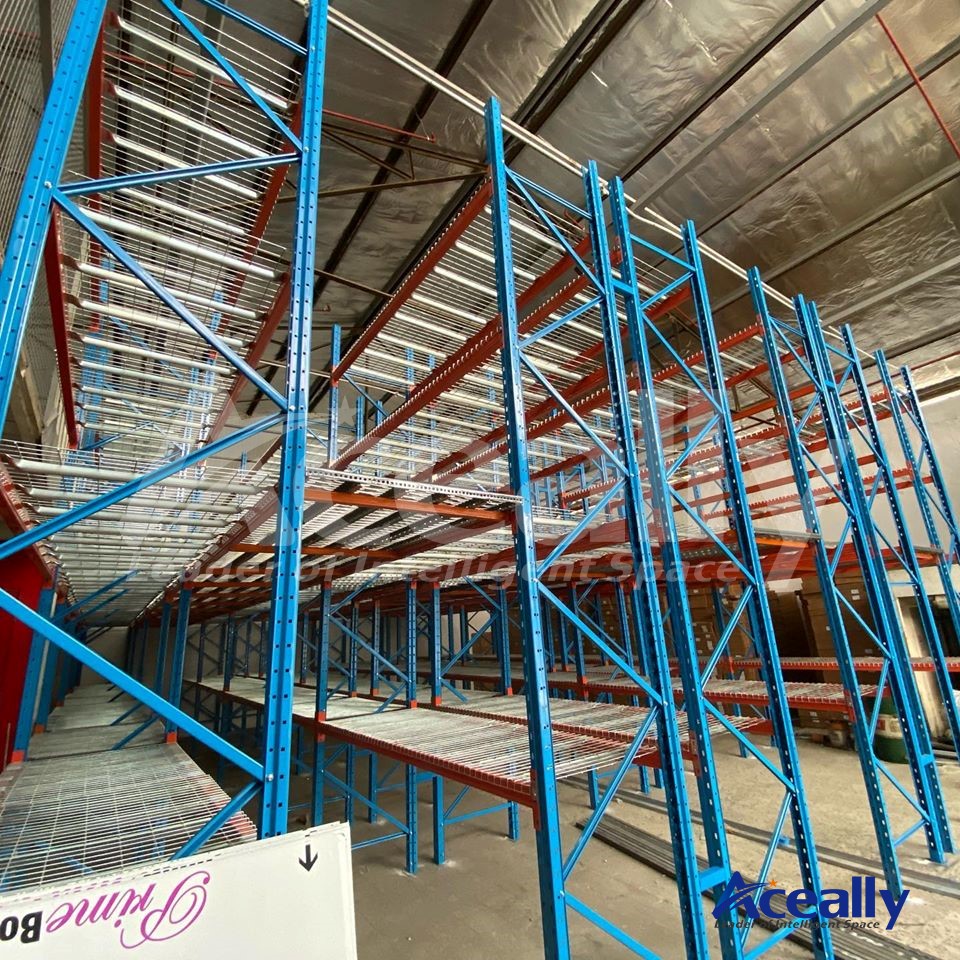

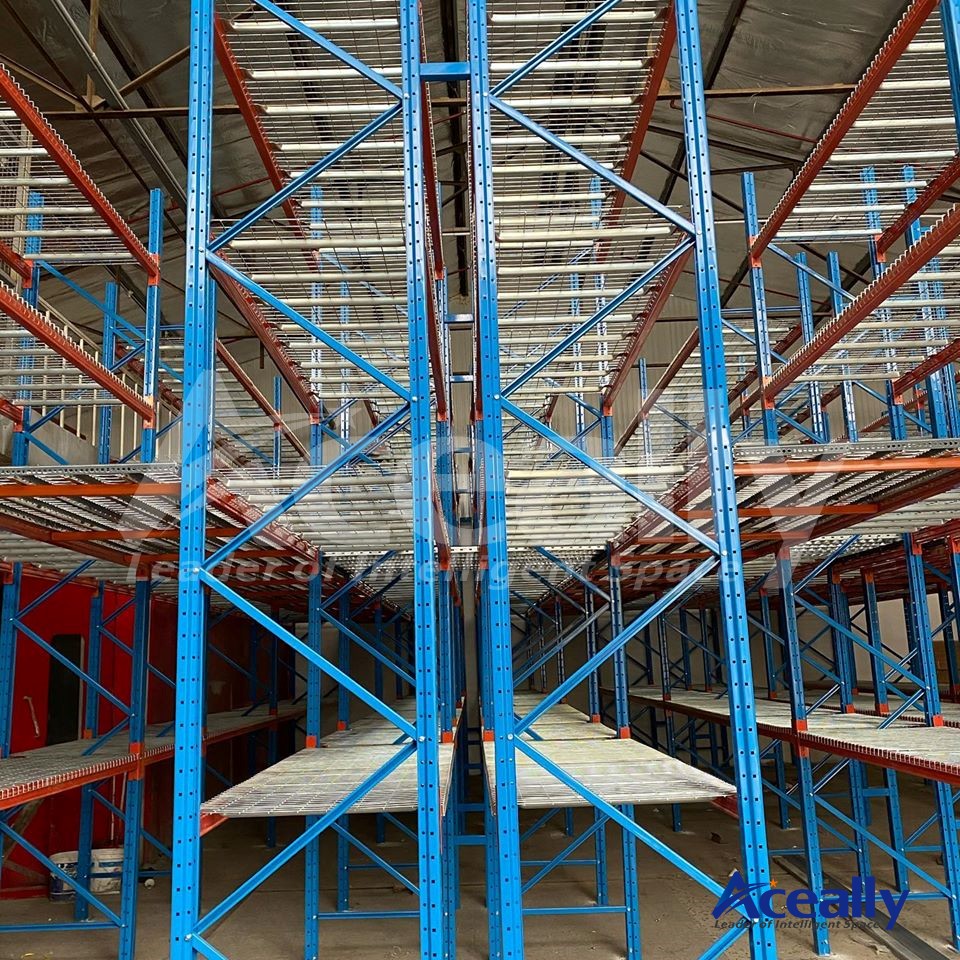

Selective Pallet Racking is the simplest & economical racking system which allows 100% accessibility to each pallet. This racking is suitable for large variety of SKU’s irrespective of quantity.
100% selective of goods / pallets
Most economical to maximise warehouse space
Picking rate: Fast
Floor space utilization: 30% to 40%
Most popular application / solution to warehouse storage solution
| Length | 80x50 | 100x40 | 100x50 | 110x50 | 120x40 | 120x50 | 140x40 | 140x50 | 160x50 |
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 4286 | - | - | - | - | - | - | - | - |
| 1800 | 2977 | - | - | - | - | - | - | - | - |
| 1900 | 2672 | 3809 | 4535 | - | - | - | - | - | - |
| 2200 | 1993 | 2841 | 3382 | 4219 | - | - | - | - | - |
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | - | - | - | - |
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | - | - | - |
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | - | - |
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | - |
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3145 | 3716 | - |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | - |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2419 |

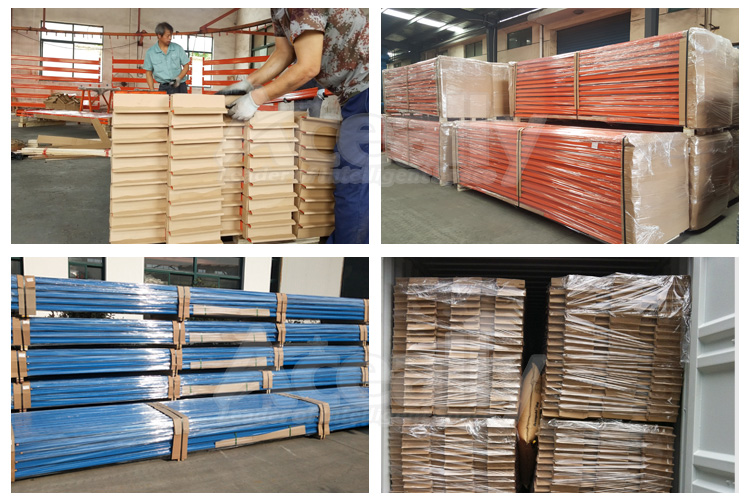

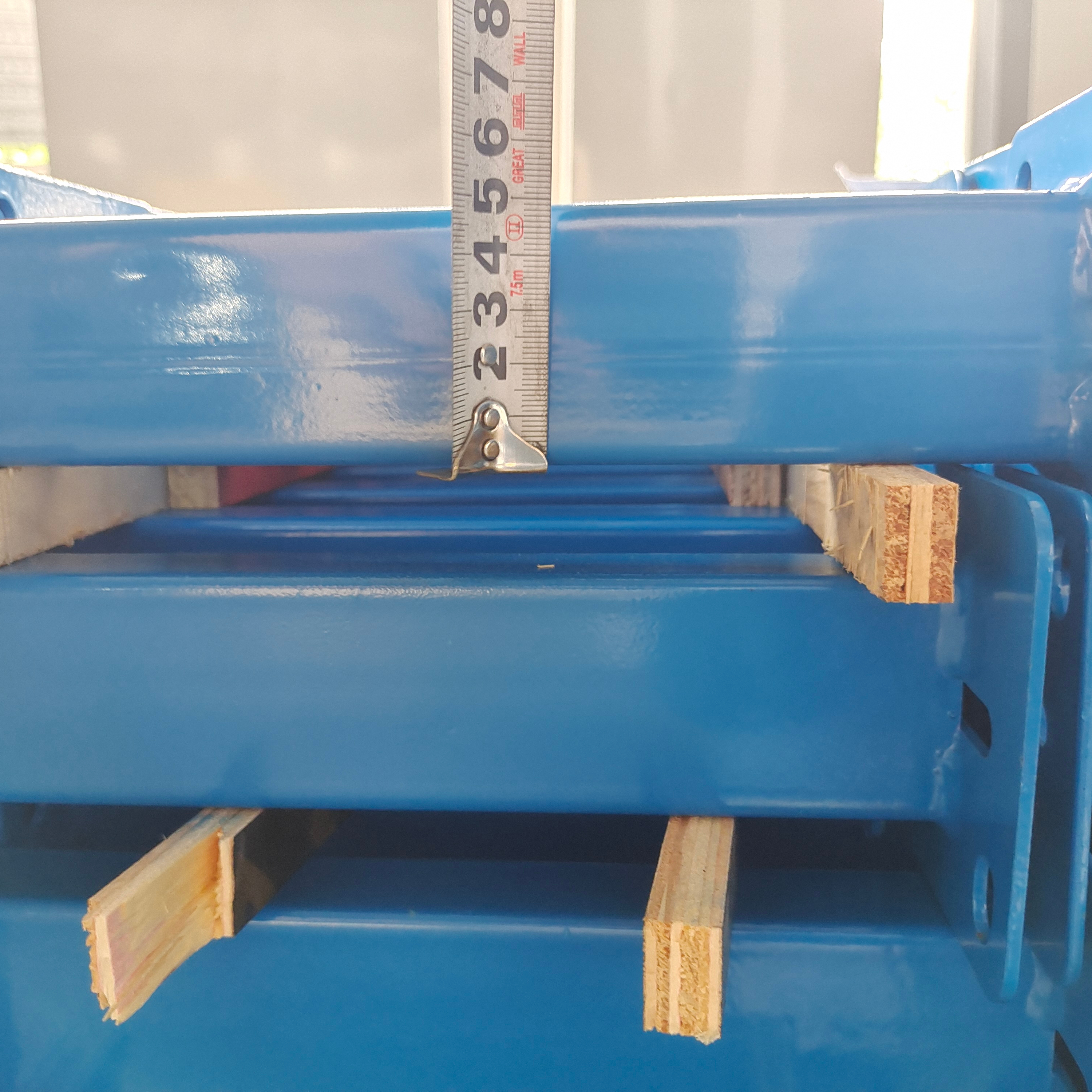

Product Packaging
Frequently Asked Questions
What is Selective Pallet Racking?
Selective Pallet Racking is a widely used industrial storage system that allows direct 100% access to every single pallet position without needing to move adjacent pallets.
What makes this system the most economical choice?
It offers the lowest equipment cost per pallet position, utilizes standard handling equipment like forklifts, and requires simple installation and maintenance.

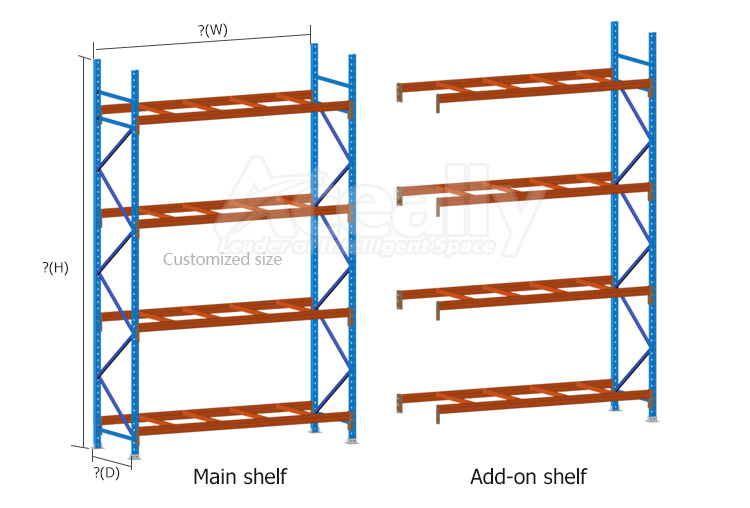

Can the beam levels be adjusted for different pallet heights?
Yes, the beam levels can easily be reconfigured vertically in fixed increments along the upright frame to adapt to varying cargo heights and pallet loads.
What is the typical floor space utilization rate?
Selective racking typically delivers a 30% to 40% floor space utilization rate, prioritizing accessibility and fast order picking over dense bulk storage.
What forklift models are compatible with this racking system?
Virtually any standard material handling equipment can be used, including counterbalance forklifts, reach trucks, and articulated trucks, depending on the aisle width.

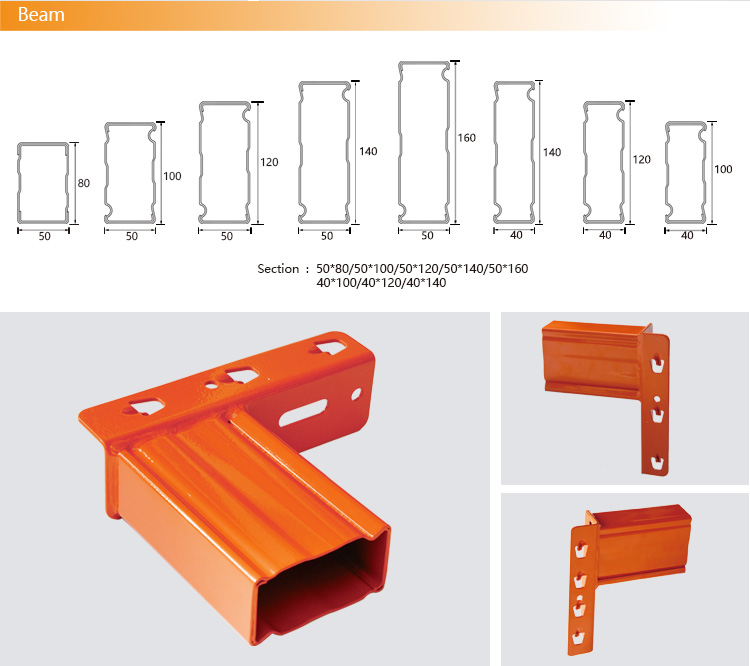

How do I choose the correct beam size for my loads?
Beam selection depends on the total weight per pair of beams and the clear entry length required. Refer to our specification loading table above to determine the proper profile dimensions.
