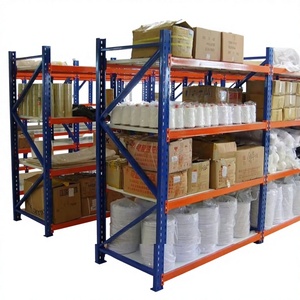

Super Load-Bearing Commercial Storage Rack Multi-Level Express Iron Sundries Cargo Rack for Supermarket Warehouse Medium Shelf

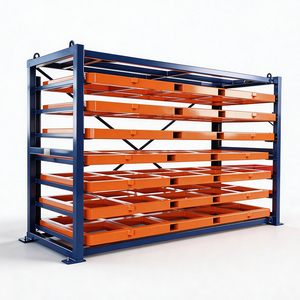

CE Certified Industrial Warehouse Steel Shelving System Heavy Duty Storage Racks Metal Racking Durable Cargo Shelves

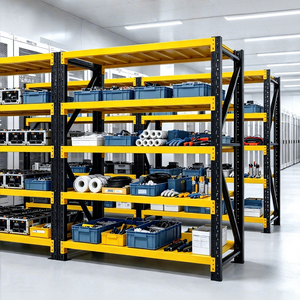

Racking Adjustable Metal Boltless Shelf and Racks Warehouse Storage 120KG Load Metal Rack Shelf

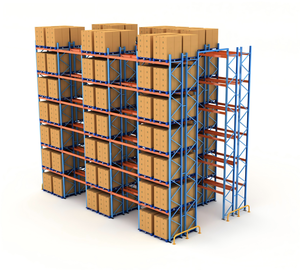

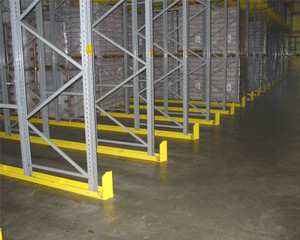

Maxrac Pallet Racking Drive in Drive Through Warehouse Storage System
Jracking Adjustable Selective Steel Shelving for Industrial Use Heavy Pallet Rack for Warehouse Storage Steel Metal Iron Rack
Factory Selling Industrial Heavy-Duty Steel Warehouse Pallet Storage Racks Multi-Layer Selective Pallet Racking Shelves System
Engineering Structural Reliability in High-Bay Warehouse Racking
Modern distribution facilities operate under intense thermodynamic, mechanical, and seismic forces. Evaluating a pallet rack systems supplier extends far beyond standard pricing per upright column; it demands deep structural auditing of yield strength, frame buckling limits, dynamic seismic responses under ASCE 7-22 / RMI ANSI MH16.1, and long-term joint fatigue under high-frequency forklift operations.
Guangzhou HEDA Shelves Co., Ltd., established in 2001, designs and fabricates industrial racking infrastructure designed around certified structural carbon steel grades (Q235B and high-yield Q355B/ASTM A1011 equivalent). By maintaining rigid tolerances during CNC roll forming, automatic continuous welding, and multi-stage chemical pretreatment, we deliver storage architectures engineered to prevent premature catenary failures, deflection exceedance, and impact-induced upright collapse.
Key Racking Design Calculation Matrix
Under full design uniform distributed load (UDL), vertical deflection strictly satisfies δ ≤ L / 180 (maximum 0.55 inches for standard 96" or 108" beams).
Engineering models incorporate Ip = 1.0 to 1.5 based on site-specific IBC spectral response coefficients (Sds and Sd1), integrating heavy seismic baseplates with Hilti/Simpson chemical anchor embedment.
Calculated bracing nodes keep effective length factors (Kx, Ky) optimized, preventing torsional-flexural buckling under axial compression up to 45,000 lbs per upright frame.
Future Procurement Trends in Warehouse Storage Systems
Strategic supply chain executives are actively transitioning from static storage hardware to agile, automated, and decarbonized warehousing ecosystems. Discover the core procurement shifts shaping high-bay logistics facilities.
Automation & AMR / AGV Symbiosis
Legacy warehouses relied solely on human-operated counterbalance or reach forklifts requiring 12-foot transfer aisles. Forward-looking procurement demands Very Narrow Aisle (VNA) and Autonomous Mobile Robot (AMR) compatibility. Modern racking requires laser-cut bottom guide rails, ultra-precise beam leveling tolerances (±1.5mm across spans), and RFID/reflective sensor targeting plates integrated directly into column punchings to facilitate uninterrupted robot picking.
Cold-Chain Energy Density Optimization
With refrigerated real estate commanding up to 4× the operational electrical overhead per square foot compared to ambient warehouses, buyers are eliminating open aisles in sub-zero freezers (-25°C). Deep-lane automated 4-way Radio Shuttle systems and multi-tier Push-Back racks achieve storage cube volumetric densities exceeding 85%. Furthermore, cold-rated steel formulations with specialized manganese chemistry prevent low-temperature ductile-to-brittle metallurgical fracture.
Decarbonization & Circular Life-Cycle (ESG)
Corporate Scope 3 sustainability disclosures are driving Tier-1 3PLs and Fortune 500 manufacturers to vet suppliers on green steel sourcing. Procurement models prioritize EAF (Electric Arc Furnace) prime recycled scrap, non-toxic lead-free thermoset powder coatings cured with clean natural gas heating, and completely bolted upright assemblies that allow modular relocation, bay expansion, or cradle-to-cradle recycling without site demolition waste.
Technological Advancements in Pallet Racking Fabrication
The integrity of warehouse pallet racking relies upon micro-alloyed metallurgy, high-precision continuous roll-forming kinematics, and advanced mathematical modeling under static and dynamic loading. Understanding these metallurgical benchmarks enables facility managers to eliminate structural risks.
High-Yield Cold-Formed Steel
HEDA utilizes premium hot-rolled and cold-rolled steel coils with verified carbon content (≤0.20%) and manganese hardening. Upright profiles utilize multi-bend omega shapes (Ω) with 12 to 14 cold-formed stiffening facets, multiplying section modulus and second moment of area (Ix, Iy) while minimizing excess dead weight.
Automated Robotic Welding & Seam Control
Step beams and interlocking box beams are joined to high-ductility 3-prong and 4-prong end connectors using automated gas-metal arc welding (GMAW). Robotic positioning ensures full penetration welds without spatter, undercut, or residual localized stress concentrations, guaranteeing certified moment capacity under dynamic impact.
Surface Pretreatment & Tribological Finish
Components undergo continuous 7-stage immersion: alkaline degreasing, twin rinses, acid pickling to eliminate mill scale, zinc-phosphate conversion coating, demineralized passivation, and electrostatic dry-powder application baked at 200°C (392°F), providing 500+ hours of ASTM B117 salt spray resistance.
Pallet Racking System Structural & Operational Comparison
Selecting the appropriate storage topology balances SKU accessibility, stock rotation velocity, capital investment, and floor area utilization. Compare primary racking types against key operational metrics.
| System Configuration | Pallet Selectivity | Storage Density | Inventory Flow | Forklift Compatibility | Capital Cost / Pallet |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | Standard (35-40%) | FIFO / LIFO Flexible | Standard Counterbalance, Reach | $ Baseline Economical |
| Double Deep Racking | 50% Immediate | Medium-High (55-60%) | LIFO Principle | Pantograph Deep-Reach Truck | $$ Low-Medium |
| Drive-In / Drive-Through | Last-In First-Out | Very High (75-80%) | LIFO (Drive-In) / FIFO (Drive-Thru) | Narrow-Chassis Counterbalance | $$$ Moderate |
| Push-Back Racking (Cart/Rail) | Lane Access (2-6 Deep) | High (70-75%) | Strict LIFO Lane Rotation | Standard Counterbalance, Reach | $$$$ Premium Mechanical |
| Gravity Pallet Flow | Lane Face Pick | Maximum (85%+) | Strict Automatic FIFO | Standard Lift at Input/Discharge | $$$$$ High Dynamic Capex |
| Semi-Automated Radio Shuttle | Automated Deep Lane | Maximum (85-90%) | FIFO or LIFO Switchable | Forklift Staging + Radio Carrier | $$$$$ Automated Asset |
Why Logistics Leaders Partner with Guangzhou Heda Shelves Co., Ltd.
Headquartered in Guangzhou, China, HEDA Shelves stands as an industry-leading tier-1 manufacturer of industrial storage solutions. Serving global 3PL operators, wholesale distributors, cold-storage developers, and heavy manufacturing facilities, we deliver structural reliability at factory-direct scale.
Full International Certification
Our manufacturing operations are stringently audited under ISO 9001:2015 Quality Management Systems (Certificate No. 18624Q00169R0M), CE Marking (No. 2435-CPR-8605159 in compliance with European EN 15512 and Construction Products Regulation), and RoHS environmental compliance, ensuring turnkey approvals by third-party municipal building inspectors and insurance underwriters.
Rapid 24-Hour CAD & 3D Modeling
Our in-house structural engineering team provides custom architectural warehouse layouts, isometric 3D renderings, and detailed beam loading charts within 24 hours of receiving your floor plan, clear building height, forklift minimum turning radius, and unit pallet dimensions (48"x40" GMA, 1200x800 Euro, or custom drums/skids).
Optimized Ocean Container Packing
Racking components are pre-bundled with protective corrugated banding, custom metal nesting cradles, and labeled modular staging tags. We engineer packing manifests specifically for 20GP, 40GP, and 40HQ high-cube shipping containers, maximizing steel tonnage per TEU to minimize ocean freight surcharges to ports such as Los Angeles, Long Beach, Houston, Savannah, and Vancouver.
Inside Our 10-Stage Precision Manufacturing Line
From raw carbon steel coil to final container seal, each racking beam, upright frame, and connector pin moves through a strictly monitored manufacturing route to ensure continuous dimensional accuracy and load safety.
Spectrometric verification of yield strength and elongation on certified structural steel coils.
High-speed rotary shear slitting coils to exact profile strip widths within ±0.1mm tolerance.
Continuous CNC multi-punch presses generate 50mm / 75mm / 76.2mm teardrop or diamond hole pitches.
Progressive 20-stand cold roll-forming lines shape structural omega upright profiles and interlocking beams.
Precision flying cutoff saws cut beams and columns to exact required warehouse clear heights.
Multi-axis robotic arms perform continuous dual-sided MIG/CO2 welds attaching end connectors to step beams.
Automated shot-blasting and vibratory deburring eliminate all sharp edges, slag, and micro-burrs.
7-stage immersion line: degreasing, pickling, and zinc phosphating to ensure molecular coating adhesion.
Nordson powder spray booth applies 70-90μm durable thermoset epoxy powder, cured at 200°C.
Batch hydraulic load deflection testing, barcode tagging, and export container steel banding.
