Featured Industrial Pallet Racking Systems
Factory-direct structural configurations optimized for unit-load storage, automated warehousing, and dense distribution operations worldwide.

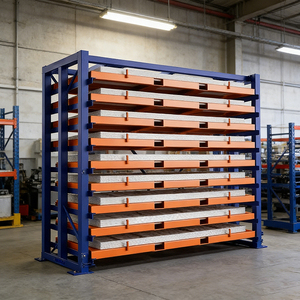

High-Capacity Vertical Sheet Metal Rack | Roll-Out Tray System
SUNLI Pallet AS/RS Smart Warehouse System with WMS/WCS Integration
SHUNLI SL-AS004 Heavy-Duty Automated AS/RS Pallet Stacking Rack
Heavy-Duty Q235B Steel Selective Industrial Pallet Racking
Jracking Heavy-Duty Push Back Pallet Rack System with Nested Carts

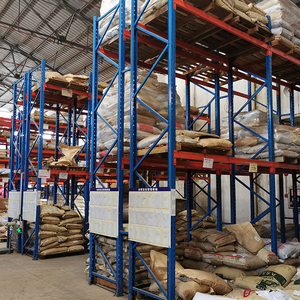

Heavy-Duty Double Deep Beam Pallet Racking Warehouse Storage
China Professional Custom Industrial Drive-In Pallet Rack System
CE-Certified Heavy-Duty Adjustable Selective 5-Layer Racking
Structural Integrity & Seismic Deflection Governance
How precision cold-roll-forming, yield strength ratings, and Finite Element Analysis (FEA) dictate lifecycle durability in modern high-bay facilities.
Certified Prime Steel Alloys
We construct racking assemblies using verified Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa) high-tensile hot-rolled steel coils. Every batch is certified with complete Mill Test Certificates (MTC) verifying chemical carbon content, phosphorus control, and elongation properties under stress.
Precision Multi-Roll Forming
Our continuous roll-forming lines execute up to 24 progressive bending stations per profile. This preserves steel crystalline structure, minimizes localized residual shear stress, and guarantees tighter dimensional tolerances (±0.5mm across 12-meter continuous vertical upright profiles) crucial for automated cranes.
Corrosion & Impact Defense
Components undergo an automated 5-stage pre-treatment regimen including alkaline degreasing, phosphoric acid pickling, zinc phosphate conversion coating, and DI-water rinsing, finished with high-durability electrostatic thermoset epoxy-polyester powder coating (60-80 μm) cured at 200°C.
| Racking Architecture | Aisle Clearance Req. | Pallet Selectivity | Space Cube Utilization | Seismic Resistance | Automation Compatibility |
|---|---|---|---|---|---|
| Standard Selective | 3,000 - 3,500 mm | 100% Immediate | 40% - 50% | IBC Compliant | Manual / Reach Truck |
| Double Deep Racking | 3,000 - 3,200 mm | 50% (2 Pallets Deep) | 55% - 65% | Standard Braced | Deep-Reach Pantograph |
| Drive-In / Drive-Thru | Direct Drive Lanes | Low (Last-In First-Out) | 70% - 80% | Top & Back X-Braced | Forklift Entry / Cold Store |
| Push Back Racking | 2,800 - 3,100 mm | Lane Facing (LIFO) | 65% - 75% | Nested Low Deflection | Gravity Assist Wheel Cart |
| Radio Shuttle System | Single Operating Aisle | Batch FIFO / LIFO | 80% - 85% | Heavy Duty Anchor Base | Semi-Automated 24V Shuttle |
| Automated AS/RS High-Bay | 1,500 - 1,800 mm | 100% Dynamic Direct | 85% - 95% | FEA Seismic Engineered | Fully Automated Stacker Crane |
Future Warehouse Racking Procurement Trends (2025–2030)
How international supply chain volatility, urban real estate density, and decarbonization are rewriting capital procurement contracts for logistics hubs.
1. Total Landed Cost (TLC) Indexing
Procurement directors are shifting away from FOB base unit pricing to comprehensive Landed Cost Indexing models. Because structural steel forms up to 80% of rack weight, calculating nesting efficiency in 40ft High Cube containers and factoring pre-assembled bolted frames against on-site unionized mechanical assembly costs has become the primary procurement metric.
2. Cold-Chain Resiliency & Metallurgy
The global expansion of perishable grocery, biologics, and frozen pharmaceuticals is accelerating demand for cryogenic steel configurations. Racking deployed at -25°C to -30°C requires specific silicon/manganese deoxidized alloys to circumvent ductile-to-brittle transition failures, driving strict procurement specifications for impact-tested Charpy V-notch steel.
3. Modular Adaptability & Circularity
Long-term lease agreements demand dynamic racking modularity. Buyers specify universal teardrop or European hook configurations that accommodate rapid re-profiling of beam elevations at 50mm/75mm vertical increments without structural cutting or field welding, safeguarding enterprise capital expenditure across lease cycles.
Technological Innovations in Industrial Storage Systems
From structural strain gauge telemetry to automated shuttle micro-controllers, the physical rack is becoming an active digital warehouse component.
IoT Structural Health Monitoring (SHM)
Advanced high-bay racking systems now incorporate integrated multi-axis MEMS accelerometer sensors and digital strain gauges affixed to critical upright upright-beam intersections. These units continuously stream real-time deflection telemetry to plant maintenance portals, immediately signaling forklift collision trauma or uncalculated load-point overstress.
Ultra-Precise Tolerance AS/RS Cladding
Rack-supported building (clad-rack) architectures are replacing traditional brick-and-mortar facilities. In these configurations, the pallet racking itself serves as the load-bearing framework for exterior wall cladding and roof trusses. This requires tight cold-roll tooling tolerances of ±1.0mm per 30m height to maintain optical guidance corridors for automated stacker cranes.
Robotic Weld & Laser Geometry Assurance
Automated robotic multi-axis pulse MAG welding lines ensure deep beam-connector penetration and clean throat thickness without weld spatter. Upright punch patterns are laser-indexed in line with high-speed pneumatic presses to eliminate cumulative dimensional creep across multi-tiered 16-meter continuous runs.
Guangzhou HEDA Shelves: Global OEM/ODM Benchmark
Over two decades of precision manufacturing, engineering compliance, and turnkey warehouse delivery across 130+ nations.
Free CAD & 3D Modeling within 24H
Our team of over 30 structural engineers prepares comprehensive AutoCAD floor layouts, 3D realistic rendering projections, and clear elevation drawings within 24 hours of receiving warehouse blueprints, column grids, forklift turning radiuses, and pallet payload specifications.
Dual Imperial & Metric Engineering
We calculate and issue documentation formatted in both imperial (lbs, inches, feet) and metric (kg, mm, meters) standards. This allows local engineers of record, municipal permit departments, and installation crews in the US, Canada, Australia, and Europe to verify static calculations without manual conversion errors.
International Regulatory Alignment
Fully certified under ISO 9001:2015 Quality Management Systems (Certificate No. 18624Q00169R0M) and CE Marking standards (Certificate No. 2435-CPR-8605159 under EN 15512 Construction Products Regulation). Production profiles strictly comply with AS4084 steel racking codes and RMI ANSI MH16.1 specifications.
Frequently Asked Questions for Global Racking Buyers
Direct technical clarity regarding customs freight, structural certifications, container packing optimization, and on-site engineering approvals.
How do you verify seismic stability and static load safety under US/EU building codes?
What are the exact container nesting and anti-corrosion procedures for ocean freight?
Can your selective and drive-in systems interface with standard North American 48"x40" GMA pallets?
What documentation accompanies every shipment for vendor onboarding and quality auditing?
What is the standard production lead time for an average 20-container industrial warehouse project?
Optimize Your Warehouse Storage Density & CapEx Budget Today
Send your facility drawings, clear ceiling heights, and pallet parameters. Our licensed structural design team will deliver an optimized CAD layout, 3D visualization, and factory-direct quotation within 24 hours.
- Zero-cost complete AutoCAD structural floorplan & 3D isometric layout
- Calculated load-rating tables in both metric (kg) and imperial (lbs/ft)
- Direct CIF / FOB shipping quotes with optimized 40'HQ container packing
Request Turnkey Proposal
Connect directly with our senior application engineering desk for prompt technical support.
Send an Inquiry
