High-Density Kinetic Storage: Engineering Principles of Gravity Roller Systems
Roller pallet racking—universally referred to within supply chain engineering as Pallet Flow Racking or Gravity Flow Systems—represents the gold standard of dynamic, First-In, First-Out (FIFO) material handling. Operating on an engineered incline plane without external motorized drives, these systems convert gravitational potential energy into controlled pallet movement, maximizing volumetric density while compressing operating costs per pallet storage position.
Kinematic Pitch Optimization
Precision gradient calibration between 3.0% and 4.5% (approx. 1:25 slope) tailored to pallet base rigidity, bottom-runner contact friction, and load weights ranging from 500 kg to over 2,000 kg per position.
Centrifugal Speed Governors
Independent magnetic or mechanical braking rollers strategically integrated along the track dampen dynamic terminal velocity, restricting descent speed to an OSHA-compliant 0.20 to 0.28 m/s.
Mechanical Pallet Separators
Heavy-duty load disconnectors isolate the front pick-face pallet from accumulating lane line pressure, ensuring forklift operators can extract units without frictional back-drag or load jamming.
Engineered Warehouse Pallet Racking & Dynamic Systems
Direct from our specialized production base in Guangzhou: cold-formed high-tensile steel racks, multi-level platforms, and high-density storage hardware certified for North American and international standards.

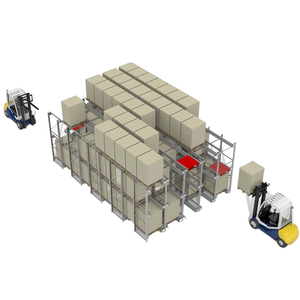

Drive-In & Heavy Duty
Industrial Multi-Level Steel Storage Rack Heavy Duty Pallet Racking Powder Coating Pallet Rack Drive-In Rack for Industrial
Heavy structural uprights and cantilevered support rails designed for deep-lane pallet entry, eliminating transfer aisles to maximize floor volume.
Semi-Automated
Warehouse Racking System Shelves Smart Automates Warehouse Pallet Shuttle Racking System
Precision-engineered radio shuttle channel system that automates pallet positioning in high-density cold storage or beverage buffer zones.
5-Tier Heavy Duty
Competitive Price Warehouse Storage Rack Adjustable Customized 5 Level Heavy Duty Industrial Pallet Racking With Steel Shelves
Solid steel decking inserts matched with 75mm beam adjustability, delivering unmatched loading integrity for multi-tier carton and pallet fulfillment.
Mid-Duty Stacking
Custom Steel Heavy Duty Shelving 300 Kg Layer Garage Black 4 Tier Warehouse Storage Metal Stacking Rack Unit for Warehouse
Modular industrial shelving for pick-and-pack fulfillment centres, aftermarket auto parts distributors, and decentralized batch staging points.
Selective Racking
Heavy Duty Single Deep Industrial Selective Pallet Rack Steel Corrosion Protected Powder Coated Garage Storage Warehouse Racks
100% selective individual accessibility to all pallet slots. Universal design compatible with reach trucks, counterbalanced lifts, and automated guided vehicles.
Galvanized Storage
Custom Two-Way Galvanized Steel Metal Pallet Industrial Light Duty Durable and Foldable Warehouse Rack with Anti-Rust Feature
Hot-dip and pre-galvanized zinc coated portable post pallets, offering stackable density for seasonal overflow with maximum resistance to moisture and chemicals.
High Throughput
Heavy Duty Industrial Storage Warehouse Rack Selective Pallet Racking Shelves
High-bay engineered selective racking optimized for distribution centers running standard 48x40-inch GMA wooden pallets or custom plastic skids.
Multi-Tier Mezzanine
Steel Warehouse Rack Systems Storage Steel Warehouse with Shelving Units and Steel Stairs for Warehouse
Rack-supported multi-tier mezzanine platform utilizing vertical warehouse clearance to double or triple usable floor surface area without building expansion.
Roller Pallet Flow vs. Alternative Dynamic Storage Architectures
Selecting the right pallet racking topology requires evaluating throughput velocity, SKU selectivity, pallet quality tolerance, and mechanical failure risk.
| Storage System Type | Kinematic Logic | Floor Space Efficiency | Throughput Speed | Pallet Deflection Sensitivity | Opex & Maintenance Demand |
|---|---|---|---|---|---|
| Gravity Roller Flow Racking | Pure FIFO (First-In, First-Out) | 85% - 90% (Zero Aisle Waste) | ✓ High Continuous Flow | High (Requires Sound Runners) | Extremely Low (Passive Gravity) |
| Push-Back Cart Racking | LIFO (Last-In, First-Out) | 70% - 75% (2-6 Carts Deep) | Moderate (Forklift Pushes Against Gravity) | Low (Carts Carry Deflected Pallets) | Low (Cart Track Cleaning) |
| Automated Radio Shuttle Racking | Flexible FIFO / LIFO | 85% - 92% (Ultra-Deep Lanes) | High (Automated Shuttle Travel) | Moderate (Track Clearance Tolerances) | Moderate (Lithium Batteries & Sensors) |
| Drive-In Pallet Racking | Strict LIFO | 65% - 75% (Vehicle Enters Lane) | Low (Slow Forklift Navigation) | Low (Rests on Continuous Rails) | High (Frequent Forklift Collision Repairs) |
| Selective Pallet Racking | 100% Selective Random Access | 35% - 45% (Aisles Consume 60% Space) | Immediate Direct Pick | Zero Impact on Operations | Minimal (Upright Impact Protectors) |
Technical Note: Gravitational velocity calculation obeys $v = \sqrt{2 \cdot g \cdot h \cdot (1 - \mu \cdot \cot \theta)}$ where $\theta$ represents track angle and $\mu$ represents roller rolling coefficient. Certified engineer drawings stamped according to AISC and RMI standards.
High-Yield Structural Steel & Roll-Forming Precision
At Guangzhou Heda Shelves Co., Ltd., structural reliability is engineered into the microscopic crystal structure of our cold-rolled steel. We source exclusively prime certified coils (Q235B with minimum yield strength $\geq 235\text{ MPa}$, and Q355B with yield strength $\geq 355\text{ MPa}$), tested for tensile, yield, elongation, and Charpy impact resistance.
Our 10-stage automated continuous profile lines utilize precision roll tooling with computer-controlled servo punching. This guarantees a column perforation pitch accuracy of $\pm 0.1\text{ mm}$ over a 12-meter continuous span, completely eliminating beam connector deflection and torsion stress.
-
ISO 9001:2015 Verified under registration number
18624Q00169R0M. -
CE Marking Structural Compliance under EN 1090-1 / CPR number
2435-CPR-8605159. - RoHS Heavy Metal Free epoxy-polyester electrostatic powder coating (salt spray resistance exceeding 500 hours ASTM B117).
- Imperial & Metric Engineering: Full submittal packages provided in lbs, in, mm, and kg for North American municipal permitting.
Our 10-Step Heavy-Duty Manufacturing Workflow
From virgin steel coil inspection to ocean container loading, every component undergoes strict dimensional and metallurgical checkpoints.
Coil Inspection
Spectrographic alloy verification and thickness ultrasonic gauge testing.
Precision Slitting
CNC decoiling and edge slitting with zero camber deviation.
CNC Punching
Automated punch sequence providing 50mm / 75mm beam adjustment pitch.
Cold Roll-Forming
Multi-station gradual forming preventing structural micro-fissures.
Robotic Welding
Shielded gas automated seam welding for beam end connectors and base plates.
Chemical Pickling
Acid bath dipping and ultrasonic degreasing for total scale removal.
Phosphatization
Dense chemical phosphate barrier ensuring long-term paint bonding.
Powder Coating
Electrostatic spray guns applying uniform 60–80 µm thermoset film.
Curing Oven
200°C computerized thermal baking for maximum scratch abrasion resistance.
Container Packing
Heavy steel strapping, corner protectors, and dry-desiccant packaging.
Future Procurement Trends in Roller Pallet Racking & Flow Systems
Industrial supply chains are evolving toward automated integration, sustainability metrics, and extreme environmental resilience. Key developments shaping the 2025–2035 sourcing cycle include:
Convergence of Passive Gravity with AMR/AGVs
Modern distribution centers no longer rely exclusively on human forklift drivers. Newer roller racking installations feature calibrated load funnels and magnetic stop sensors designed for automatic loading and unloading by Autonomous Mobile Robots (AMRs) and automated reach trucks, eliminating operator transit time completely.
Total Cost of Ownership (TCO) Factory-Direct Sourcing
Procurement directors in North America and Europe are shifting away from regional middlemen who markup racking components by 40%–60%. By contracting directly with certified manufacturing campuses like HEDA Shelves, logistics operators obtain fully stamped calculations, custom dimensions, and factory-direct pricing that reduces payback periods from 4.8 years to under 2.2 years.
Cold-Chain & Ultra-Low Temperature Engineering
With food and pharmaceutical supply chains expanding exponentially, roller flow racking is being engineered for harsh $-30^\circ\text{C}$ freezing chambers. This requires synthetic low-temperature bearing lubricants that will not coagulate, specialized low-embrittlement alloy steels, and heavy-duty galvanized structural finishes that eliminate ice condensation corrosion.
Frequently Asked Questions for Global Procurement Managers
Everything logistics directors, engineering consultants, and global sourcing buyers need to know when ordering warehouse racking from China.
