Featured Industrial Warehouse Storage Systems
Explore our precision roll-formed racking, carton flow mechanisms, and semi-automated pallet solutions built from certified Q235B/Q355B high-tensile steel to maximize vertical cube utilization.

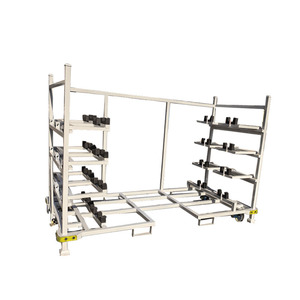

Stacking Racks, Pallets, Turnover Racks, Logistics Trolleys Dedicated to Auto Parts
Customized heavy-duty modular steel containers, foldable stacking frames, and shock-absorbent workstation trolleys designed for sub-assembly lines.
View Specifications
Industrial Warehouse Gravity Carton Flow Racking System
High-density dynamic roller tracks utilizing natural gravity feed for rapid split-case and carton order fulfillment with strict FIFO stock rotation.
View Specifications

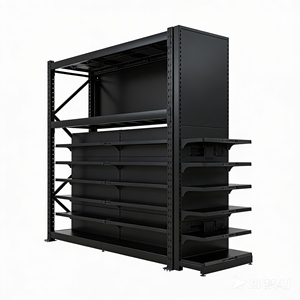

Multi-Layer Adjustable Light Duty Double-Sided Storage Shelving (150kg/Layer)
Boltless interlocking steel shelving system with 50mm pitch adjustment, modular cold-rolled steel decks, and rust-resistant powder finish.
View Specifications
Industrial Steel 5-Layer Pallet Racking & Multi-Tier Heavy Storage Units
Universal teardrop or diamond punching profile supporting up to 4,500kg per beam level, fully optimized for standard GMA and Euro pallets.
View Specifications
Semi-Automated Pallet Shuttle Deep-Lane High Density Storage System
Intelligent wireless cart system navigating deep channels. Reduces forklift aisle operations by 80% while enabling both FIFO and LIFO modes.
View Specifications
Heavy-Duty Industrial Pallet Racking Solution & Material Storage Unit
Engineered box-beam construction with high torsional rigidity, seismic base footplates, and wire decking accessories for heavy bulk goods.
View Specifications
Customized Heavy-Duty Steel Mezzanine Second Floor Platform System
Structural steel column-and-beam elevated platforms doubling usable warehouse square footage without municipal ground footprint expansion.
View Specifications
Heavy-Duty Radio Shuttle Racking System with Adjustable Pallet Channels
Designed for sub-zero freezer operations down to -30°C, high-density continuous multi-pallet deep storage run by lithium-ion shuttle carriers.
View SpecificationsGuangzhou HEDA Shelves: Tier-1 Chinese Manufacturing Prowess
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has developed into China's premier manufacturer and exporter of heavy-duty industrial racking and structural steel mezzanine floors, delivering turnkey intralogistics systems worldwide.
Technical Engineering White Paper: Structural Steel Selection & Seismic Design in High-Density Storage
In modern warehousing, volumetric utilization must not compromise dynamic stability or seismic compliance. As an experienced exporter to North America, Europe, Oceania, and Southeast Asia, HEDA Shelves adheres to strict structural standards including ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), RMI guidelines, AS 4084-2023, and European EN 15512 standards.
Our engineering division prioritizes prime Q235B and high-yield Q355B hot-rolled structural steel coils sourced directly from verified primary mills. Unlike secondary suppliers utilizing remelted or non-homogeneous steel, prime cold-formed omega upright sections exhibit superior yield strengths (>355 MPa for Q355B) and optimal elongation characteristics. This material integrity guarantees fracture resistance under sudden impact loads and micro-vibrations induced by high-reach turret trucks, automated guided vehicles (AGVs), and counterbalanced forklifts.
Surface protection involves a rigorous 10-stage chemical pretreatment line: degreasing, ultrasonic cleaning, acid pickling to eliminate scale, double water rinsing, zinc phosphating to inhibit oxidative under-film corrosion, and passivation. This is topped with an automated electrostatic thermosetting epoxy-polyester powder coat baked at 180°C to 200°C. The resulting dry film thickness (70-90 microns) passes 500-hour ASTM B117 salt spray testing, ensuring lifelong reliability in humid cross-docking facilities and condensation-prone sub-zero cold stores.
High-Density Racking Architecture Comparison
Selecting the appropriate high-density storage configuration balances footprint footprint minimization, SKU selectivity, pallet turnover speed, and capital expense per pallet location.
| Racking Topology | Floor Footprint Utilization | Storage Density Rating | Stock Rotation Logic | Pallet Selectivity | Ideal SKU & Throughput Profile |
|---|---|---|---|---|---|
| Selective Pallet Racking | 35% – 40% (High Aisle Area) | Baseline (1.0x) | FIFO or LIFO | 100% Immediate Direct Access | High SKU variety, fast SKU changes, 3PL e-commerce fulfillment hubs. |
| Double Deep Racking | 50% – 55% (Fewer Aisles) | Moderate (+30%) | LIFO | 50% Direct (Reach Pantograph needed) | 2 to 4 pallets per SKU; general manufacturing staging and consolidation. |
| Drive-In / Drive-Through | 65% – 75% (Aisles Replaced) | High (+70%) | LIFO (Drive-In) / FIFO (Drive-Thru) | Low (Per Lane Batch Pick) | Homogeneous bulk raw materials, seasonal storage, low SKU count. |
| Push-Back Cart Racking | 60% – 70% (2 to 6 deep carts) | High (+65%) | Strictly LIFO | Lane-face immediate access | Medium SKU turnover, cold stores requiring rapid single-aisle access. |
| Gravity Pallet Flow Rack | 70% – 80% (Dynamic Roller Lanes) | Very High (+80%) | Strict FIFO (Gravity Incline) | High at discharge pick face | Perishable foods, dairy, pharmaceuticals with strict batch expiration rules. |
| Radio Shuttle Cart Racking | 75% – 85% (Continuous Lane) | Maximum (+90%) | Flexible FIFO & LIFO | Deep-lane channel selectivity | Automated cold storage, high-volume beverage distribution, FMCG buffers. |
| Rack-Supported Mezzanine | 100% Vertical Multiplier | Maximum Cube Volume | Multi-Tier Manual / Conveyor | 100% at Each Floor Level | Automotive spare parts, bin-box pickings, carton packing workstations. |
Future Procurement Trends in High-Density Storage (2025–2030)
Global supply chain disruption, skyrocketing industrial real estate per-square-meter costs, and escalating labor wages are reshaping how procurement executives evaluate warehouse racking investments.
Automation Convergence (AMR/AGV Integration)
Static racks are increasingly engineered with structural guide rails and sensor targets to interface seamlessly with Autonomous Mobile Robots (AMRs) and automated laser-guided forklifts. Procurement teams are specifying tighter roll-forming dimensional tolerances (±0.5mm) to prevent robotic cart misalignment in deep-lane shuttle racks.
Cold-Chain Energy Density Optimization
Refrigerated warehouse space costs up to 4.5 times more to operate than ambient storage. The shift toward sub-zero (-25°C to -30°C) multi-deep radio shuttle systems eliminates up to 75% of wasted thermal air volume in forklift aisles, yielding direct monthly electrical refrigeration savings of 30% to 42%.
Direct Factory Sourcing & Landed TCO
Procurement officers are bypassing regional trading intermediaries in favor of direct engineering partnerships with verified Chinese manufacturers. Factory-direct sourcing enables custom CAD structural framing, containerized nesting packaging that slashes ocean freight costs per pallet position, and full traceability certificates.
Engineering & Manufacturing Excellence Under One Roof
Partnering with Guangzhou Heda Shelves gives international contractors, racking distributors, and enterprise warehousing operators unmatched manufacturing transparency and technical accountability.
24-Hour CAD / BIM Layouts
Submit your facility architectural floor plans and clear heights. Our certified civil engineers output comprehensive 2D CAD floor plans and 3D isometric BIM renderings within 24 hours without charge.
Dual ISO & CE Certification
Every upright frame, step beam, and mezzanine connector complies with ISO 9001:2015 Quality Management standards and CE marking directives for structural steel under European CPR 305/2011 regulations.
Container Cubing Efficiency
Upright columns and beams are nested on reinforced steel skids with protective air-cushioned poly-wrapping to prevent shipping friction, utilizing over 92% of standard 40ft High Cube container volume.
10-Year Structural Warranty
We provide complete material inspection certificates (MTCs), raw steel tensile batch logs, and back our heavy-duty racking structural components with an industry-leading 10-year manufacturer warranty.
Frequently Asked Questions on Importing Warehouse Racking from China
Clear, technically accurate answers to critical questions regarding engineering compliance, local building permits, steel thickness, shipping terms, and installation oversight.
Yes. We supply comprehensive structural load engineering calculation packages, seismic moment-resisting base frame stress analyses, and component dead/live load data. These documents are prepared in standard imperial or metric units to allow your local Engineer of Record (EOR) to verify, stamp, and submit for municipal building department permits.
We use certified Q235B (yield strength ≥ 235 MPa) for standard ambient racking and shelving, and high-strength Q355B (yield strength ≥ 355 MPa) for heavy-duty columns, long-span mezzanine beams, and sub-zero cold room environments. Official EN 10204 3.1 Mill Test Certificates verifying chemical composition and Charpy impact toughness accompany every shipping manifest.
All beams and uprights undergo automated zinc phosphating pretreatment before powder coating. Bundles are packed with corrugated corner guards, heavy-gauge plastic bubble wrap, and strapped onto custom welded steel channel skids. Containers include industrial desiccant bags to prevent moisture condensation during sea voyage crossings.
Standard production for 1 to 5 forty-foot containers (40ft HQ) is typically 15 to 20 working days following approved CAD fabrication drawings. Large-scale distribution center installations spanning 20+ containers are manufactured in coordinated phases to align directly with your site erection schedule.
Absolutely. Our standard selective, push-back, and shuttle racking systems are precision-calibrated for standard 48" wide x 40" deep GMA pallets (as well as 1200x1000mm and 1200x800mm Euro pallets), providing the mandated 3-inch overhang, 6-inch transverse flue space, and fire sprinkler clearance required by NFPA 13 regulations.
We provide comprehensive installation packages including 3D step-by-step assembly drawings, video walkthroughs, torque specification tables for base anchors, and color-coded component tagging. On request, HEDA can deploy bilingual site installation supervisors or coordinate with your local certified mechanical rigging contractor.
