Heavy-Duty Industrial Radio Shuttle Racking System | Adjustable Pallet & Storage Solutions for Warehouse Storage
Product Description
Product Overview & Key Specifications
| Name | Warehousing Racks | Model No. | OEM |
| Capacity | Up to 4000kg / level | Material | Q235, Q345 and other High Grade Steel |
| Certificate | ISO9001 | Design Standards | Meet FEM |
| Finish | Powder Coating, Painting, Galvanized, etc. | ||
| Main Components | Frame (Upright, Bracing, Foot Plate), Beam, Frame Tie, and accessories included | ||
| Optional Parts | Upright Protector, Frame Protector, Wire Decking, Support Bar, Back Mesh, etc. | ||
| Color Range | Standard colors: Blue RAL5015, Orange RAL2004, Orange RAL2008, Yellow RAL1003, Grey RAL7047, Dark Grey RAL7011, Green RAL6001. Customized colors available upon RAL code. | ||
| Packaging | Knockdown structure, well packed with plywood, plastic/steel strip, plastic film, cardboard box, and plywood box. | ||
| Shipping Port | Nanjing / Shanghai, China | Payment Term | 70% down payment and 30% balance before delivery |
| MOQ | 1 ton | Lead Time | Standard 4-5 weeks |
| Warranty | 1 Year | ||
Key Engineering & Operational Features
Precision Upright Construction
The upright profile is engineered by continuous automatic punching and rolling, delivering maximum structural consistency and rigorous load-bearing integrity.
Secure Hook & Lock Mechanism
Beams lock into uprights with robust hooks secured by spring safety locks or L locks, firmly preventing accidental beam displacement during forklift operations.
Flexible Level Adjustability
Shelf pitch levels can be modified on 75mm or 76.2mm vertical increments, allowing effortless expansion and customized warehouse capacity configurations.
Wide Equipment Compatibility
Optimized for diverse warehouse machinery including counterbalance forklifts, reach/front-move forklifts, standard trucks, and electric stackers.

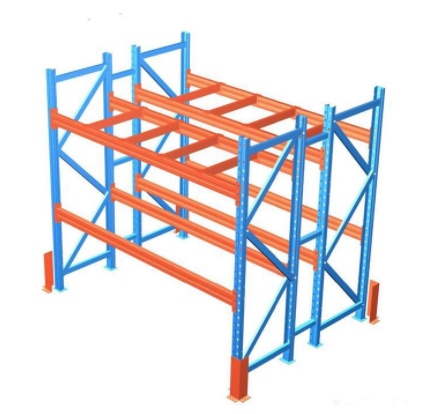

- Pallet racking is designed with a cut-in composite structure; frames assemble securely with bracing, uprights, and hooks for swift, boltless integration.
- High-capacity shelf decks support up to 3,000kg to 4,000kg per tier, catering to heavy-duty storage demands across industrial sectors.

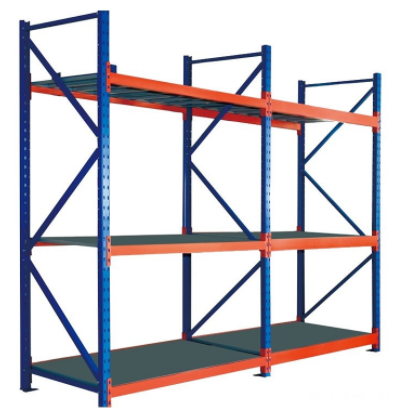

- Versatile surface choices: Solid steel panels, high-grade wooden panels, or wire mesh decking can be directly placed on support beams instead of standard pallets.
- The industry-leading storage solution for manufacturing factories, third-party logistics (3PL) hubs, distribution centers, and commercial retail warehouses.
- Highly scalable architecture minimizes expansion overheads, saves floor area, and enhances throughput efficiency across your entire operation.
- Manufactured in various structural dimensions to satisfy custom floorplans and dynamic logistical requirements.
Automated Storage & Retrieval System (AS/RS) Integration

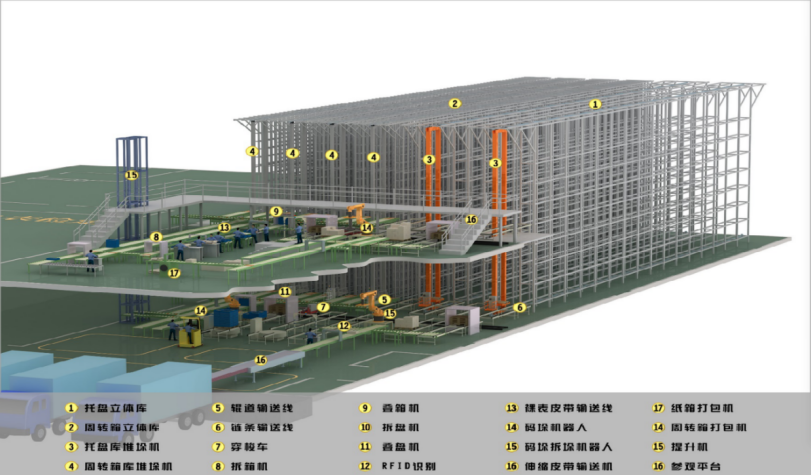

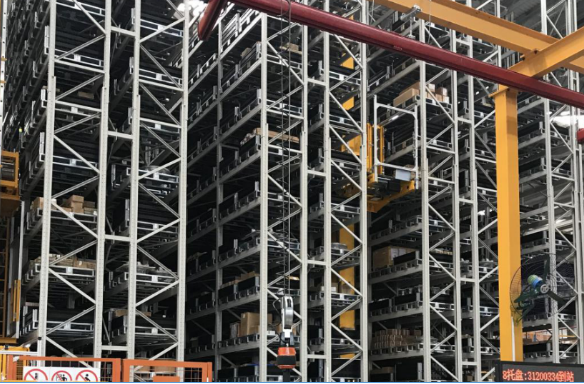

The Pallet Racking platform serves as the fundamental backbone for high-position warehouses and Automatic Storage & Retrieval Systems (AS/RS, also designated as Automatic Dispensers). A turnkey AS/RS installation incorporates stereoscopic goods racking, rail-guided aisle stacking cranes, goods in/out automated pallet transfer systems, high-speed dimensional inspection barcode readers, integrated communication stations, real-time automation controls, and centralized warehouse management software (WMS), supported by overhead cable bridges, power distribution panels, industrial pallets, and material containers.
Deploying AS/RS technology unlocks superior vertical cube utilization, automated hands-free product access, and streamlined operational consistency, establishing an advanced, high-tech material handling standard.
Quick Quotation Requirements
1
Layout drawing or architectural schematic (if available)
2
Warehouse clear dimensions (Width × Length × Clear Height)
3
Required racking dimensions (Height × Width × Length)
4
Number of beam levels required per bay
5
Specified load-carrying capacity per storage tier
6
Preferred RAL color code or custom surface requirements
Frequently Asked Questions (FAQ)
Q1
What is the standard loading capacity and adjustability of the racking system?
The heavy-duty pallet racking system supports load capacities up to 4,000kg per level. Each beam level can be freely adjusted upward or downward in pitch intervals of 75mm or 76.2mm to accommodate varying pallet heights and inventory dimensions.
Q2
Which quality certifications and international design standards are met?
Our storage systems are manufactured strictly in accordance with ISO9001 certified quality management protocols and meet rigorous FEM structural engineering design standards, using certified high-grade structural steels such as Q235 and Q345.
Q3
What safety components are included to prevent dislodgement?
All beam connectors feature heavy-duty spring safety locks or mechanical L locks that tightly anchor the beams into the uprights. This prevents disengagement or beam drops caused by accidental impacts during forklift loading and unloading.
Q4
Can these racks be integrated into an Automatic Storage & Retrieval System (AS/RS)?
Yes. This racking infrastructure is engineered as the core racking framework for high-position warehouses and AS/RS facilities, interfacing directly with aisle stacking cranes, automatic shuttle conveyors, barcode readers, and warehouse management systems.
Q5
What surface finishes and color options are available?
Durable powder coating, industrial painting, and galvanized options are available. Standard color finishes include Blue (RAL5015), Orange (RAL2004/2008), Yellow (RAL1003), Grey (RAL7047/7011), and Green (RAL6001). Custom finishes are available upon providing an RAL code.
Q6
What is the standard production lead time, warranty, and MOQ?
The minimum order quantity (MOQ) is 1 ton. Standard lead time is 4 to 5 weeks from order confirmation. Every system includes a 1-year product warranty backed by standard export-grade protective knockdown packaging.
