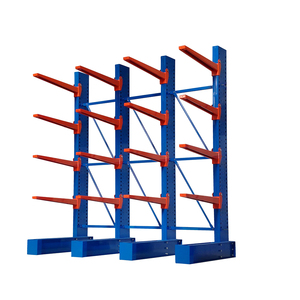

Heavy Cantilever

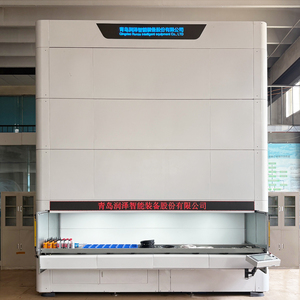

Smart AS/RS

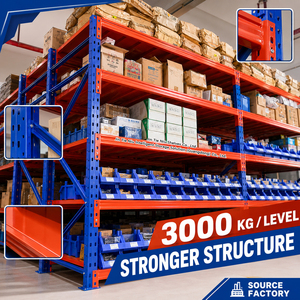

Heavy Shelving
Fabrication AI

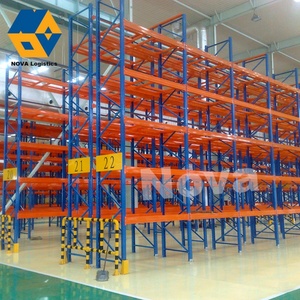

Selective Rack
Drawer Rack
Cold Chain
Engineering Whitepaper
Single-Deep Selective Pallet Racking: Mechanical Principles & Load Dynamics
Why single pallet (selective) racking remains the indispensable foundation of modern logistics, accounting for over 68% of global unit-load warehouse installations.
Mechanical Load Distribution & Beam Deflection Limits
A single pallet rack—commonly specified as selective pallet racking—operates on a single-deep bay arrangement where every single unit load remains immediately accessible to material handling equipment without repositioning adjacent stock. The primary mechanical challenge centers on longitudinal beam flexure and transverse frame buckling under asymmetric live loads.
In compliance with global guidelines including ANSI MH16.1 (RMI) and EN 15512, horizontal roll-formed step or box beams are calibrated to an allowable deflection limit not exceeding L/180 (or L/240 for automated guided vehicle applications), where L equals the clear span between upright frames. Beam connectors feature 3-to-4-prong stamped hooks engineered to transfer vertical moment loads into column profiles through mechanical wedge friction, securely locked with high-shear safety pins.
Metallurgical Formulations & Seismic Bracing
HEDA utilizes high-yield cold-rolled steel coils conforming to Q235B and high-tensile Q355B standards. Column profiles are fabricated with multiple continuous bend radiuses, generating work-hardened corners that amplify torsional stiffness and enhance effective sectional modulus without superfluous steel deadweight.
Under seismic conditions (governed by USGS spectral response accelerations Ss and S1), single-bay selective rows require rigorous horizontal and diagonal bracing trusses. Upright baseplates are engineered with thickness up to 12mm, anchored into reinforced concrete slabs (min. 4,000 PSI) with heavy-duty wedge mechanical or epoxy chemical anchors to counter horizontal seismic shear and overturning moments.
Comprehensive Global Evaluation
Top 10 Single Pallet Rack Suppliers & Exporters Worldwide
A rigorous comparative assessment of leading global racking manufacturers, evaluating steel fabrication capacity, international certification benchmarks, custom OEM flexibility, and export supply chain logistics.
| Rank & Manufacturer | Operational HQ | Steel Spec & Standard | Primary Certifications | Factory Scale & Capacity | Export Strengths & Specialty |
|---|---|---|---|---|---|
| 1 HEDA Shelves | Guangzhou, China | Q235B / Q355B Cold-Formed | ISO 9001:2015, CE (EN 1090), RoHS | 323,000 sq ft / 30,000 Tons/Mo | Factory-direct pricing, 24h CAD layouts, container-engineered flat-packing, zero duty-risk optimization |
| 2 SSI Schaefer | Neunkirchen, Germany | European S235 / S355JR | TÜV, DIN EN 15512, ISO 14001 | Multi-factory global network | Large-scale automated logistics integration, proprietary European cold-formed automated channel systems |
| 3 Mecalux, S.A. | Barcelona, Spain | High-yield European structural steel | CE Marking, ISO 9001, RMI member | 11 global manufacturing facilities | Extensive warehousing software (Easy WMS) paired with standard boltless selective racking corridors |
| 4 Stow Group | Dottignies, Belgium | Micro-alloyed structural steel | EN 15512, ISO 9001, ISO 45001 | 9 European production plants | Standardized European Euro-pallet racks, proprietary Atlas automated 2D shuttle system integration |
| 5 Frazier Industrial | Long Valley, NJ, USA | Structural Channel (ASTM A36) | RMI, AISC, AWS Certified | 10 North American plants | Heavy hot-rolled structural steel channel racks engineered for forklift impact resistance in harsh distribution |
| 6 Daifuku Co., Ltd. | Osaka, Japan | JIS G3101 SS400 standard | ISO 9001, Japanese JIS seismic code | Global automation plants | Turnkey automated AS/RS stacker crane rack-supported buildings and automated single-pallet delivery systems |
| 7 AR Racking | Bizkaia, Spain | Ultra-high-yield galvanized steel | EN 15512, ISO 3834-2, RMI | Fully automated Basque plant | Pre-galvanized upright frames for harsh outdoor or high-humidity single pallet environments |
| 8 Dexion Storage Solutions | Swindon, UK | High-ductility European coils | FEM, EN 15512, ISO 9001 | Extensive pan-European footprint | Inventors of the slotted angle; deep historical legacy in modular warehouse selective racking setups |
| 9 Ridg-U-Rak, Inc. | North East, PA, USA | ASTM high-tensile sheet | RMI, Seismically engineered | Extensive PA production campus | Patented hook-and-slot beam attachments, slotted column configurations, and seismic base isolation bases |
| 10 Interlake Mecalux | Melrose Park, IL, USA | ASTM A1011 / A653 standard | RMI Certified, ISO 9001 | US and Mexican manufacturing sites | Standard North American teardrop pattern compatibility, rapid fulfillment across US cross-dock centers |
Detailed Competitive Analysis: Navigating Sourcing Trade-Offs
When selecting among the world's top ten single pallet rack suppliers, procurement directors face clear operational trade-offs between capital cost, custom engineering agility, and lead-time guarantees:
Tier-1 Domestic Western Manufacturers (Frazier, Ridg-U-Rak, SSI Schaefer): Offer established brand heritage and pre-calculated engineering stamps for North American and European seismic zones. However, their reliance on structural steel shapes and heavy overhead structures results in a cost-per-pallet-position that frequently exceeds factory-direct offshore manufacturing by 40% to 75%. Furthermore, peak-season lead times for standard selective uprights can extend beyond 16 to 24 weeks.
Direct Manufacturing Exporters (HEDA Shelves): Bridge the gap by combining massive volume capacity (30,000 tons/month) with stringent structural QA conforming to ISO 9001:2015 and CE standards. By providing custom roll-forming for both American teardrop patterns and metric hook-and-slotted uprights, HEDA allows international 3PLs and logistics operators to secure heavy-duty, certified single pallet racking systems delivered CIF to major global ports at unmatched cost efficiency.
Industry Foresight
Future Procurement Trends in Single Pallet Racking (2026–2030)
Warehouse logistics is transitioning through automated disruption, micro-fulfillment demands, and rigorous decarbonization policies. Here are the macro forces shaping industrial racking procurement.
High-Strength Steel Down-Gauging
Advances in finite element analysis (FEA) and ultra-high-tensile cold-forming allow suppliers to transition from traditional thick low-carbon steels to micro-alloyed Q355B coils. This reduces deadweight by 12–18% while maintaining identical ultimate beam payload, yielding substantial reductions in ocean container shipping costs and raw material consumption.
AMR & Autonomous Reach Integration
Single pallet selective corridors are being re-engineered for Autonomous Mobile Robots (AMRs) and automated reach trucks. This demands strict fabrication tolerances: beam deflection limits tightened to L/240, vertical frame plumb deviation constrained to < 1:1000, and floor-level optical reflector mounting holes laser-cut directly into upright profiles.
Circular ESG & Low-VOC Finishes
Procurement mandates in Europe and North America increasingly demand certified Environmental Product Declarations (EPD). Modern exporters utilize automated 9-stage phosphate-free pre-treatment and electrostatic powder coating lines that emit zero volatile organic compounds (VOCs), resisting over 500 hours of ASTM B117 salt-spray exposure.
Pre-Engineered Rapid-Permit Packages
Cross-border buyers now demand complete structural computation calculation packages stamped ready for review by municipal Engineers of Record (EOR). Turnkey structural dossiers detail anchor bolt pull-out loads, weld ultrasonic non-destructive testing reports, and local building code compliance (IBC / NFPA 13 sprinkler clearances).
Factory-Direct Authority
Why Global Buyers Partner with HEDA Shelves
Based in Guangzhou with over two decades of technical dedication, HEDA Shelves represents the pinnacle of Chinese precision racking manufacturing, delivering direct factory value to over 100 countries.
30,000 m² Intelligent Production Base
Our advanced facility houses multiple high-speed continuous roll-forming lines, automated CNC laser punching centers, and robotic welding arms capable of handling 30,000 metric tons of certified steel monthly. High automated throughput ensures consistent dimensional tolerances and rapid order fulfillment.
Free 24-Hour Engineering CAD & 3D Modeling
Send us your warehouse architectural drawings, column grid positions, ceiling truss clear heights, and forklift turn radius data. Our licensed structural engineering department provides a complete optimized 2D CAD layout, 3D isometric visualization, and load capacity table within 24 hours at zero cost.
Container Space Optimization & Ocean Safety
Export shipping damage is eliminated through our specialized packing protocols. Uprights are bundled with steel strapping and high-density timber dunnage; beams are nested and bubble-wrapped to protect powder coating. We simulate 3D container packing layouts to achieve 98%+ volumetric container utilization in 40' HQ containers.
Precision Turnkey Project Workflow
01
Warehouse Audit & Design
Evaluation of pallet dimensions (GMA / Euro / Industrial), payload requirements, and forklift turning radius specs.
02
FEA Stress Calculation
Structural modeling under ANSI MH16.1 or EN 15512 codes, verifying vertical moment capacity and seismic stability.
03
Precision Fabrication
Automated slitting, cold roll-forming, robotic welding, acid-wash pickling, and electrostatic powder coating finish.
04
Export & Assembly Guide
Color-coded bundle tagging, ocean containerization, and comprehensive 3D step-by-step site erection schematics.
Expert Purchasing Guidance
Single Pallet Rack Procurement: Frequently Asked Questions
Clear, technically detailed answers to the most common engineering, regulatory, and logistics questions asked by international buyers and facility engineers.
What is the standard beam length for storing 48″ × 40″ GMA pallets?
The standard clear beam length for a two-pallet selective bay storing 48″ deep × 40″ wide GMA pallets is 96 inches (2,438 mm) or 108 inches (2,743 mm). A 96-inch beam allows 3 inches of side clearance between pallets and upright frames, whereas a 108-inch beam provides 5 inches of side clearance, which is recommended for faster forklift placement and high-bay operations above 24 feet.
How does single-deep selective compare to double-deep racking?
Single-deep selective racking guarantees 100% immediate selectivity for every pallet position, operating with standard counterbalance or reach trucks. Double-deep racking increases storage density by approximately 30% by eliminating aisles, but requires specialized pantograph deep-reach forklifts and enforces a Last-In, First-Out (LIFO) inventory sequence across paired positions.
What documentation do you provide for local building permits and seismic sign-off?
HEDA provides complete structural calculation documentation tailored to your facility's seismic zone parameters (Ss and S1 values). Our data package includes section properties (Ix, Iy, Zx), yield strength certs for raw steel coils, baseplate anchor pull-out computations, and load application drawings suitable for submission to your local Engineer of Record (EOR).
How are upright frames protected against forklift impact damage?
We offer three integrated protection layers: 1) Heavy-duty wrap-around steel column protectors bolted directly to the slab; 2) Post inserts (reinforcing channels welded inside the bottom 1,000mm of the upright column); and 3) Heavy structural steel aisle-end guardrails anchored to safeguard vulnerable end-of-row frames from turning equipment.
What surface treatment is best for cold storage (-20°C to -30°C)?
For standard cold rooms, high-adhesion polyester powder coating applied over micro-crystalline zinc phosphating provides robust protection. For blast freezers or wet meat-packing environments with severe condensation cycles, we recommend hot-dip galvanized (HDG) steel components conforming to ASTM A123, which guarantees multi-decade rust immunity without flaking.
How many metric tons or pallet positions fit inside a 40' HQ container?
A standard 40ft High Cube container typically holds between 22 and 26 metric tons of pallet racking components, depending on the weight-to-volume ratio of your specific beam lengths and frame depths. In terms of warehouse capacity, a single 40' HQ container delivers approximately 450 to 750 pallet positions of single-deep selective racking equipment.
Should I specify welded upright frames or knockdown (bolted) frames?
For international export, bolted knockdown frames are strongly advised. Knockdown frames pack flat, slashing ocean freight shipping volume by over 60% compared to pre-welded frames. Once on site, bolted frames assemble rapidly using high-tensile grade 8.8 serrated lock nuts, and permit easy field replacement of damaged braces without cutting or re-welding.
What are the minimum safety requirements for flue spaces under NFPA 13?
NFPA 13 dictates that single and back-to-back pallet racks maintain continuous longitudinal flue spaces (minimum 3 inches) and transverse flue spaces (minimum 6 inches) between pallet loads. This enables fire sprinkler deluge penetration and upward heat exhaust. HEDA supplies rigid row spacers and pallet backstop beams to mechanically maintain these flue clearances permanently.
