OEM/ODM Roller Pallet Racking Factory & Supplier: Precision Dynamic FIFO Engineering

High-density gravity flow bed manufacturing, structural Q235B/Q355B cold-formed uprights, fail-safe magnetic retardation rollers, and certified North American & European turn-key solutions.

High-Throughput Storage Matrix

Featured Industrial Racking & Gravity Flow Systems

Engineered to accommodate 48″ × 40″ GMA pallets, heavy tote bins, and custom steel stillages. Review our factory-direct standard models and bespoke dynamic roller systems manufactured to strict RMI, ANSI MH16.1, and FEM 10.2.02 standards.

Adjustable Longspan Heavy Duty Warehouse Rack Wholesale Longspan Shelving Multi-layer Storage Rack

Heavy Duty Warehouse Rack Wholesale Longspan Shelving Multi-layer Storage Rack

Multi-tier adjustable pitch with reinforced cross beams, high load capacity per level up to 1,800 lbs, optimized for rapid assembly and high-density manual order picking.

Details → Get a Quote

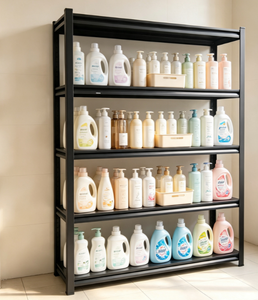

Boltless Slot Design 5-Tier Adjustable Steel Heavy Duty Card Slot Assembly Storage Shelving Unit

5-Tier Adjustable Steel Heavy Duty Card Slot Assembly Storage Shelving Unit

Industrial electrostatic powder coated finish in black or signal white. Quick card-slot interlocking upright columns with customizable beam lengths for carton fulfillment.

Details → Get a Quote
Pallet Storage Adjustable Pallet Rack Warehouse Storage Heavy Duty Shelving Pallets Racking

Adjustable Pallet Rack Warehouse Storage Heavy Duty Shelving Pallets Racking

High-tensile cold-rolled upright profile, adjustable on 50mm or 75mm increments. Engineered specifically for standard forklift operations, GMA wood pallets, and plastic skids.

Details → Get a Quote
2200 Lbs Rated 5 Tier Storage Shelving 1.5mm Boltless Carbon Steel Frame 12mm MDF Board

5 Tier Storage Shelving 1.5mm Boltless Carbon Steel Frame 12mm MDF Board

Rigid 1.5mm carbon steel cold-formed uprights paired with heavy moisture-resistant decking boards, capable of handling 2,200 lbs distributed loads for automotive and parts hubs.

Details → Get a Quote

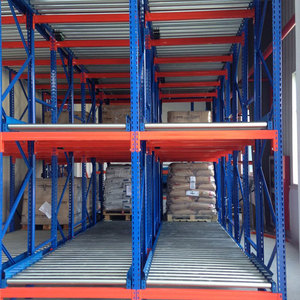

Gravity Pallet Flow Hot Sale Steel Gravity Flow Roller Racking Systems Corrosion Protected

Hot Sale Steel Gravity Flow Roller Racking Systems Customized Pallet Flow Rack

Continuous inclined zinc-plated steel roller beds equipped with speed-limiting governor rollers and end-stop mechanical pallet separators for safe, jam-free FIFO operations.

Details → Get a Quote

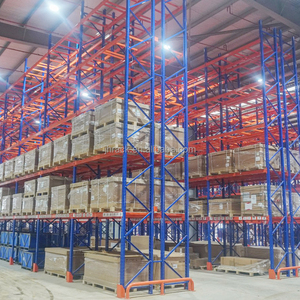

Corrosion Protected Heavy-Duty Corrosion Protected Pallet Racking Systems For Warehouse

Heavy-Duty Corrosion Protected Pallet Racking Systems For Warehouse

Full multi-bath chemical phosphating and high-curing epoxy-polyester electrostatic coating ensure superior durability under aggressive chemical and cold storage humidity conditions.

Details → Get a Quote
Longspan Heavy Steel Steel Storage Racks Longspan Shelving for Garage and Warehouse Metal Shelving

Steel Storage Racks Longspan Shelving for Garage and Warehouse Metal Shelving

Heavy-gauge rolled profile structure with zinc-galvanized drop-in steel panels. Flexible multi-tier configurations supporting rapid carton packing lines and parts distribution.

Details → Get a Quote

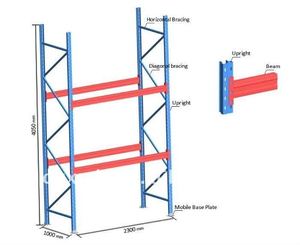

High Density Van Rack High Density Steel Warehouse Metal Van Rack Heavy Duty Industrial Pallet Rack

High Density Steel Warehouse Metal Van Rack Heavy Duty Industrial Pallet Rack

Engineered for extreme space optimization. High yield strength structural uprights designed with reinforced row spacers and heavy floor baseplates for heavy forklift loading.

Details → Get a Quote
2001
Founded • 25+ Yrs Expertise
323,000
Sq Ft Campus (30,000 m²)
30,000t
Monthly Steel Output
10,000+
Global Projects Completed
Engineering Deep-Dive

Kinetic Principles & Metallurgy of Industrial Roller Racking

Roller pallet racking—commonly designated across North American logistics hubs as gravity flow racking or pallet live storage—converts potential gravitational energy into controlled kinetic transport. Below is the structural and mechanical anatomy that governs zero-energy automated material movement.

Cold-Formed Upright Engineering

Our factory rolls upright columns from continuous structural coils of certified Q235B and Q355B high-tensile steel. With multi-bend omega profiles, column section modulus is mathematically optimized against local buckling, side-sway, and high-impact forklift strikes. Columns are punched via high-precision multi-stage servo dies, securing 50mm or 76.2mm beam connector engagement.

Braking & Speed Governing Mechanics

Uncontrolled pallet descent causes devastating impact loads at picking faces. HEDA integrates internal centrifugal and eddy-current magnetic brake rollers spaced every 2 to 3 pallet positions. These rollers maintain a governed rolling velocity between 0.15 m/s and 0.30 m/s regardless of whether the unit load weighs 300 lbs or 3,300 lbs, mitigating line back-pressure.

Mechanical Load Separators

At the extraction face, accumulated pallet pressure can reach tons of forward thrust. Our heavy-duty mechanical separation mechanisms physically decouple the lead pick-face pallet from trailing pallets. Once the lead pallet is lifted by the forklift or automated guided vehicle (AGV), the separator releases the next in line via an ergonomic mechanical pedal or pneumatic latch.

Roller Pallet Racking Technical Performance Specifications

Standard vs. Heavy-Duty vs. Cryogenic Cold-Chain Engineering Parameters

System Parameter Standard Warehouse Flow Heavy-Duty Industrial Stillage Deep-Freeze (-30°C) Cold Chain
Incline Slope Gradient 3.0% – 3.5% (approx. 1.7°–2.0°) 3.5% – 4.2% (tailored to runners) 3.5% – 4.0% with low-temp bearings
Roller Diameter & Wall Ø50mm × 1.5mm Zinc Plated Ø60mm / Ø76mm × 2.5mm Welded Ø60mm × 2.0mm Passivated / SS304
Dynamic Bearing Rating Precision 6002-ZZ (150 kg/roller) Heavy Machined 6204 (450 kg/roller) Low-Temp Synthetic Aeroshell Grease
Speed Control Frequency Every 3 Pallet Intervals Every 2 Pallet Intervals Every 2 Pallet Intervals (Hermetic Seal)
Pallet Weight Range 400 – 2,200 lbs (200 – 1,000 kg) 1,500 – 4,400 lbs (700 – 2,000 kg) 600 – 2,600 lbs (300 – 1,200 kg)
Surface Protection Electrostatic Epoxy Powder (70μm) Hot-Dip Galvanized / Heavy Epoxy Zinc Rich Primer + Polyurethane (90μm)
Total Cost of Ownership

Comparative Matrix: Roller Pallet Racking vs. Alternative Systems

To validate procurement ROI, warehouse operations directors must assess aisle occupancy, SKU selectivity, inventory obsolescence risk, and cycle time.

Roller Flow vs. Drive-In Racking

Operational Velocity: Drive-In systems force lift trucks to drive deep into racking bays, creating substantial structural collision danger and agonizingly slow cycle times. Roller pallet flow isolates loading aisles to the rear and picking aisles to the front. Forklifts travel up to 65% less distance, reducing driver labor and eliminating rack damage.

FIFO Rotation: Drive-In is strictly LIFO (Last-In, First-Out), making it disastrous for date-sensitive perishables. Roller pallet racking enforces 100% strict First-In, First-Out (FIFO) turnover.

Roller Flow vs. Push-Back Carts

Depth Constraints: Push-Back racking is mechanically limited to 5 or 6 pallets deep due to the progressive cart nesting slope and the forklift push-force required to shove multiple loaded pallets uphill.

High-Density Lanes: Roller gravity flow handles lanes over 25 pallets deep effortlessly using natural gravity and integrated brake drums, yielding a 35% higher cubic storage density per square foot.

Roller Flow vs. Radio Shuttle Systems

Zero Downtime & Capex: Automated radio shuttles carry costly lithium-ion batteries, optical sensors, motherboards, and complex charging docks. When a robotic shuttle halts mid-lane, an entire tier becomes inaccessible. Roller pallet racking operates entirely on passive gravitational physics: zero motors, zero power consumption, zero software bugs, and minimal annual maintenance costs.

Procurement Intelligence

Future Warehouse Procurement Trends: The Next 10 Years

Capital allocation in distribution networks is rapidly shifting from conventional static racks toward modular, automation-ready dynamic infrastructure.

1. Interface with Autonomous Mobile Robots (AMRs)

Leading 3PL logistics networks and e-commerce distribution centers are designing gravity roller beds with specialized pick-end cantilever stations tailored for autonomous forklift and AMR forks. By maintaining consistent pallet presentation coordinates without driver variation, roller pallet systems form the ideal low-cost buffer between warehouse delivery docks and robotic sorting tracks.

2. Cold-Chain Energy Conservation Mandates

Industrial freezer warehouse space costs 3.5 to 5 times more to condition and construct than ambient space. Procurement directors are standardizing on deep-lane pallet flow beds that eliminate 70% of forklift access aisles. This drastically diminishes refrigerated air volume loss, cutting operational HVAC kilowatt-hours while maximizing cubic pallet fill ratios.

3. Nearshoring & Factory-Direct Engineering Transparency

North American supply chains increasingly demand verified engineering provenance. Procurement protocols reject generic resellers in favor of direct ISO-certified OEM factories that supply native PE-stampable structural calculations, full mill test reports (MTRs), and custom roll-forming tolerances in both imperial (inches, lbs) and metric configurations.

R&D Innovation

Technological & Material Trends in Roller Pallet Racking

HEDA Shelves continuously invests in advanced metallurgy, smart roller damping, and surface polymer chemistry to eliminate dynamic friction inconsistencies.

Non-Contact Magnetic Retardation

Conventional friction-based speed controllers use internal mechanical gears and spring-loaded brake pads that generate thermal wear, requiring replacement after several hundred thousand cycles. The latest frontier is eddy-current magnetic braking. Permanent neodymium magnets generate an opposing electromagnetic field proportional to pallet velocity without mechanical contact, achieving virtually infinite operational lifespan and quiet operation.

High-Impact Polyurethane Roller Sleeves

Damaged wood pallets with protruding nails, loose bottom boards, or uneven deflection rates often fracture brittle plastic wheels or slip across wet steel tubes. Newly formulated thermoplastic polyurethane (TPU) and high-density vulcanized sleeves ensure predictable traction coefficients (friction factor μ = 0.08 – 0.12) across ambient, chilled, and sub-zero storage chambers.

Automated Sensor-Embedded Roller Beds

Industrial 4.0 warehousing incorporates self-powered piezoelectric vibration and lane-occupancy sensors directly into the roller axles. These micro-sensors monitor pallet travel velocity, identify lane blockages, and transmit live channel utilization data to the warehouse management system (WMS) without external power wiring.

Production Rigor

Our 10-Step Quality Controlled OEM/ODM Manufacturing Process

Operating from our 30,000 m² production complex, every upright frame, dynamic roller rail, and structural beam connector passes through our rigorous 10-stage manufacturing sequence.

STEP 01
Raw Materials

High-tensile steel coils with certified chemical & yield analysis.

STEP 02
Precision Slitting

CNC automated coil slitting to exact section profile widths.

STEP 03
Auto Punching

High-speed servo column slot punching with 0.1mm tolerance.

STEP 04
Cold Roll Forming

Multi-station cold roll mills form high-strength uprights.

STEP 05
Profile Calibration

Laser measurement checks profile straightness and camber.

STEP 06
Robotic Welding

Automated welding of heavy beam connectors and baseplates.

STEP 07
Deburring & Polish

Rotary deburring removes all sharp slag edges for safety.

STEP 08
Phosphating Pre-wash

Multi-stage acid wash & phosphating for 1000h salt-spray grip.

STEP 09
Powder Coating

Electrostatic powder application cured in 200°C tunnel kilns.

STEP 10
QC & Ocean Crate

Load testing, bundle labeling, containerized shipping pack.

Why Work Directly with HEDA Shelves

Global Authority in High-Capacity Warehouse Infrastructure

Guangzhou Heda Shelves Co., Ltd. provides complete end-to-end support for international distributors, system integrators, and Fortune 500 warehouse facilities.

24-Hour CAD & 3D Design Turnaround

Send your architectural building footprint, column grids, ceiling clear heights, pallet sizes, and forklift models. Our dedicated structural engineering department delivers precise 2D CAD layouts, isometric load schematics, and 3D visual renderings within 24 hours, completely free of charge.

Dual Imperial & Metric Engineering

We eliminate conversion headaches. All shop drawings, beam elevation load plates, structural anchor specifications, and calculation packets are furnished in standard North American units (feet, inches, lbs) or International System units (mm, kg), fully prepared for review by your local registered Engineer of Record (EOR).

Audited Quality: ISO 9001:2015, CE & RoHS

Our factory holds ISO 9001:2015 Quality Management System Certification (No. 18624Q00169R0M) and European CE Marking for structural steel products (No. 2435-CPR-8605159). We provide verified raw material mill test certificates, weld penetration inspections, and salt-spray corrosion resistance guarantees for every export container.

Procurement Clarity

Frequently Asked Questions: Roller Pallet Racking Procurement

Addressing common engineering, logistics, and installation queries for corporate procurement managers and engineering contractors.

What physical slope angle is recommended for heavy roller pallet flow lanes?
A standard roller pallet flow lane typically operates at an inclination gradient between 3.0% and 3.5% (roughly 1.7° to 2.0°). This slope provides sufficient gravitational acceleration to overcome static roller bearing friction without generating uncontrollable velocity. For defective wood pallets with deflected bottom skids or ultra-heavy loads exceeding 2,500 lbs, we conduct real-sample dynamic incline tests in our test lab to pinpoint the exact degree of pitch required before manufacturing beam brackets.
How do you prevent pallet runaway or pick-face impacts in deep-lane tracks?
We integrate two critical safety safeguards: (1) Heavy-duty internal centrifugal brake rollers or non-wearing magnetic speed governors positioned along the lane at 2 to 3 pallet intervals, holding descent speeds consistently under 0.3 m/s. (2) End-of-lane mechanical impact separators coupled with structural steel stop guards that lock trailing pallets in place until the lead pallet has safely cleared the extraction bay.
Are HEDA roller pallet racking systems compatible with 48" × 40" GMA wood pallets?
Yes. Our roller tracks, guide channels, and beam clear spans are fully optimized for standard 48″ × 40″ Grocery Manufacturers Association (GMA) pallets, Euro pallets (1200 × 800mm), industrial 1200 × 1000mm skids, and custom steel stillages. We customize the roller track quantity per lane (dual-track, triple-track, or full-width roller bed) to match the bottom runner configuration of your specific pallet fleet.
Can roller pallet flow systems function safely inside -25°C to -30°C cold storage freezers?
Yes. We manufacture cryogenic-specific roller racking incorporating low-temperature synthetic lubricants inside the roller bearings that resist freezing or gumming down to -35°C. Roller shafts are zinc-chromate treated or fabricated from stainless steel, and structural rack columns receive zinc-rich anti-corrosive primer bases to endure cyclic condensation and prevent frost-related adhesion.
What documentation do you provide for local structural permits and seismic compliance?
Every export shipment includes comprehensive component specification data sheets, mill material test certificates, anchor pull-out ratings, and structural load calculations computed in compliance with RMI (Rack Manufacturers Institute) and IBC (International Building Code) criteria. These engineering packages are formatted specifically to allow your local Professional Engineer (PE) to inspect, approve, and seal drawings for city permit submission.
What is your typical production lead time and ocean shipping container packaging method?
Standard OEM/ODM production lead times run between 20 and 30 calendar days depending on tonnage. Roller tracks, upright frames, and beams are strapped into heavy steel-framed bundles with corrugated perimeter protection, timber dunnage, and moisture-absorbing silica packs. Bundles are systematically coded and sequenced to fit 40-foot HQ containers for direct discharge at US, Canadian, Mexican, and European container ports.

Request a Direct Factory Quote & Free 24-Hour Layout

Eliminate middleman distributor markups. Partner directly with Guangzhou Heda Shelves Co., Ltd. for factory-direct roller pallet flow engineering, competitive B2B volume pricing, and comprehensive project CAD schematics.
