Featured Industrial Racking & Modular Storage Systems
Direct factory-engineered storage fixtures built for high-throughput fulfillment hubs, cold-storage deep-lane operations, automotive assembly, and heavy industrial distribution.
Jracking EURO Standard Steel Pallet Racking for Heavy Industry CE Certified
- European FEM & CE Compliance
- 1,000–5,000 kg Beam Level Capacity
- Interlocking 5-Hook Beam Connectors
MZG ODM Heavy Duty Storage Organizer Rack Wire Shelving Systems with Wheel
- High-Flow Chrome/Zinc Anti-Dust Deck
- Heavy Industrial Polyurethane Casters
- Toolless Slip-Sleeve Pitch Adjustment
Heavy Duty Steel Pallet Racking System Metal Stacking Truck Tire Pallet Rack
- 4-Way Forklift Entry Interlocking Cups
- Stackable 4 to 6 Units High Fully Loaded
- Sized for TBR Truck & OTR Casings
Warehouse Foldable Metal Steel Heavy Duty Portable Tire Racking System
- 80% Empty Storage Return Ratio
- High-Yield Heavy Structural Hollow Section
- Robotic Precision Welded Joints
PP Corrugated Plastic Stackable Warehouse Picking Bins Modular Storage
- Chemical & Moisture Resistant PP Plastic
- Open-Front Ergonomic Order Picking
- Fits Standard Shelving & Flow Racks
Heavy-Duty Industrial Shelves Steel Multi-Layer Thickened Warehouse Storage
- Thickened Cold-Rolled SPCC Steel Panels
- 300–800 kg Uniform Loading per Level
- 50 mm Butterfly Hole Height Adjustability

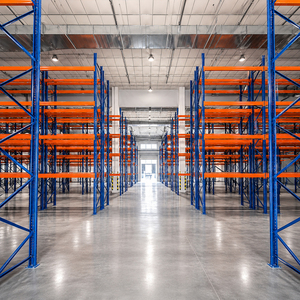

Heavy Duty Pallet Rack 1000-2000KG Per Level High Density Q235B Steel
- Structural Grade Q235B / Q355B Alloy
- Engineered Deflection Limit < L/250
- Free 3D & CAD Layout Analysis Included
Factory 4-Layer Medium Duty Rack Corrosion Protected Industrial Shelving Units
- 100–300 kg Per Tier Uniform Bearing
- Pre-Treated Acid Pickling & Phosphating
- Boltless Knock-Down Modular Assembly
Engineering-Driven Manufacturing for Global Exporters & Contractors
Why leading international 3PL operators, retail supply chains, and industrial procurement departments rely on our factory-direct manufacturing pipeline.
25+ Years Structural R&D
Deep engineering archives containing structural analysis, dynamic seismic testing, and deflection models for over 10,000 bespoke warehouse installations across 60+ countries.
Free 3D & CAD Layouts in 24h
Submit warehouse architectural floor plans, ceiling clearance details, forklift Turning Radii (AST), and pallet specs to receive fully engineered 2D/3D BIM layouts within one business day.
Certified Metallurgy & Safety
Mill-certified Q235B and Q355B hot-rolled strip steel. Validated compliance through ISO 9001:2015 (Cert No. 18624Q00169R0M), CE CPR-8605159, and comprehensive RoHS environmental audits.
Full Turnkey OEM / ODM Solutions
From custom punch pitches (Teardrop, 50 mm, 75 mm, 76.2 mm) and bespoke beam connectors to RAL-customized electrostatic powder finishes, OEM private stamping, and custom pallet sizes.
Whitepaper Brief: Structural Mechanics & Steel Alloy Optimization
Industrial racking is an engineered civil structure subject to complex dynamic and static load interactions. Unlike standard commercial shelving, an industrial pallet rack system must withstand concentrated point loads, asymmetrical beam bending, seismic acceleration forces, and intermittent forklift impact forces. As a premier OEM/ODM manufacturer, our production lines utilize structural carbon steel alloys graded Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa), corresponding mechanically to North American ASTM A36 / A572 Grade 50 and European EN 10025 S235JR / S355JR standards.
The structural load capacity of our upright frame columns is validated through rigorous cold-formed steel section calculations governed by AISI S100 and Eurocode 3 (EN 1993-1-3). Automated multi-stage continuous roll forming forms stiffened omega, hex, and double-flanged column profiles with tight dimensional tolerances (±0.5 mm per 10 meters). The resulting profiles achieve a superior section modulus ($Z_x, Z_y$) while minimizing gross steel mass, directly reducing transoceanic freight expenditures per pallet position for our global export partners.
| Racking Topology | Pallet Selectivity | Cubic Utilization | Handling Equipment | Primary Industry Fit | Cost / Pallet Level |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | 40% – 45% | Standard Counterbalance / Reach | High-SKU 3PL, FMCG, Retail DCs | Economic Baseline |
| Double Deep Racking | 50% Direct (LIFO) | 55% – 65% | Deep-Reach Pantograph Forklift | Cold Storage, Bulk Dry Goods | Moderate (+15-20%) |
| Drive-In / Drive-Thru | Lane Only (LIFO/FIFO) | 70% – 80% | Specialized Slim Counterbalance | Homogeneous Goods, Seasonal Food | Moderate-Low |
| Radio Shuttle Automation | Batch Lane (FIFO/LIFO) | 80% – 88% | Automated Lithium Shuttle + Forklift | Deep-Freeze (-30°C), Raw Ingredients | High CAPEX / Low OPEX |
| Gravity Pallet Flow | Strict FIFO Automatic | 75% – 85% | Standard Loading / Pick Faces | Perishables, Pharmaceuticals | Mid-High (Roller Beds) |
| Heavy-Duty Cantilever | 100% Open Access | Variable (Cubic Vertical) | Side-Loader / 4-Directional Truck | Lumber, Steel Tubing, Bar Stock | Engineered to Spec |
Rigorous 10-Step Controlled Manufacturing Workflow
To maintain structural traceability and satisfy stringent Western export building codes, each racking component manufactured inside our 323,000 sq ft industrial park undergoes a verified 10-step precision engineering regimen:
Direct procurement of premier Baosteel/Shougang hot-rolled coils with metallurgical assay certs.
Precision longitudinal slitting maintaining ±0.1 mm edge-width tolerances for profile accuracy.
High-speed automated mechanical presses stamping teardrop or multi-lock pitch configurations.
16- to 24-stand progressive roll-forming lines hardening yield properties without micro-fracturing.
Flying-shear CNC cutting ensuring burr-free perpendicular end cuts within ±0.5 mm tolerance.
6-axis OTC welding cells fusing beam end connectors and base plates under argon-rich shielding gas.
Multi-tank immersion: degreasing, ultrasonic water rinse, acid pickling, and hot zinc phosphating.
Automated Gema powder spray booths applying 60–90μm thermoset epoxy polyester resin.
Gas-fired convection curing tunnel baking polymers to ensure 2H scratch hardness and salt-spray resistance.
Tensile sampling, cross-hatch adhesion tests, barcode labeling, and container-optimized strapping.
Future Procurement & Product Development Trends (2025–2030)
Navigating structural shifts in modern fulfillment: how macroeconomic pressures, automation, seismic engineering, and ESG mandates are transforming warehouse storage procurement.
Millimeter-Tolerance Racking for AMR & ASRS Integration
As global logistics pivots away from manual fork trucking toward Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage/Retrieval Systems (ASRS), racking tolerances are contracting from ±3.0 mm down to ±0.8 mm. Procurement directors are demanding higher straightness ratings, zero-camber beam sections, and reinforced ground guide rails capable of continuous robotic interaction.
Super-High-Cube Verticals & Rack-Supported Buildings
With industrial land costs climbing sharply across primary global logistics nodes (Southern California, Rotterdam, Singapore, Shanghai), storage projects are moving vertically. Racking systems are transcending 12-meter thresholds to reach 24 to 40 meters in rack-clad building architectures, where the racking infrastructure simultaneously serves as the primary structural frame for the building's roof and insulated walls.
Rigorous Seismic Engineering (RMI ANSI MH16.1 & Eurocode)
Municipal building approvals in seismically active regions across the Western US, Latin America, Japan, and Southern Europe now demand rigorous dynamic finite element analysis (FEA). Future procurement contracts require full moment-resisting base connection calculations, certified column base isolators, and stamped site-specific seismic engineering reports provided upfront by the rack manufacturer.
Low-Emissions Green Steel & Zero-VOC Finishing
Multinational 3PLs and Fortune 500 corporations are actively evaluating Scope 3 supply chain carbon footprints. The storage market is accelerating adoption of Electric Arc Furnace (EAF) low-carbon recycled steel coils, heavy-metal-free phosphate alternatives, and lead-free zero-VOC thermoset powder finishes that adhere to strict green building certifications including LEED v4.1 and BREEAM.
Ultra-High-Density Sub-Zero Energy Efficiency
The rapid global expansion of biopharmaceuticals, fresh grocery e-commerce, and prepared frozen foods has turned sub-zero refrigeration (-25°C to -30°C) into a major operational cost center. Procuring automated radio shuttle systems and compact drive-in configurations minimizes refrigerated air volume per stored pallet position, drastically slashing electricity and HVAC depreciation overhead.
Sensor-Integrated Digital Twin Racking Networks
The emergence of embedded IoT strain gauges, optical deflection monitors, and triaxial accelerometers on critical upright columns allows facilities managers to monitor live warehouse load states. These digital twin feeds proactively flag overloading, identify forklift impact anomalies before cataclysmic collapse occurs, and generate automated OSHA/EN 15635 compliance audit trails.
Frequently Asked Questions for B2B Racking Importers
Essential technical, logistics, and compliance insights for supply chain managers, warehouse developers, and procurement executives planning heavy rack imports.
All our rack designs undergo destructive static testing and computerized Finite Element Analysis (FEA) compliant with RMI (ANSI MH16.1) and FEM 10.2.02. We implement a standard design safety factor between 1.65:1 and 1.9:1 based on structural yield strength. Each delivery includes formal load application charts specifying maximum beam deflection (strictly held under L/200 for standard applications or L/250 for automated systems) and maximum allowable load per upright frame based on unbraced beam elevation heights.
Yes. As an OEM/ODM provider, our continuous punching and roll-forming tooling supports standard American Teardrop configurations, British Dexion-compatible 76.2 mm pitches, and European metric 50 mm / 75 mm modular hook systems. We manufacture bespoke replacement uprights, load beams, and safety wire mesh decks completely backward-compatible with your existing warehouse distribution network.
Freight efficiency is integrated into our structural engineering. Upright frames can be shipped fully bolted on-site to reduce empty shipping air by up to 65% compared to all-welded frames. Beams are nested in bundles secured with steel strapping and protective edge sleeves. A standard 40-foot high-cube container (40HQ) is packed with 24 to 26 metric tons of structural components, maximizing container payload while safeguarding powder finishes against abrasion.
For standard climate-controlled facilities, our multi-stage electrostatic thermoset polyester powder coating (60-90 μm) provides superior scratch resistance and aesthetic longevity. For sub-zero blast freezers (-30°C) where condensation and thermal cycling trigger micro-cracking, we recommend specialized polyurethane powder systems or hot-dip galvanization (HDG). For outdoor cantilever and lumber yard racking, hot-dip galvanization per ASTM A123 / ISO 1461 guarantees multi-decade protection against atmospheric oxidation.
Compliance with National Fire Protection Association (NFPA 13) guidelines is standard across our layout generation. In back-to-back rack arrays, our engineering software automatically provisions longitudinal flue spaces (typically 6 inches / 150 mm) via engineered frame row spacers. Transverse flue spaces (3 inches / 75 mm between pallets and upright frames) are preserved by calculating optimal clear beam lengths (e.g., 96-inch or 108-inch beams for two 48x40 inch GMA pallets), ensuring uninterrupted vertical water penetration from ceiling ESFR sprinklers.
We provide an exhaustive documentation package with every export shipment: commercial invoice, certified packing list with container piece-counts, Bill of Lading (B/L), Certificate of Origin (CO/Form A/Form E), mill test certificates verifying steel chemistry, ISO/CE conformity declarations, and complete structural engineering CAD assembly prints with imperial and metric load safety plaques for on-site inspection.
Plan Your Storage Facility with Factory-Direct Engineers
Accelerate your operational roadmap with precision layout design, certified structural load tables, and factory-direct volume pricing. Share your warehouse dimensions or architectural DWG file today to receive a complete 3D layout simulation and competitive quote within 24 hours.
