High-Performance Storage & Handling Systems
Explore our heavy-duty cold-rolled steel racking, automated conveyors, and longspan systems manufactured in-house to stringent international tolerances.
Industrial Extendable Powered Roller Conveyor System For Heavy Duty Pallet Handling In Logistics Warehouse
- High-torque motorization for heavy unit loads
- Telescopic footprint for rapid truck loading/unloading
- Seamless dock-to-rack transit synchronization
Steel Drive-Through Light Duty Industrial Pallet Stacking Rack with Corrosion Protection for Warehouse Storage System
- Drive-through configuration optimizing FIFO access
- Electrostatic anti-corrosive powder coat finish
- Eliminates dedicated operating access aisles
Jracking Heavy Duty Steel Warehouse Storage Rack System Customized AU Standard Pallet Racking For Factory Workshops
- Engineered specifically to AS 4084-2012 compliance
- Custom upright punching pitch and box beam spans
- High capacity for manufacturing floor spares and raw stock
Knock Down Boltless Shelving Light Duty Steel Adjustable Storage Rack Easy Assembly System
- Rivet/keyhole interlocking tool-free deployment
- Adjustable shelf deck levels on 50mm pitch
- Compact knockdown packing for minimized sea freight
MZG Industrial Wide Wire Shelving Garage Heavy Duty High Capacity Metal Wire Storage Shelves Unit Rack with Wheels
- Heavy gauge carbon steel wire mesh decking
- Commercial locking caster wheels for mobile staging
- Open wire grid complies with NFPA sprinkler flow rules
Long Span Medium Duty Stackable Steel Q235 Industrial Rack for Bin Storage Warehouse Equipment
- Certified Q235 cold-formed structural steel
- High weight distribution for tote and carton staging
- Custom step beams fitted with solid steel shelf inserts
Warehouse Storage Rack System High Density Porta Pallet 1000kg Q235B Cold Rolled Steel Heavy Duty Pallet Rack Warehouse
- 1,000kg to 4,000kg beam pair load threshold
- Continuous automatic CNC punched omega profile uprights
- Multi-hook connector claws with anti-disconnect lock pins

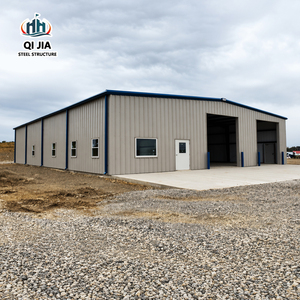

Modern High Quality Steel Structure Warehouses For Industrial Use In Garage Sheds Hotels Malls Supermarkets
- Engineered structural steel framing with large clear spans
- Supports rack-clad building architectures (Rack Clad)
- Integrated roof, purlin, girt, and bracing systems
Industrial Pallet Racking Mechanics: Engineering, Compliance & Structural Safety
A rigorous review of cold-formed structural steel behavior, deflection formulas, seismic performance, and quality management protocols governing global supply chains.
Modern warehouse logistics demands that structural pallet racking systems deliver uncompromising load safety under high dynamic operating cycles. In contemporary materials handling environments, pallet racks are not merely static steel shelves; they are calculated structural frames exposed to asymmetrical live loads, seismic acceleration, thermal contraction within sub-zero cold stores, and mechanical impact forces from reach trucks and counterbalance forklifts. As an international OEM/ODM manufacturer, Guangzhou Heda Shelves Co., Ltd. builds industrial storage systems compliant with the world's most exacting structural standards: ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks by the Rack Manufacturers Institute - RMI) in North America, EN 15512 (Steel Static Storage Systems) in the European Union, and AS 4084-2012 in Australasia.
Deflection Standard Notice: All structural box and step beams manufactured by Heda Shelves are calculated against an allowable vertical deflection limit of L/200 (or optional L/180) of the clear span under uniformly distributed loads (UDL), ensuring zero permanent plastic deformation and complete structural elastic recovery.
The structural integrity of pallet storage begins at the molecular level with certified hot-rolled and cold-rolled prime steel coils, predominantly grade Q235B (yield strength fy ≥ 235 MPa, tensile strength 370–500 MPa) and high-strength alloy Q355B (fy ≥ 355 MPa, tensile strength 470–630 MPa). Cold-roll forming technology progressively folds the steel coil through multiple high-precision roller stations, forming complex omega-profile columns (Ω) with stiffened return flanges. These multi-bend profiles significantly increase the section modulus and radius of gyration, guarding against flexural-torsional buckling and local plate buckling under maximum axial compression.
Connection safety is governed by the moment-resisting junction between the upright frame and the horizontal load beam. Beam end-connectors are stamped from thick structural plates and welded via robotic CO2 shielded gas welding lines. Equipped with 3-claw or 4-claw teardrop/slot locking hooks, these connectors engage with the upright column's CNC-punched perforations on a continuous 50mm or 75mm (2-inch to 3-inch) pitch. Heavy-gauge spring-steel locking pins secure each connector into position, resisting accidental dislodgement forces exceeding 1,000 lbs (4.45 kN) per ANSI MH16.1 uplift verification criteria.
Future Procurement & Technological Trends in Industrial Pallet Storage
Strategic insights for procurement directors, distribution network architects, and facility managers navigating the automation frontier and evolving supply chain paradigms.
Automation-Ready Structural Racks
High-bay installations are moving from manual fork operation to Automated Storage and Retrieval Systems (AS/RS) and 4-way radio shuttles. Future procurement prioritizes ultra-tight manufacturing tolerances (±1.0mm) to accommodate robotic sensor arrays, floor deflection limits, and guided vehicle tracking.
Vertical Cube Maximization
Escalating land lease rates in primary industrial zones (Inland Empire, New Jersey, Rotterdam, Toronto) drive procurement toward multi-tier rack-supported mezzanines and high-density Push-Back and Pallet Flow systems, doubling inventory density without real-estate expansion.
Seismic Resilience & P.Eng Calculations
Global regulatory enforcement mandates site-specific seismic engineering under IBC (International Building Code) and Eurocode 8. B2B buyers now mandate stamped PE/P.Eng load engineering calculations, custom heavy baseplates, and ductile seismic column splices prior to purchase order sign-off.
Direct Containerization Optimization
With volatile maritime container freight, modern OEM/ODM buyers demand container-optimized modular nesting. Heda's specialized 3D packing software bundles upright frames and nested beams to maximize 40-foot HQ container cubic and weight thresholds, slashing freight cost per pallet position.
Industrial Pallet Racking Comparative Analysis
Evaluate accessibility, inventory rotation, volumetric density, and mechanical requirements across the standard industrial storage spectrum.
| Racking Topology | Pallet Selectivity | Volumetric Density | Inventory Flow | Recommended SKUs | Forklift Equipment Type | Structural Footprint |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | Standard (40–45%) | FIFO / LIFO | High SKU Diversity / Fast Turnover | Counterbalance, Reach Truck | Standard Aisles (10–12 ft) |
| Double Deep Racking | 50% Immediate | High (55–60%) | LIFO (Last-In, First-Out) | Medium SKU Range (2–4 pallets/SKU) | Deep-Reach Pantograph Truck | Reduced Aisle Configuration |
| Drive-In / Drive-Through | Low (Lane Access) | Very High (70–80%) | LIFO (Drive-In) / FIFO (Drive-Thru) | Low SKU Diversity / Cold Store Bulk | Counterbalance, Narrow Profile | Continuous Deep Storage Bays |
| Push-Back Racking (Carts) | Front of Lane | High (65–70%) | LIFO (Gravity Assisted) | 2 to 6 Pallets per Product Line | Standard Counterbalance, Reach | Gravity Rails with Nested Carts |
| Pallet Flow (Roller Beds) | Pick Face Instant | Maximum (80–85%) | Strict FIFO | High Volume, Perishables, FMCG | Standard Forklifts (Split Aisles) | Separated Loading & Picking Faces |
| Radio Shuttle Automation | High (Channel Level) | Ultra-High (85%+) | FIFO / LIFO (Software Controlled) | High-Volume Cold Rooms, Food & Bev | Standard Trucks + Shuttle Cart | Deep Lane Automation Rails |
| Heavy-Duty Cantilever | 100% Unobstructed | Medium to High | Any Free Access | Lumber, Pipes, Steel Coils, Furniture | Side-loader, Multi-directional | Continuous Column & Free Arms |
End-to-End OEM/ODM Manufacturing Excellence
Why Fortune 500 distribution centers, international racking distributors, and EPC contractors trust Guangzhou Heda Shelves Co., Ltd. for turnkey project delivery.
Rapid Engineering Turnaround: Free CAD & 3D in 24h
Our in-house design engineering department of 30+ specialists develops detailed CAD structural layout plans, elevation calculations, clear aisle optimization, and photorealistic 3D warehouse renderings within 24 hours of receiving site blueprints, pallet dimensions, and forklift lift data.
Dual Imperial & Metric Engineering Documentation
To eliminate costly job-site construction mismatches, all shop drawings, seismic moment calculations, load application placards, and architectural submittals can be produced natively in Imperial (lbs, inches, feet) for North American buyers or Metric (kg, mm, meters) for European and global markets.
Rigorous 10-Stage Surface Pretreatment & Finishing
Steel durability in moist or aggressive warehouse environments hinges on pre-treatment. Our production line incorporates continuous chemical pickling, degreasing, zinc phosphating, and deionized water rinsing before applying thermo-hardened electrostatic powder coatings baked at 200°C for superior scratch and salt-spray resistance.
Independently Audited Quality & International Certifications
Heda Shelves operates under a certified ISO 9001:2015 Quality Management System (Cert No. 18624Q00169R0M). Our structural steel racks bear certified CE conformity (No. 2435-CPR-8605159) for Construction Products Regulation (CPR) and pass comprehensive RoHS hazardous substance testing.
Container-Optimized Bundling & Export Packaging
All upright assemblies, box beams, and wire decks are bundled with custom timber dunnage, protective corrugated corner guards, heavy-gauge steel strapping, and waterproof stretch wrapping. Beam connectors and small hardware are crated in labeled steel-reinforced wooden boxes for zero transit attrition.
Direct Port Logistics & Turnkey Global Service Support
Centrally located in Guangzhou with proximity to Nansha, Huangpu, and Shenzhen ports, we coordinate international shipping across FOB, CIF, DDU, and DDP terms directly to primary ports in Los Angeles, Long Beach, Houston, Savannah, New York, Vancouver, Rotterdam, Sydney, and Dubai.
Frequently Asked Questions: Industrial Pallet Racking Sourcing
Direct technical answers to common queries regarding building code compliance, seismic engineering, steel grades, and logistics coordination.
What steel grade is utilized in Heda structural pallet racks, and how is it verified?
We primarily utilize high-tensile hot and cold-rolled prime carbon steel Q235B (yield point ≥ 235 N/mm²) and Q355B (yield point ≥ 355 N/mm²), equivalent to ASTM A36 and ASTM A572 Grade 50 respectively. Every incoming coil is verified via spectral chemical analysis and universal tensile testing with batch-specific Mill Test Certificates (MTC) archived for complete supply chain traceability.
Are your pallet rack designs compatible with standard 48" x 40" GMA pallets?
Yes. Our engineering standards are fully configured for North American standard 48" x 40" Grocery Manufacturers Association (GMA) pallets, 1200 x 800mm and 1200 x 1000mm EUR/EPAL pallets, and 1100 x 1100mm Asian pallets. Standard frame depths are configured at 42 inches (1067mm) to provide proper 3-inch overhang on both loading faces per safety codes.
How do you support seismic engineering and building permit approval in the US & Canada?
We provide complete structural shop drawings, section properties, steel modulus values, and detailed calculation packages formatted for local Professional Engineer (P.Eng / PE) review. Our engineering team calculates anchor bolt embedment depth, seismic baseplate sizing, and frame bracing geometries in compliance with local Spectral Response Accelerations (Ss, S1).
What is the standard manufacturing lead time and ocean container transit window?
Standard fabrication lead time for standard selective or drive-in projects (1–10 containers) ranges between 15 to 25 business days following formal CAD layout approval. Ocean transit to US West Coast ports (LA/Long Beach) is typically 14–18 days, US East Coast (Savannah/NY) is 28–35 days, and Western Europe is approximately 25–30 days.
Can Heda Shelves manufacture custom OEM racking profiles for private-label distributors?
Yes. A substantial portion of our 30,000-ton monthly capacity is dedicated to OEM and ODM contracts for established material handling distributors and rack integrators. We can manufacture custom punch styles (teardrop, slotted, keyhole, hex), customized beam profile heights, custom color matching via RAL powder formulations, and private-label packaging.
What surface treatment is recommended for sub-zero freezer and outdoor yards?
For blast freezers and cold storage environments (-30°C), we employ specialized low-temperature polyurethane electrostatic powder coatings that resist thermal shock and embrittlement. For outdoor lumber and pipe storage racks exposed to rainfall and high humidity, we provide full Hot-Dip Galvanization (HDG) per ASTM A123 / ISO 1461, achieving 70–85 microns of zinc protection for decades of rust-free service.
Accelerate Your Warehouse Capacity: Get a Factory-Direct Engineering Consultation
Submit your architectural layout, warehouse clear height, pallet dimensions, and SKU profiles. Our structural engineering department will deliver an optimized CAD proposal, load table analysis, and itemized quotation within 24 hours.
