Heavy Density
Enterprise Product Portfolio
Engineered Industrial Racking & Material Handling Systems
Each racking module is hot-rolled or cold-formed from high-yield certified Q235B/Q355B structural steel, finished with high-durability electrostatic thermoset powder coatings for indoor and harsh exterior yard applications.
100% Selectivity
Modular Steel
Heavy Shelving
Custom Storage
Dynamic Gravity
Industrial Plate
Structural Security
2001+
Established Heritage
Over 25 Years of Roll-Forming Excellence
30,000t
Monthly Throughput
323,000 sq ft Modern Production Campus
300+
Engineers & Technicians
Turnkey CAD/3D Layout & Stamped Calculations
10,000+
Completed Installations
Supplying the US, Canada, EU & Global Ports
Strategic Sourcing Analysis
Future Procurement Trends in Heavy-Duty Cantilever Racking
The modern logistics ecosystem demands that heavy cantilever racks transcend traditional passive storage. High material costs, site constraints, and aggressive carbon neutrality mandates are reshaping structural racking procurement.
Direct-to-Manufacturer Strategic Sourcing
Global supply chain volatility has accelerated direct OEM factory engagement over intermediary distributors. Sourcing managers now prioritize custom engineering adaptability, transparency in steel mill origin certifications (EN 10204 3.1), and rapid revision cycles for seismic engineering stamps.
- Elimination of intermediary markups (18-28% net savings)
- Customized imperial beam spacing (inches/feet) with zero conversion penalty
- Container-matched modular bundling for lowered marine drayage
Seismic Performance & RMI / IBC Verification
Local permitting authorities across the Western United States and seismic regions in Canada strictly enforce RMI (Rack Manufacturers Institute) and IBC 2024 compliance. Procurement criteria have shifted decisively toward finite-element stress analysis (FEA) and dynamic base plate anchor verification.
- Ductile arm-to-column locking pin mechanisms to dissipate lateral shock
- Site-specific soil category (Site Class D/E) calculation reviews
- Pre-engineered anchor spacing avoiding structural rebar clash
Total Lifecycle Anti-Corrosion Demands
Heavy cantilever units for timber yards and oil pipe yards operate outdoors in high-humidity or coastal saline environments. Standard single-coat paints are obsolete; multi-stage conversion coatings with thermoset polyester powders or hot-dip galvanizing are now procurement standards.
- Pretreatment with automated acid pickling and zinc phosphating
- Outdoor polyester powder coat with 1,000+ hour salt spray certification
- ISO 1461 compliant hot-dip galvanizing for harsh marine yard conditions
Engineering White Paper
Structural Evolution & Future Technological Trends
Cantilever racking is undergoing significant structural shifts. Driven by warehouse automation, automated guided vehicles (AGVs), and smart monitoring, modern racking is evolving from static ironwork into an intelligent component of smart logistics.
High-Strength Cold-Formed vs. Hot-Rolled I-Beams
Traditional cantilever relied exclusively on heavy hot-rolled IPE or wide-flange profiles. Advanced FEA computer modeling now enables high-tensile cold-formed roll profiles with stiffening ribs that deliver equivalent arm moment resistance at 15-22% less dead weight, reducing foundation load pressure.
- High-yield Q355B micro-alloyed structural sheet steels
- Profile geometries optimizing torsional stiffness (St. Venant torsion)
- Optimized freight cube efficiency inside 40HQ high-cube ocean containers
AS/RS Stacker Crane & Side-Loader Integration
The standard manual counterbalanced forklift is rapidly being replaced by specialized multidirectional side-loaders and fully automated automated storage and retrieval systems (AS/RS). Modern cantilever designs integrate laser-guided ground rails and tighter column deflection tolerances (< 1/500).
- Guidance rails welded directly to base beams for magnetic wire guide support
- Articulated pivot arms that swing upward on accidental impact, preventing damage
- Narrower aisle width requirements dropping down to 1.8 - 2.2 meters
Embedded IoT Structural Health Monitoring
Next-generation heavy cantilever arrays installed in high-density yards are implementing passive RFID load-sensing pins and wireless biaxial tilt inclinometers. Warehouse managers receive real-time warnings regarding eccentric load overloading, arm sag, or micro-subsidence before physical failure occurs.
- Continuous deflection telemetry against permissible arm load limits
- Impact alerts logged for forklift collisions on lower arm columns
- Integratable with standard Warehouse Management Systems (WMS)
| Racking Architecture | Standard Yield Material | Arm Capacity Range | Handling Mechanism | Best Operating Scenario |
|---|---|---|---|---|
| Heavy-Duty Cantilever | Q235B / Q355B H-Beam | 1,000 – 6,600 lbs / Arm | Side-loader, Combilift, Crane | Structural timber, steel pipes, long extrusions, bar stock |
| Selective Pallet Racking | Cold-Formed Roll Steel | 2,200 – 8,800 lbs / Level | Standard Counterbalance Forklift | High-SKU palletized goods, 100% direct picking access |
| Drive-In Storage System | Cold-Formed Continuous Rail | 2,000 – 3,500 lbs / Position | Reach Truck driving inside bay | High-volume uniform pallets, cold storage, seasonal SKU buffer |

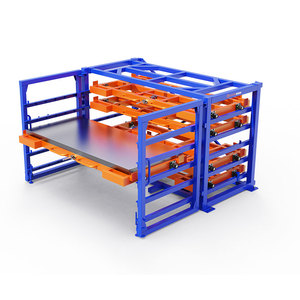

| Sheet Metal Cassette Rack | Reinforced Box Sections | 4,400 – 11,000 lbs / Level | Overhead Hoist & Suction Crane | CNC sheet metal feeding, steel tool & die preservation |
Enterprise Credentials
Why Tier-1 Importers Partner with HEDA Shelves
Operating since 2001 in Guangzhou, China, we combine 323,000 sq ft of automated manufacturing with North American structural engineering standards, bridging factory-direct savings with institutional accountability.
01
25+ Years Industrial Expertise
Over a quarter century of focused manufacturing in warehouse storage systems. Our production database spans 10,000+ completed projects across the Americas, Europe, and Australasia.
02
Full OEM / ODM Customization
From single-sided yard cantilever racks to multi-level rack-supported mezzanines, we customize every column pitch, upright section, and connector bracket to fit specific jobsite blueprints.
03
Precision 10-Stage Manufacturing
Certified steel coil decoiling, CNC punching, precision cold bending, automated robotic welding, multi-stage acid pickling/phosphating, and curing in automated powder-coating lines.
04
ISO 9001 & CE Certified Quality
Full compliance with ISO 9001:2015 (Cert: 18624Q00169R0M) and CE Marking (No. 2435-CPR-8605159). Component certificates and mill test sheets are supplied for every batch.
Procurement Knowledge Base
Frequently Asked Questions on Cantilever & Pallet Racking
Key technical, engineering, and logistics considerations for importing commercial warehouse racking systems into the United States, Canada, and global distribution hubs.
How is arm load capacity determined on cantilever racks?
Arm capacity is calculated assuming a Uniformly Distributed Load (UDL). If point loads or concentrated weights are placed toward the tip of the arm, the bending moment increases significantly, effectively derating allowable capacity by up to 50%. Our engineering team provides detailed moment calculations and stops to ensure stability.
Can HEDA provide engineering calculations in imperial units (lbs/ft) for US permitting?
Yes. All structural shop drawings, beam elevation tables, and anchoring pull-out shear stress calculations can be provided in imperial units (pounds, inches, feet) alongside metric standards, facilitating fast review by local engineers of record (EOR) and municipal building departments.
What is the difference between roll-formed and structural I-beam cantilever racking?
Roll-formed cantilever uses cold-rolled sheet steel shaped into C/Omega profiles, offering an economical choice for light-to-medium loads (up to 1,500 lbs/arm). Structural cantilever uses hot-rolled structural steel I-beams (IPE/UB sections) providing superior impact resistance and load capacity (exceeding 6,600 lbs/arm) for heavy machinery, steel coils, and outdoor lumber.
How are cantilever and pallet racking shipments packed for container export?
Upright columns and long cantilever arms are palletized in steel-strapped bundles with protective corrugated wrapping, timber dunnage spacers, and corner guards to prevent surface abrasions during ocean transit. Small accessories (pins, bolts, footplates, shims) are boxed in labeled heavy wooden crates matching container packing lists.
