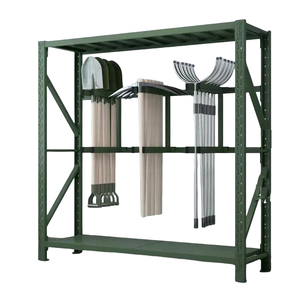

Industrial Storage Shelves Units Adjustable Steel Shelving Warehouse Racking
High-rigidity boltless and adjustable shelving units designed for tier-picking, manual stocking, and high SKU flexibility across medium-to-heavy distribution spaces.
Enterprise Procurement Guidance
Industrial-Grade Material Handling & Storage Architectural Solutions
In modern supply chain architecture, modern distribution hubs and industrial warehousing require uncompromising mechanical stability, volumetric optimization, and compliance with seismic engineering protocols. As an established direct manufacturing enterprise, we engineer fully bespoke OEM pallet storage racking systems tailored to standard 48x40-inch GMA pallet footprints, heavy industrial containers, and custom payloads worldwide.
Factory Direct Systems
Engineered Warehouse Racking Portfolios
Explore heavy-duty structural platforms, dynamic carton systems, and modular roll-formed frames manufactured with high-tensile hot-rolled steel and anti-corrosive powder coatings.

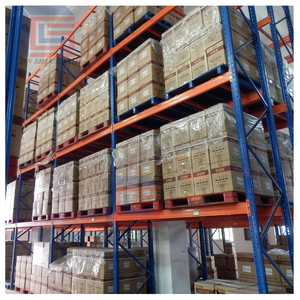

Industrial Heavy Duty Steel Pallet Rack Warehouse Shelving System
Engineered for large distribution centers and heavy plant facilities, supporting heavy floor loading capacities, reinforced box beams, and customized upright spacing.

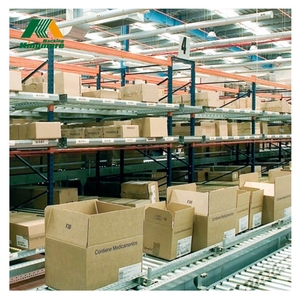

Customized Gravity Carton Flow Pallet Roller Rack System
Gravity-driven inclined roller tracking for rapid fulfillment lines, ensuring reliable FIFO dispatch, lower labor handling hours, and continuous line replenishing.

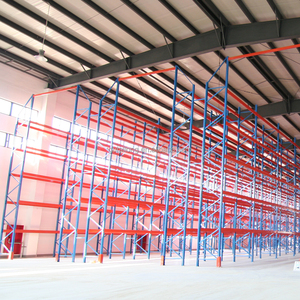

Warehouse Heavy-Duty Metal Beam Adjustable Selective 5-Layer System
CE-certified plug-in structural architecture providing 100% individual access to every pallet bay with multi-layer vertical configurations and quick-locking beam pins.

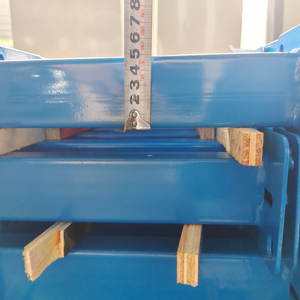

Row Spacer for Selective Pallet Racking Column Corrosion Protection
High-precision back-to-back connection hardware ensuring uniform flue spaces, longitudinal structural stability, and full alignment with NFPA clearance regulations.

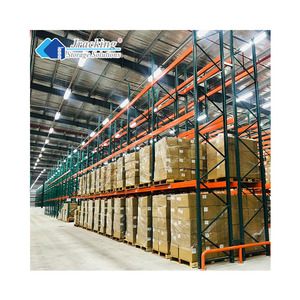

JRACKING Heavy Duty Steel Teardrop Pallet Racking System
North American industry-standard teardrop connection system offering seamless cross-compatibility, boltless assembly, and rigorous dynamic weight support.

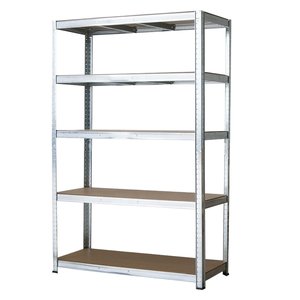

China Factory Steel Boltless Selective Multi-Layer Storage Shelf
Multi-purpose heavy-duty boltless modular framing constructed for factory parts depositories, workshops, distribution sorting, and auxiliary inventory facilities.

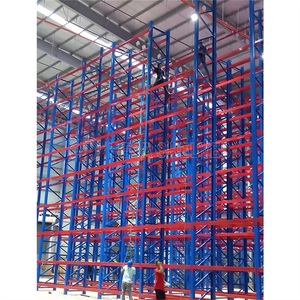

Warehouse Pallet Racking System Heavy Duty Metal Storage Rack
Fully customized upright framing, high-gauge structural bracing, and optimized load-to-weight structural ratios engineered specifically for global export containers.
2001.
Year Established
Over Two Decades of Engineering
30,000t
Monthly Output
Tons of Certified Fabricated Steel
323ksq ft
Plant Footprint
30,000 m² Advanced Production
10,000+
Global Installations
USA, Canada, EU & Trans-Pacific
Manufacturing Authority
Why Global Procurement Leaders Choose Our OEM Facilities
Combining heavy-duty mechanical engineering, automated manufacturing pipelines, and strict quality assurance compliance across worldwide ports.
Direct Factory-to-Wharf Cost Advantage
Eliminate distributor and broker middle margins. Our 30,000 sq meter manufacturing base delivers direct FOB/CIF container shipping, minimizing landing freight expenses with optimized nest-packed structural steel bundles.
Rigorous Engineering & CAD Calculation
Our 300+ engineering and technical force delivers detailed imperial (lbs/inches) and metric load charts, structural stress simulations, deflection calculations, and complete 3D warehouse layout plans within 24 hours.
Audited Certification (ISO 9001, CE, RoHS)
Strict structural adherence to international storage standards. Every production batch undergoes automated cold-roll profiling, automated continuous punching, shot blasting, pre-treatment pickling, and electrostatic powder coating.
Industry White Paper Analysis
Pallet Storage Systems: Evolution & Procurement Trends
Technical evaluation of current market dynamics, autonomous material handling integrations, and sustainability parameters.
1. Semi-Automated Shuttle Systems
Warehouses are moving rapidly away from manual drive-in lanes toward high-density Radio Shuttle racking. Pallet loading via autonomous battery shuttles reduces forklift column collisions by over 70% and minimizes cycle times.
2. Stringent Seismic & Building Codes
Global regulatory bodies demand validated seismic load certification (such as RMI ANSI MH16.1 in North America and EN 15512 in Europe). Procurement now requires high-yield Q235B/Q355B steel grades and verifiable baseplate anchoring calculations.
3. Cold-Chain & Ultra-Dense Storage
Driven by e-commerce grocery and pharmaceuticals, cold-storage square footage carries immense electrical costs. High-density flow and push-back racking optimize thermal efficiency by minimizing unused refrigerated cubic volume.
| Racking Configuration | Access Selectivity | Storage Density | Inventory Rotation | Forklift Clearance Requirement | Primary Industry Fit |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | Standard (Baseline) | FIFO / LIFO Flexible | 10 - 12 ft (Counterbalance / Reach) | 3PL, FMCG, Diverse Retail Warehousing |
| Double Deep Racking | 50% (Two Pallets Deep) | Medium-High (+30%) | LIFO | 9.5 - 11 ft (Specialized Deep Reach) | Cold Stores, Bulk Dry Goods, Dry Distribution |
| Drive-In Racking | Lane End Access | High (+60%) | Strict LIFO | Drive-In Lane Width Optimized | Homogeneous Beverage, Cold Storage, Produce |
| Pallet Flow (Gravity) | Face Picking Only | Very High (+70%) | Strict FIFO | Separate Loading & Picking Aisles | Perishables, Pharmaceuticals, High-Throughput |
| Radio Shuttle System | Autonomous Retrieval | Maximum (+85%) | FIFO / LIFO Configurable | Front-Aisle Standard Reach / VNA | Frozen Food Logistics, Large Production Facilities |
Precision Manufacturing
Comprehensive 10-Stage Quality Control Protocol
From prime raw steel coil sourcing to automated profiling, our end-to-end factory processes ensure structural reliability under extreme industrial load thresholds.
STAGE 01
Certified Raw Steel
Mill-certified carbon steel coils inspected for chemical composition, yield strength, and dimensional tolerances.
STAGE 02
Precision Slitting
CNC slitting lines accurately segment wide master coils into narrow strip widths for custom roll-formed profiles.
STAGE 03
Automated Punching
Continuous mechanical press lines punch high-precision teardrop, diamond, or keyhole connector slots with identical pitch.
STAGE 04
Continuous Cold Bending
Multi-roller cold forming units shape high-rigidity upright posts and box beam geometries without micro-fractures.
STAGE 05
Box Beam Seam Welding
Automated twin-head seam welding machines combine interlocking step profiles into structural closed-box beams.
STAGE 06
Robotic Connector Welding
Multi-axis robotic arms weld heavy-gauge beam end connectors and heavy baseplates with continuous penetration welds.
STAGE 07
Shot Blasting & Pickling
Acid immersion pickling, phosphating, and surface abrasion eliminate mill scale and oils for ultimate powder adhesion.
STAGE 08
Electrostatic Coating
Automated powder application lines cure resilient thermo-hardened epoxy-polyester coatings resistant to abrasion.
STAGE 09
Dimensional Batch QC
Weld ultrasound testing, cross-cut adhesion tests, coating thickness checks, and test loading verification.
STAGE 10
Container Nest-Packing
Heavy steel components bundled on specialized wooden dunnage with protective corner wraps for zero ocean-transit damage.
Procurement FAQ
Frequently Asked Questions on OEM Racking Sourcing
Direct technical answers for supply chain directors, warehouse consultants, and structural project managers.
How do you verify seismic stability and load-bearing calculations for regional building codes? +
Our engineering office employs advanced finite element analysis (FEA) software to calculate axial loading, beam deflection ratios (typically L/180 or L/240), shear stress, and horizontal seismic base shear. We supply full structural packages, steel material mill test certificates (MTC), and certified component geometry drawings to facilitate fast PE (Professional Engineer) stamping in your municipal jurisdiction across North America, Europe, or Australasia.
Can your OEM factory manufacture universal teardrop or specialized roll-formed patterns? +
Yes. We provide complete OEM/ODM manufacturing tooling. We produce standard North American interchangeable teardrop upright designs (with 2-inch vertical adjustments), European 50mm and 75mm pitch diamond systems, hex-hole configurations, and heavy structural C-channel bolt-together architectures for heavy manufacturing and outdoor lumber facilities.
What parameters are necessary to obtain an optimized CAD design and quotation within 24 hours? +
To receive an immediate turn-around layout and quotation, provide: 1) Facility architectural floor plans indicating clear ceiling height, column spans, and fire sprinkler clearance; 2) Pallet specifications (width, depth, overall height including cargo, and maximum gross weight); 3) Handling equipment model, minimum aisle turning radius (AST), and maximum mast lift height; 4) Target inventory velocity (FIFO vs LIFO).
What shipping terms do you handle, and how do you protect against maritime container rust? +
We offer flexible Incoterms including FOB, CIF, CFR, and DDP direct to your warehouse door. Upright frames and beams are pre-treated through multi-stage pickling and phosphating, coated with weather-grade electrostatic powders, nested to maximize 40HQ container volumetric capacity, strapped with protective edge guards, and protected with industrial desiccant bags to prevent moisture damage during trans-oceanic passage.
What is your warranty coverage and post-installation replacement parts availability? +
We back our structural racking lines with a standard 5-to-10-year manufacturer warranty against fabrication defects, weld faults, and spontaneous structural failure under specified rated load configurations. Furthermore, as an OEM manufacturing partner, we maintain exact tooling records and paint color codes, ensuring that replacement beams, column protectors, and frame additions match your ongoing facility expansions.
Transform Your Warehouse Floor Space with Engineered Precision
Partner with Guangzhou Heda Shelves Co., Ltd.—over two decades of engineering excellence, 30,000 monthly tons output, and full OEM customization. Speak directly with our structural engineering team today.
Inquire Now
