Custom OEM Industrial Rack Storage Systems Suppliers & Exporter

Engineered Logistics Infrastructure, Heavy-Duty Pallet Racks, Automated Retrieval Systems & Precision Storage Solutions

Global Manufacturing Directory

Engineered Industrial Racks & Workshop Solutions

Explore our precision-rolled, heavy-duty industrial racking solutions, engineered for dynamic intralogistics, severe payload thresholds, and turnkey industrial facility integration.

Prefabricated Steel Frame Structure Warehouse
Metal Frame Structure Prefabricated Warehouse/ Workshop/ Hangar/ Steel Structure Building
Details → Get a Quote
Automated Sheet Metal Drawer Storage System
Durable Heavy Duty Steel Electric Sheet Metal Rack Drawer Type Automated Retrieval Shelving
Details → Get a Quote
Heavy Duty Boltless Pallet Rack System
Installation Free Heavy Duty Pallet Racking System Boltless Adjustable Industrial Steel Shelving
Details → Get a Quote
Prefabricated Steel Structure Industrial Warehouse
Prefabricated Steel Structure Warehouse Workshop Industrial Building for Heavy Equipment
Details → Get a Quote

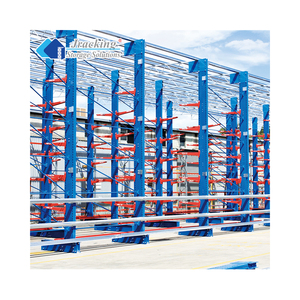

Heavy Duty Industrial Cantilever Storage Racks
Industrial Heavy Duty Cantilever Racks For Pipe, Bar & Timber Material Organization
Details → Get a Quote
Heavy Duty Pallet Racking 2000kg to 3000kg
2000KG - 3000KG Pounds Tons Tier Rated Heavy Duty Industrial Pallet Racking Units
Details → Get a Quote
Roll-out Sheet Metal Storage Rack
Heavy Duty Roll-out Sheet Metal Storage Rack 6-Tier Steel Plate Drawer System Workshop
Details → Get a Quote
Heavy Duty Pallet Storage System Shelf
High Density Storage Rack Pallet Modular Shelf For Industrial Warehousing Logistics
Details → Get a Quote
30,000+

Tons Monthly Steel Capacity

323,000

Sq Ft Manufacturing Plant

10,000+

Projects Deployed Globally

24-Hour

Rapid CAD & 3D Modeling Turnaround

Engineering Authority

Comprehensive Engineering Guide: Custom Industrial Rack Manufacturing

In modern supply chain management and automated intralogistics, industrial storage racking systems are no longer passive steel assemblies. They function as dynamic structural backbones that directly determine warehouse volumetric efficiency, material handling safety, picking throughput, and long-term facility resilience. As a premier original equipment manufacturer (OEM) and global exporter with more than two decades of fabrication heritage, our engineering framework integrates cold-formed precision rolling, structural metallurgy conforming to ASTM/EN specifications, automated robotic welding, and architectural seismic qualification.

"Structural integrity in modern racking relies entirely on the precise co-design of cold-formed beam-to-column connector nodes, optimal profile cold-bending yielding, and rigorous cross-sectional moment distribution under both static load and kinetic forklift interaction."

Warehouse operators across North America, Europe, Latin America, and Australasia face converging operational pressures: accelerating land acquisition costs, skyrocketing real estate lease metrics, and stringent health and safety compliance directives. Accommodating standard 48"x40" GMA pallets, heavy raw coiled steel, long pipe assemblies, or high-density automated shuttle carriers mandates structural modularity. Through sophisticated finite element analysis (FEA) and customized cold-rolling dies, we engineer pallet racks and cantilever systems capable of sustaining between 1,000 kg and over 5,000 kg per beam level, ensuring zero catastrophic yield under peak loading cycles.

Comparative Analysis

Industrial Racking Architecture & Performance Matrices

Evaluating structural configuration, SKU accessibility, footprint utilization, and operational equipment alignment across core storage platforms.

Racking Typology Direct Access % Floor Space Efficiency Typical Payload Rating Primary Handling Mechanism Optimized Industry Use Cases
Selective Pallet Racks 100% Direct 40% - 50% High Floor Footprint 1,000 - 4,000 kg / level Counterbalance, Reach Trucks High-SKU 3PL, Retail Distribution, FMCG Hubs
Drive-In / Drive-Thru LIFO / FIFO Lanes 65% - 75% High Density 1,500 - 2,500 kg / position Standard Forklift into Lanes Cold Storage, Seasonal Stock, Beverage Bulk Lots
Automated Shuttle Systems Deep Lane Selectivity 80% - 88% Maximum Density 1,000 - 2,000 kg / shuttle unit Radio Shuttles + Vertical Lifts High-Throughput Cold Stores, Frozen Logistics, Food
Heavy-Duty Cantilever 100% Unobstructed Linear Open Spans 500 - 3,000 kg / arm Side-Loaders, Combilifts, Overhead Crane Lumber, Steel Extrusions, PVC Piping, Sheet Packs
Roll-Out Sheet Systems 100% Drawer-Level Extreme Vertical Density 2,000 - 5,000 kg / drawer Overhead Hoist, Crane with Vacuum Lifter Laser Cutting Shops, Tool & Die Facilities, Heavy Machining
Global Manufacturing Architecture

Integrated OEM/ODM Enterprise Capabilities

Operating from an advanced 30,000 m² industrial production campus, our manufacturing lines adhere strictly to ISO 9001:2015, CE Marking (EN 1090 / Construction Products), and RoHS standards.

Custom Engineered Profiles & Tooling

Full proprietary control over cold roll-forming dies allows custom column pitch punching (50mm, 75mm, 76.2mm / 3-inch imperial tears), specialized baseplate patterns, and high-tensile box or step beams tailored to exact project constraints.

Advanced Chemical Pretreatment & Powder Coating

Our 10-stage automated surface conversion process includes ultrasonic degreasing, acid pickling, zinc phosphating, and heavy-film electrostatic thermoset powder curing, guaranteeing 1,000+ hours of salt spray corrosion resistance for sub-zero freezer resilience.

Turnkey Export Engineering & Logistics

We provide full structural PE-calculation packages, seismic engineering documentation, container loading plans (utilizing nested bundle optimization for 40HQ containers), and multi-lingual assembly CAD manuals to eliminate site labor delays at international ports.

Market Forecast & Technology Roadmap

Future Procurement & Technology Trends in Industrial Racking

Strategic market analysis for procurement directors planning multi-million dollar fulfillment and material handling investments over the next decade.

Automation-Readiness & Hybrid Storage

Traditional static racking is declining in favor of hybrid structural layouts that accommodate AMR (Autonomous Mobile Robot) tunnels, integrated carton-flow mezzanine levels, and micro-fulfillment vertical lift modules within a unified steel envelope.

Structural High-Strength Steel (HSS) Optimization

Procurement teams are shifting to optimized Q355B and high-yield cold-rolled profiles that decrease overall structural self-weight by 12–18% while retaining full moment capacity, directly lowering ocean freight costs and embodied carbon metrics.

IoT Monitoring & Impact Sensor Integration

Modern mega-hubs increasingly require racking designed to accommodate telemetry: wireless structural deflection sensors, strain gauges at upright bases, and smart collision monitoring arrays that alert maintenance teams to forklift impacts before structural fatigue occurs.

Procurement Due Diligence

Frequently Asked Questions (FAQ) for Industrial Racking Buyers

Direct answers addressing technical parameters, load validation, international shipping, and regulatory compliance.

How do you verify structural capacity and seismic compliance for specific regional building codes?
Our structural engineering department performs comprehensive finite element analysis (FEA) using 3D structural analysis software. Every configuration accounts for dead loads, live product payloads, seismic acceleration coefficients (Ss and S1 values per ASCE 7 / IBC for the United States, or Eurocode 8 for European zones), wind loads on external rack-clad structures, and forklift kinetic impact allowances. We furnish detailed calculation books, signed off to facilitate stamped approvals by your regional Professional Engineer (PE).
What steel grades and corrosion protection coatings are utilized across your product range?
We exclusively procure prime structural carbon steel coils conforming to Q235B (comparable to ASTM A36) and Q355B (comparable to ASTM A572 Grade 50) with complete chemical and physical mill test certificates (MTC). For corrosion protection, we provide both thermoset TGIC-free polyester electrostatic powder coating (standard thickness 60–90 microns) and continuous pre-galvanized or batch hot-dip galvanized finishes (HDG conforming to ISO 1461) specifically developed for outdoor lumber/steel yards and humid cold-storage facilities.
Can you manufacture replacement uprights and beams compatible with existing teardrop or slotted racking systems?
Yes. As a full-tier OEM/ODM supplier, we maintain interchangeable tooling sets capable of rolling American standard teardrop patterns, European 50mm metric hook-in patterns, and Australian 76.2mm pitch slots. By verifying your existing upright profile dimensions, column width, steel gauge, and hook connector spacing, we can produce drop-in replacement components or expansion modules completely compatible with your legacy system.
What information is needed to produce a fast 24-hour CAD layout and formal quotation?
To generate an optimized CAD drawing and cost quotation within 24 hours, our design desk requires: (1) Warehouse architectural drawings detailing clear ceiling height, column grid locations, dock door layouts, and floor slab specifications; (2) Pallet dimensions (Length x Width x Total Height including product overhang) and maximum gross pallet weight; (3) Forklift specifications including mast lift height, turning radius, and minimum required operating aisle width (AST); (4) Desired inventory turnover logic (FIFO vs. LIFO).
How are heavy racking components packaged and protected during transoceanic container shipping?
Export packing is engineered to prevent transit chafing, humidity oxidation, and racking deformation. Upright frames are nested, banded with high-tensile steel strapping over corrugated edge protectors, and supported by heavy-duty wood runners to facilitate forklift unloading. Beams are bundled with timber dunnage separators to prevent surface friction damage. Small hardware items, footplates, row spacers, and safety lock pins are sealed in reinforced polybags and packaged within standard wooden shipping crates.

Transform Your Warehouse Volumetric Efficiency Today

Consult directly with our senior structural intralogistics engineers to configure a custom-manufactured, cost-engineered industrial racking system built precisely to your site's operational demands.

Get a Quote
