Heavy Duty Selective Pallet Racking System for Medical Supply Storage
Engineered for 100% SKU selectivity in sanitary, pharmaceutical, and GMP-certified medical warehousing environments. Features anti-deflection step beams.
Engineered Product Portfolio
Featured Heavy-Duty & Structural Storage Systems
Precision-rolled C-channel structural profiles, boltless heavy mezzanines, and high-density dynamic racking certified to ISO 9001:2015 and CE standards.
Selective Tier
500kg/m² Rated

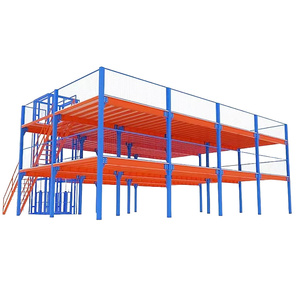

Custom Heavy-Duty Boltless Powder Coated Mezzanine Attic/Loft Shelf System
Multi-tier structural floor platforms multiplying vertical clearance without building expansion. Certified 500-1000 kg/sqm uniform distributed load capacity.
Modular Stacking

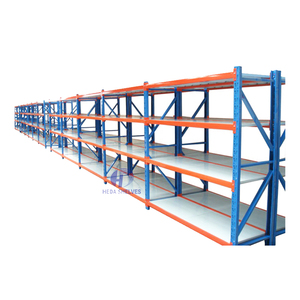

Adjustable Garage & Warehouse Steel Storage Stacking Shelving Shelves
Rapid-assembly modular steel shelving designed for dense piece-picking, tool cribs, and maintenance parts buffering. Impact-resistant powder coating.
Ultra Fatigue-Proof

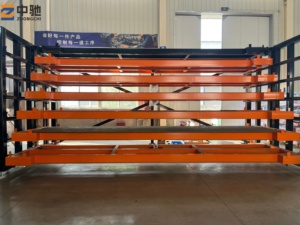

Anti-Deformation Steel Storage Rack Heavy Duty Industrial System
Manufactured using reinforced high-yield Q345B steel members to resist structural fatigue, high cyclic loading, and continuous heavy container staging.
Corrosion Shield
5-Layer Adjustable Galvanized Steel Stackable Rack (900x600x2500mm)
Pre-galvanized zinc-treated uprights offering exceptional anti-rust protection for high-humidity fulfillment centers, cold rooms, and chemical zones.
Ancillary Spec
Modern Carbon Steel Multi-Functional Auxiliary Storage Fixture Rack
Heavy carbon steel auxiliary support systems designed for logistics breakrooms, administrative storage, hospitality, and hotel back-office sorting areas.
High Density LIFO

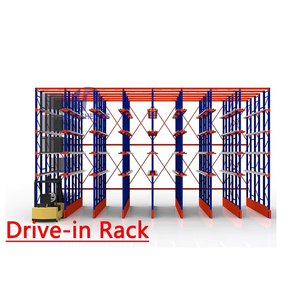

High-Capacity Drive-In / Drive-Through Continuous Pallet Racking System
Maximizes cubic space utilization up to 85% by eliminating operational forklift aisles. Built with heavy-duty structural guide rails and reinforced cantilevers.
Dynamic Gravity Cart

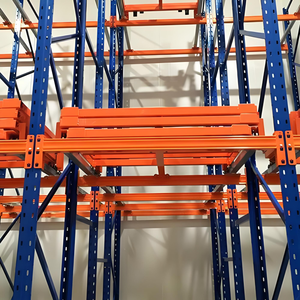

Industrial CE/ISO Certified Push Back Pallet Racking (1000-2000kg/pallet)
Telescopic nested cart design along inclined structural channels. Combines selective picking accessibility with deep-lane density without forklift mast incursion.
2001
Established Year (25+ Yrs)
30,000 m²
Heavy Plant Campus
30,000 T
Monthly Steel Processing
10,000+
Global Industrial Projects
Engineering Whitepaper Analysis
Structural Racking vs. Roll-Formed Racking: Total Cost of Ownership (TCO) & Structural Safety
In modern industrial logistics, selecting between hot-rolled structural steel racking and light-gauge roll-formed racking is a critical engineering decision that dictates terminal asset lifecycle, floor slab dynamic loading, and catastrophic failure vulnerability. Structural pallet racking is fabricated from rigid, hot-rolled structural C-channels (ASTM A36 or Chinese GB/T Q235B/Q345B equivalents) featuring heavy solid steel flanges and web thicknesses ranging from 3.0mm to over 6.0mm. Unlike cold-formed sheet steel which derives its structural rigidity purely from roll-pressed corrugation and multiple bend radii, hot-rolled structural steel exhibits exceptional cross-sectional moment of inertia and isotropic yield resistance.
In high-throughput distribution environments—such as fast-moving consumer goods (FMCG), third-party logistics (3PL) hubs, and cold-chain freezers—forklift mast impact is the single greatest cause of progressive upright collapse. Roll-formed uprights, typically stamped with open teardrop or slotted perforations along the front face, experience micro-buckling and sectional deformation upon repeated low-velocity impacts (5–10 kN). Once the outer flange is creased, the column loses up to 60% of its axial load-bearing capacity. In contrast, structural C-channel columns provide massive torsional rigidity and sheer physical mass. When impacted, structural steel absorbs kinetic energy without localized sectional collapse, allowing facilities to maintain operational safety without emergency unloading.
| Engineering Metric | Hot-Rolled Structural Racking (HEDA Spec) | Conventional Roll-Formed Racking | Impact on Warehouse Operations |
|---|---|---|---|
| Steel Substrate | Hot-Rolled Structural C-Channels (Q235B / Q345B) | Cold-Rolled Sheet Steel Strips (Q235 / ASTM A1011) | Structural profiles deliver superior ductility and fracture toughness at sub-zero temperatures. |
| Upright Thickness | 3.2mm – 6.0mm solid flange/web thickness | 1.5mm – 2.5mm cold-bent profile sheet | Structural columns resist heavy pallet guide impact without tearing open punch slots. |
| Beam-to-Column Connection | Heavy structural angle clips bolted with high-tensile Grade 8.8 bolts | Riveted connector pins slipped into punched teardrop/keyhole slots | Bolted connections eliminate beam dislodgement risks caused by upward forklift tines. |
| Sub-Zero Freezer Resilience | Charpy V-notch impact toughness certified down to -30°C | High risk of cold work-hardening and brittle cracking | Mandatory for continuous refrigerated food and frozen pharmaceutical distribution. |
| 20-Year TCO Index | Lowest (Near Zero Component Replacement) | High (Ongoing repairs, post-protectors, upright replacements) | Initial capital expenditure is balanced within 3.5 years via eliminated maintenance downtime. |
Furthermore, Guangzhou Heda Shelves Co., Ltd. incorporates structural engineering protocols compliant with ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), European EN 15512, and AS 4084 standards. For projects deployed in seismically active regions (Seismic Design Categories D, E, and F under the International Building Code / IBC), our structural frames are designed with oversized structural baseplates, welded moment-resistant stiffeners, and dual heavy anchor bolts per footplate to resist base shear and overturning moments without concrete slab micro-fracturing.
Market Intelligence
Future B2B Procurement Trends in Global Racking Systems
How supply chain executives, warehouse developers, and system integrators are optimizing structural racking capital allocations for the next decade.
AS/RS & Shuttle Fleet Synergies
Procurement is pivoting away from purely manual forklift aisles toward ultra-narrow aisle (UNA) and Automated Storage and Retrieval Systems (AS/RS). Structural racking serves as the dynamic skeletal backbone for high-speed automated shuttle cars and stacker cranes. Tight manufacturing tolerances (±1.0mm deflection limits along the entire vertical clear height) are now mandatory procurement prerequisites to prevent automated shuttle optical-sensor trip errors.
Direct Factory Engineering Partnership
North American and European enterprise buyers are increasingly bypassing intermediary domestic brokers to engage directly with established Chinese tier-one manufacturers like HEDA Shelves. Direct factory engagement enables customized steel gauge allocation, custom beam punch spacing, rapid 24-hour CAD/3D drafting turnaround, and transparent steel mill metallurgy certifications (MTR) at competitive ex-factory price points.
Seismic & Environmental Resilience
With stringently enforced building codes across western coastal zones, procurement contracts explicitly demand third-party verified seismic calculation packages. Heavy hot-rolled structural steel racking satisfies these high ground-acceleration criteria natively. Its superior ductility ratio provides predictable plastic hinge formation under extreme seismic events, protecting multi-million dollar inventories and life safety.
Architectural & Technology Advancements
Evolutionary Trends: Structural Silos, Cold Spray Galvanizing & Modular Mezzanines
Technological transformations driving structural stability, anti-corrosion chemistry, and vertical cubic space optimization.
Rack-Supported Building Silos
The boundary between civil building architecture and internal racking is dissolving. Rack-supported buildings (silos) utilize the structural upright columns directly as the primary load-bearing members that hold the warehouse exterior wall cladding and roof trusses. This eliminates conventional structural steel framing columns, saving up to 25% of total facility capital cost while unlocking storage heights exceeding 40 meters.
Multi-Stage Anti-Corrosion Finishing
Traditional wet painting has become obsolete in heavy industrial specification. Modern structural racking relies on a 10-stage automated pre-treatment line featuring acid pickling, zinc phosphating, and nano-ceramic passivation, followed by thermosetting electrostatic polyester-epoxy hybrid powder coating. For open-yard or deep-freeze humidity, full hot-dip galvanization (HDG compliant with ISO 1461) ensures zero rust progression over a 30-year lifecycle.
High-Payload Modular Mezzanine Lofts
Faced with rising commercial industrial land lease rates, operators are integrating multi-tier heavy structural mezzanines directly over bulk storage. HEDA’s heavy structural mezzanine designs utilize laser-cut connection plates, continuous cold-formed galvanized decking, and bolted I-beam joists to achieve clear spans up to 9 meters without intermediate support posts, streamlining lower-tier ground forklift traffic.
Factory Direct Authority
Guangzhou HEDA Shelves: Advanced Manufacturing Competence
Since our founding in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as one of southern China's preeminent structural and industrial storage equipment manufacturers. Operating across a modern 30,000 square meter production facility equipped with high-precision continuous cold roll-forming lines, automated CNC stamping clusters, and multi-axis Panasonic robotic GMAW welding cells, our factory converts 30,000 metric tons of prime steel coil into certified racking assemblies every single month.
Our multidisciplinary engineering department uses advanced CAD, finite element analysis (FEA), and 3D Tekla modeling to verify beam load-deflection profiles (strictly adhering to L/240 or L/180 deflection limits) and column stability factors before steel processing commences. Every order shipped to North America, Europe, Australia, and Southeast Asia includes full component traceability, raw material mill certificates, and imperial/metric shop drawings designed to simplify domestic permit applications.
- Certified Quality Systems: Fully audited ISO 9001:2015 Quality Management System and CE Marking (Certificate 2435-CPR-8605159).
- 24-Hour Engineering Turnaround: Full warehouse CAD layouts, 3D spatial elevations, and structural BOM quotes generated within 24 hours.
- Container-Optimized Logistics: Specialized nesting bundles, steel band protection, and anti-scuff moisture wraps maximize 40HQ container volumetric capacity.
- Global Standard Compatibility: Sized for GMA 48x40 pallets, European EUR/EPAL 1200x800 pallets, and custom industrial metal containers.
1. In-Line Steel Tensile Testing
Every steel batch undergoes Charpy V-notch, yield point (min 235-345 MPa), and elongation testing to guarantee anti-rupture performance under load.
2. Robotic Welding Accuracy
Multi-axis robotic arms ensure complete weld penetration across beam connectors, footplates, and bracing plates with zero spatter or inclusions.
3. 10-Stage Surface Finishing
Continuous degreasing, pickling, iron phosphating, and electrostatic powder curing produce a 60–90 micron dry film thickness (DFT) resistant to chemical attack.
4. Deflection Pre-Assembly Checks
Full-scale load testing on random beam samples validates real deflection metrics against computer simulations under 1.5x structural safety factors.
Procurement Knowledge Base
Frequently Asked Questions on Structural Racking Sourcing
Direct technical answers to common queries faced by warehouse operators, procurement managers, and mechanical installation teams.
What is the primary difference between hot-rolled structural racking and roll-formed racking?
Hot-rolled structural racking is fabricated from thick, hot-rolled structural channel steel (ASTM A36 or Q235B/Q345B) with solid webs and flanges often exceeding 3.0mm to 5.0mm. It connects with high-strength structural bolts. Roll-formed racking is made from lighter-gauge flat steel strips folded into shape through a sequence of rollers, utilizing teardrop or slotted punch holes and pin-lock connectors. Structural racking provides far higher impact resistance against heavy forklifts, superior durability in freezer environments, and prolonged lifespans with lower total cost of ownership.
Can HEDA Shelves supply seismic engineering calculations and drawings for building permit approval?
Yes. Our engineering department prepares comprehensive structural calculation packages, anchor bolt pull-out calculations, component specification sheets, and detailed shop drawings formatted in both imperial (feet, inches, lbs) and metric units. These documents are generated in compliance with International Building Code (IBC) and RMI ANSI MH16.1 provisions, allowing your local licensed Professional Engineer (PE) or structural Engineer of Record (EOR) to review, seal, and stamp them for municipal permitting.
How do you prevent beam deflection from damaging products or triggering automated AS/RS errors?
All HEDA load-bearing pallet beams are engineered to strictly adhere to ANSI MH16.1 and EN 15512 deflection thresholds. Under maximum rated working pallet loads, maximum vertical deflection cannot exceed L/180 for standard manual operations, and L/240 or tighter for specialized automated shuttle/AS/RS applications (where L is the unsupported beam span). Furthermore, step-beam geometries and structural boxed sections prevent torsional rotation, ensuring pallets sit completely flat across wire mesh decking or pallet support crossbars.
What finish is recommended for sub-zero cold storage facilities and blast freezers?
For blast freezers and sub-zero refrigerated warehouses (-20°C to -30°C), we recommend either our specialized cold-resistant thermosetting epoxy-polyester powder coating (preceded by shot-blasting and zinc-phosphate pretreatment) or hot-dip galvanization (HDG) per ISO 1461 / ASTM A123. Galvanizing provides metallurgical bonding that will not chip, peel, or rust under frequent temperature cycling and condensation cycles during defrost intervals.
Are your beam lengths and frame depths compatible with standard North American 48x40 GMA pallets?
Yes. Standard North American layouts are configured for 48-inch deep by 40-inch wide Grocery Manufacturers Association (GMA) pallets. Standard beam lengths are fabricated at 96 inches (for 2 pallets per level) or 144 inches (for 3 pallets per level), with standard frame depths of 42 or 44 inches to provide the mandatory 3-inch overhang on the front and rear beam faces. We also engineer custom frame and beam spans for plastic skids, chemical totes (IBCs), drums, and automotive stillages.
How are structural components packed to avoid transit damage during long-distance ocean shipping?
Racking components are nested, bundled, and strapped with heavy-gauge steel banding over protective corrugated edge-guards. Uprights and beams rest on custom steel dunnage blocks that facilitate fast forklift unloading at your destination warehouse or container freight station. Small hardware items (bolts, baseplates, shims, safety pins) are sealed in weather-proof wooden crates or reinforced drums, and the entire container pack is dry-bag treated to prevent oceanic condensation corrosion.
