High-Capacity Industrial Racking & Modular Shelving Systems
Engineered to ANSI MH16.1, FEM 10.2.02, and AS 4084 standards. Fabricated from premium Q235B and Q355B cold-rolled structural steel with multi-stage anti-corrosion electrostatic epoxy finishing.

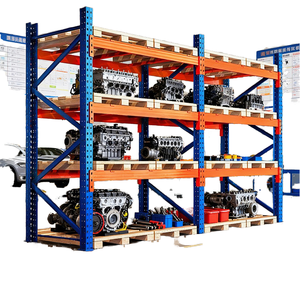

Industrial Stacking Racks Shelving System Heavy Duty Industrial Pallet Racking Storage for Warehouse
- Capacity: Up to 5,000 kg / layer
- Finish: Electrostatic Powder Coated
- Configuration: Selective / Double Deep
Steel Boltless Heavy Duty Rack System with Corrosion Protection for Warehouse Storage
- Assembly: 100% Interlocking Boltless
- Protection: Phosphatized Anti-Rust Coat
- Application: Heavy Industrial Maintenance
Adjustable Layer Light Duty Warehouse Storage Steel Rack Boltless Metal Shelving Unit for Garage Factory Workshop
- Pitch: 50mm Adjustable Beam Levels
- Load: 150 - 350 kg / uniform level
- Decking: Steel Inset / MDF Panel
TZR Custom Industrial-Grade Stainless Steel/Aluminum/Zinc Metal Frame Components Construction Shelving Equipment Sheet Metal
- Material: 304/316 SS, Zinc, Alu Alloys
- Engineering: CNC Laser & Brake Bending
- Specialty: Cleanroom & Corrosive Sites
Jracking Heavy Duty Steel Warehouse Storage Rack System Customized AU Standard Pallet Racking For Factory Workshops
- Compliance: AS 4084:2023 / CE Standard
- Connection: 4-5 Claw Heavy Connectors
- Safety Factor: Structural Class 1.5 - 1.8

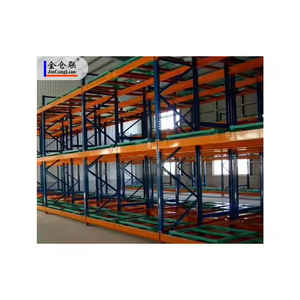

90 Inches Tall Heavy Duty Steel Garage Shelves 5-Layer Corrosion Protection Powder Coated Storage Solution
- Height: 90" Industrial High-Span Profile
- Structural: Double-Rib Strengthened Uprights
- Surface: Scratch-Resistant Hammertone
Pallet Flow Racking Gravity Roller Flow Through Rack FIFO High Density Warehouse Pallet Storage System Metal Steel Anti-Rust
- Rotation: First-In First-Out (FIFO) Enforced
- Mechanics: Speed Governors & End Separators
- Density: 60% Space Optimization vs Standard
Light Duty Storage Rack Wide Span Storage Racks with Factory Price Wholesale Shelves
- Loading: 200 - 800 kg / wide bay level
- Spans: Extended beam widths to 2700mm
- Distribution: Carton picking & eCommerce
Strategic Selection of Heavy-Duty Racking & Industrial Shelving in China
Industrial warehousing in the modern global supply chain requires storage systems that exceed bare minimum structural metrics. Facilities now confront heavier pallet payloads, denser SKU configurations, robotic material-handling vehicles (AGVs/AMRs), and stringent seismic resilience demands governed by regulatory bodies across North America, Australasia, and the European Union.
As the world's epicenter of primary steel production and precision roll-forming technology, China offers foreign logistics enterprises, EPC contractors, and distributors unmatched metallurgical economies of scale. However, choosing the best industrial racking supplier demands a rigorous technical audit of steel grades (such as Q235B vs. Q355B structural yield strengths), beam-to-column connector torsional resistance, automated punching tolerances, and computerized finite element analysis (FEA).
Engineering Axiom: The total operational cost of a racking system is rarely determined by its purchase price. Deflection control within L/200, seismic anchor ductility, and high-durability electrostatic surface treatments represent the true baseline for long-term warehouse safety and risk mitigation.
1. Material Science and Roll-Forming Tolerances
The structural backbone of any high-bay racking or cantilever structure lies in cold-formed thin-walled steel profiles. High-tier Chinese manufacturers utilize automated, multi-station roll-forming lines capable of handling continuous cold coils without inducing micro-fractures along bend radiuses. Columns are punched on precision continuous CNC lines to ensure exact pitch uniformity (typically 50mm, 75mm, or 76.2mm / 3-inch imperial increments) across profiles reaching up to 15 meters in continuous single-piece heights.
Yield strength compliance is non-negotiable. Standard upright columns require high-tensile hot-rolled carbon steel coils conforming to GB/T 700 Q235B (comparable to ASTM A36) or Q355B (comparable to ASTM A572 Grade 50) for extreme load bays, structural mezzanines, and seismic zones (IBC Seismic Design Categories C through E).
Seismic Engineering
Dynamic modal response analysis ensuring upright frame stability and anchor shear resistance under extreme seismic ground acceleration.
Box-Beam Welding
Continuous twin-C seam automated robotic welding creates closed-profile box beams with exceptional torsional rigidity and minimal dead-load deflection.
Total Cost of Ownership
Direct export logistics and pre-optimized 40ft High Cube container packing reduce landed freight cost per pallet position by up to 32%.
2. Surface Pretreatment and Chemical Environmental Resistance
Premature corrosion represents the primary hazard in high-throughput distribution hubs, cold storage blast freezers, and chemical transit warehouses. Top Chinese suppliers like HEDA Shelves employ a multi-stage automated pretreatment regime prior to powder application:
- High-Pressure Degreasing: Removes all residual mill oils and rolling lubricants.
- Acid Pickling & Water Rinsing: Neutralizes surface scales and atmospheric oxidation.
- Silane/Zinc Phosphating: Chemically bonds a micro-crystalline conversion layer that enhances adhesion and blocks sub-film moisture creeping.
- Electrostatic Powder Polymerization: Thermosetting epoxy-polyester coatings cured at 180°C - 200°C, providing an average coating thickness of 60 - 90 microns and passing 500+ hours of continuous neutral salt-spray testing (ASTM B117).
| Storage Topology | Pallet Accessibility | Density Efficiency | Standard Capacity Range | Ideal Industry Deployment |
|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Access | Baseline (40-50%) | 1,000 - 4,500 kg / level | 3PL Distribution, Fast-Moving FMCG, Retail Hubs |
| High-Density Drive-In | LIFO / Deep-Lane Access | High (70-80%) | 800 - 1,800 kg / pallet | Cold Chain, Seasonal Warehousing, Beverage Bottling |
| Gravity Pallet Flow | Strict FIFO Flow-Through | Ultra-High (85%) | 500 - 1,500 kg / pallet | Pharmaceuticals, Perishable Foods, Dairy Cold Store |
| Heavy-Duty Cantilever | Continuous Open Front | Optimized for Length | 500 - 2,500 kg / arm | Timber, Extrusions, Piping, Sheet Metal Packs |
| Rack-Supported Mezzanine | Multi-Level Walkable Floor | Volumetric Double/Triple | 300 - 1,000 kg / m² | eCommerce Picking, Automotive Spares, Hardware DCs |
Guangzhou HEDA Shelves: Enterprise Authority & Engineering Edge
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into an international powerhouse in warehouse storage systems engineering. Our facility spans over 30,000 square meters (approx. 323,000 sq ft) of advanced industrial floor space, backed by an engineering cohort of over 300 technical, production, and quality-assurance personnel.
With an active monthly output exceeding 30,000 metric tons of finished racking steel, HEDA operates as a direct OEM/ODM supplier to global rack dealers, system integrators, and Fortune 500 logistics hubs across North America, Europe, Australia, and the Middle East.
Why Global Supply Chain Leaders Choose HEDA:
- • No Intermediary Margins: 100% factory-direct fabrication pricing directly from our Guangzhou manufacturing campus.
- • Seamless Installation Support: Precision-punched beam hooks and numbered package marking allow fast onsite assembly with local crews.
- • Cold-Chain Anti-Brittle Coatings: Specialized low-temperature powder compositions tested down to -30°C without micro-cracking.
- • End-to-End Export Documentation: Certified Bill of Lading, Certificate of Origin, Form E, mill test reports, and customs compliance docs.
Future Procurement Trends in Industrial Storage (2025–2030)
The convergence of omnichannel supply chains, rising industrial land costs, and automated intralogistics is transforming commercial storage design. Warehouse planners should evaluate four dominant procurement shifts:
AS/RS & Radio Shuttle Compatibility
Traditional static racking is yielding to automated shuttle lanes and crane-fed AS/RS high-bays. Procuring racking with tighter deflection tolerances (up to L/400) and laser-calibrated guide rails is becoming mandatory for compatibility with 4-way robotic shuttles and autonomous pallet carriers.
Performance-Based Dynamic Engineering
International building codes are enforcing stringent seismic base anchorage and ductile beam connector tests. Global buyers require suppliers to provide non-linear finite element modeling and physical cycle-fatigue verification to meet updated IBC, Eurocode 3, and AS 4084 requirements.
Decarbonized Powder Coating
Environmental regulations and ESG procurement frameworks are accelerating the shift toward low-temperature curing powders, closed-loop water recovery systems in chemical phosphating plants, and zero-VOC electrostatic application lines with certified recycled steel content verification.
Rack-Supported Mezzanine Platforms
With real estate lease costs reaching record highs worldwide, logistics operators are prioritizing multi-tier rack-supported buildings. By utilizing vertical clear heights up to 12 meters, facilities can double or triple pick-face floor areas without incurring building expansion permits.
Frequently Asked Questions on Importing Racking from China
Direct technical answers addressing engineering verification, containerized logistics, customs classification, and structural code compliance.
How do you guarantee compatibility with standard North American 48"x40" GMA pallets?
Our standard beam levels, clear bay depths, and upright spacing are engineered specifically for 48"x40" GMA wooden or plastic pallets. Standard configurations employ 42" or 48" deep upright frames with 96", 108", or 144" beam lengths, ensuring proper 3" overhang at front and rear alongside required sprinkler flue space clearances.
Can HEDA Shelves provide structural calculations stamped for local city building permits?
Yes. We supply comprehensive structural calculation books, including finite element analysis (FEA), load distribution diagrams, dead/live/seismic load calculations, and steel chemical/mechanical mill certs. These documents are prepared in imperial units (lbs, ft, psi) to streamline review and stamping by your local licensed Professional Engineer (PE / SE).
How are long upright columns and beams protected from shipping damage inside ocean containers?
Upright frames and beams are nested on custom heavy-duty steel runners, bound with PET tension strapping, and corner-wrapped with corrugated protectors and multi-layer stretch film. Accessories, baseplates, and hardware are crated in seaworthy wooden cases. This prevents metal-on-metal friction and ensures efficient unloading via forklift slip-sheet methods.
What is the typical production lead time for a 500-bay pallet racking project?
Standard fabrication lead time is 15 to 20 days upon sign-off of CAD production drawings. Because our 323,000 sq ft factory maintains a rolling raw coil stock of over 5,000 metric tons of prime steel, we can run multiple automated roll-forming and powder-coating lines concurrently to meet critical project handovers.
What HS codes and customs duty parameters apply to industrial steel racking imports?
Industrial steel racking and shelving systems typically export under HS Code 7308.90.00 (Structures and parts of structures of iron or steel). We provide complete export documentation, including detailed commercial invoices, packing lists with net/gross weights per bundle, and certificates of origin for customs clearance.
Can your engineers retrofit or match existing racking systems (e.g., Teardrop or Dexion style)?
Yes. We manufacture multiple international punch patterns, including American Teardrop (fully interchangeable with classic US teardrop beams and uprights), Australian standard 76.2mm pitch, 50mm European metric pitch, and square-hole boltless shelving patterns. Custom punch dies can be developed for OEM partner programs.
Optimize Your Warehouse Footprint with Factory-Direct Engineering
Send your warehouse dimensions, clear heights, pallet loads, and forklift specifications. Our certified intralogistics engineers will return a complete CAD layout plan, structural load calculations, and a transparent FOB/CIF landed cost quotation within 24 hours.
