Explore our industrial-grade storage structures, precision CNC processing technologies, and automated warehouse profiles built to ASTM, RMI, and FEM structural design compliance.
Intelligent AI control high-precision fiber laser tooling optimized for high-bay upright hole-punching, slotting, and cabinet profile manufacturing.
Modular heavy-duty portable stackable cradle system engineered for high-density automotive tire warehousing and bulk transport efficiency.
Inclined roller-bed gravity flow structures delivering automated First-In-First-Out (FIFO) retrieval for rapid grocery and cold room distribution.
High-bay selective structural storage framing compatible with reach trucks and VNA machines, offering individual beam level loads exceeding 4,000 kg.
Multi-tier pick module shelving systems featuring pickling, phosphating, and cathodic electro-coating for harsh, humid storage microclimates.

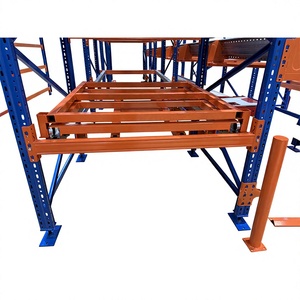

2-to-6 deep nested push-back rolling cart configurations accelerating storage density while preserving separate SKU lines at every face.
Quick-assembly snap-in shelving design providing high rigidity, modular expansion, and optimal hand-load capacities for spare-parts hubs.
Unobstructed frontal design engineered with tapered arms to safely support extruded bars, long lumber packs, and steel coils without column interference.
Procuring industrial racking from an overseas factory requires exhaustive structural verification. At HEDA Shelves, our manufacturing is rooted in certified structural metallurgy and seismic elasticity standards.
| System Architecture | Typical Vertical Clear | Unit Pallet Capacity | Handling Machinery | Floor Utilization Index |
|---|---|---|---|---|
| Very Narrow Aisle (VNA) High Rack | Up to 16.5 Meters (54 ft) | 1,000 – 1,800 kg / pallet | Man-Up / Man-Down VNA Turret Truck | Up to 90% Cubic Volume |
| Drive-In / Drive-Through Systems | Up to 11.0 Meters (36 ft) | 800 – 1,500 kg / pallet | Counterbalanced / Reach Forklift | 75% Floor Footprint Gain |
| Automated Radio Shuttle Racking | Up to 24.0 Meters (78 ft) | 500 – 2,000 kg / pallet | Autonomous Electric Shuttle + Lift | 92% Maximum Volumetric Ratio |
| Gravity Pallet Flow (FIFO Lanes) | Up to 12.0 Meters (39 ft) | 1,000 – 1,500 kg / pallet | Standard Counterbalance at Endpoints | 85% Floor Footprint Gain |
| Structural Rack-Supported Mezzanines | Multi-Tier (2 to 5 Levels) | 300 – 1,000 kg / m² Floor Load | Conveyors, Vertical Lifts, Order Pickers | 200% - 400% Usable Footprint Multiplication |
Direct-from-source manufacturing eliminates intermediary markups and guarantees stringent quality control, end-to-end trace testing, and full structural documentation.
We source prime hot-rolled and cold-rolled continuous steel coils (Q235B and Q355B structural grades). Every melt batch undergoes tensile strain and yield threshold validation before slitting.
Our 323,000 sq ft production campus operates high-precision rolling profiles that execute automated online punch patterns with sub-millimeter connector slot pitch tolerances.
Components undergo an advanced 10-step finishing protocol: chemical acid pickling, zinc phosphating, deionized washing, and electrostatic powder coating baked at 200°C for zero peel.
We supply complete engineering dossiers: 3D AutoCAD layouts, structural deflection calculations, and baseplate point-load data configured in imperial (lbs/ft) and metric units ready for review.
High rack storage procurement has shifted from static steel purchasing to agile logistics infrastructure design. Discover the three critical technological shifts defining global warehouse development.
Warehouses are replacing standard forklifts with Autonomous Mobile Robots (AMRs) and automated cranes. Modern high racks must feature strict beam deflection thresholds (less than 1/200th of span) and millimetric straightness to prevent laser scanner guidance errors and shuttle stall risks.
Cold chain facilities run on tight thermal margins. Racking procurement now prioritizes ultra-dense radio shuttle channels that eliminate chilled air pockets and minimize refrigeration footprint, paired with environmentally benign VOC-free electrostatic coatings built to withstand sub-zero embrittlement (-30°C).
Industrial building codes in North America and seismically active zones globally mandate higher structural redundancy. Racking designs now integrate enlarged wrap-around floor anchors, ductile welded footplates, and calculated shear cross-bracing to absorb lateral ground acceleration shocks.
Our standardized process eliminates coordination friction, ensuring structural precision from the initial floor survey to ocean container loading.
Submission of facility dimensions, clear heights, floor slab PSI, and pallet parameters (W x D x H, gross weight).
24-hour turnaround of architectural plans, aisle turning radii analyses, and 3D space optimization layouts.
Automated slitting, CNC punching, profile roll-forming, robotic welding, and uniform electrostatic powder line coating.
Dimensional inspections, powder mil-thickness testing, weld ultrasonic checks, and seaworthy bundle packing.
FOB/CIF container shipping to major ports, detailed 3D installation blueprints, and remote video site supervision.
Critical engineering, regulatory, and logistics queries answered for supply chain directors, warehouse engineers, and equipment distributors.
Every racking system engineered by HEDA Shelves undergoes rigorous finite element structural modeling (FEM) adhering to RMI (Rack Manufacturers Institute) standards and European EN 15512 benchmarks. We supply structural stress test sheets, beam deflection metrics (limited to L/200), and steel raw material mill certificates verifying minimum yield tensile limits.
Yes. Our upright frame depths, beam step profiles, and crossbar spacing configurations are precisely tailored for standard 48" x 40" GMA pallet footprints, heavy plastic skid runners, and European 800 x 1200 mm units. We also configure custom steel wire decking and back-stop safety nets to accommodate non-standard skid variations.
We supply comprehensive design packages including elevation CAD views, floor load layout distribution sheets, component gauge cross-sections, and point-load reaction values at every footplate. These engineering calculations are formatted for review by your licensed local Professional Engineer (PE) to expedite commercial building permitting.
All upright columns and load beams are bundled using dedicated timber skids, steel strapping, and multi-layer vapor barrier plastic wrapping. Critical connector brackets and small hardware components are crated in treated sea-freight wooden boxes with desiccant packs to prevent moisture condensation throughout 30-to-45 day sea shipping routes.
Standard fabrication turnaround for mid-to-large high rack projects (spanning 5 to 30 shipping containers) is typically completed within 15 to 25 business days from drawing approval. Thanks to our 30,000-ton monthly capacity, our Guangzhou manufacturing lines maintain consistent delivery cycles even through global steel supply spikes.
Yes. We operate extensive OEM and ODM supply agreements for racking integrators, automated logistics providers, and storage distributors worldwide. We customize upright punch pitch configurations, laser cut custom brand logos into frame caps, and match custom RAL powder coat colors to match existing product lines.
Send us your warehouse CAD floor plan, target SKU count, and pallet parameters. Our senior structural engineers will return an optimized layout with detailed beam load calculations within 24 hours.
