High-Efficiency FIFO & Dynamic Warehouse Storage Systems
Explore factory-direct industrial racking systems and engineered accessories manufactured to ISO 9001:2015 and CE standards for heavy-duty distribution centers worldwide.
PP Corrugated Plastic Stackable Warehouse Picking Bins Front Opening
Chemical-resistant polypropylene picking bins designed for carton flow and high-density split-case picking operations.
Row Spacer For Pallet Rack Parts Accessories of Warehouse Racking System
Heavy structural steel spacers ensuring longitudinal row stability, sprinkler flue clearance, and RMI code compliance.
Heavy Duty Forklift 5 Layer Drive-In Steel Plate Pallet Racking System
High-density multi-lane drive-in structure optimized for bulk storage of uniform SKUs and heavy sheet metal goods.
Automated Storage System Semi-Automatic Pallet Shuttle Rack FIFO System
Independent radio shuttle carrier traveling within deep storage lanes for maximum density and automated FIFO throughput.

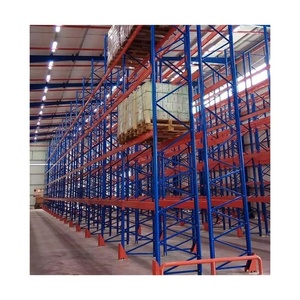

Jracking Adjustable Selective Steel Shelving Heavy Pallet Rack Storage
100% pallet accessibility system with adjustable beam levels, high beam load capacity, and 48x40 GMA pallet compatibility.
Gravity Flow Racking System - Industrial Pallet Storage Shelves
Gravity-driven inclined roller beds enforcing strict First-In, First-Out rotation with centrifugal speed braking controllers.

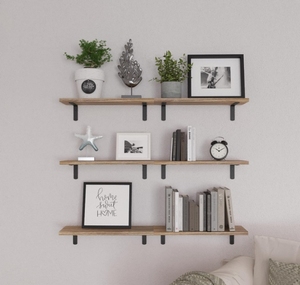

Minimalist Floating Wooden Shelves Easy-to-Install Wall Mounted Wood
Precision-machined wooden auxiliary shelving for office staging, administrative archive storage, and parts display.
Mini Load ASRS Tote Storage Rack Automated Bin Warehouse System
High-speed automated tote and small-parts retrieval racking, integrating crane extractors with computerized FIFO tracking.
Engineering Excellence from Guangzhou Heda Shelves Co., Ltd.
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into China’s premier engineering and manufacturing partner for industrial FIFO and pallet racking systems, supplying distribution hubs across North America, Europe, and Asia.
High-Density FIFO Racking: Engineering Dynamics & Velocity Physics
In high-throughput warehousing, managing perishable commodities, pharmaceuticals, and date-sensitive components demands flawless First-In, First-Out (FIFO) stock rotation without sacrificing cubic floor utilization.
Gravity Flow Pallet Mechanics
Pallet flow racks utilize inclined roller beds set between a 1.5° and 3.5° gradient (approx. 3% to 4% slope). Unassisted gravity propels pallets from the rear loading face to the discharge picking face. Centrifugal brake rollers actively regulate descent speeds at 0.25 to 0.3 m/s, preventing terminal runaway collisions regardless of whether the pallet weighs 500 lbs or 3,000 lbs.
Semi-Automated Radio Shuttle FIFO
By positioning access aisles at both the induction and discharge ends of deep multi-tier racking channels, automated radio shuttles transport pallets across lanes reaching up to 40 pallets deep. Operators execute high-speed picking commands via RF controllers or direct WMS API calls without forklifts ever entering the rack structure, drastically cutting cycle times.
Carton Flow & Small Tote ASRS
For split-case order picking, assembly lines, and e-commerce sortation, heavy roller tracks are scaled down into multi-lane plastic wheel beds or mini-load crane systems. Front-facing pickers experience constant replenishment from upstream buffers, eliminating picking travel time and preventing older inventory batch stagnancy.
| System Type | Rotation Principle | Floor Space Utilization | Throughput Speed | Damage Risk Index | Primary Industrial Sector |
|---|---|---|---|---|---|
| Pallet Flow (Gravity) | 100% Strict FIFO | 85% - 90% (Dense) | Ultra-High (Continuous pick) | Ultra-Low (Split aisles) | Cold Storage, Food & Beverage, Pharma |
| Radio Shuttle FIFO | Configurable FIFO / LIFO | 90% - 95% (Max Density) | High (Automated carrier) | Extremely Low (No truck intrusion) | Deep-Freeze (-30°C), FMCG, Chemical Drums |
| Standard Drive-In | Strict LIFO (Last-In, First-Out) | 75% - 85% | Low to Moderate | Moderate to High (Forklift entry) | Raw Commodity, Non-Perishable Bulk |
| Selective Pallet Rack | Manual FIFO Management | 40% - 50% (Wide aisles) | Moderate (100% Selectivity) | Moderate (High traffic) | General 3PL, High-SKU Retail Distribution |
| Mini-Load Tote ASRS | Dynamic Digital FIFO | 92% - 98% (Vertical) | Maximum (Robotic Extract) | Zero Impact | Electronics, Auto Parts, High-Value SKU |
Macro Trends Transforming FIFO Racking System Procurement
Global supply chain volatility, land acquisition costs, and carbon neutrality directives are fundamentally rewiring how warehouse logistics directors source high-density storage infrastructure.
AMR & Hybrid Shuttle Convergence
Procurement teams are shifting away from standalone static racking toward hybrid systems where autonomous mobile robots (AMRs) seamlessly transfer loads to semi-automated pallet shuttle rails. Forward-looking buyers require suppliers to build racking with tight millimeter-level deflection tolerances compatible with robotic visual guidance sensors.
Thermal Efficiency in Cold Chains
With industrial refrigeration energy costs spiking, cold storage facilities cannot afford dead aisle volume. Gravity FIFO and radio shuttle systems compress the required cubic volume by up to 60%, drastically cutting continuous HVAC electricity demands. Sourcing contracts now routinely specify low-temperature Q355D steel grades resistant to ductile-to-brittle transitions down to -30°C.
Factory-Direct Sourcing with PE Stamping
North American and European developers increasingly bypass domestic intermediaries to source directly from top-tier Chinese manufacturers like Heda Shelves. By securing comprehensive 3D shop drawings, imperial calculation dossiers (lbs/ft), and local professional engineer (PE) structural reviews, buyers capture 25% to 40% capital equipment savings without permit friction.
Decarbonized Powder Coating & Green Steel
Corporate ESG procurement mandates demand audited life-cycle analyses. Racking suppliers must demonstrate closed-loop, non-effluent chemical pre-treatment (zirconium or silane-based phosphating replacements) alongside heavy-metal-free electrostatic powder coatings that resist abrasion, chemical spillage, and corrosion while meeting stringent RoHS compliance.
Next-Generation Technology Innovations in FIFO Mechanics
Modern FIFO storage is a sophisticated discipline combining structural statics, tribology, and dynamic controls. Here are the core engineering developments setting the global benchmark.
Magnetic Eddy-Current Speed Arrestors
Traditional friction-brake rollers suffer mechanical wear and internal fluid degradation under freezing temperatures. Leading-edge gravity flow systems now utilize contactless eddy-current magnetic retardation rollers. As a pallet rolls over the roller drum, an opposing magnetic field generates braking torque directly proportional to the pallet’s speed, operating reliably across -40°C to +50°C without wear parts.
Automatic Pallet Separation Locks
Line pressure in deep lanes (over 10 pallets deep) can exert thousands of pounds of compressive force against the foremost discharge pallet, making forklift extraction dangerous and causing pallet binding. Advanced pneumatic or mechanical load separators decouple the lead pallet from the trailing queue, allowing safe extraction before releasing subsequent pallets.
Finite Element Seismic Modeling (FEA)
Because dynamic FIFO racks contain moving masses on sloped channels, seismic events induce complex non-linear kinetic interactions. Modern structural calculations rely on multi-degree-of-freedom response spectrum analyses in accordance with RMI MH16.1, EN 15512, and AS 4084, validating upright column profiles, anchor bolt pull-out limits, and diagonal bracing load distribution.
Why Tier-1 Warehouses Partner with Guangzhou Heda Shelves
With an uncompromising commitment to structural safety and strict quality assurance, Guangzhou Heda Shelves Co., Ltd. transforms certified high-tensile steel into precision-engineered storage infrastructure.
Certified High-Tensile Steel
We source prime cold-rolled coils (Q235B, Q355B, and high-yield grades). Every incoming steel batch undergoes spectrometer chemical analysis and tensile yield testing to eliminate material defect vulnerabilities.
24-Hour Free CAD & 3D Engineering
Submit your architectural building footprint, clear roof heights, slab load limitations, pallet dimensions, and forklift turn radiuses. Our engineering division returns comprehensive CAD layouts and 3D models within 24 hours.
Dual Imperial & Metric Certification
To support engineers of record across the United States, Canada, Mexico, and Australia, all shop drawings, beam deflection charts (L/200), and upright capacity placards are delivered in imperial units (lbs, ft, in) as well as metric (kg, mm).
International Compliance Assured
Our quality management system is independently certified to ISO 9001:2015 (Cert No. 18624Q00169R0M) and CE Marking for structural steelwork under EN 1090 / Construction Products Regulation (Cert No. 2435-CPR-8605159).
In-House 10-Step Precision Production Sequence
Every beam, upright column, roller chassis, and spacer undergoes uncompromised quality monitoring.
Raw Material Inbound
Mill test certification verification and ultrasonic thickness calibration.
Precision Slitting
High-speed longitudinal slitting to exact cross-sectional profile tolerances.
CNC Column Punching
Continuous automated punching for 50mm/75mm universal pitch beam adjustment.
Cold Roll Forming
Multi-stage progressive forming rollers shaping omega-uprights and box beams.
Robotic Welding
Shielded gas automated seam welding for beam end connectors and heavy baseplates.
Mechanical Shot Blasting
Removal of mill scale, rust, and oil down to Sa 2.5 surface cleanliness standards.
Pretreatment & Phosphating
Multi-stage immersion bath ensuring deep molecular powder-coat adhesion.
Electrostatic Coating
Robotic powder guns depositing 60-80 microns of durable thermoset polymer.
High-Temp Curing
200°C convection baking for scratch, UV, chemical, and impact resilience.
Container Optimization
Heavy steel dunnage, protective foam strapping, and overseas export packing.
Frequently Asked Questions: Sourcing FIFO Racking Systems from China
Critical engineering, regulatory, and logistics answers compiled by our senior structural engineers to de-risk your international capital equipment procurement.
What are the key technical differences between Gravity Pallet Flow and Radio Shuttle FIFO systems?
Gravity pallet flow relies entirely on unpowered mechanics: pallets roll along an inclined rail bed (1.5° to 3.5°) equipped with speed-regulating brake drums and physical separator stops. It guarantees continuous passive replenishment at the pick face without batteries or electronics. In contrast, Radio Shuttle FIFO systems utilize horizontal tracks where a battery-powered semi-automated robotic shuttle retrieves and deposits pallets. While shuttle systems eliminate the vertical ceiling height losses associated with sloped gravity beds, gravity flow requires zero electronic maintenance or battery charging infrastructure, making gravity ideal for intense non-stop picking in food, pharma, and cross-docking facilities.
How does your engineering team ensure compliance with US and Canadian building codes (RMI & IBC)?
Guangzhou Heda Shelves engineers calculate load capacities according to the ANSI MH16.1 Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks, as well as the International Building Code (IBC) and Canadian CSA S16. We supply full finite element analysis (FEA) structural calculations, material yield certificates (ASTM A1011 or equivalent grades), seismic spectral acceleration values (Ss and S1), and beam deflection verifications (limited to L/200). These comprehensive packages allow your local Engineer of Record (EOR) to verify calculations and apply local municipal building permit stamps without costly engineering rewrites.
What concrete floor slab specifications and tolerances are mandatory for high-density FIFO systems?
High-density FIFO systems exert substantial point loads through upright baseplates onto the concrete slab. We generally require a minimum 6-inch to 8-inch reinforced concrete slab with a compressive strength rating of 3,000 to 4,000 PSI (C20 to C30). For floor flatness, standard selective racks accept ACI 117 conventional tolerances, but gravity flow lanes extending beyond 5 pallets deep require an FF (Floor Flatness) rating of at least 35 to 45 and an FL (Floor Levelness) rating of 25 to 35. Floor deviations can alter gravity channel slope angles, causing pallets to track off-center or bind against side guides.
Can your FIFO racking accommodate irregular, damaged, or poor-quality GMA pallets?
Gravity roller beds depend heavily on consistent bottom deck surface contact. Warped boards, protruding nails, or broken bottom runners on standard 48x40-inch GMA wooden pallets can disrupt rolling velocity or jam in the rollers. When clients handle variable pallet qualities or slip-sheets, we configure full-width galvanized steel rollers instead of narrow split skate-wheels, or integrate custom slave pallet boards, steel pallet shoes, or automated radio shuttle carriers which are significantly more tolerant of irregular pallet undersides.
What is the typical shipping lead time and ocean container load optimization factor from Guangzhou?
Manufacturing turnaround for a typical 5 to 20 container project is 20 to 25 calendar days. Ocean transit to US West Coast ports (Los Angeles/Long Beach) takes 14 to 18 days; to US East Coast and Gulf ports (Savannah, Houston, NY/NJ), transit takes 28 to 35 days. Our logistical engineers bundle frame columns and nesting box beams using specialized nesting brackets, achieving 95%+ volumetric and weight filling of standard 40ft High Cube containers (up to 26 to 28 metric tons of steel per container, depending on road weight limit permits).
How do you handle fire sprinkler system integration (NFPA 13) within deep-lane FIFO racks?
Deep-lane storage structures represent high-density combustible fire loads governed strictly by NFPA 13 standards. In racks deeper than 20 feet or storing Class I-IV and plastic commodities above designated thresholds, ceiling ESFR sprinklers must be augmented by in-rack sprinkler barrier networks. Heda Shelves incorporates precision-engineered longitudinal flue spacers, heavy-duty row spacers (such as our certified row spacer product), and structural horizontal clearance bays specifically configured to route high-pressure sprinkler branch pipes safely away from moving pallets and shuttle pathways.
What warranty, lifetime support, and replacement parts availability do you guarantee?
All structural steel elements—including upright columns, box beams, row connectors, and baseplates—carry a 10-year manufacturer warranty against weld failures, structural deflection beyond engineering specifications, and delamination of powder coatings under specified operating conditions. Mechanical and kinetic components, such as brake rollers and separation latches, carry a 3-year replacement warranty. Standard replacement parts, color-matched touch-up coatings, and structural add-on bays remain permanently available for rapid dispatch.
