Automation / ASRS
ASRS Stacker Crane Automated Storage Retrieval System
High-density heavy-duty automated vertical staging designed for seamless logistics throughput, WMS synchronization, and automated handling reliability.
Precision Logistics Inventory
High-Performance Warehouse Storage Systems
Explore our engineering portfolio ranging from high-density gravity flow solutions to semi-automated shuttles and heavy-duty structural platforms manufactured in-house since 2001.
Dynamic Flow
Gravity Carton Flow Roller Racking System
Engineered aluminum and polycarbonate roller bed tracks for rapid carton-picking lanes, ergonomic item retrieval, and zero-energy FIFO stock replenishment.
Fabrication Tech
Precision CNC Fiber Laser Cut Steel Upright Components
Intelligent CNC laser-profiled cold-rolled components ensuring micrometer-accurate slot punching, seamless upright-to-beam interlocking, and repeatable safety.

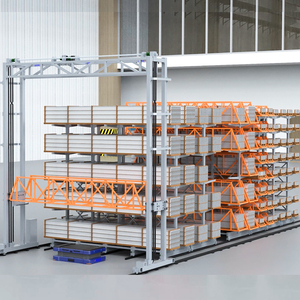

Anti-Corrosion Racking
Multi-Layer Powder Coated Industrial Storage Rack System
Multi-tier heavy storage system treated with electrostatic polyester-epoxy powder shielding, acid pickling, and phosphating for high-humidity and cold chains.

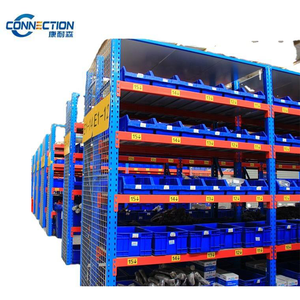

Heavy Industrial
Heavy-Duty Modular Steel Stacking & Racking System
Engineered for extreme structural loads, modular box beams, heavy upright framing, and direct forklift interface across multi-tier storage networks.

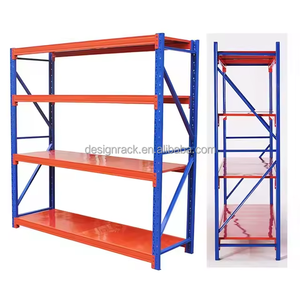

Manual Storage
Adjustable Boltless Precision Metal Shelving Units
Versatile, quick-assembly steel shelving arrays engineered for e-commerce picking lines, maintenance spares, and auxiliary retail distribution operations.
High Density
High-Density Drive-In & Drive-Through Pallet Racking
Engineered deep-lane cold-rolled steel pallet runners eliminating working aisles, generating up to 80% higher space utilization for homogeneous bulk goods.
Medium-Heavy Shelving
Multi-Level 500KG Unit Load Industrial Storage Racks
Standardized 500kg per layer adjustable industrial longspan systems featuring reinforced step beams, galvanized steel deck inlays, and modular expansions.
2001
Established Manufacturing Pioneer
30,000t
Monthly Structural Steel Throughput
323,000sq ft
Robotic Roll-Forming & Coating Campus
10,000+
Global Warehousing Projects Completed
Engineering Whitepaper
Engineering Principles of CE-Certified Gravity Flow Racking
A technical evaluation of dynamic inclined roller systems, kinematic braking physics, and high-density material handling optimization.
Kinematic Roller Dynamics and Controlled Speed Regulation
Gravity flow pallet racking (dynamic live storage) operates on an inclined roller track plane—typically set between 2.8% to 3.5% gradient (approx. 1.6° to 2.0°) depending on the pallet bottom structural footprint, overall load mass, and bottom runner orientations. Pallets travel smoothly under self-gravitational force from the rear loading replenishment face to the front discharge picking terminal, creating an uninterrupted First-In, First-Out (FIFO) operational stream.
Critical Engineering Rule: Runaway acceleration of loads exceeding 1,000 kg (2,200 lbs) represents a catastrophic hazard in deep-lane installations. Our CE-certified installations integrate self-energizing eddy-current and centrifugal speed controller rollers positioned at regular intervals (typically one brake roller per pallet position in deep-lane tracks). This keeps continuous descent velocity mechanically capped between 0.2 m/s and 0.3 m/s, eliminating impact inertia upon the discharge stop separator.
The system utilizes automatic pallet separation mechanisms at the picking face. When a forklift extracts the lead pallet, the secondary line is held firmly in place by a mechanical load-release latch. This physical separation neutralizes line pressure against the lead unit, preventing product pinching, mast binding, and pallet splintering during vertical lift operations.
Structural Steel Specifications & Quality Management Compliance
Structural stability under continuous cyclic roller impacts demands exceptional cold-formed yield strength. HEDA Shelves utilizes premium structural hot-rolled coils slitted and cold-roll formed into rigid omega-profile upright columns and heavy-duty step beams. Every batch complies rigorously with European EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and holds valid CE certification (Directive 305/2011/EU - CPR).
| Parametric Metric | Standard Selective Racking | Drive-In Pallet Racking | HEDA Gravity Flow System |
|---|---|---|---|
| Inventory Rotation Logic | Arbitrary / FIFO or LIFO | Strictly LIFO (Last-In, First-Out) | Strict FIFO (Automated Physical Rotation) |
| Footprint Utilization | 35% - 40% Floor Coverage | 65% - 75% Floor Coverage | 75% - 85% High Density Staging |
| Pallet Travel Speed | Manual Forklift Maneuver | Slow Forklift Mast Entry | 0.2 - 0.3 m/s Controlled Kinetic Roll |
| Forklift Aisle Requirements | Aisle per 2 Rows (3.2m - 3.8m) | Shared Entry Lanes | 2 Dedicated Aisles (1 Loading + 1 Picking) |
| Standard Pallet Weights | 500 kg - 2,000 kg / Level | 500 kg - 1,500 kg / Runner | Up to 1,500 kg / Pallet Position |
Strategic Procurement Horizon
Future Procurement & Technology Trends in Gravity Racking
Data-driven insights for logistics directors, procurement heads, and automated supply chain architects.
AGV / AMR Kinetic Integration
Procurement is pivoting toward gravity racking lines paired directly with Autonomous Mobile Robots (AMRs) and automated forklifts. The load and unload faces now demand millimetric laser-aligned entry guides and optical sensor brackets to facilitate robotic payload docking without human intervention.
Energy-Zero ESG Modernization
As global industrial electricity tariffs climb, gravity flow systems are replacing active powered conveyors in buffering and buffer-staging areas. Utilizing unpowered gravitational kinetic energy delivers high throughput with zero ongoing kWh consumption, directly reducing corporate Scope 2 carbon footprints.
Cold Chain FIFO Mandates
International food safety regulations (FDA FSMA and EU General Food Law) increasingly mandate strict lot-traceability. Deep-lane gravity flow provides fail-safe physical First-In, First-Out rotation, preventing expired batch waste in frozen storage operating down to -30°C where electrical automation faces high breakdown rates.
Direct Factory Advantages
Why International Enterprise Buyers Source from HEDA Shelves
Combining vertically integrated heavy roll-forming capacity with rigorous international certifications and global project delivery.
30,000 m² Production Base
Operating 10 fully automated production lines, multi-station CNC punching, laser cut systems, and robotic welding stations delivering 30,000 metric tons of certified steel racking output each month.
Certified European CE & ISO
Fully accredited under ISO 9001:2015 (Cert No. 18624Q00169R0M) and CE Marking (No. 2435-CPR-8605159). Our engineering dossiers comply with EN 15512 and RMI standards for seamless municipal permits.
Free 3D & CAD Layouts in 24H
Our dedicated structural design engineers convert building drawings, clear heights, and forklift turn radiuses into comprehensive CAD plans, 3D renderings, and structural calculations within 24 hours.
Full Export Container Logistics
Heavy steel profiles bundled with reinforced steel straps, bubble wrap, and structural timber dunnage to maximize 20GP/40HQ container cube utilization and eliminate marine transit abrasions.
Procurement & Engineering FAQ
Frequently Asked Questions on Gravity Pallet Flow Systems
Authoritative technical answers to assist procurement engineers and warehouse operations managers.
What slope gradient is mandatory for standard 1,000 kg GMA / Euro pallets?
Standard installations typically require an incline gradient of 3.0% to 3.5%. However, gradient selection depends closely on bottom board deflection and bottom skid configuration. Hardwood GMA pallets (48×40 inch) roll smoothly at approx. 3.2%, whereas softer wooden or uneven pallets require testing to avoid hang-ups. HEDA provides complimentary physical pallet testing on mock roller lanes at our factory to calibrate track slope, roller pitch, and brake quantities prior to full container manufacture.
How do speed controller braking rollers prevent high-velocity pallet impacts?
Our speed controllers are internal centrifugal or viscous gear-driven mechanisms that engage proportionally as the rolling pallet accelerates. When a pallet passes over the brake roller, friction transfers the rotational energy into an internal brake assembly, preventing runaway speed buildup. For deep-lane flow beds (exceeding 5 pallets deep), brake rollers are typically installed at every pallet position to ensure descent velocity remains below 0.3 m/s throughout the run.
Are HEDA gravity flow systems compatible with sub-zero cold storage warehouses?
Yes. For cold storage and blast freezer applications operating between -10°C and -30°C, we specify low-temperature synthetic lubricants inside the roller bearings, cold-impact resistant poly compounds, and heavy hot-dip galvanized or electrostatic thermoset powder coatings that will not crack or delaminate under thermal contraction cycles.
What documentation is supplied for regional engineering and permit approvals?
Every shipment includes an engineering data pack containing CAD floor plans, beam loading tables, cross-sectional connection drawings, and finite element structural calculations stamped to EN 15512 or regional seismic building standards. These documents allow your local Engineer of Record (EOR) to verify anchor pull-out ratings, concrete slab loadings, and municipal fire/building permits.
What lead time can buyers anticipate from design approval to container dispatch?
Once custom CAD drawings and engineering parameters receive final customer sign-off, standard factory production cycles range from 15 to 25 business days for standard and custom configurations. With an output capacity of 30,000 metric tons per month, we manage multi-container project schedules reliably to align with international shipping vessel allocations.
Optimize Your Warehouse Throughput & FIFO Storage
Send your building dimensions, pallet specifications, and throughput targets to receive a custom CAD engineering proposal, 3D simulation, and factory-direct quotation within 24 hours.
