EN 15512 & CE 2435-CPR-8605159 Industrial Standard

CE Certified FIFO Racking Factory & Suppliers

High-Density First-In First-Out Gravity Flow, Automated Pallet Runways, and Heavy-Duty Storage Engineering Manufactured for Global Distribution Centers and 3PL Cold Chains.

2001 Established Factory
30,000 t Monthly Output Capacity
323,000 sq ft Manufacturing Campus
24 Hours Free CAD Layout Turnaround
Certified Engineering Inventory

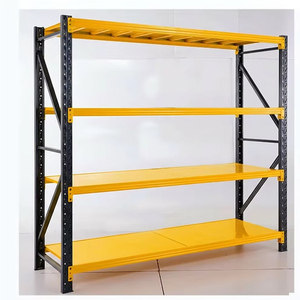

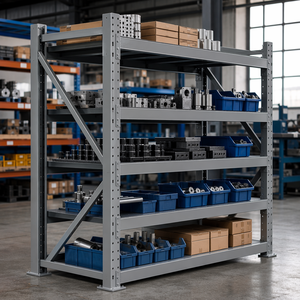

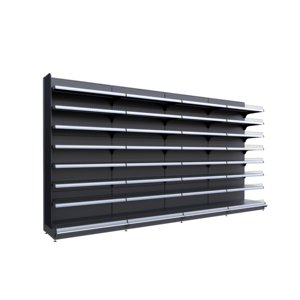

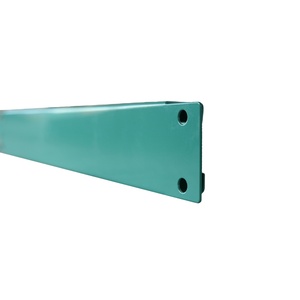

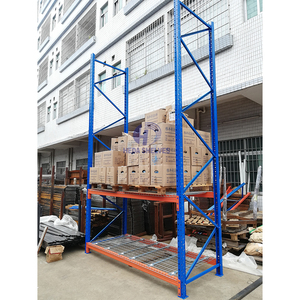

Featured Warehouse Storage & FIFO Pallet Systems

Manufactured directly from high-yield Q235B structural steel, our certified warehouse configurations provide high safety factors, automated stock turnover, and extreme load bearing capacities up to 4,500 kg per beam level.

Engineering Whitepaper & Structural Architecture

Understanding CE Certified FIFO Racking: Kinematics, Tolerances, and European Standard EN 15512

In high-velocity warehouse environments, First-In, First-Out (FIFO) pallet flow racking is no longer simply a storage rack—it is an unpowered gravity conveyor machine. Operating within the intersection of static structural engineering and dynamic mechanical physics, a compliant FIFO system eliminates batch expiration risks, guarantees inventory sequencing, and slashes internal transport transit times by up to 40%.

True CE certification under the Construction Products Regulation (EU CPR No. 305/2011, standard CE 2435-CPR-8605159) and design execution according to EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems) requires rigorous finite element analysis (FEA), strict raw material certifications, and precise control of dynamic velocity gradients. When pallets travel down an inclined plane under gravity (typically graded between 2.5% and 3.5%), uncontrolled acceleration creates catastrophic terminal impact hazards. Our factory engineers resolve these physical dynamics through an integrated synergy of calibrated brake rollers, dynamic load separators, and impact-absorbing end stops.

Centrifugal Braking Rollers

Internally geared centrifugal flyweights engage proportionally to pallet speed, maintaining a steady, safe velocity of 0.25 to 0.30 m/s regardless of whether the pallet weighs 250 kg or 1,500 kg.

Mechanical Load Separators

Isolates the extraction-face pallet from the cumulative back-pressure of subsequent queued pallets in deep lanes (up to 20 pallets deep), ensuring forklift operators can unseat loads without lane binding or tip hazard.

High-Yield Q235B Profile Geometry

Uprights and beams cold-roll-formed from certified high-tensile steel coils with multi-ribbed profiles maximize section moduli, ensuring frame deflection remains strictly within the 1/200th span tolerance under full dynamic loads.

Critical Structural Load Path and Deflection Control

Unlike standard selective pallet racks where static beam deflection (governed by the L/200 limit) represents the primary failure point, a FIFO flow system must account for both localized point-load concentrations across roller assemblies and longitudinal thrust forces induced by loading vehicles. The factory-engineered bed brackets and cross-tie bracing transfer dynamic horizontal braking forces through the upright frames directly into anchor footings secured via M12 to M16 heavy-duty wedge anchors into concrete floor slabs rated at minimum 25 MPa compressive strength.

Moreover, beam connections utilize 5-claw cold-stamped connectors with automated locking pins capable of resisting upward vertical dislodgement forces exceeding 5,000 N. This prevents catastrophic beam-frame disengagement during abrupt pallet extractions or forklift mast impacts.

Architectural & Operational Comparison Matrix: Pallet Flow vs. Alternative Storage Systems

Selecting the ideal high-density storage methodology requires balance across floor area utilization, capital investment per pallet position, SKU selectivity, and inventory rotation mechanics. The following empirical comparison demonstrates the operational characteristics of CE-certified flow solutions against alternative industrial racking topologies:

Racking Topology Rotation Logic Footprint Utilization Forklift Travel Time Aisle Requirement CE / EN Compliance Risk
Gravity FIFO Pallet Flow ✔ Strict FIFO Up to 85% Floor Utilization Lowest (Dedicated load/unload aisles) Only 2 Aisle Corridors Needed Low (Factory engineered speed brakes)
Selective Pallet Racking Flexible (Manual FIFO) 40% - 50% (Aisle Intensive) High (Travel required to every bay) Requires aisle for every double row Minimal (Static analysis only)
Drive-In Pallet Racking Strict LIFO (Last-In, First-Out) Up to 75% Floor Utilization Medium-High (Truck enters rack depth) 1 Single Access Face per Lane High (Forklift frame collision vulnerability)
Semi-Automated Radio Shuttle FIFO or LIFO Selectable Up to 88% Floor Utilization Low (Automatic cart transfers pallet) Flexible (Single or dual aisle) Moderate (Electrical & battery CE compliance)
Push-Back Cart Racking Strict LIFO (Last-In, First-Out) Up to 70% Floor Utilization Medium (Operator pushes stored carts) Single Loading / Pick Aisle Moderate (Cart jamming & slope tolerances)
Procurement Intelligence & Horizon 2030

Emerging Trends Shaping Global Industrial Racking Procurement

Strategic logistics leaders and enterprise procurement teams must navigate fundamental shifts in automation synergy, ESG decarbonization, seismic code revisions, and smart-sensor integration.

1. AGV/AMR Interface Standardization

Modern FIFO flow systems are transitioning from human-operated counterbalanced forklifts to automated guided vehicles (AGVs) and autonomous mobile robots (AMRs). Pick faces feature sensor reflectors and optical optical-stop alignment tabs to ensure sub-millimeter positioning accuracy during robotic forks engagement.

2. Low-Carbon Steel & ESG Scopes

Global ESG reporting mandates drive supply chains toward EPD-certified (Environmental Product Declaration) structural steel. By optimizing section profiles through cold-formed micro-alloyed steel, HEDA reduces steel tonnage by 12-18% while exceeding structural strength thresholds.

3. Dark Warehouse Sub-Zero Duty

With the rapid rise of cold-chain e-grocery and biopharma distribution, FIFO lanes must withstand continuous sub-zero conditions down to -30°C. Advanced procurement specifies synthetic low-temperature lubricants inside brake roller bearings and polyolefin roller sleeves to eliminate brittle fracture.

4. IoT Strain Gauges & Structural Health

Procurement contracts increasingly integrate embedded strain gauges, tilt telemetry, and impact sensors on critical rack uprights. Real-time telemetry warns maintenance managers of forklift collisions or ground subsidence before micro-cracks propagate into progressive collapse events.

Total Cost of Ownership (TCO) Shift: Capital Expenditure vs. Long-Term Throughput Velocity

Historical procurement focused almost solely on the initial steel price per kilogram or per pallet position. In contrast, modern operations engineering evaluates racking purchases under a 15-year TCO framework. A high-efficiency CE-certified FIFO gravity flow system reduces material handling equipment (MHE) fleet size by separating inbound and outbound operations, minimizing traffic bottlenecks, reducing forklift operator labor hours by up to 35%, and virtually eliminating product damage caused by aged stock write-offs.

Furthermore, quality-manufactured roller tracks engineered with hardened zinc galvanization and heavy-duty ball bearings boast a maintenance MTBF (Mean Time Between Failures) exceeding 80,000 pallet roll cycles, preventing costly line closures in high-velocity pharmaceutical and food distribution facilities.

Enterprise Capabilities & Supply Chain Reliability

Why Global Tier-1 Distributors Partner with HEDA Shelves

Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates as a dedicated, fully integrated industrial manufacturing enterprise, engineering high-load warehouse structures for North American, European, and Asia-Pacific markets.

01

Massive Scale & Capacity

Spanning over 323,000 sq ft (30,000 m²) of production facilities with 300+ seasoned technical and production specialists. Our 30,000-ton monthly throughput ensures timely containerized delivery for multi-thousand-pallet projects without project backlog delays.

02

Full European CE & ISO Credentials

Certified under CE Marking No. 2435-CPR-8605159 and ISO 9001:2015 Certification 18624Q00169R0M. All structural calculations, yield test reports, and mill test certificates (MTC) comply with international building and safety codes.

03

Rapid 24-Hour Engineering Turnaround

Equipped with proprietary structural calculation software and specialized warehouse design teams. Send us your architectural floor plan, clear building heights, pallet specifications, and forklift model to receive detailed CAD layouts and 3D renderings in both imperial and metric systems within 24 hours.

04

10-Stage Precision Manufacturing

Every rack component passes through uncoiling, precision slitting, continuous automated punching, high-precision roll forming, robot welding, shot-blasting, chemical pickling and phosphating, followed by automated electrostatic epoxy-polyester powder baking for unmatched surface durability.

05

10,000+ Completed Installations Worldwide

Over two decades of proven field track record across manufacturing, agriculture, chemicals, cold storage logistics, automotive distribution, and heavy wholesale. We engineer tailored safety solutions including heavy-duty row spacers, wire mesh decks, post protectors, and backstop nets.

06

Container-Optimized Logistics & Packing

Our logistics department uses specialized steel cradles, protective plastic sleeves, and bundle-clamping mechanisms specifically calibrated for maximum 40ft High Cube container volumetric efficiency, guaranteeing zero shipping damage during intermodal ocean transit.

Procurement & Engineering Q&A

Frequently Asked Questions by Industrial Buyers & Structural Engineers

Direct, verifiable technical answers regarding certifications, slope tolerances, pallet quality constraints, and overseas supply chain execution.

What specific standards must a FIFO racking factory fulfill to hold a valid CE mark?

Under the EU Construction Products Regulation (CPR 305/2011), industrial static steel racks fall under EN 15512, EN 15620, and EN 1090-1 / EN 1090-2 (Execution of steel structures). A factory must have an audited Factory Production Control (FPC) system, certified welders according to ISO 9606-1, verified mill certificates for raw steel (yield strength, elongation, tensile properties), and third-party audited certification bodies (such as our CE Marking No. 2435-CPR-8605159).

How is the roller bed pitch and gradient calculated for diverse pallet bottom profiles?

Typical gradients range from 2.5% to 3.5% (approx. 30mm to 40mm drop per linear meter). The exact slope is calibrated based on pallet construction (euro wooden pallets, full perimeter GMA runners, or smooth plastic runners), bottom board deflection tolerances, and total payload. For operations handling mixed pallet weights from 400 kg to 1,200 kg, centrifugal brake rollers are staggered every 1 to 2 pallet lengths along the lane to ensure continuous controlled descent.

Can low-quality or damaged wooden pallets run on gravity flow racking?

Damaged boards, protruding nails, or severe bottom board sagging (exceeding L/100 deflection) create severe risks of lane hanging or premature binding. For facilities utilizing multi-trip mixed timber pallets, our factory recommends 3-rail full-width galvanized steel roller tracks or triple-split roller designs rather than twin skate-wheel lanes, distributing bottom runner loads across multiple contact points.

How does HEDA Shelves support engineering permits and local seismic approvals in North America?

We provide comprehensive engineering packages including detailed 3D CAD drawings, component section moduli, baseplate anchor pull-out load calculations, and dead/live load tables in both imperial units (lbs, inches, feet) and metric units. These documentation packs are specifically structured to allow local licensed Professional Engineers (PE) or Engineers of Record (EOR) to review, seal, and submit for municipal building and seismic permits (RMI/ANSI MH16.1 compliance).

What is the maximum lane depth achievable in modern FIFO gravity flow racks?

While standard lanes are typically 4 to 12 pallets deep, systems can be safely engineered up to 20 pallets deep. In deep-lane systems, automatic mechanical pallet separators are non-negotiable. Without a separator, cumulative line pressure from 19 queued pallets (which can exceed 20,000 kg of horizontal thrust force) presses against the lead pallet, causing forklift forks to bind and risking sudden pallet ejection upon release.

How does temperature variance impact component specification in cold storage freezers?

Freezer installations down to -30°C require steel chemistry with verified Charpy V-notch impact toughness to prevent cold-temperature embrittlement. Furthermore, all roller bearings are packed with synthetic low-viscosity grease that prevents freezing, roller shafts are precision zinc-plated to resist condensation corrosion during defrost cycles, and powder coatings undergo rigorous cross-hatch adhesion testing post-cure.

What are the lead times from technical approval to container dispatch?

Standard project turnaround for custom-engineered FIFO flow racks ranges between 20 and 30 calendar days from formal drawing approval and deposit receipt. Our 30,000-ton monthly capacity allows rapid allocation of cold-rolling lines, ensuring consistent cycle times even for large-scale multi-tier mezzanine and high-bay distribution projects.

What spare parts and routine maintenance schedules are prescribed for flow lanes?

Routine semi-annual visual inspections focus on roller freedom of rotation, debris accumulation, and anchor bolt torque validation. We typically provide a 2% spare package with every international ocean shipment, containing extra brake rollers, replacement entry guide rollers, and beam safety pins to ensure continuous operational uptime without waiting for international freight.

Request Your Optimized FIFO Warehouse Engineering Package

Accelerate warehouse ROI with factory-direct pricing, certified European engineering, and custom CAD layout proposals delivered within 24 hours. Connect directly with our Senior Structural Racking Specialists today.

Get a Quote Confidential Engineering Review • No Obligation
