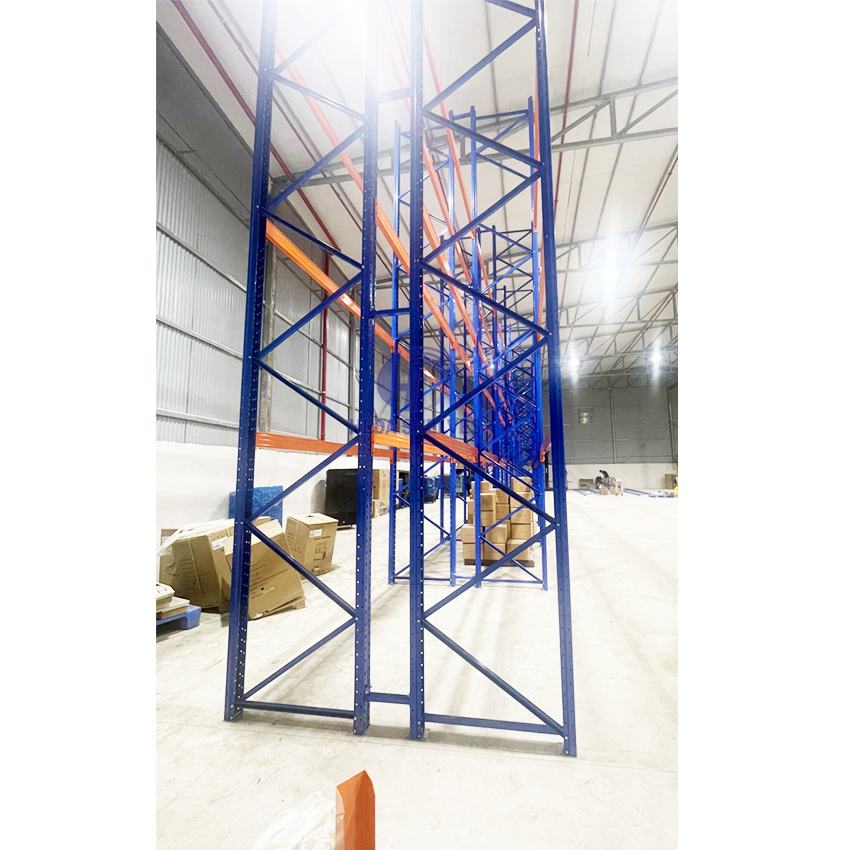

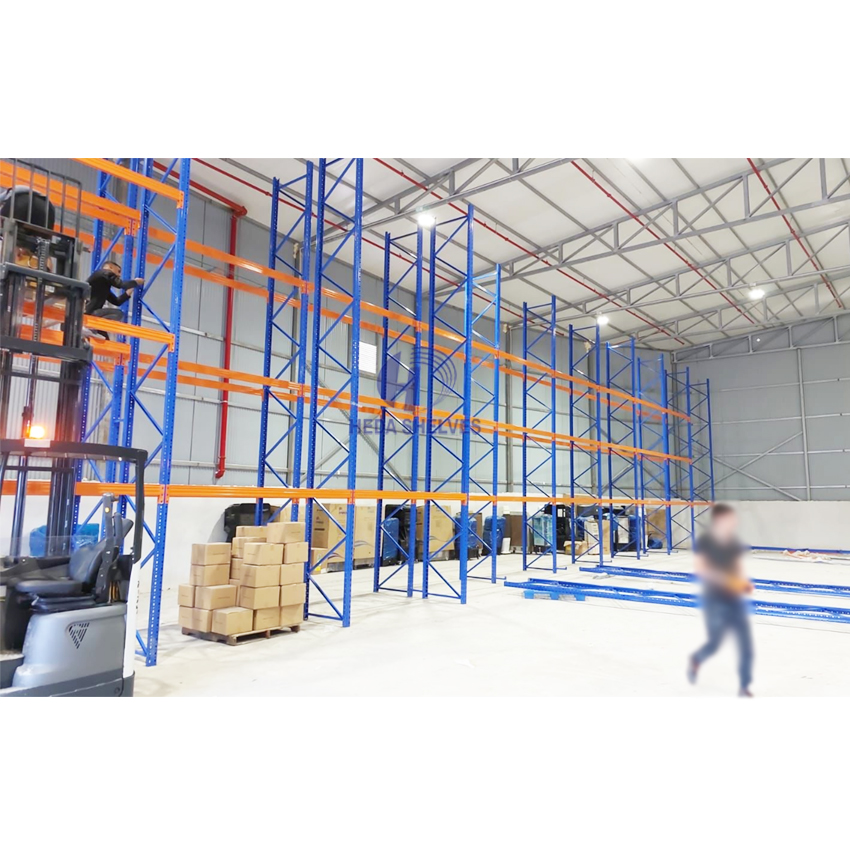

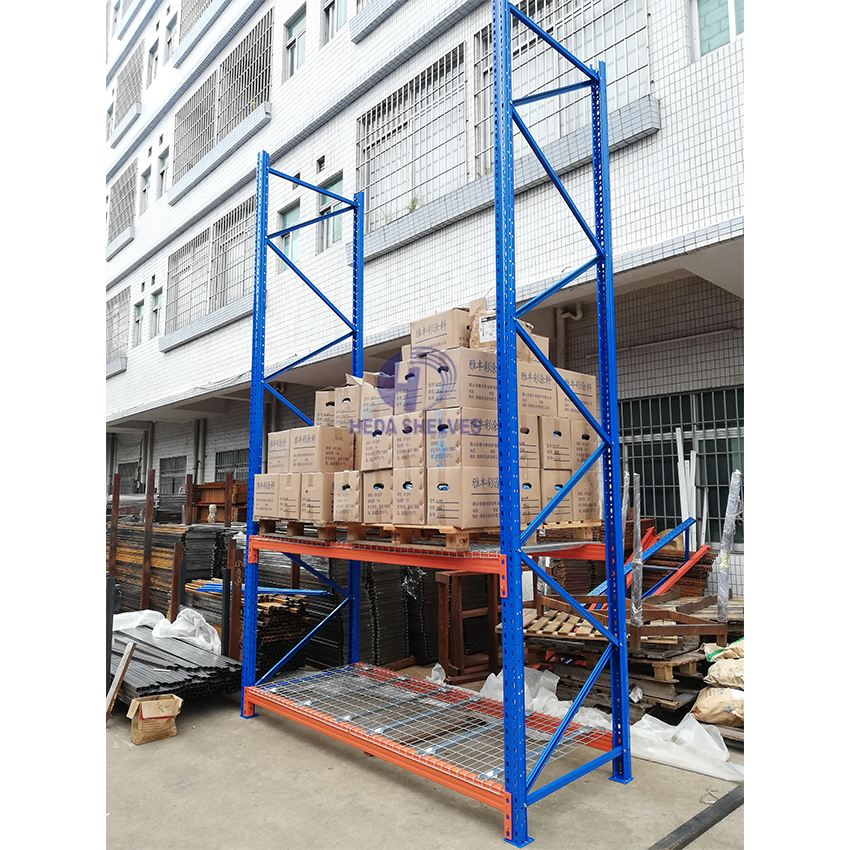

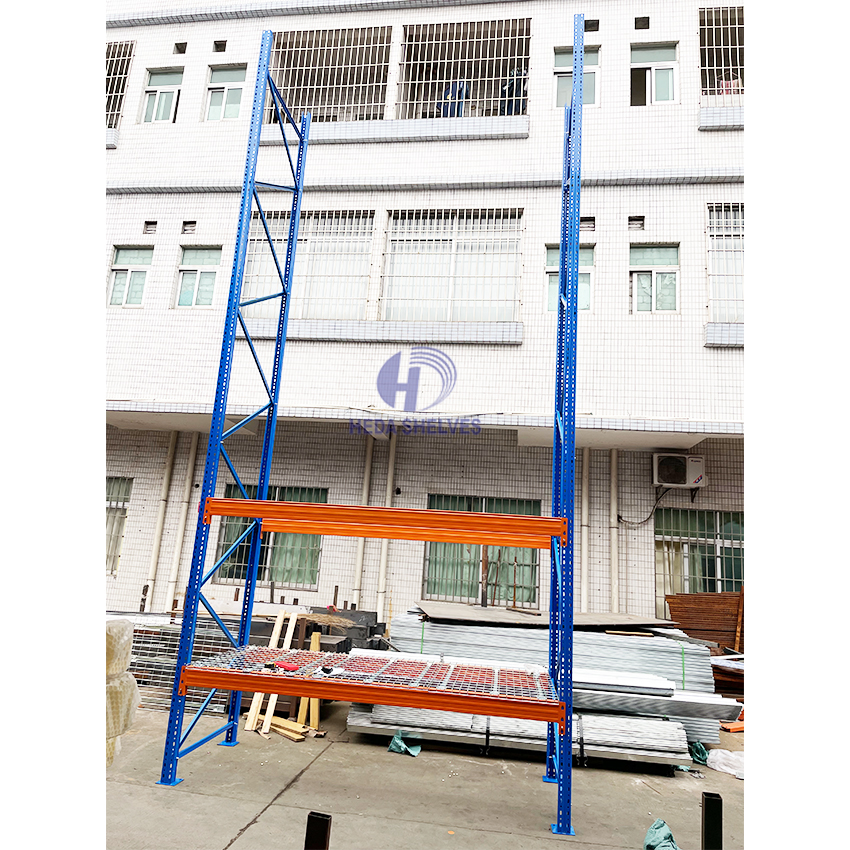

High Bay Heavy Duty Selective Pallet Racking System for Tall Warehouses and Industrial Storage
Product Description
Pallet Racking System
The Industrial Pallet Racking System is composed of upright frames, beams, and accessories such as safety pins and foot plates. It is a versatile and widely used storage solution, suitable for storing palletized goods in warehouses, distribution centers, and manufacturing facilities.
Advantages and Features:
- 🏗️ 1. Robust Structure: Designed for heavy-duty applications with high load capacity and excellent stability.
- ⚙️ 2. Flexible Configuration: Adjustable beam levels to accommodate various pallet sizes and storage needs.
- 📦 3. Efficient Space Utilization: Maximizes warehouse storage by optimizing vertical and horizontal space.
- 🔄 4. Compatibility: Suitable for storing different types of goods, including standard pallets, non-standard pallets, and bulk items.

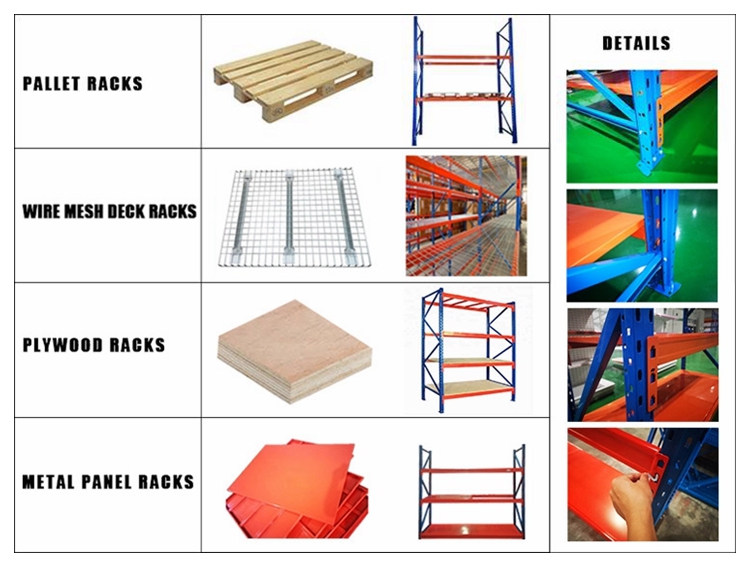

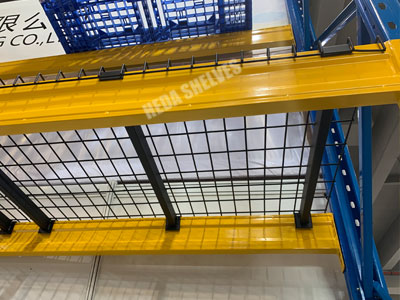

- 🛡️ 5. Optional Accessories: Available with additional components like wire decking, safety bars, and back mesh for enhanced functionality and safety.

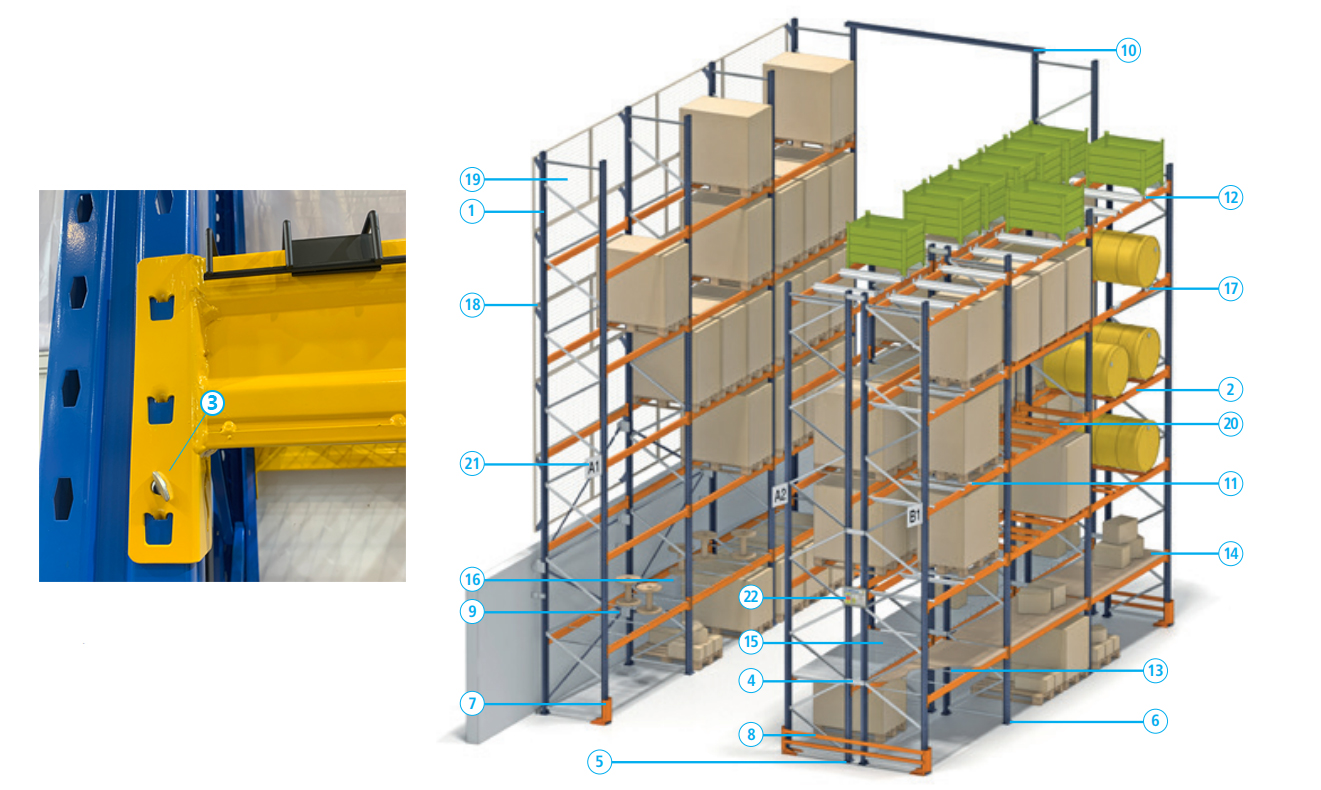

Specification

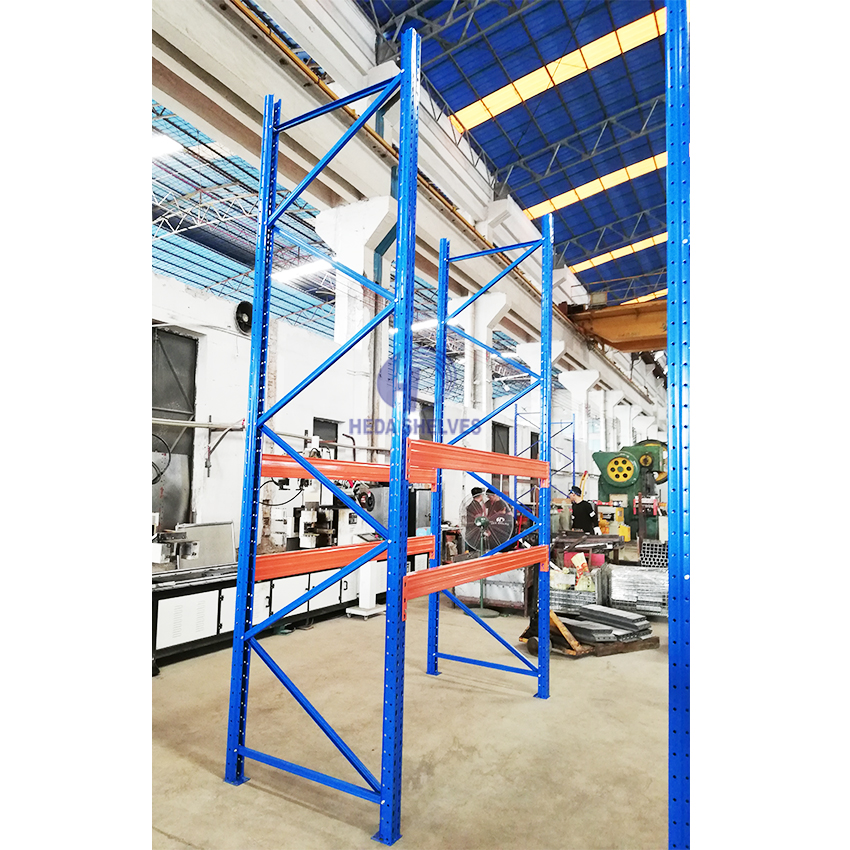

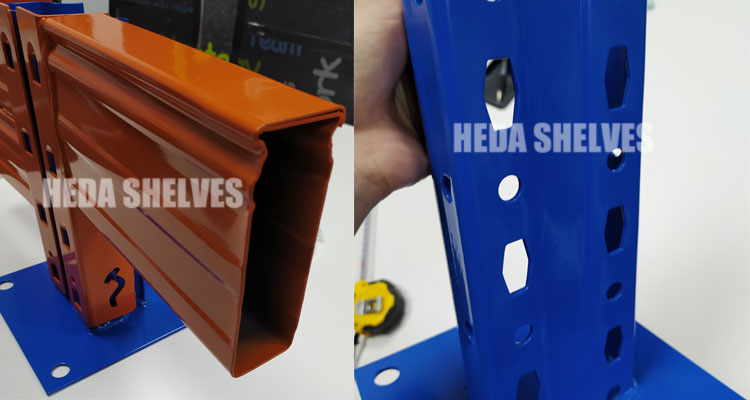

- 1. Frame
- 2. Beam
- 3. Safety locking mechanism
- 4. Frame union
- 5. Anchor bolts
- 6. Levelling shims
- 7. Upright protector
- 8. Lateral protection barrier
- 9. Cross bracing set
- 10. Top portal tie
- 11. Pallet cross tie
- 12. Container support
- 13. Chipboard shelving cross tie
- 14. Chipboard or melamine shelf
- 15. Galvanised picking shelf

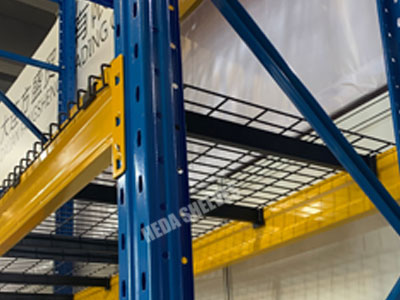

- 16. Mesh shelf
- 17. Drum support
- 18. Pallet stop set
- 19. Anti-fall mesh
- 20. Raised cross tie
- 21. Aisle identification plate
- 22. Signalling plate
Product Description
| Material | Cold-Rolled Steel Q235B |

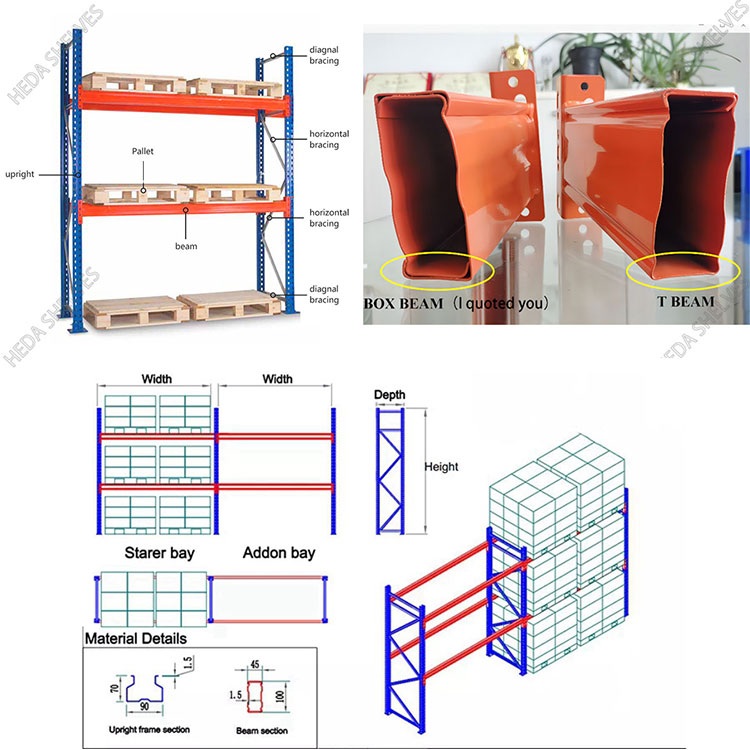

| Product Size | Length: 2300 / 2500 / 2700 / 3000 / 3300 / 3600 / 3900mm Width: 800 / 900 / 1000 / 1100 / 1200mm Height: 2000 ~ 6500mm (or Customizable) |
| Thickness | column: 1.5mm, 2.0mm (or Customizable) |
| Load Capacity | 1000KG~5000KG per layer (or Customizable) |
| Layers | 2-5 Adjustable Layers (or Customizable) |
| Color | Blue, Orange, Black, White, Grey (or Customizable) |
| Surface | Electrostatic Spray Surface |
| Feature | Anti-rust, Corrosion-protection |
| Guarantee Period | 5 Years Warranty |
| Remark | OEM & ODM Accepted |
| Relevant Certificate | CE, BV, ISO9001 |
| Use Area | Warehouse, Factory, Storage Place |
| Structure | Knock Down Structure, Easy Assembling, Convenient For Delivery |
| Function | storage goods, rack, storage |
| Product range | warehouse, storage place |

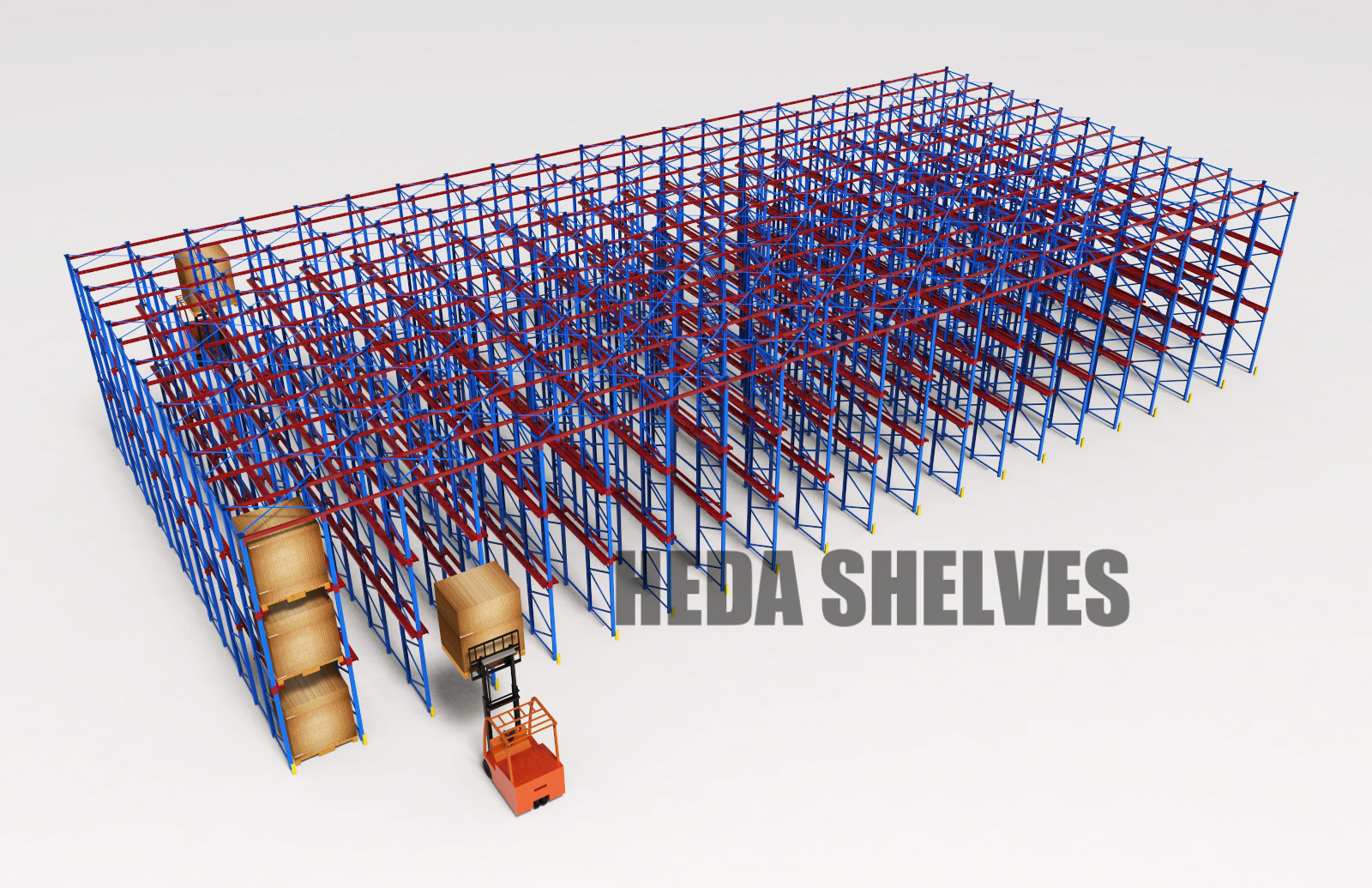

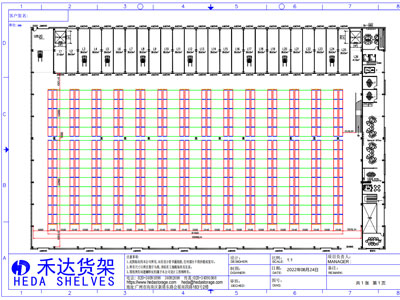

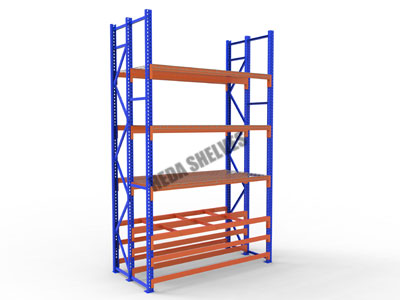

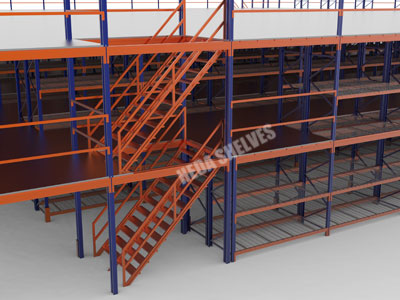

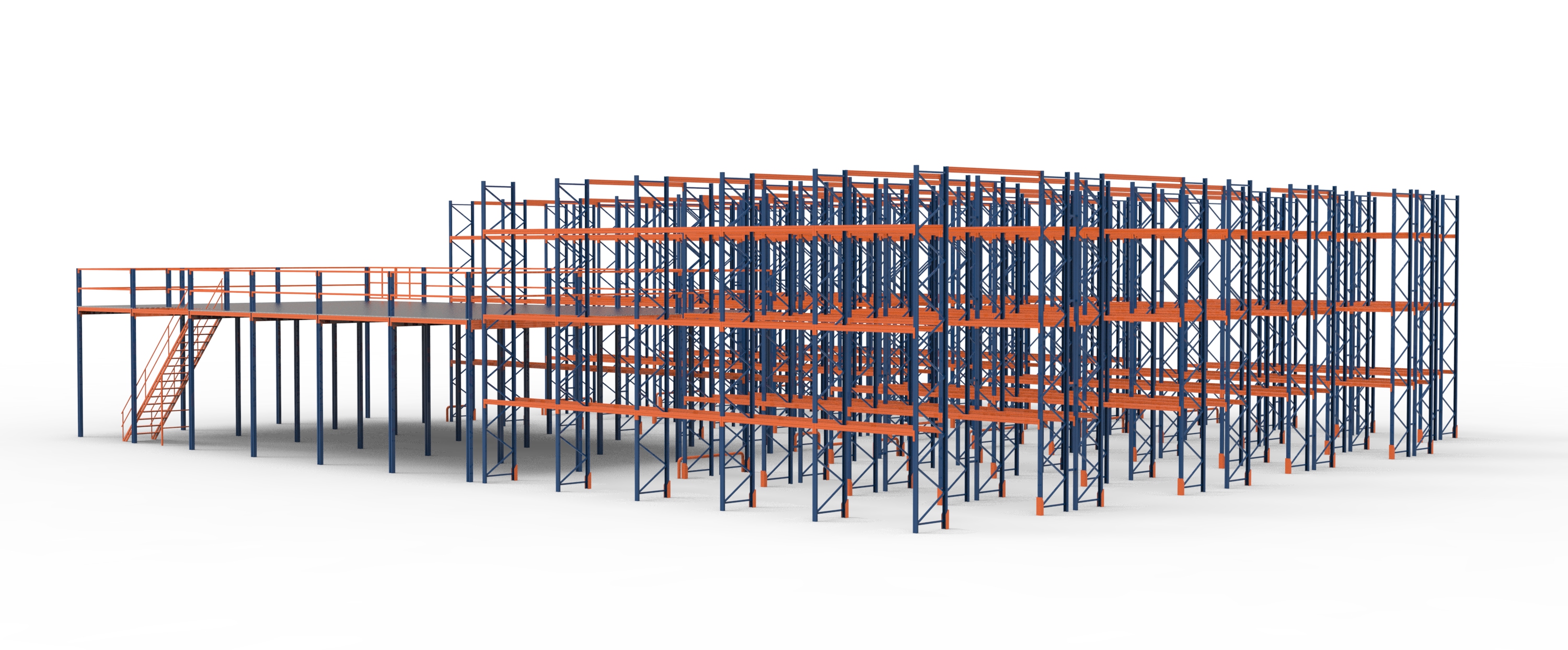

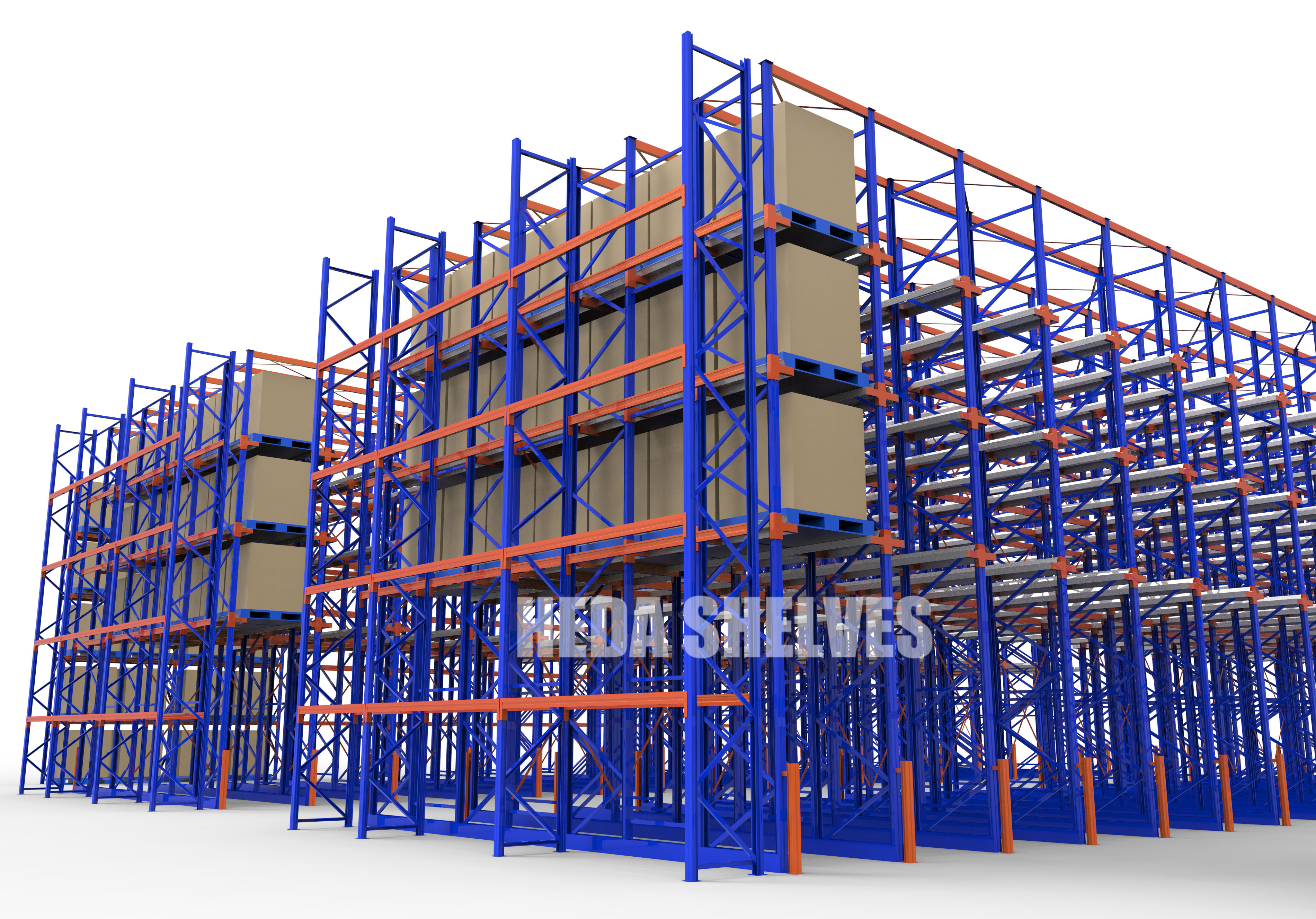

3D Drawing & Floor Plan Design

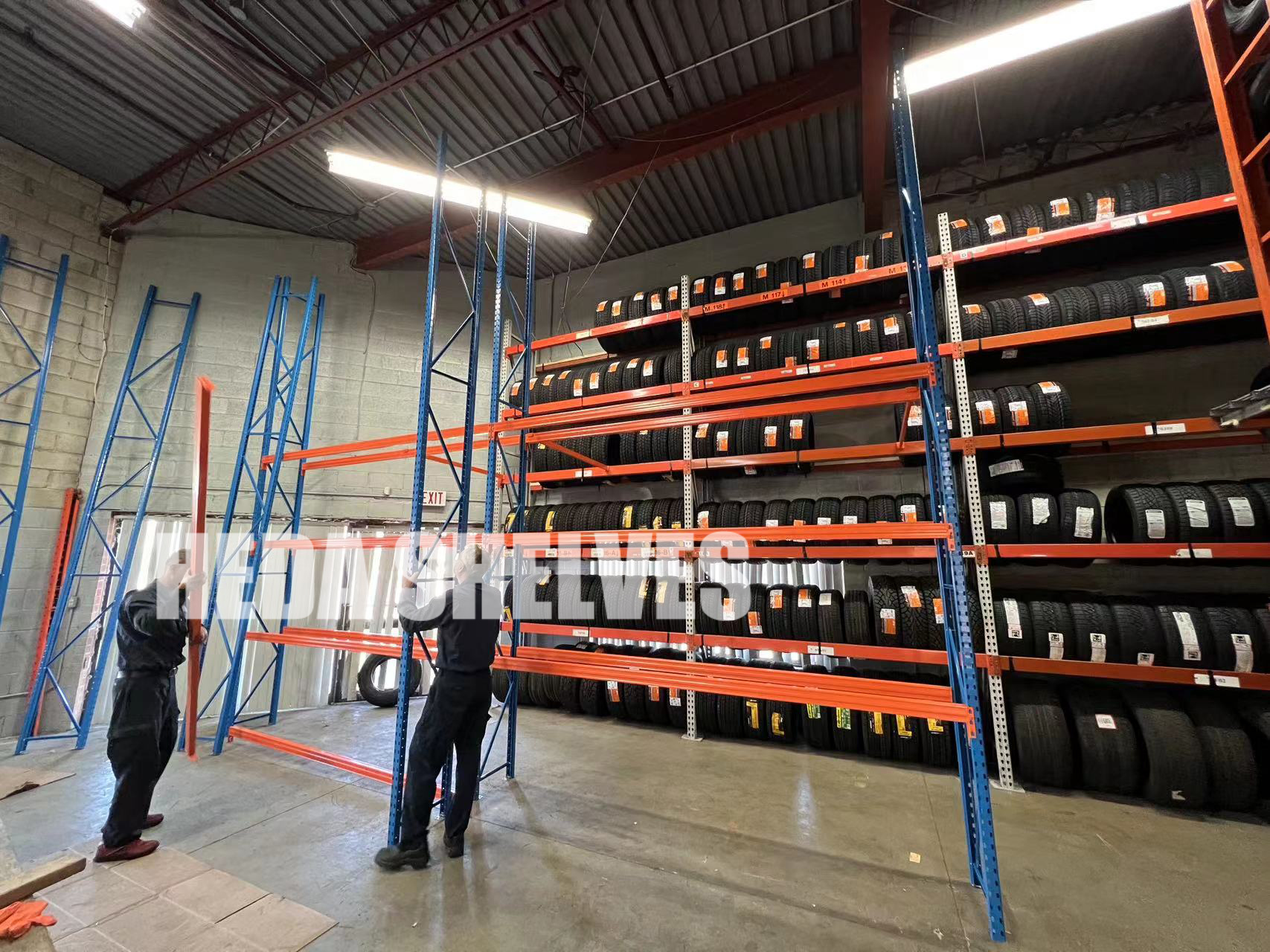

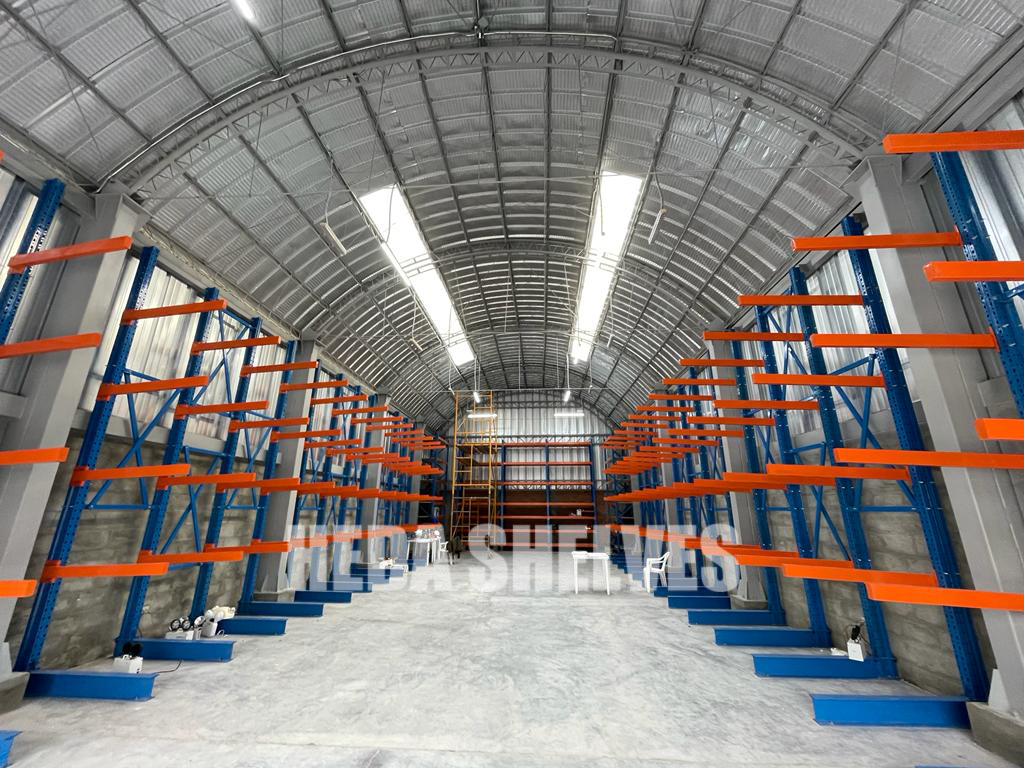

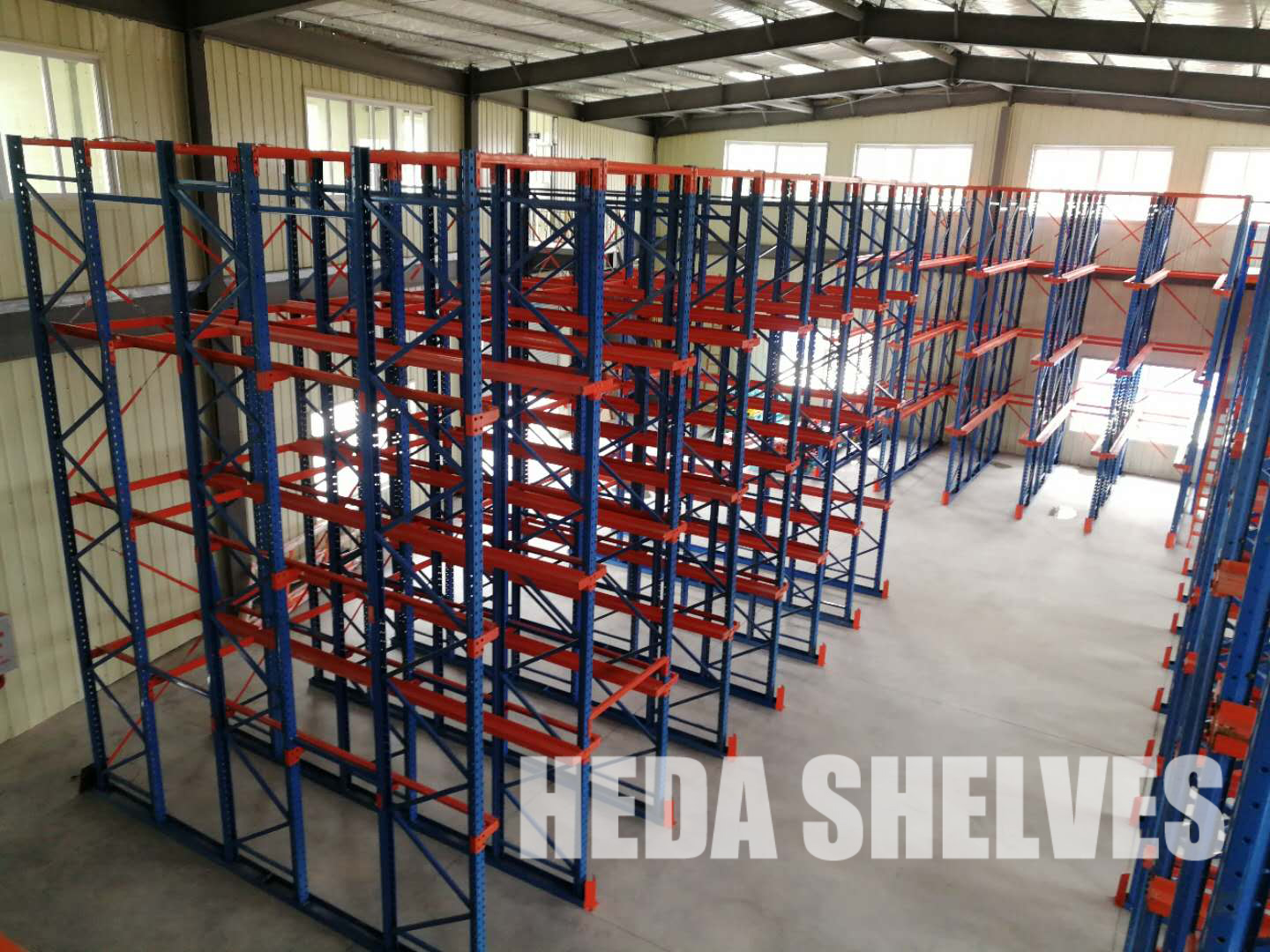

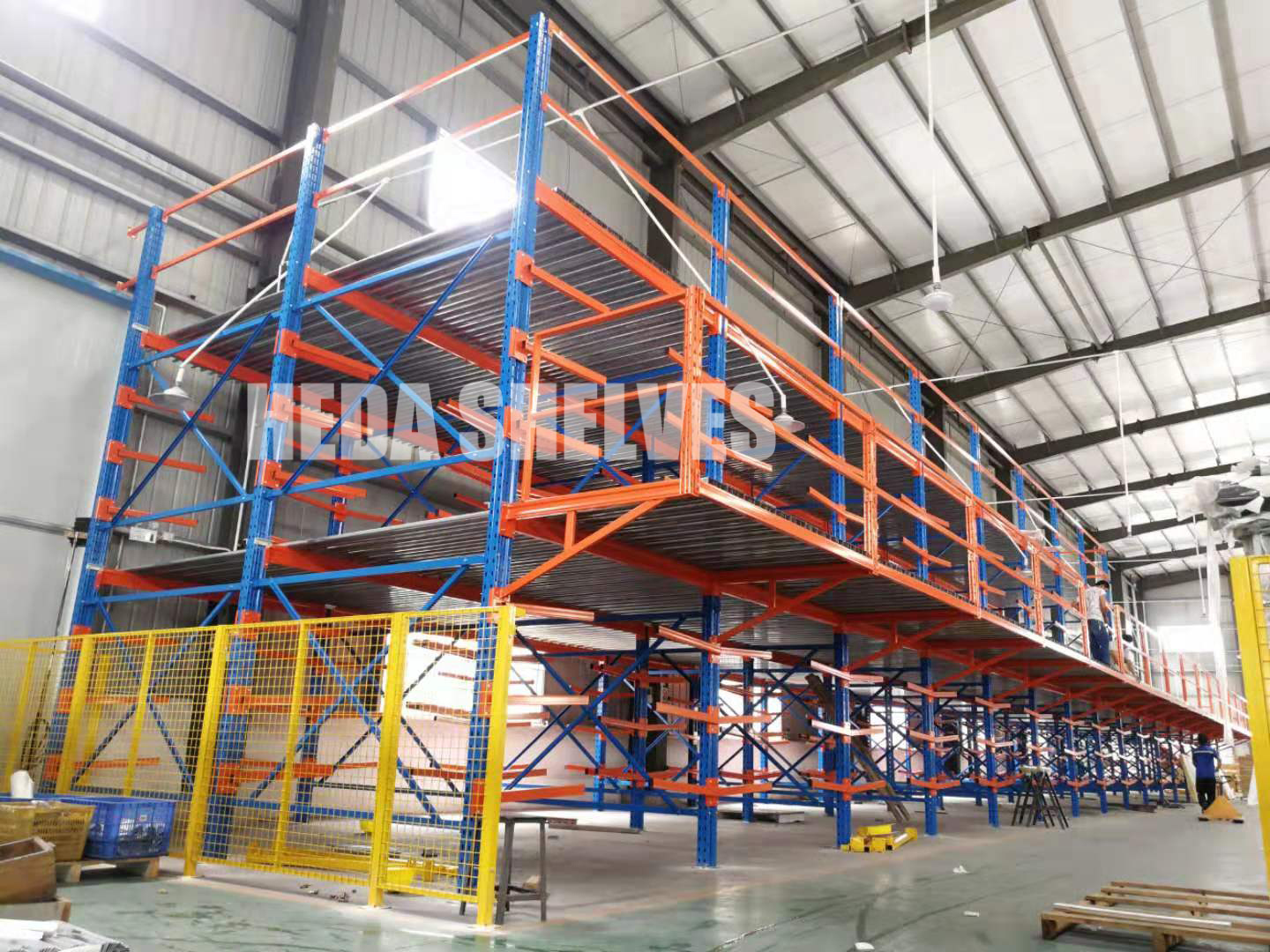

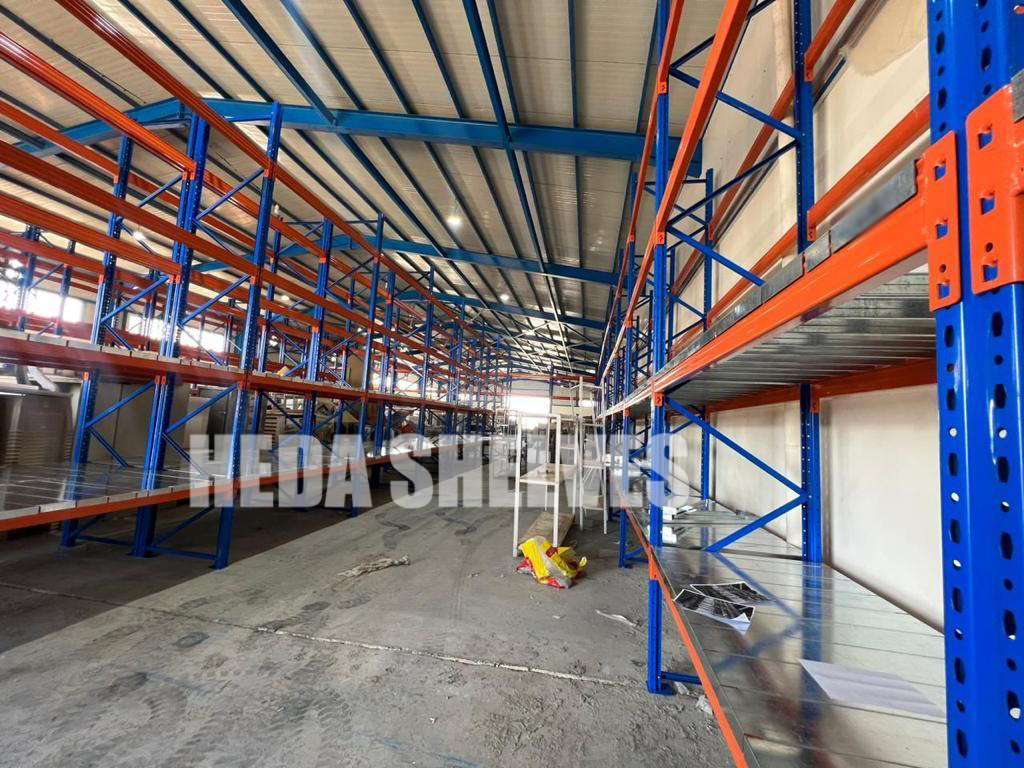

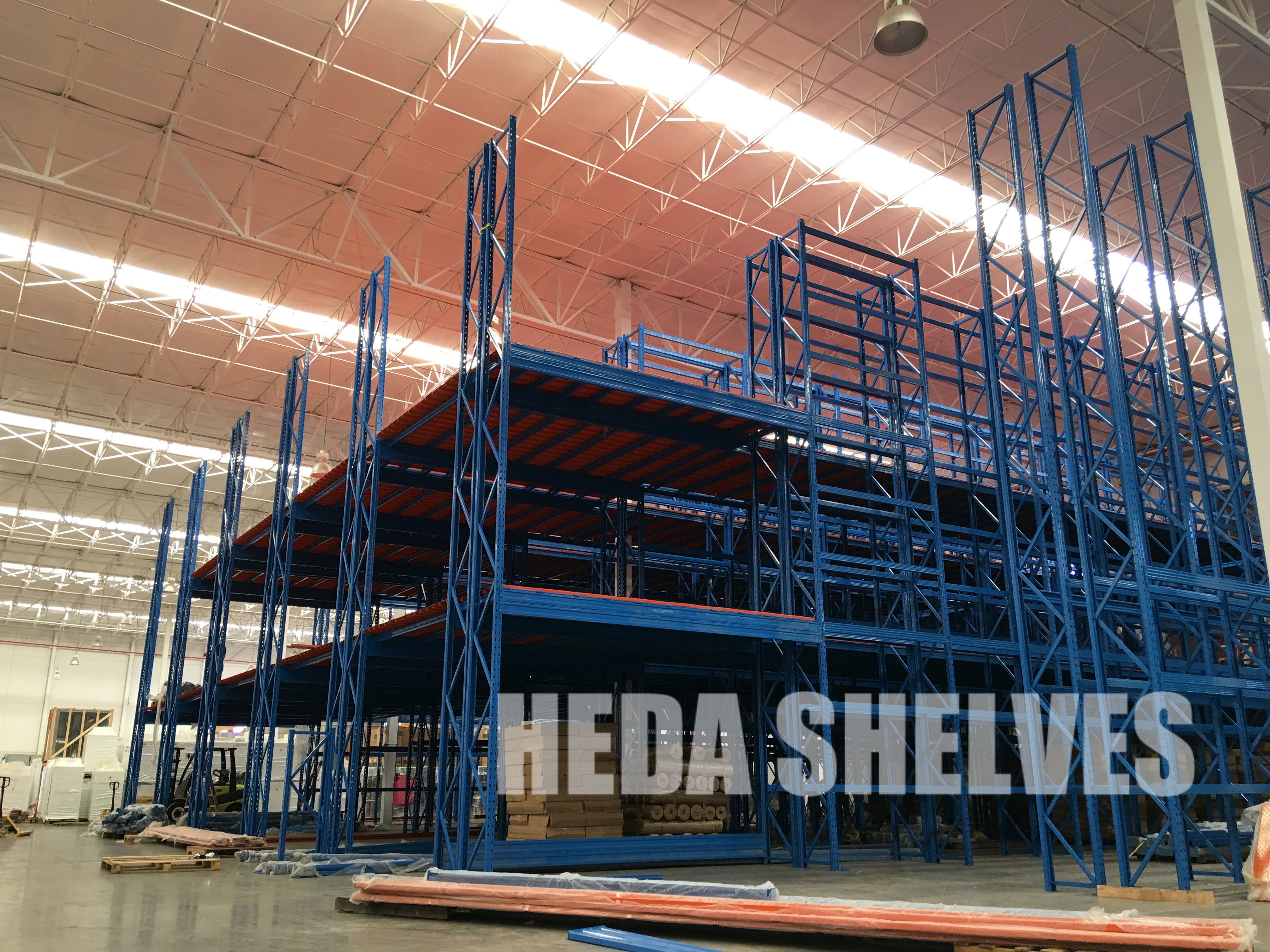

Successful Cooperation Cases

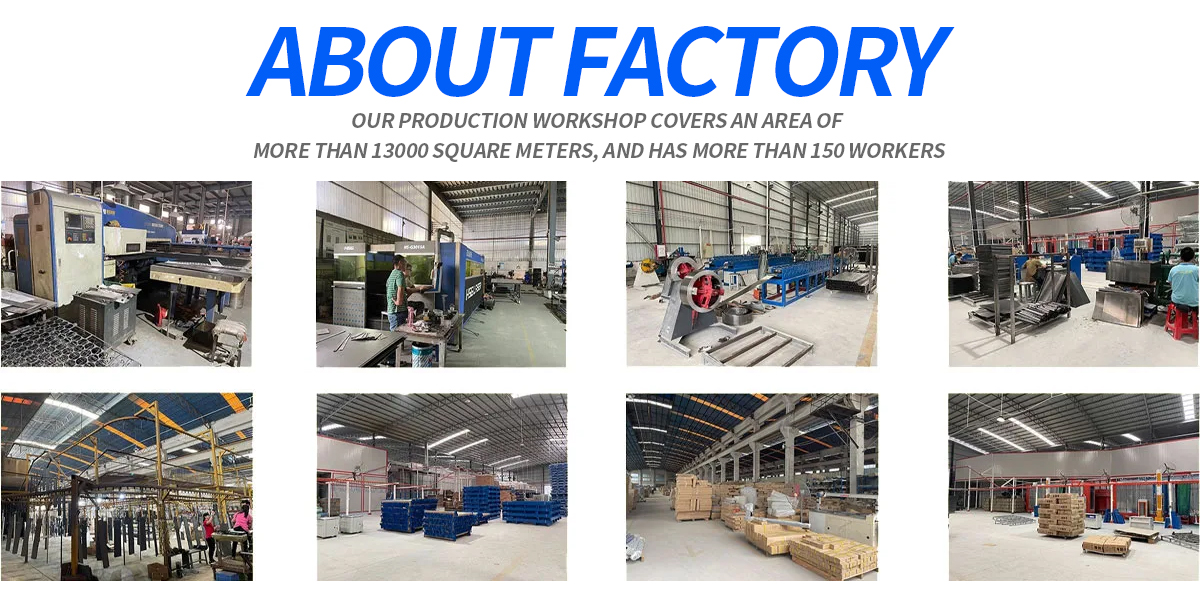

Our Factory
About HEDA Company
Guangzhou Heda Warehouse Equipment Co., Ltd. established in 2001 and located in Pazhou, is a trusted leader in the design, manufacturing, and installation of display stands, storage shelves, and supermarket equipment. With a factory spanning over 22,000 square meters and a skilled workforce of 120 employees, we deliver high-quality products at competitive prices to clients around the world.
Committed to excellence, we provide tailored warehouse storage solutions designed to optimize space and enhance efficiency for our customers. Guided by the principle of "Focused on Quality & Committed to Service," we aim to be your trusted global partner, delivering exceptional products and services to support your success.
OUR PRODUCTS
( All products can be customized )
- 🏭 Warehouse Racking & Equipment: Warehouse pallet racking, light medium racking, heavy duty racking, mezzanine floor racking systems and storage pallet racking in warehouses/workplaces, including: cantilever racking systems, drive-in racking systems, wide span shelving, pallets flow rack, carton flow rack, etc.
- 🛒 Supermarket Fixtures: Supermarket shelves, store fixtures and equipment (supermarket gondola shelves, heavy duty gondola shelves, shopping carts, promotional carts, shopping baskets and cashier counters and other supermarket store equipment).
- 🔧 Display Stands: Hardware tool display stand, customized metal product display stand, etc. Our products are very popular in Southeast Asia, Japan, America, Canada, Australia and Europe. Over 40% of our annual orders come from repeat customers.
Our development relies on your active participation and we will make every effort for further development. With your support, we will move forward and further be the perfect shelving manufacturer and your best business partner!

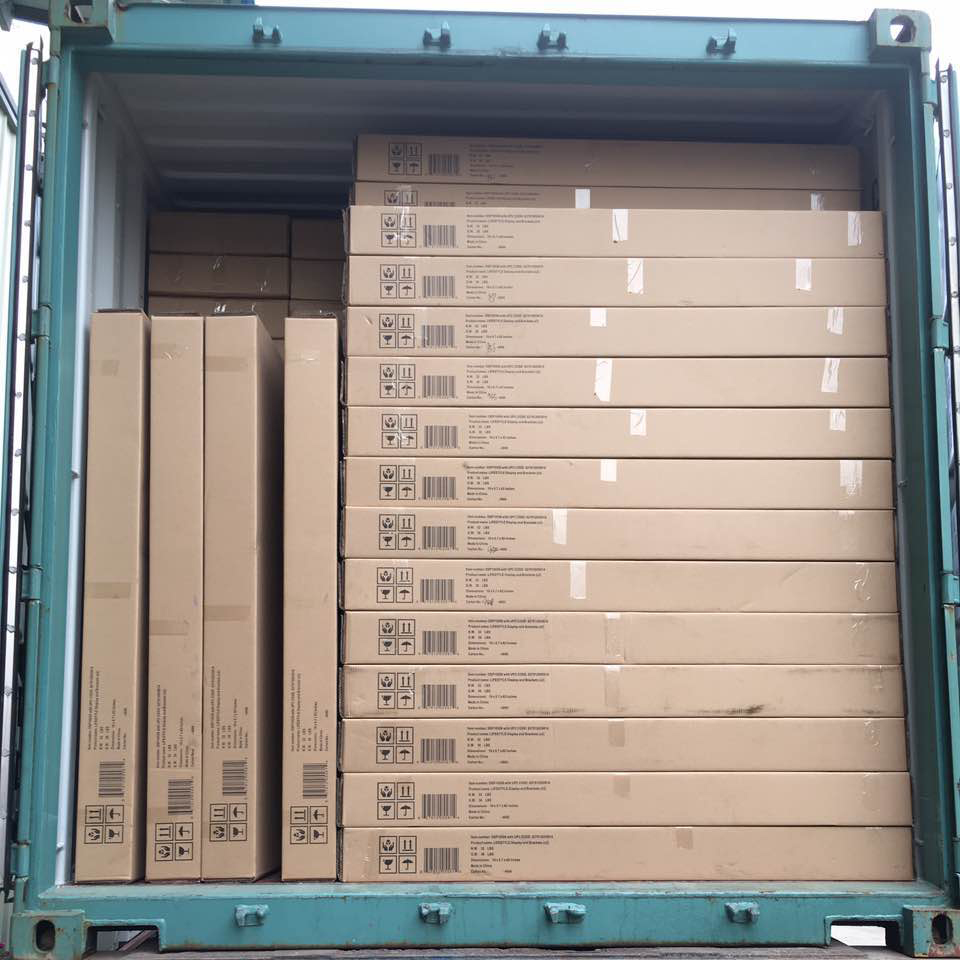

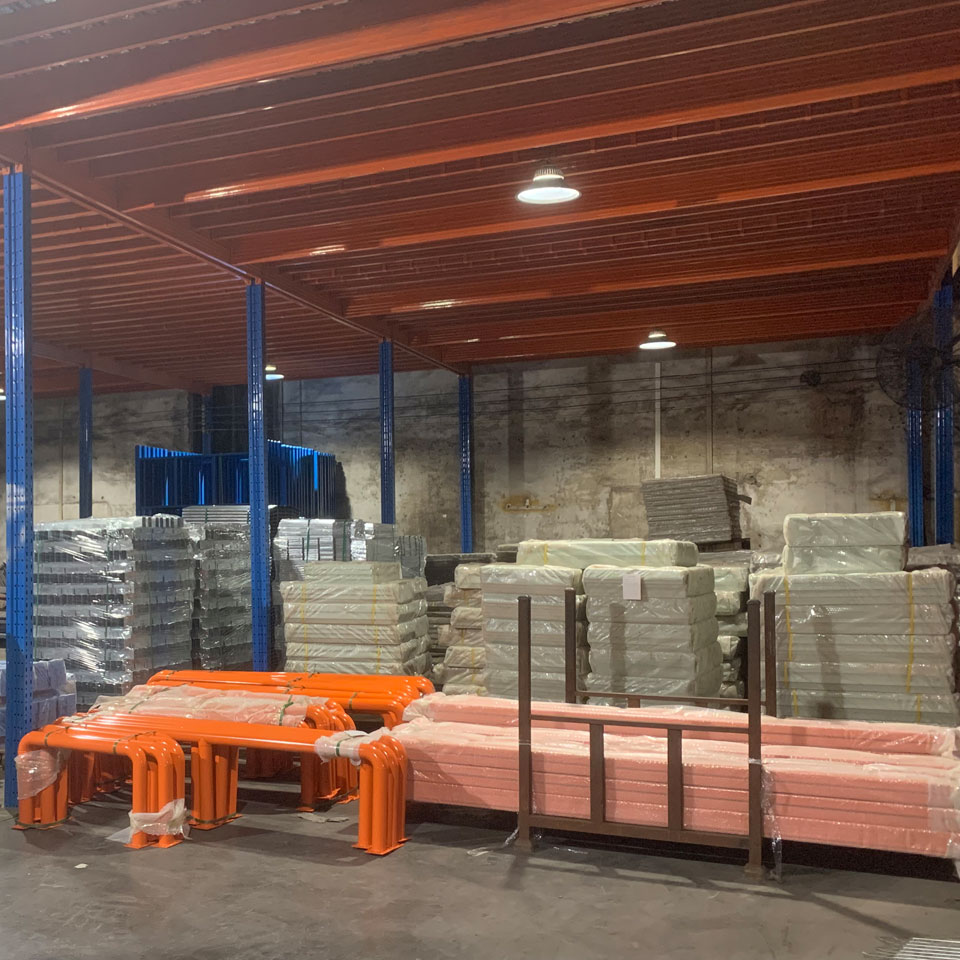

Packing & Delivery
Frequently Asked Questions
We are a manufacturer. Our factory has been specializing in supermarket shelves, warehouse racks, and different kinds of display stands since 2001.
Our factory is located in Foshan, Guangdong. You are warmly welcome to visit whenever you are available.
In general, delivery takes place within 15 days, depending on order volume and shelving design. Payment terms: 30% deposit upon signing the PI, with the balance cleared by T/T before delivery.
Yes, we have rich experience customizing shelves per customer requirements. Samples are available anytime; sample fees are charged and refunded on your subsequent order.
Detailed installation instructions are provided for every unit, and engineers can assist if needed. Products are flat-packed with air bubble film in standard export cartons, with optional wooden boxes.

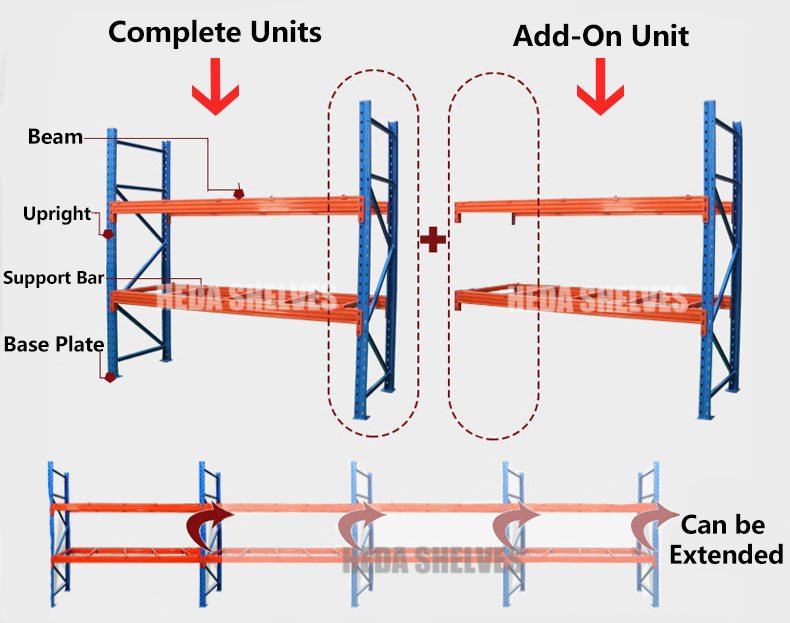

A main rack is a starter unit with 2 uprights, while an add-on rack continues the system using only 1 upright. For instance, a continuous run of 15 wall units consists of 1 main rack and 14 add-on racks.
