Pallet Multilevel Racking Heavy Duty Warehouse Storage Shelf System Warehouse Stacking Pallet Rack
Product Description
| Item | value | Product name | Heavy Duty Warehouse Shelves Racks |
| Place of Origin | China, Shandong | Usage | Warehouse Storage |
| Brand Name | NESRACK | Color | blue, Orange |
| Type | Selective Pallet Rack | Application | goods storage |
| Material | Steel | Surface treatment | Powder Coating |
| Feature | Corrosion Protection | Size | Customer Size |
| Use | Warehouse Rack | Packing | customize |
| Weight Capacity | 2000-5000kg/layer | Certification | ISO9001/CE |
| Width | 60/80 cm or customize | Structure | Assembled |
| Height | max12000mm | OEM&ODM | OEM&ODM |

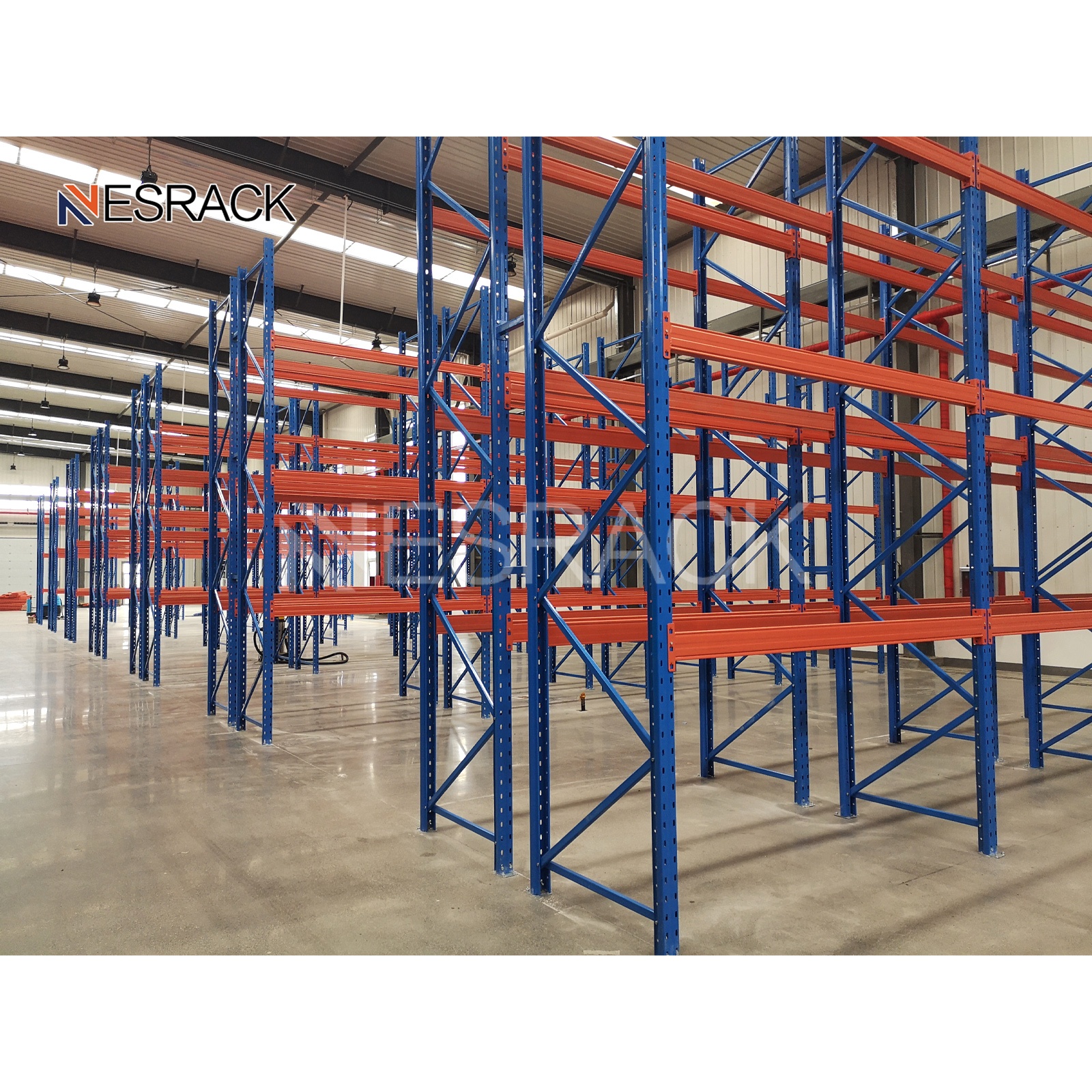

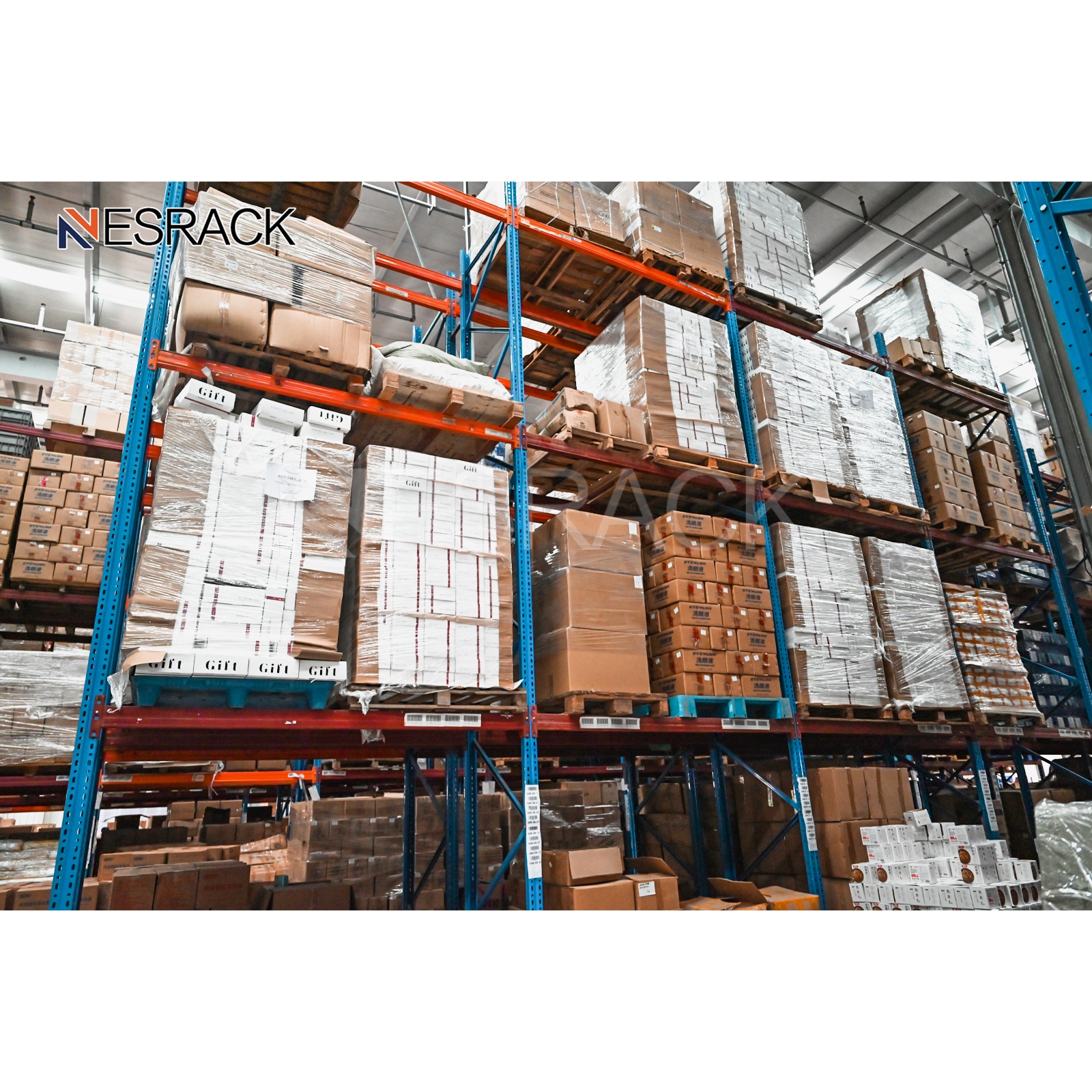

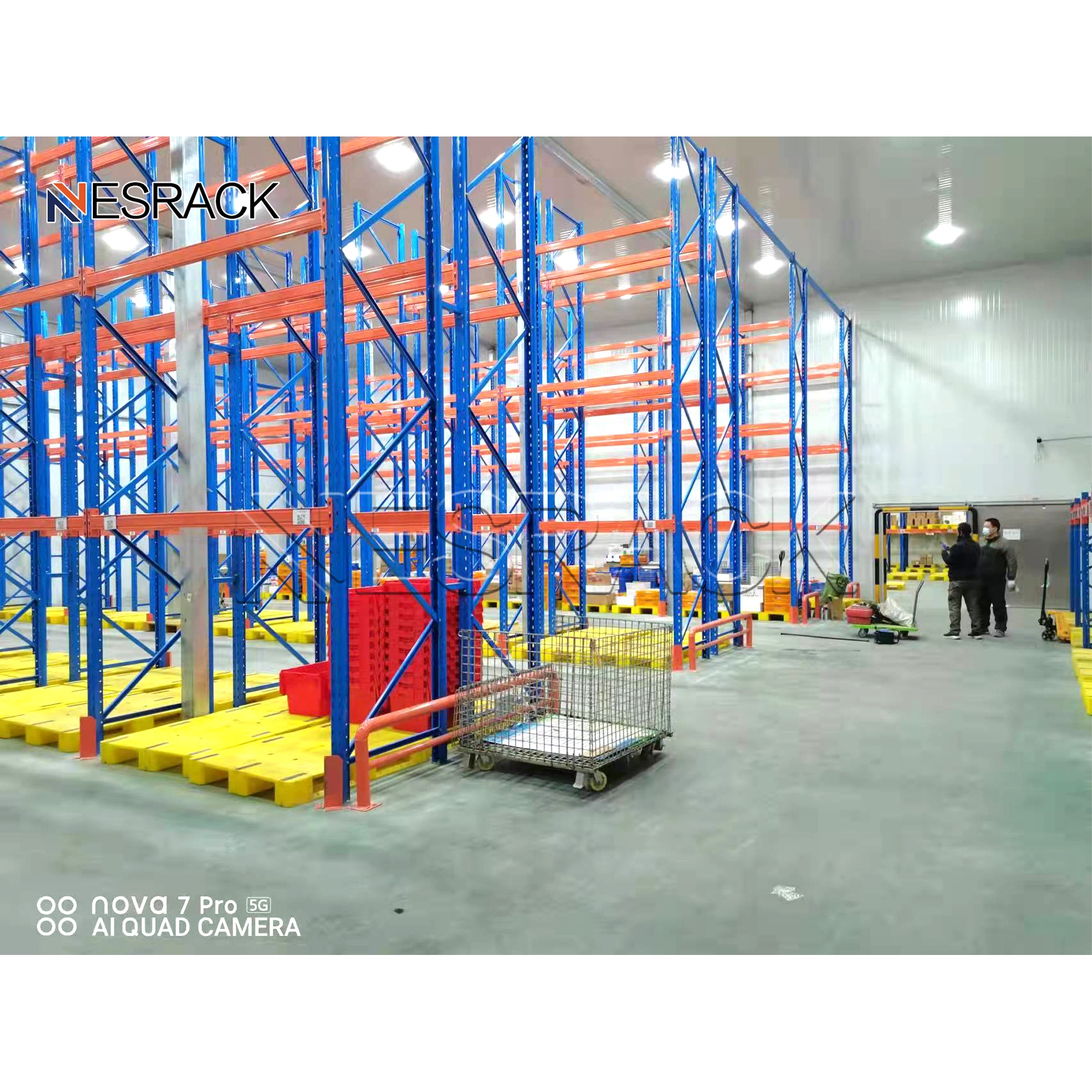

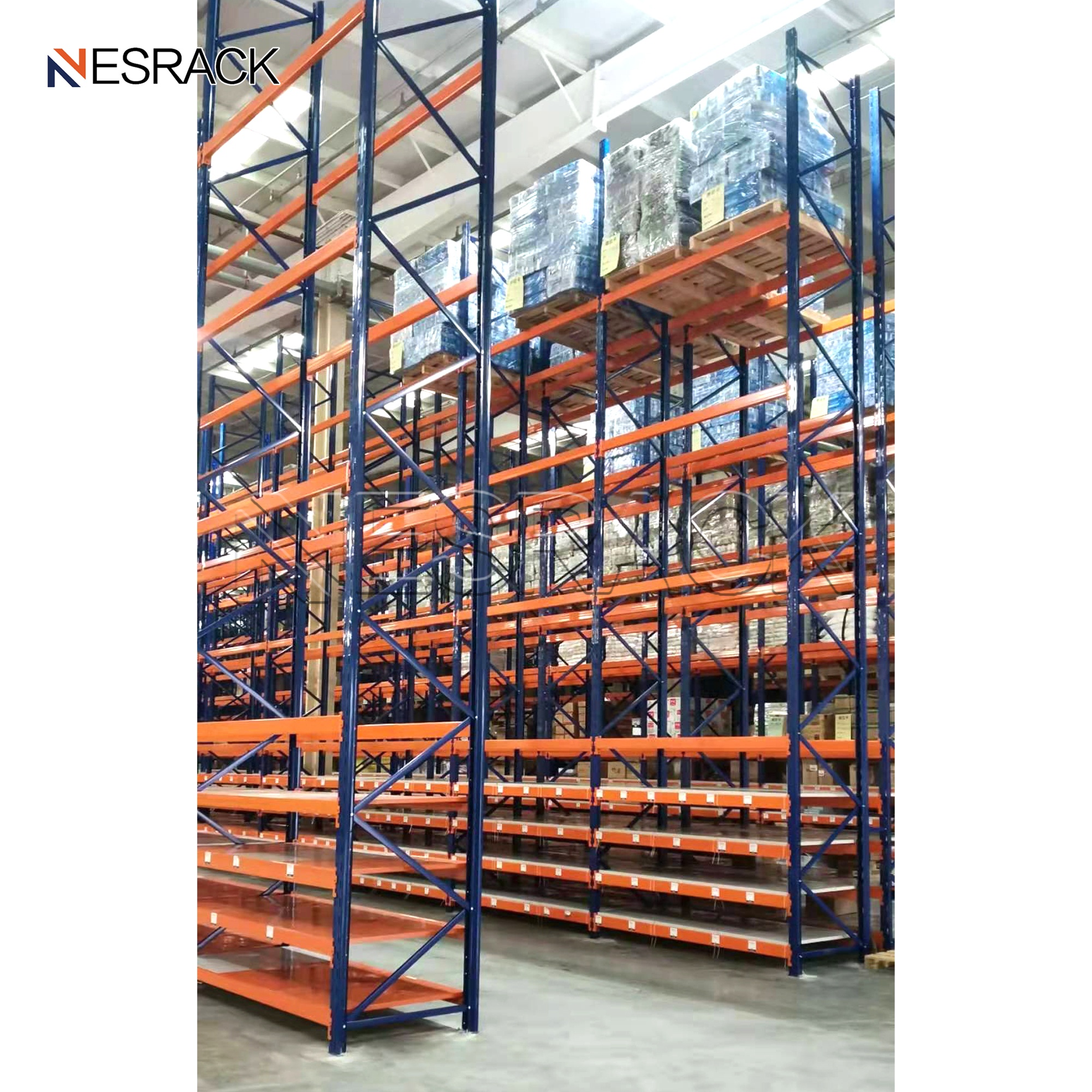

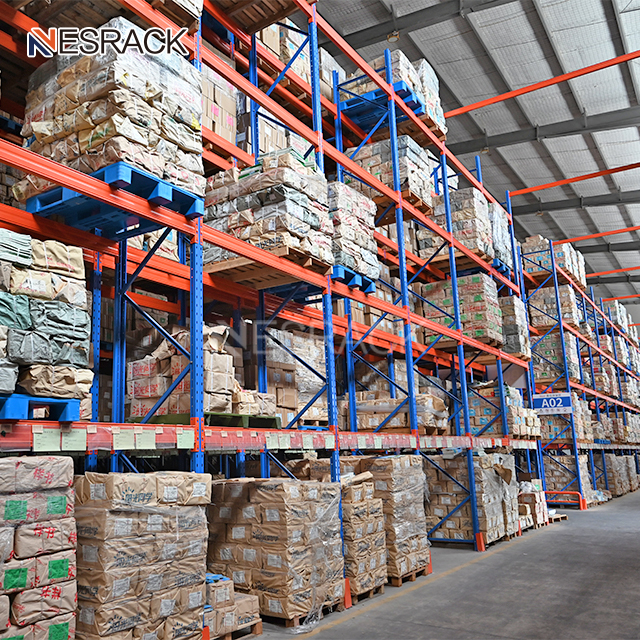

Pallet Racking
Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames and beams. It is designed for optimizing storage of goods of all sizes and weights. With a wide range of components and accessories, NESRACK can tailor-make to meet your precise requirements. And our structure is versatile for any application and conditions. Easy to install and dismantle.
Column specification and bearing capacity
- 01 Easy installation and reasonable structure.
- 02 High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
- 03 Fix the columns and beams to prevent the beams from falling due to improper operation.
- 04 Increase the shelf load and adapt to more types of pallets.
| Column height | 3 layers beam | 4 layers beam | 5 layers beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Frame: The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screw.
Components: Upright, H-bracing and D-bracing, Base plates.
Beam: The longest beam can be 4.5m, and the max loading capacity can be 4000kg/per level, other specifications please contact us for details.
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With the 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry.
Today, NELSON has been one of the producers of quality pallet racking and other racking equipments, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, light duty shelving.
NELSON Racking is located in Chinese beautiful city jinan. As a global supplier in the heavy duty, medium duty, light duty racking equipment and related accessories, NELSON Racking is to create added value for customers around the world.
Standard export packaging
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that I can quote the most cost-effective option.
