High-Efficiency Flow & Heavy-Duty Racking Systems
Manufactured from premium Q235B and Q355B certified structural steel, each dynamic roller and high-density system delivers continuous pallet movement, zero floor congestion, and uncompromised structural stability.
Heavy Duty Industrial Storage Warehouse Racks Pallet Racking Systems Attic Loft Mezzanine Floor Platforms
Multi-tier structural mezzanines and integrated heavy racks that double vertical cubic capacity for high-density logistics facilities.
Ebb And Flow Vertical Rack Pallet Flow Racking Track Customized Gravity Carton Flow Racking System
Dual-purpose roller track mechanisms supporting both full pallet gravity flow and modular carton live storage lanes.
Factory Custom FIFO High Efficient Warehouse Storage Gravity Pallet Flow Racks Roller Rack/Pallet Flow Racking
Full-width zinc-plated roller tracks fitted with dynamic speed controllers and pallet separators for deep-lane FIFO rotation.
Wholesale Customized Q235B Steel Selective Warehouse Storage Gravity Carton Flow Racking Roller Rack Stacking Racks Shelves
Engineered Q235B cold-rolled steel live storage framing designed for split-case fulfillment and high-turnover order-picking operations.
Warehouse Flow Through Sliding Wheel Pipe Roller Track Pallet Racking
Heavy-duty sliding wheel tracks and drop-in gravity beds for effortless retrofit into standard structural selective racking frames.
Heavy Duty 4 Way Shuttle Racking System Steel Radio Shuttle Pallet Rack High Density Automated Warehouse Storage Manufacturer
Semi-automated radio shuttle platform providing extreme lane depth, low-temperature freezer compliance, and rapid vehicle transfer.

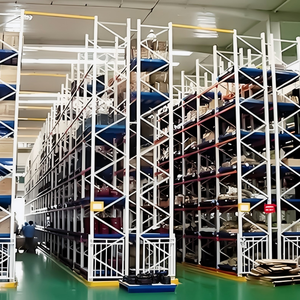

Space Saving Narrow Aisle Storage Racks VNA Racking System For Ecommerce Fulfillment Warehouses Offering Quick Installation
Ultra-narrow aisle configurations maximizing lift heights up to 16 meters for high-throughput European cross-border e-commerce hubs.
Automatic Spring Loaded Slow Motion Adjustable Multi-functional Pusher Rack for Beverage Snacks Retail Heavy Duty
Spring-actuated automated pusher racks for beverage, FMCG, and fast-moving retail stock, ensuring continuous front-facing pick presentation.
Physics, Design Criteria & Dynamic Architecture of Pallet Flow Racking
Pallet Flow (Gravity Flow) racking operates on controlled gravitational potential energy. Replacing static aisles with dynamic flow lanes demands meticulous kinematic calculations, hydraulic dampening calibration, and compliance with strict European warehouse safety directives.
1. Kinetic Gradient & Incline Physics
The standard operational gradient is calibrated between 3.2% and 4.0% (1.8° to 2.3°). This precise slope ensures reliable self-starting gravitational rolling friction for standard EPAL (800x1200mm) and industrial pallets (1000x1200mm) weighing from 250 kg up to 1,500 kg, without runaway velocity.
- Overcomes static pallet-bed indentation inertia
- Maintains smooth flow in cold stores down to -30°C
- Adjustable slope brackets allow fine-tuning on site
2. Centrifugal Speed Controllers
To eliminate kinetic collision forces in deep lanes (up to 20 pallets deep), internally geared centrifugal brake rollers are installed at one-pallet intervals. These dynamic dampers govern downhill terminal velocity to a safe maximum of 0.25 to 0.30 m/s.
- Speed-proportional resistance profile
- Zero electrical power requirement (100% mechanical)
- Hermetically sealed, maintenance-free roller bearings
3. Pallet Separators & Safety Stops
Discharge face pressure accumulation (back-pressure from uphill trailing pallets) can exceed thousands of kilograms. HEDA incorporates mechanical time-delay separation triggers that mechanically isolate the first pallet from succeeding loads until extraction is complete.
- Protects forklift masts and personnel from back-pressure
- Eliminates packaging crush damage on leading inventory
- Heavy-duty reinforced end stops absorb resting momentum
Luxembourg Warehouse Dynamics & High-Density Flow Integration
Positioned as the multimodal epicenter of Western Europe, the Grand Duchy of Luxembourg represents one of the continent's most land-constrained, high-value logistics environments. Pallet flow racking solves critical regional operational pain points.
1. Bettembourg Multimodal Optimization
Warehouses situated within the Bettembourg-Dudelange intermodal dry port and CFL terminal handle rapid sea-rail-road transshipments. Space costs per square meter in southern Luxembourg rank among the highest in Europe. Gravity flow systems expand volumetric efficiency by up to 60% over conventional selective racks, turning costly square meters into hyper-dense cubic storage.
2. Cold Chain & GDP Pharma Storage
Luxembourg is a premier air-cargo pharmaceutical hub with Cargolux and the Luxembourg High-Performance Computing (HPC) bio-logistics cluster. Temperature-controlled warehouses (-25°C to +4°C) around Findel and Contern face extreme refrigeration energy expenses. Pallet flow condenses cold-room air volume requirements by eliminating wasted service aisles, reducing energy consumption per pallet position by 35%.
3. Automated Cross-Docking & True FIFO
Distribution centers serving the Greater Region (Luxembourg, Lorraine, Saarland, Wallonia) demand strict First-In, First-Out (FIFO) discipline for perishables, FMCG, and automotive aftermarket components. Pallet flow completely physically separates loading from picking aisles, eliminating forklift cross-traffic accidents and aligning with the rigorous safety standards of Luxembourg's Inspection du Travail et des Mines (ITM).
Local Development Trend: The Shift from Horizontal Expansion to Dynamic Cubic Velocity
With industrial zoning limits strictly controlled by Luxembourg's Ministry of Housing and Spatial Planning (Ministère du Logement et de l'Aménagement du territoire), greenfield logistics developments in areas like Wiltz, Lentzweiler, and Roost are tightly capped. Logistics directors and 3PL supply chain architects are systematically replacing low-density selective and drive-in racking with Pallet Flow and semi-automated Gravity Roller beds.
Furthermore, high hourly labor compensation rates in Luxembourg necessitate streamlined material handling. By reducing forklift travel distances by up to 50% through single-face induction and extraction, pallet flow systems achieve payback periods (ROI) typically between 14 and 22 months under Grand Duchy operating parameters.
High-Density Pallet Storage Systems: Comparative Technical Matrix
Selecting the optimal racking topology requires balancing storage density, selectivity, pallet rotation mechanics, and initial capital expenditure. Review our engineering benchmark below.
| Storage Topology | Stock Rotation | Volumetric Density | Floor Footprint Efficiency | Loading / Unloading Aisles | Risk of Forklift Impact | Optimal Application Fit |
|---|---|---|---|---|---|---|
| Pallet Flow (Gravity) | Strict FIFO | 90% - 95% | Exceptional (No internal aisles) | 2 (Dedicated Load / Pick) | Extremely Low (Outside rack) | Perishables, Pharma, High-throughput FMCG |
| Drive-In Racking | Strict LIFO | 75% - 85% | High (Lanes replace aisles) | 1 (Shared entry/exit) | High (Trucks enter frame) | Seasonal goods, cold-store bulk buffer |
| Push-Back Racking | Strict LIFO | 70% - 80% | Moderate to High (2-6 deep) | 1 (Single frontal face) | Low (Outside rack entry) | Medium turnover, 2-6 pallets per SKU |
| Radio Shuttle System | FIFO or LIFO | 85% - 95% | Very High (Automated car) | 1 or 2 faces | Very Low (Robotic carriage) | Deep freezers, high-cube automated warehouses |
| Selective Pallet Racking | FIFO or LIFO | 40% - 50% | Low (Aisle per double row) | Multiple (100% access) | Moderate (High traffic lanes) | High SKU variety, low-density order picking |
Why Logistics Operators in Luxembourg Partner with HEDA Shelves
Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered turnkey industrial storage solutions. We bridge direct factory pricing with uncompromising European engineering standards, providing single-source accountability from initial static calculations to final on-site installation support.
European Norms & CE Marking
Fully compliant with EN 15512 (Steel static storage systems), CE Certification No. 2435-CPR-8605159, and ISO 9001:2015 quality management for structural integrity.
Free 24h CAD & 3D Engineering
Our senior structural team provides complete DWG CAD floorplans, 3D renderings, and beam load calculation dossiers within 24 hours of receiving site dimensions.
10-Stage Precision Production
From prime hot-rolled coil slitting to automated continuous roll-forming, chemical pickling, phosphating, and electrostatic powder coating baked at 180°C.
Turnkey European Delivery
Container-optimized bundle strapping delivered directly to Antwerp or Rotterdam ports, with direct road and rail forwarding to Bettembourg, Mertert, or Luxembourg City.
Frequently Asked Questions by Warehouse Planners in Luxembourg
Straightforward answers regarding structural compliance, pallet compatibility, delivery logistics, and safety authorizations in the Grand Duchy.
Are HEDA Pallet Flow Racks compliant with Luxembourg ITM regulations and EN standards?
Yes. All racking systems designed and fabricated by HEDA Shelves comply with European Standard EN 15512 (Racking Design Principles) and EN 15635 (Steel Static Storage Systems Operation and Maintenance). In Luxembourg, industrial warehousing must satisfy fire safety, egress, and workplace safety rules enforced by the Inspection du Travail et des Mines (ITM). We supply comprehensive structural calculation notes, certified steel origin sheets (S235JR/S355JR or Q235B/Q355B equivalent), and stamped shop drawings ready for review by your designated local engineer or certified inspection organism (such as Luxcontrol or TÜV Rheinland).
Can the roller lanes handle European standard EPAL pallets with damaged bottom runners?
Standard pallet flow beds rely on full-width steel or twin-flanged split rollers. While our roller lines are designed for standard EPAL 1 (800 x 1200 mm) and EPAL 2/3 (1000 x 1200 mm) wood pallets, severe runner deflection or fractured bottom boards can cause lane jamming. For operations handling mixed-grade or secondary-market pallets, we recommend our triple-track full-width cylindrical roller profile or heavy-duty slave pallet trays. Furthermore, our systems feature reinforced entry funnels and entry lead-in rollers that guide skewed pallets into clean dynamic alignment.
How does HEDA handle shipping, customs clearance, and delivery to Luxembourg?
We routinely manage export shipments in 40ft High Cube (HC) ocean containers loaded directly at our factory campus. Goods arrive through key Northern Range seaports—predominantly Antwerp (Belgium) or Rotterdam (Netherlands). From the port, containers are transported via road or via the direct intermodal rail corridor directly to the Bettembourg dry port terminal. We support FOB, CIF, or full DDP delivery terms. All shipments include detailed packing lists with numbered bundles, color-coded upright assemblies, and installation step-by-step schematics.
What is the maximum lane depth possible in a gravity pallet flow system?
Pallet flow lanes can theoretically extend up to 20 to 25 pallets deep. However, for lanes deeper than 10 pallets, engineering criticalities arise regarding accumulated kinetic pressure and brake roller frequency. For configurations beyond 12 pallets, HEDA integrates dual-stage dynamic brake rollers and automated pneumatic or mechanical pallet disconnectors. If your Luxembourg facility requires lane depths of 25 to 40 pallets (typical in deep cold stores), we advise evaluating our 4-Way Radio Shuttle Racking System to eliminate slope-based vertical headroom loss.
Can the system operate reliably in cold chain and sub-zero deep freezer facilities?
Absolutely. HEDA engineers dynamic pallet flow components specifically for controlled cold environments down to -30°C. For freezer applications, we specify low-temperature synthetic lubricants inside the centrifugal brake mechanisms, zinc-electroplated roller shafts, stainless steel internal circlips, and anti-icing polyurethane entry wheels. This guarantees continuous rotation without roller seizure caused by ambient condensation or frost crystallization.
What data is required from our engineering team to generate a free layout and quotation?
To generate an exact 2D/3D layout and structural proposal within 24 hours, our engineering office requires:
1. Building architectural plan indicating clear ceiling height under beam/sprinkler, column grids, and dock door locations.
2. Pallet specifications: Width, depth, total height (including load overhang), and minimum/maximum loaded weights.
3. Material handling equipment (MHE) profile: Forklift reach height, chassis turning radius, and minimum operating aisle width (AST).
4. Target SKU rotation protocol and operating temperature range.
Engineer Your High-Density Logistics Facility in Luxembourg
Stop paying premium warehousing lease rates on empty aisle space. Connect directly with HEDA Shelves' technical engineering department to request your free 3D CAD layout, load capacity calculation, and landed cost quotation within 24 hours.
