Engineered Industrial Racking & Heavy-Duty Storage Solutions
Custom structural steel formulations, CNC roll-formed profiles, and strict dimensional tolerances built for distribution centers, manufacturing plants, cold rooms, and third-party logistics (3PL) hubs.
Heavy Duty Tier
4-Level Heavy Duty Pallet Storage Rack System
Multi-Tier Mezzanine

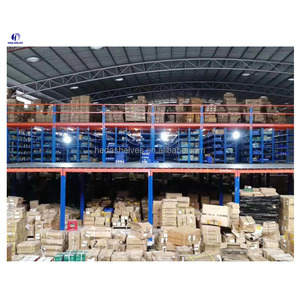

Industrial Multi-Tier Steel Mezzanine Floor System
Cold Chain Ready

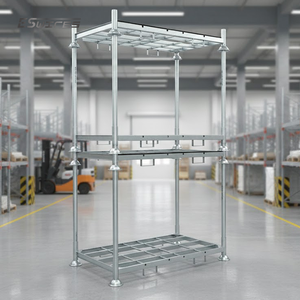

Heavy Duty Post Pallet Rack for Cold Storage
19-Inch Enclosure
Lockable 19-Inch Cold Rolled Steel Server Rack Cabinet
Dynamic FIFO Flow

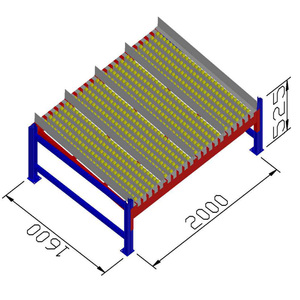

Flow-Through Roller Track Pallet Racking System
Sanitary Grade

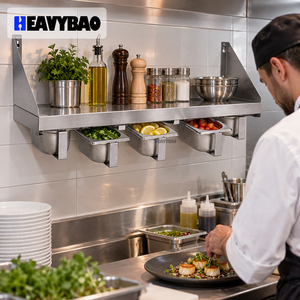

Sanitary Stainless Steel Wall-Mount Storage Shelving
Custom CAD Design

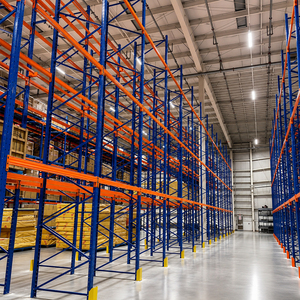

Custom Heavy Duty Q235B Steel Pallet Racking
Rapid Assembly

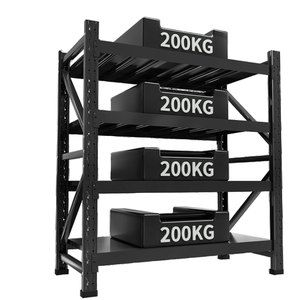

250KG Adjustable Boltless Longspan Steel Shelving
Warehouse Racking Comparative Engineering Matrix
Evaluate load deflection thresholds, footprint density ratings, inventory rotation profiles, and capital expenditure vectors across primary racking typologies to optimize operational throughput.
| Racking Architecture | Pallet Selectivity | Floor Space Utilization | Inventory Rotation | Typical Beam Deflection | Ideal Procurement Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Direct Access | 35% – 45% (Aisle Intensive) | FIFO or LIFO | ≤ L/200 (EN 15512) | High SKU variety, rapid retail e-commerce, general distribution hubs. |
| Drive-In / Drive-Through | Low (Per Lane Retrieval) | 65% – 85% (High Density) | Strict LIFO (Drive-In) / FIFO | ≤ L/200 Under Rated UDL | Homogeneous bulk goods, seasonal reserves, cold storage and freezer vaults. |
| Radio Shuttle Automation | Semi-Automated Deep Lane | 75% – 88% (Ultra High) | Configurable FIFO & LIFO | ≤ L/250 Tight Clearance | Cold storage logistics, high-volume production buffers, automated buffering. |
| Gravity Pallet Flow | 100% at Designated Pick Face | 60% – 75% (Continuous Lane) | Strict FIFO Enforced | ≤ L/200 Dynamic Rails | Perishable food & beverage, pharmaceutical expiry date management. |
| Rack-Supported Mezzanine | Multi-Level Dedicated Access | Up to 200% Floor Multiplier | Zone Picking / Piece Picking | ≤ L/300 Floor Framing | Small parts picking, automotive aftermarket, apparel assembly operations. |
| Heavy-Duty Cantilever | 100% Unobstructed Column Face | 50% – 60% Linear Span | Direct Batch Retrieval | ≤ L/180 Arm Tip Deflection | Lumber yards, steel pipes, long extruded bar stock, building supplies. |
Future Procurement Trends in Industrial Storage Solutions
Strategic supply chain leaders are shifting procurement focus from initial capital costs to lifetime total cost of ownership (TCO), seismic resilience, and automated material compatibility.
Total Cost of Ownership (TCO) & Life Cycle Costing
Purchasing directors are moving beyond rudimentary price-per-pound quotes. Enterprise procurement teams prioritize long-term metallurgy, corrosion-resistant powder curing, and modularity that accommodates changing SKU profiles.
- Fatigue-Resilient Materials: Evaluation of certified Q235B vs. Q355B cold-rolled profiles with documented yield stresses.
- Modular Upright Pitch: 50mm and 75mm beam adjustment configurations avoiding system decommissioning during line changes.
- Damage Resistance: Inclusion of structural steel post protectors and heavy wrap-around frame column guards as standardized procurement packages.
Direct Factory Sourcing & Landed Cost Engineering
Disintermediation is accelerating across North American and European logistics networks. Tier-1 warehouse managers are bypassing regional markups to contract directly with primary manufacturing facilities.
- Container Space Optimization: Factory nesting drawings designed for high-cube 40HC shipping containers, cutting ocean freight costs by up to 28%.
- Imperial/Metric Engineering Dualism: Fabrication drawings provided simultaneously in imperial (lbs/ft) and metric (kg/mm) for local regulatory permitting.
- Vendor Verification Audits: Verification of mill test certificates (MTCs), third-party weld testing, and environmental compliance documentation prior to bill-of-lading release.
Seismic Certification & Jurisdiction Permitting
With municipal building authorities enforcing stringent structural fire-life-safety codes, racking procurement specifications require complete engineered calculation packages certified by registered structural engineers.
- Seismic Ductility Analysis: Moment-resisting frame calculations accommodating International Building Code (IBC) and ASCE 7 seismic zones.
- Anchor Bolt Tension Verifications: Expansion anchor and adhesive epoxy anchor shear calculations validated for site-specific slab concrete ratings.
- Pre-Permit Stamped Packages: Detailed engineering submittals detailing flue spaces, ESFR sprinkler clearance, and egress pathway compliance.
Industry & Technological Development Trends in Warehouse Racking
Modern storage facilities are shifting from passive steel racks to dynamic, sensor-enabled, automated intralogistics structures integrated with robotics and predictive warehouse systems.
AMR & AS/RS Hybrid Racking Infrastructure
Racking structures are now purpose-engineered as guiding infrastructure for autonomous mobile robots (AMRs), automated storage and retrieval systems (AS/RS), and automated guided vehicles (AGVs).
- Millimeter Floor Tolerances: Integration of precision-ground steel rail tracks within rack upright lanes allowing robotic shuttle navigation.
- High-Bay Clad-Rack Systems: Racking serves as the structural frame of the entire building, eliminating independent structural columns and maximizing volumetric cube utilization.
- Integrated Fleet Charging Bays: Sub-mezzanine docking stations integrated directly with facility power grids.
IoT Structural Health Telemetry & Impact Sensors
Sensors are modernizing rack maintenance by shifting preventative inspections from manual visual checklists to continuous, real-time telemetry monitoring.
- Collision-Shock Telemetry: Wireless accelerometer tags mounted to lower upright footplates that detect and log MHE (Material Handling Equipment) forklift collisions.
- Load Deflection Verification: Real-time strain sensors tracking beam deflection thresholds (≤ L/200) to protect against dangerous overloading.
- Predictive Maintenance Integration: Cloud-connected sensor feeds tied into enterprise WMS/ERP maintenance software for immediate safety lockouts.
Advanced Nanoceramic Pretreatment & Anti-Corrosion
Surface finishing technology has shifted from iron phosphate coatings to automated multi-stage nanoceramic zirconium pre-treatments, significantly boosting salt spray resistance.
- 1,000+ Hour Salt-Spray Endurance: Nanoceramic silane coatings exceeding ASTM B117 standards for coastal and unconditioned warehouse spaces.
- Sub-Zero Thermal Flexibility: Specialty thermoset polyester powders formulated without TGIC curing agents to prevent brittle cracking down to -30°C.
- Zero-VOC Sustainable Lines: Closed-loop water reclaim powder-coating processes minimizing environmental impact.
Enterprise Strengths & 10-Step Quality Controlled Production
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. delivers direct factory capabilities, in-house structural engineering, and end-to-end quality-controlled production.
ISO 9001:2015 & CE Certified
Certified Quality System (Cert. No. 18624Q00169R0M) and CE Marking (No. 2435-CPR-8605159) ensuring structural compliance with European EN 15512 and ANSI MH16.1 specifications.
323,000 sq ft Modern Campus
Sprawling 30,000 m² facility with 300+ skilled technical staff yielding over 30,000 metric tons of custom roll-formed structural and cold-rolled steel racking monthly.
24-Hour Fast CAD/BIM Turnaround
Our dedicated engineering department generates structural 2D floor plans, 3D renderings, and pallet capacity reports within 24 hours of receiving building specs.
10-Step Controlled Production
Strict linear sequence: Raw Coil Testing → Precision Slitting → Multi-Hole CNC Indexing → Continuous Cold Roll Forming → Automated Beam Welding → Shot Blasting → Pickling/Phosphating → Electrostatic Powder Curing → Batch QA Testing → Sea-Worthy Bundling.
Dual Units (Imperial & Metric)
Engineering submittals and product stamping available in inches/lbs and mm/kg, eliminating calculation errors and simplifying review by local structural engineers of record.
Container Optimization & Shipping
Expert export packing engineers customize nested bundle footprints for 20GP, 40GP, and 40HQ containers, preventing transit abrasion and maximizing space for lower ocean freight costs.
Warehouse Racking Solutions Procurement FAQ
Direct technical answers from senior structural racking engineers regarding international logistics, seismic ratings, floor capacity, and factory customization.
We utilize certified Q235B and Q355B hot-rolled structural coil steel from top-tier domestic mills, comparable to ASTM A36 and ASTM A572 Grade 50. Every production batch is accompanied by genuine Mill Test Certificates (MTC) certifying tensile strength, yield points, and chemical compositions.
Yes. We supply comprehensive structural calculation documentation formatted to align with RMI (Rack Manufacturers Institute) MH16.1 specifications, ASCE 7 seismic parameters, and Canadian CSA S16 standards, facilitating smooth review and stamping by your local engineer of record.
Uprights and beam bundles are strapped using automated heavy-duty steel bands with corner protection profiles, air bags, and moisture-resistant polyethylene wrap. Components are nested to eliminate shifting, metal-to-metal rubbing, and moisture condensation inside shipping containers.
All beams are calculated to an operational deflection threshold limit of ≤ L/200 (length of beam divided by 200) under uniformly distributed load (UDL) as per EN 15512 and ANSI MH16.1 design criteria. Premium tight-deflection configurations (≤ L/250 or L/300) are engineered for automated AS/RS or AGV pick profiles upon request.
By providing your warehouse architectural drawings, interior clear heights, column grid layouts, pallet dimension weights (W × D × H), and forklift operating parameters, our engineering team will generate a 2D CAD layout, 3D render view, and itemized quotation within 24 hours.
For refrigerated cold rooms and blast freezers down to -30°C, we specify hot-dip galvanizing or specialized low-temperature cross-linked electrostatic polyester powder curing. This prevents embrittlement, chipping, and micro-fissuring that can cause premature structural corrosion.
Consult with Our Senior Storage Application Engineers
Eliminate costly storage dead zones and optimize pallet density. Connect with our engineering department today for free 24-hour CAD layout design, structural calculations, and direct factory-direct pricing for your warehouse project.
