Engineered Medium & Heavy-Duty Storage Configurations
Explore our certified line of structural modular systems, engineered with high-yield carbon steel, boltless locking connections, and corrosion-resistant powder-coated architectural finishes.

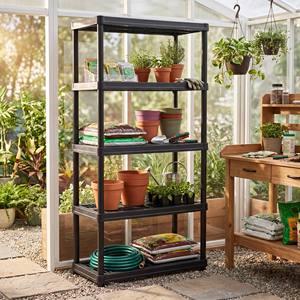

36x18 Inch Shelving Wholesale Manufacturer Easy Assembly Stacking Racks Storage Shelf
Durable Heavy Duty Steel Adjustable Boltless 5-Layer Powder Coated Garage Shelving Rack
5 Layer 150kg Capacity Per Shelf Adjustable Powder Coated Steel ODM Boltless Rivet Shelving
5 Tier Storage Shelving 1.5mm Boltless Carbon Steel Frame 12mm MDF Shelf Board 2200Lbs
Easily Assemble Garage Storage Racks 4 Layers Long Span Shelving Rack Set
2000*600*2000mm Longspan Display Steel Shelving Medium Duty Stacking Racks & Shelves
Direct Factory Sale High-Density 5 Layer Metal Drive-In Racking System For Warehouse Storage
Hot Sale Gravity Flow Roller Racking Systems Customized Heavy Duty Carton Flow Racks
Technical Benchmark: Medium Duty Shelving Architecture & Load Integrity
Medium duty shelving bridges the critical operational gap between lightweight commercial utility shelving and high-tonnage selective pallet racks. Typically rated from 150 kg (330 lbs) to 800 kg (1,760 lbs) per uniformly distributed shelf tier, these systems represent the structural baseline for 3PL manual replenishment centers, automotive parts distribution hubs, archival facilities, and e-commerce picking zones.
From an engineering perspective, structural reliability is governed by cold-rolled section geometry, connection rigidity, and dynamic safety margins. Systems produced under strict ISO 9001:2015 and CE standards utilize Q235B cold-rolled structural carbon steel, characterized by a minimum yield strength of 235 MPa and ultimate tensile strength of 370–500 MPa. Unlike conventional bolted angles, advanced medium-duty shelving utilizes stamped keyhole, teardrop, or butterfly-hook perforation matrices cold-punched along the upright column at precision 50mm or 75mm intervals.
| Structural Parameter | Light Duty Shelving | HEDA Medium Duty Shelving | Heavy Duty Longspan / Pallet Rack |
|---|---|---|---|
| Load Capacity (UDL per tier) | 50 kg – 100 kg (110 – 220 lbs) | 150 kg – 800 kg (330 – 1,760 lbs) | 1,000 kg – 4,500 kg (2,200 – 10,000 lbs) |
| Upright Profile & Steel Gauge | 0.7 – 1.0mm Cold Strip | 1.2 – 1.8mm Q235B Roll-Formed C/Omega Profile | 2.0 – 3.0mm Heavy Structural Channel |
| Connector Configuration | Direct Bolt & Nut Assembly | Boltless Rivet / Keyhole Dual-Claw Hook | Multi-Pin Safety Beam Connector with Lock Pins |
| Decking Support Compatibility | Particle Board or Thin Plate | Reinforced Steel Inset Panels / Wire Mesh / 12mm MDF | Heavy Drop-In Wire Decking / Structural Timber |
| Deflection Safety Ratio | L/150 – L/180 Standard | L/200 – L/250 Under Full Proof Load | L/200 (ANSI MH16.1 Industrial Standard) |
When engineering beam levels, calculations must accommodate safety deflection limits. Our structural engineers specify beam deflection thresholds no greater than 1/200th of the clear span length (L/200) under full design load. Step-beam roll designs feature double-hemmed inner edges that cradle solid steel panels or 12mm high-density moisture-resistant MDF boards, preventing corner rotation or sagging under point loading.
Strategic Procurement Trends: The Next Era of Medium-Duty Systems
Procurement teams within global logistics networks are navigating a landscape defined by rising warehouse cubic costs, SKU proliferation, and rapid micro-fulfillment adoption. When sourcing medium-duty storage, forward-looking enterprises focus on three transformative trends:
Vertical Space Optimization via Multi-Tier Integration
Rather than expanding horizontal footprints, operations are transforming medium-duty frameworks into shelving-supported multi-tier catwalk mezzanines, effectively doubling or tripling picking locations within the same facility perimeter without structural building alterations.
Hybrid AMR & Goods-to-Person Alignment
Autonomous Mobile Robots (AMRs) require precise aisle tolerances and standardized base-level entry points. Modern medium-duty shelving is being re-engineered with clear floor sweeps, standardized fiducial marker surfaces, and ultra-flat upright profiles to facilitate automated navigation.
Eco-Responsible Coatings & Circularity
Enterprise ESG targets require non-toxic, closed-loop manufacturing. HEDA uses zero-VOC electrostatic powder coatings and continuous pickling-phosphating recovery systems, providing 500+ hours of ASTM B117 salt spray resistance without hazardous emissions.
Guangzhou HEDA Shelves: Enterprise Strengths & Supply Reliability
Operating continuously since 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a specialized roll-forming facility into a comprehensive global storage solutions provider. Our production campus covers 30,000 square meters (approximately 323,000 square feet), backed by an experienced technical team of over 300 precision welders, structural engineers, and quality assurance inspectors.
End-to-End Precision Manufacturing Workflow
Every medium-duty shelving upright and beam produced in our facility undergoes a rigorously managed 10-stage fabrication lifecycle:
Automated CNC Roll-Forming
Continuous CNC-controlled roll forming lines form high-yield steel coil into multi-bend upright columns, increasing structural moment of inertia while maintaining strict profile tolerances.
Full Structural Compliance
We supply verified load tables, material certificates, and structural engineering calculation sheets in both metric and imperial units, assisting clients in passing North American and European municipal permitting hurdles.
Container-Optimized Logistics
Bundled packaging using high-tensile strapping, corner edge protectors, and damp-proof wrapping ensures complete ocean-freight protection for full container loads (FCL) arriving at Long Beach, Houston, Savannah, or Vancouver ports.
Frequently Asked Questions: Global Sourcing & Technical Specifications
Direct answers from our engineering team to address technical, logistical, and compliance considerations during medium-duty shelving procurement:
How does boltless medium duty shelving compare to traditional nut-and-bolt units?
What is the calculation difference between uniformly distributed load (UDL) and point load?
Can HEDA shelving integrate with existing racking brands and custom layouts?
What documentation is provided to support regional building permits and seismic compliance?
What are the lead times and shipping logistics for container orders to the US and Canada?
Accelerate Your Facility's Storage Efficiency
Connect directly with our engineering department to receive full engineering data sheets, custom load-deflection profiles, CAD architectural floorplans, and comprehensive factory-direct export quotations within 24 hours.
