Featured Industrial Racking & Warehouse Storage Systems
Roll-formed from premier certified Q235B/Q355B structural steel, our modular systems seamlessly scale from manual hand-loaded picking aisles to heavy palletized dynamic storage operations.

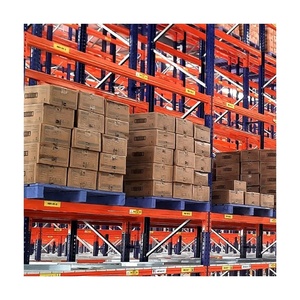

Industrial Selective Heavy Duty Storage Pallet Rack Warehouse Storage Equipment Stacking Racks Shelf Racking System
- Capacity: 1,000–4,500 kg/beam pair
- 100% Immediate Pallet Selectivity
- Pitch: 50mm / 75mm Adjustable
Adjustable Steel Light Duty Shelving, Easy Assembly Industrial Rack, Warehouse Storage Shelves Supplier
- Capacity: 100–300 kg/tier
- Modular Boltless Clip Assembly
- High-Adhesion Powder Finish
PP Corrugated Plastic Stackable Picking Bins Front Opening Warehouse Shelf Storage For Industrial Parts
- Front-Opening Ergonomic Access
- Oil & Chemical Resistant Polymer
- Custom Dimensions for Racking
Steel Boltless Heavy Duty Rack System with Corrosion Protection for Warehouse Storage
- Capacity: 300–800 kg/tier
- Dual-Slot Keyhole Locking Uprights
- Salt-Spray Certified Pretreatment
Prefabricated Steel Warehouse High Bay Storage Building Pallet Racking System Distribution Facility Space Planning
- Clear Height: Up to 15+ Meters
- VNA and Narrow-Aisle Adapted
- Full Seismic Bracing Certified
Warehouse Storage Stacking Movable Tube Metal Steel Truck Tire Post Pallet Tyre Stillage Racking Collapsible Tire Rack
- Stacking Capacity: 4-High Loaded
- Collapsible Posts Save 80% Empty Volume
- 4-Way Forklift Entry Pockets

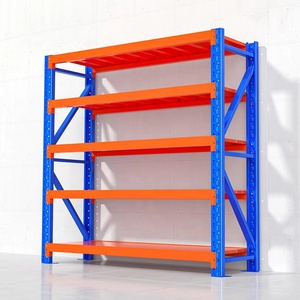

Low Price Racking Adjustable Metal Boltless Shelf and Racks Warehouse Storage Medium Duty Metal Rack Shelf
- Payload: 200–500 kg/deck level
- Steel Decking or Wire Mesh Deck
- Rapid Knock-Down Design for Export
Highly Customizable Free Design Storage Rack For Various Heavy Duty Storing 1000KG 2000KG 3000KG Pounds Tons
- Custom Loads: 1,000–3,000+ kg/tier
- Free 3D Modeling & CAD Layout
- Multi-Tier Mezzanine Compatibility
Structural Mechanics of Medium-Duty Pallet Racking Systems
An in-depth metallurgical and mechanical evaluation of load deflection tolerances, cold-roll forming profiles, and connection integrity under ANSI MH16.1, FEM 10.2.02, and EN 15512 global engineering directives.
Cold-Rolled Section Optimization & Yield Strength
Medium duty pallet racking and heavy-duty industrial shelving serve as the workhorse of distribution logistics, bridging the operational threshold between manual hand-loaded longspan shelves and ultra-dense automated high-bay systems. Our engineering design leverages high-tensile Q235B and Q355B cold-rolled carbon steel, produced through continuous computer-controlled roll-forming mills. This profile architecture incorporates continuous stiffening ribs along the upright face and return flanges, significantly increasing the radius of gyration and resisting torsional-flexural buckling under axial compression.
Unlike standard sheet metal shelving, our medium duty upright frames feature a structural column profile (typically 55×47mm, 60×50mm, or 80×60mm) with material thickness ranging from 1.5mm to 2.0mm. By applying a 50mm or 75mm teardrop/diamond punching pitch, structural cross-bracing and diagonal members (bolted via grade 8.8 high-tensile hardware) distribute frame shear loads directly into the concrete floor slab, minimizing frame sway and preventing structural drift in seismic operational conditions.
Step Beam Engineering & Moment Connection Dynamics
The operational safety of a pallet racking frame is inherently governed by the beam-to-column connector rigidity. Our medium duty pallet systems implement precision-stamped 3-claw and 4-claw wrap-around end connectors welded to specially fabricated step beams or box beams. Step beams feature an inward-recessed shelf lip designed specifically to seat wire mesh decking, galvanized steel shelf panels, or high-density timber boards flush with the top beam surface, preventing snagging during pallet drop-in operations.
Under both RMI (Rack Manufacturers Institute) and European standard EN 15512 calculations, our beam structures adhere strictly to the L/200 deflection limit criterion. When subjected to maximum uniform distributed load (UDL) of up to 1,000 kg per shelf tier, maximum beam deflection remains under 1/200th of the clear horizontal span length, ensuring that plastic deformation never occurs and maintaining dynamic rebound recovery after cargo retrieval.
| System Category | Material Grade | Unit Load Range | Standard Pitch | Surface Treatment | Primary Regulatory Compliance |
|---|---|---|---|---|---|
| Medium Duty Boltless Rack | Q235B Steel | 200 – 500 kg / level (440 – 1,100 lbs) | 50 mm Keyhole Pitch | Epoxy Powder 60–80μm | ISO 9001:2015 / CE EN 1090 |
| Heavy Medium Pallet Racking | Q235B / Q355B | 500 – 1,500 kg / level (1,100 – 3,300 lbs) | 75 mm Teardrop / Diamond | Phosphating + Electrostatic Coat | RMI MH16.1 / FEM 10.2.02 |
| Structural High-Bay Racking | Q355B Hot-Rolled | 1,500 – 4,500 kg / level (3,300 – 9,900 lbs) | 75 mm Bolted / Hook | Hot-Dip Galvanized / Powder | EN 15512:2020 / AS 4084 |
| Rack-Supported Mezzanine Tier | Q235B Cold-Formed | 300 – 1,000 kg / m² (61 – 205 psf) | Custom Beam Spans | Galvanized Planks / Powder Uprights | IBC 2021 / OSHA Compliant |
Corrosion Mitigation & Electrostatic Polymer Coating
Industrial durability is dictated by chemical surface passivation before powder application. At our manufacturing facility, every cold-formed structural component undergoes an automated 10-stage chemical pretreatment regime: alkaline hot degreasing, twin acid pickling rinse stages to dissolve mill scale, surface conditioning, micro-crystalline zinc phosphating, and deionized water baths. This ensures a surface anchor profile capable of achieving ASTM D3359 cross-hatch adhesion classification 5B.
Following pretreatment, an automated Swiss Gema electrostatic powder spray matrix deposits thermosetting polyester powder at a uniform dry film thickness (DFT) of 65–90 microns. Components are heat-cured in continuous convection ovens at 190°C–210°C for 22 minutes. The resulting finish withstands 500+ hours of continuous neutral salt spray testing (ASTM B117) without blistering or creep corrosion, making our racking exceptionally reliable for humid distribution centers, cold-chain buffers, and sub-zero temperature environments down to -30°C.
Future Procurement Trends & Technological Evolution
How changing supply chain velocity, omnichannel retail demands, and micro-fulfillment automation are reshaping medium-duty storage procurement strategies globally.
AMR & AGV Robotic Synergy
Procurement is pivoting toward rack profiles engineered specifically with open base clearances, floor guide tracks, and reflective fiducial positioning targets. Modern facilities integrate Autonomous Mobile Robots (AMRs) that interface directly beneath medium duty boltless tiers and post-pallet stillages, automating horizontal case transport without costly fixed conveyor infrastructure.
Modular Multi-Tier Scalability
Rising industrial land values across North America and Europe force warehouse managers to exploit vertical building cubes. Specifiers increasingly demand medium-duty modular racking frames capable of acting as structural supports for multi-level walk-in mezzanine floors, enabling cost-effective multi-tier manual pick towers without separate structural steel column footings.
Carbon Transparency & Circularity
Global Fortune 500 procurement directives mandate Scope 3 supply chain carbon disclosures. Exporters must provide certified mill origin documentation, scrap-steel recycling ratios, and solvent-free VOC powder coating compliance. Sustainable, boltless modular designs with 100% recyclable steel deliver substantial ESG scoring advantages in competitive tenders.
Uncompromising Manufacturing Scale & Engineering Pedigree
Established in 2001, we deliver full-scope warehouse design, structural calculation, roll-forming manufacturing, container loading, and turnkey export services across 130+ nations.
Free 24-Hour CAD & 3D Modeling
Our licensed structural engineers generate complete 2D layout plans, elevation profiles, 3D warehouse renderings, and structural loading calculations within 24 hours. We provide dual Imperial (lbs, ft, in) and Metric (kg, mm) load tables ready for permitting and engineer-of-record (EOR) stamping.
ISO 9001:2015 & CE Certified
Certified under ISO 9001:2015 Quality Management Systems (Cert No. 18624Q00169R0M) and European CE Marking (EN 1090 / No. 2435-CPR-8605159). Every production heat is verified via tensile testing, weld ultrasonic inspection, and digital coating thickness gauges prior to container stuffing.
Container-Optimized Ocean Packaging
Shipping logistics are engineered to eliminate damage and maximize cube utilization in 20GP, 40GP, and 40HQ ocean containers. Upright frames are nested with protective corrugated separators, steel-banded on heavy timber skids, and moisture-sealed with shrink-wrap for zero-damage intermodal transit.
Frequently Asked Technical & Procurement Questions
Direct, authoritative technical answers addressing load limits, international building codes, floor anchorage, and logistics lead times for warehouse planners and facility directors.
What distinguishes Medium Duty Pallet Racking from conventional Heavy Duty Pallet Racking?
Can your engineering team provide structural calculations and drawings in Imperial units for US/Canadian permitting?
What concrete slab floor specifications and anchor bolts are required for medium-duty racking?
How does your quality assurance process guarantee compliance with international safety standards like EN 15512 and RMI?
What are the lead times for custom manufacturing and ocean freight delivery to North American and European ports?
Optimize Your Warehouse Floor Plan Today
Connect directly with our senior application engineers to receive an optimized warehouse storage plan, detailed finite-element capacity calculations, and factory-direct pricing within 24 hours.
