High-Performance Industrial Pallet Racks & Storage Assemblies
Engineered to surpass ANSI MH16.1, RMI, and EN 15512 structural specifications. Each system utilizes high-tensile Q235B/Q355B structural steel, continuous automatic punching, and multi-stage electrostatic powder coating to ensure uncompromising load-bearing performance under intensive forklift operational cycles.
Multi-Layer Steel
Heavy-Duty Industrial Multi-Layer Steel Shelving System Adjustable Storage Rack for Home Use for Warehouse & Workshop
- ▪ Load: 300 – 800 kg per shelf level
- ▪ Pitch: 50 mm modular adjustment
- ▪ Finish: Anti-corrosive powder coat
Carton Dynamic Flow
Large Capacity Steel 5 Layer Carton Flow Racking with Corrosion Protection for Logistics Sorting Warehouse Storage
- ▪ Discipline: Gravity-fed FIFO dynamic lines
- ▪ Roller Bed: High-density aluminum/PP track
- ▪ Application: Fast-moving split-case picking
Commercial Display
Factory Customizable Pink Iron Shelving Supermarket Display Shelf Rack with Stackable Bins for Bulk Grocery and Candy Stores
- ▪ Config: Double/single-sided display base
- ▪ Modular: Polycarbonate bin accessories
- ▪ Coating: Non-toxic food-grade polymer
Heavy Pallet Selective
Heavy Duty Steel Single-Depth/Double-depth Selective Pallet Racks CE Certified Corrosion Protection Standard Wide Aisle Full
- ▪ Capacity: Up to 4,500 kg (9,920 lbs) per pair
- ▪ Certification: CE & ISO 9001 certified
- ▪ Compatibility: 48"x40" GMA & Euro pallets
High Density Drive-In

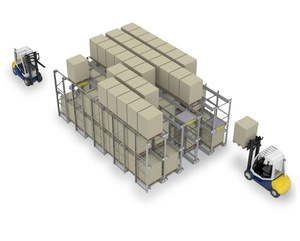

Our Drive-in Racking Systems Are the Perfect Solution for Storing Large Quantities of Identical Palletized Goods
- ▪ Storage Yield: Reduces aisle waste by 75%
- ▪ LIFO System: Deep-lane bulk cold storage
- ▪ Rail Profile: One-piece roll-formed cantilever
Textile & Roll Storage
Heavy Duty Steel Fabric Roll Pallet Warehouse Racking Systems Steel Pallet Industrial Racks Nepal, Bhutan, Bangladesh
- ▪ Design: Cradle & saddle beam mounts
- ▪ Security: Anti-roll displacement brackets
- ▪ Target: Textile, vinyl, and coiled sheet stock
Medium-Heavy Shelving
Factory Customized 500kg Per Layer Adjustable Warehouse Pallet Storage Racking for Logistics Warehouse Storage Shelving
- ▪ Capacity: 500 kg per beam tier level
- ▪ Decking: Galvanized steel or wire mesh panels
- ▪ Flexibility: Boltless interlocking beam-upright
Commercial Stainless
Heavybao Sanitation Restaurant Kitchen Stainless Steel Wall Mount Spice Rack Spice Shelf for 1/6 GN Pan
- ▪ Grade: AISI 304 food-grade stainless steel
- ▪ Mounting: Heavy-gauge reinforced wall brackets
- ▪ Sanitation: NSF corrosion-proof compliance
Engineering Mastery: Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative global manufacturer of cold-rolled structural steel storage systems. Operating from an expansive 30,000 square meter (approx. 323,000 sq. ft.) precision production campus with over 300 highly specialized engineers, certified welders, and intralogistics technicians, the enterprise outputs over 30,000 metric tons of certified racking steel monthly.
For international procurement directors, supply chain VPs, and warehouse general contractors throughout the United States, Canada, and Mexico, HEDA Shelves bridges the gap between raw manufacturing capability and regional code compliance. Our structural designs integrate North American GMA 48x40-inch pallet compatibility, rigorous seismic deflection limits, and stamped calculation-ready shop drawings issued in imperial units (lbs, ft, in) for seamless review by your Engineer of Record (EOR).
Verified Quality & Compliance Ecosystem
Third-party verified credentials to streamline enterprise vendor onboarding, municipal permitting, and structural auditing.
10-Stage Precision Production Sequence
Spectrometric testing of Q235B/Q355B coils upon mill receipt.
CNC coil-slitting with ±0.15mm tolerance on cross-width strip.
High-speed synchronized punching of teardrop & diamond profiles.
24-pass progressive cold roll-forming for peak structural yield.
Automated in-line cut to length without edge deformation.
MIG robotic welding for beam connectors & heavy base plates.
Mechanical shot-blasting to eliminate spatter and slag.
Submersion acid wash, phosphating, and deionized water rinse.
Automated powder booth curing at 200°C for superior adhesion.
Steel-banded, dunnage-cushioned ocean containerization.
Engineering Topology: Structural Trade-Offs & Density Calculus
Selecting the optimal heavy-duty pallet racking system requires balancing storage density against SKU selectivity and operational throughput velocity. The decision governs forklift equipment profiles, floor slab thickness, seismic bracings, and building flue clearances.
| Racking Topology | Pallet Selectivity | Storage Density Yield | Inventory Rotation | Aisle Width (Clearance) | Target Operational Profile |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | Baseline (35% - 40% Floor) | FIFO or LIFO | 11.5 – 13.5 ft (Counterbalance) | High-SKU distribution, 3PLs, e-commerce fulfilment hubs. |
| Double Deep Racking | 50% Immediate | +25% vs. Selective | LIFO | 9.5 – 10.5 ft (Reach Truck) | Medium SKU proliferation with 2–4 pallets per unique SKU line. |
| Drive-In / Drive-Thru | Low (< 15%) | High (65% - 75% Floor) | LIFO (Drive-In) / FIFO (Thru) | Forklift Enters Rack Channel | Cold storage, bulk raw materials, seasonal batch production. |
| Push Back (2–6 Deep) | Medium (Front Face) | High (55% - 65% Floor) | LIFO | Standard Reach / Counterbalance | Food & beverage staging, consumer goods with fast batch turnover. |
| Pallet Flow (Gravity) | Front-of-Lane Only | Ultra-High (75%+ Floor) | Strict FIFO | Separate Load / Unload Aisles | Perishable foods, dairy, pharmaceutical date-coded batch buffers. |
| Radio Shuttle Automation | Semi-Automated Lane | Maximum (80%+ Floor) | Software FIFO or LIFO | Narrow Single Transfer Aisle | High-throughput cold storage freezers, consolidated FMCG staging. |
Structural Deflection Limits (L/200)
Under maximum rated static loading, beam vertical deflection must not exceed L/200 (length of beam divided by 200) in compliance with ANSI MH16.1. HEDA calculates upright slenderness ratios, beam connector pin moment resistance, and cyclic dynamic loading to eliminate permanent plastic deformation.
Seismic Force Attenuation & Baseplates
For installations situated in high-seismic zones (such as California IBC Seismic Design Categories D, E, and F), standard baseplates are superseded by oversized, anchor-reinforced ductile steel shoes. Our PE calculations factor in spectral acceleration parameters (Ss, S1) to prevent anchorage shear failure.
NFPA Flue Space Compliance
Modern high-bay racking must maintain 6-inch transverse flue spaces between double rows and 3-inch longitudinal clearance around columns. Our CAD layouts incorporate snap-in pallet stops and back-to-back row spacers to ensure in-rack ESFR sprinkler penetration satisfies NFPA 13 code.
Emerging Procurement & Technology Trends in Heavy Storage
Industrial real estate lease inflation, energy surcharges, and labor compression are radically reshaping intralogistics capital allocation. Explore the macroeconomic and technical trajectories dominating 2026–2030 enterprise warehouse planning.
AS/RS & AMR Integration Readiness
Static racking is evolving into hybrid structures interfacing with Autonomous Mobile Robots (AMRs) and automated cranes. Racks require millimeter-level installation plumbness tolerances (1/350), specialized floor guiding rails, and sensor-reflective targeting points on lower beam flanges.
Cold-Chain Metallurgical Resilience
Freezer storage (-30°C / -22°F) introduces the hazard of cold embrittlement in low-carbon steel. Next-gen procurement insists on impact-tested micro-alloyed structural steels that retain high Charpy V-notch toughness without micro-fracturing under intense dynamic forklift shocks.
Rack-Supported Superstructures
Faced with soaring industrial land and civil contracting costs, enterprises increasingly bypass traditional building envelopes in favor of Rack-Supported Buildings (RSBs). The racking itself serves as the load-bearing framework supporting exterior insulated cladding, wind, and roof snow loads.
Total Cost of Ownership (TCO) Prioritization
Procurement teams are shifting away from evaluating initial spot-purchase steel tonnage price in favor of Total Cost of Ownership. Factory-direct roll forming, pre-punched accessories, durable impact corner protectors, and integrated wire mesh decking dramatically decrease installation labor and long-term damage replacements.
Essential Procurement & Engineering Questions Answered
Direct technical guidance covering import logistics, imperial load metrics, seismic compliance, and installation timelines for North American logistics directors and general contractors.
How do HEDA Shelves' engineering standards align with North American RMI / ANSI MH16.1 specifications?
Can all component specifications, drawings, and load placards be provided in Imperial units?
What are typical freight transit windows and containerization loading protocols?
How does the 24-hour CAD layout and engineering proposal process work?
What anti-corrosive powder coating methods are utilized for industrial harsh environments?
Ready to Optimize Your Warehouse Floor Space & Load Capacity?
Consult directly with our structural engineering team. Receive complimentary 2D CAD architectural plans, isometric 3D renders, load capacity calculations, and factory-direct volume pricing within 24 hours.
