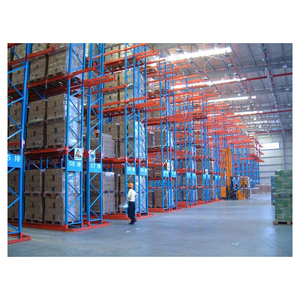

Narrow Aisle Racks Heavy Duty VNA High Density Warehouse Storage Rack
High-density VNA racking operating with guide rails or wire guidance systems to condense operating aisle widths down to 1.6 meters, boosting volumetric cubic utilization by over 45%.
- Up to 15m Frame Height
- Turret Truck Tolerances
- Deflection Control
Commercial Racking Selection Matrix: Architectural & Operating Dynamics
Selecting commercial pallet racking and industrial shelving is not simply a metric of procurement cost; it dictates your operational throughput, required material handling equipment (MHE), SKU selectivity, and floor area consumption.
In modern high-velocity distribution centers (DCs) and third-party logistics (3PL) operations, cubic efficiency must be mathematically balanced against SKU turnover frequency. The selection of beam profiles, column wall thicknesses, base plate surface areas, and aisle configurations directly determines long-term operating expenditures (OPEX).
| Racking Architecture | Pallet Selectivity | Volumetric Density | Standard Aisle Width (m) | MHE Compatibility | Primary Application Target |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Access | Baseline (40–45%) | 3.0m – 3.8m | Counterbalance, Reach Truck | High-SKU distribution, e-commerce, general retail |
| Very Narrow Aisle (VNA) | 100% Immediate Access | High (65–70%) | 1.6m – 1.9m | Articulated, Turret Trucks (VNA) | High-density fulfillment centers, expensive real-estate |
| Drive-In / Drive-Through | Last-In, First-Out (LIFO) | Very High (75–85%) | Integrated Rails | Standard Counterbalance, Reach | Cold storage freezers, bulk uniform commodities |
| Pallet Flow (Gravity) | First-In, First-Out (FIFO) | Very High (80–85%) | Separated Load/Pick Faces | Standard Reach Trucks | Perishables, pharmaceuticals, buffer staging |
| Radio Shuttle Racking | Flexible FIFO / LIFO | Ultra-High (85–90%) | Dedicated Transfer Aisles | Automated Shuttle Cart + Forklift | Blast freezers, high-volume manufacturing buffers |
| Cantilever Racking | 100% Linear Access | Medium-High (Variable) | Custom by Load Length | Side-Loaders, Multi-Directional | Lumber, steel extrusions, pipes, sheet metal crates |
Emerging Procurement Trends in Global Commercial Racking Systems
How automation integration, structural seismic codes, decarbonized green steel, and landed-cost container logic are reshaping warehouse infrastructure procurement.
1. Automation-Ready Tolerances (AS/RS & AMRs)
Traditional manual forklift warehouses tolerate wider component variances. The sudden influx of Autonomous Mobile Robots (AMRs) and Automated Storage and Retrieval Systems (AS/RS) requires millimetric cold-formed punching accuracy, flat floor guide integrations, and minimal torsion under dynamic acceleration loads.
2. Stringent Seismic Zone Compliance
Global logistics hubs situated in active seismic zones (e.g., California IBC categories, Chile, New Zealand, Japan, and Western Canada) require verified dynamic calculation models. Uprights must incorporate ductile high-yield steel and engineered base isolation anchor points to prevent progressive collapse during seismic events.
3. High-Cube Container Packing Optimization
With volatile maritime ocean freight rates, international procurement executives prioritize factories utilizing specialized flat-pack pallet bundle engineering. Nested beam geometries and demountable upright trusses yield up to 26–28 metric tons per 40HQ container, driving down landed cost per pallet position.
The Shift Toward Low-VOC, Heavy-Duty Epoxy-Polyester Powder Coating
Environmental standards and food hygiene regulations (HACCP, FDA requirements) are pushing warehouses away from solvent-based paints toward thermosetting electrostatic powder coating. Pre-treatment steps—including degreasing, ultrasonic water washing, acid pickling, and zirconium phosphating—ensure superior mechanical adhesion and corrosion resistance exceeding 500 hours of continuous neutral salt spray testing (ASTM B117 standards).
Why Tier-1 Importers Rely on HEDA Shelves
Operating a 323,000 sq ft manufacturing complex with over 300 technical professionals, delivering high-tonnage precision rack manufacturing since 2001.
25+ Years Industrial Heritage
Decades of field experience in structural profiling, rack integrity testing, and high-cube global logistics across 10,000+ completed installations worldwide.
3D CAD & Fast Modeling
Send architectural layouts, column grids, and pallet metrics; our engineering department generates stamped-ready CAD elevations and structural reports within 24 hours.
Continuous Roll-Forming
In-house computerized 24-station roll-forming lines convert prime hot-rolled and cold-rolled steel coils into complex Omega-profile columns and interlock box beams.
Full Pre-Shipment Assembly
Prior to container locking, random production batches undergo test bay erection, bolt alignment verification, weld penetration NDT, and load deflection tests.
Verified Regulatory & Quality Accreditations
ISO 9001:2015
System Cert: 18624Q00169R0M
CE Conformity
Marking: 2435-CPR-8605159
RoHS Directives
Hazardous Substance Compliant
Structural Lab Report
Mechanical Proof Load PassedFrequently Asked Questions: Global Commercial Racking Procurement
Essential structural, compliance, and logistics answers for warehouse developers, general contractors, and supply chain directors.
We strictly utilize certified hot-rolled and cold-rolled prime steel coils adhering to Q235B (yield strength ≥ 235 MPa, tensile strength 370–500 MPa) and Q355B (yield strength ≥ 355 MPa, tensile strength 470–630 MPa), equivalent to European S235JR/S355JR and American ASTM A36/A572 Grade 50. Every raw steel delivery arrives with original Mill Test Certificates (MTC) verifying chemical compositions (carbon, manganese, phosphorus, sulfur) and mechanical yield performance.
Yes. Our engineering department routinely issues dual-dimensioned CAD blueprints, structural section properties, and load calculation tables formatted in Imperial units (pounds, inches, square feet) alongside metric standards. These calculation books provide all requisite sectional moduluses, baseplate contact pressures, and anchoring shear loads required by your local Professional Engineer (PE) or Structural Engineer (SE) to stamp permit documentation.
Upright frames and horizontal beams are bundled using high-tensile polyester strapping, heavy corrugated edge corner protectors, air-cushion bubble wraps, and moisture-barrier stretch plastic film. In addition, desiccants are suspended inside ocean containers to avoid condensation rusting during oceanic temperature swings. Structural accessories, baseplates, and hardware are crated in seaworthy fumigated plywood boxes.
For high-bay VNA and radio shuttle systems exceeding 10 meters in frame height, we manufacture to strict FEM 9.831 and FEM 10.2.02 tolerances. Out-of-plumb deviations are held within ±1.5mm per 3 meters of vertical rise. Beam level horizontal deflections are calibrated to L/300 or L/400 to prevent automated shuttle bottom-out and sensor misalignment.
Every beam connector claw is equipped with high-visibility spring-lock or gravity-activated drop-lock safety pins made from heat-treated zinc-plated steel. These pins can resist an upward vertical impact of over 1,000 lbs (4.45 kN) per beam connection in accordance with OSHA and RMI MH16.1 provisions, preventing accidental beam unhooking during rapid forklift extraction.
Standard selective pallet racking and longspan shelving projects typically ship within 15 to 25 working days following formal CAD sign-off and deposit receipt. Large-scale distribution centers requiring more than 20 forty-foot containers are rolled out in staged partial shipments scheduled to match your jobsite installation sequence.
