Commercial Bulk

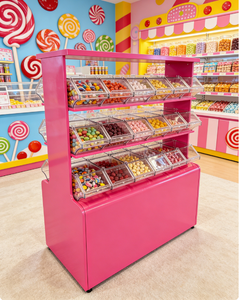

Factory Customizable Pink Iron Shelving Supermarket Display Shelf Rack with Stackable Bins for Bulk Grocery and Candy Stores
- Stackable Gravity Dispensers
- Reinforced Frame Stability
Enterprise Solutions Portfolio
Engineered Bulk Rack Shelving Systems
Constructed from high-tensile Q235B cold-rolled structural steel, our bulk rack units provide reliable load capacities ranging from 300 lbs to over 3,500 lbs per beam level, designed for rapid manual pick-and-pack operations, bulk retail stocking, and dense carton storage.
Light Duty Solid

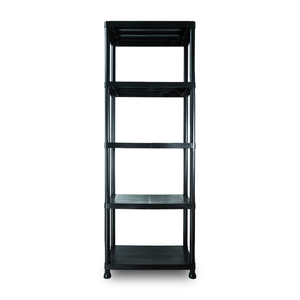

24 In. X 12 In. X 53 In. Solid Light-Duty 4 Tier - Warehouse Shelf Storage Shelving Rack Unit
- Cold-Formed Solid Panels
- Quick Tool-Free Assembly
Heavy Longspan
Heavy Duty Warehouse Rack Wholesale Longspan Shelving Multi-layer Home Office Storage Rack Adjustable Express Storage Rack
- Up to 1,800 lbs/Level Rating
- 50mm Pitch Adjustability
Parts Organization

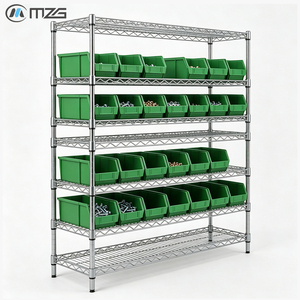

MZG Wholesale Electronics Warehouse Storage Rack Height Adjustable Metal Multiple Layers Wire Shelving With Plastic Bins
- ESD-Safe Bin Configurations
- High Ventilation Wire Decks
Industrial Bulk
Industrial Storage Shelves Units Adjustable Steel Shelving Warehouse Racking For Wholesale
- Welded Frame Connectors
- Heavy Box Beam Profile
Boltless Medium
Custom Layer Number Boltless Standard Medium Duty Shelving Unit With Partition Board for Wholesale Warehouse Stock Arrangement
- Modular Divider Partitions
- Interlocking Keyhole System
Multi-Layer Display
Steel Storage Racks Wholesale Warehouse Storage Shelves Heavy-Duty Multi-Layer Display Racks for Supermarket
- Integrated Front Facing Racks
- Wear-Resistant Powder Finish
Gravity Dynamic

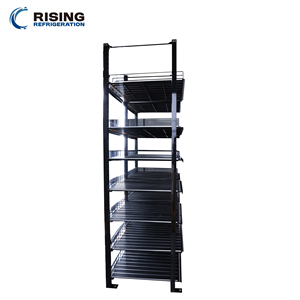

Walk In Cooler Shelf Rack Black Metal Shelving Refrigerator Display Racks Wire Shelf Supermarket Shelving Roller Shelf System
- Sub-Zero Roller Flow Tracks
- Continuous Automatic FIFO
2001
Established Direct Factory
300+
Engineers & Production Staff
30,000t
Monthly Cold Rolled Steel Output
323,000
Sq Ft Modern Production Plant
Engineering White Paper
Bulk Rack Shelving Systems: Engineering Architecture & Selection Criteria
Bulk rack shelving bridges the critical operational gap between lightweight clip shelving and heavy pallet racking. Designed specifically for heavy, bulky hand-loaded items, bulk rack maximizes clear vertical cube volume across fast-moving supply chains.
Structural Anatomy & Load Mechanics
Industrial bulk racks rely on cold-formed step beams coupled with welded upright frames utilizing steel bracing diagonals. Uprights feature precision teardrop or keyhole pattern punching at 50mm (2-inch) centers, enabling tool-free vertical adjustments. Decking surfaces vary between 14-gauge welded wire mesh decks with welded waterfalls, heavy zinc-galvanized ribbed steel panels, and fire-code drop-in channels ensuring uniform load distribution without localized beam deflection.
Corrosion Prevention & Surface Chemistry
Every bulk shelving component undergoes automated continuous multistage chemical pretreatment: alkaline degreasing, acid pickling to eliminate mill scale, and manganese phosphating for enhanced micro-crystalline bonding. Components are finished with an electrostatically applied thermo-cured epoxy-polyester powder layer (60-80 microns thickness), providing superior resistance against humidity, salt corrosion, industrial cleaning solvents, and abrasive contact.
Seismic Engineering & Safety Compliance
Manufactured in strict compliance with ANSI/RMI MH16.1 specifications, EN 15512 standards, and ISO 9001:2015 QA systems. All uprights incorporate seismic-rated footplates securely anchored with grade 8.8 wedge anchor bolts to concrete slab floors. Structural engineers compute beam moment capacities, connector locking mechanisms, and frame stability under both static deadweight and dynamic manual picking seismic conditions.
Strategic Forecasting 2026-2030
Bulk Rack Procurement & Technological Trends
Global supply chain disruptions, rising urban real estate costs, and accelerated warehouse automation are reshaping how enterprise buyers specify, procure, and install bulk shelving systems.
1. Convergence with Autonomous Mobile Robots (AMR)
Traditional manual pick stations are transforming into high-density AMR pick tunnels. Modern bulk rack units are engineered with increased bottom-level clear openings to allow collaborative robots to navigate underneath pick faces, while upright columns feature high-contrast fiducial marker recesses for machine-vision automated navigation.
2. Multi-Tier Rack-Supported Pick Modules
Faced with industrial land leasing costs exceeding $18/sq ft in North American logistics hubs, procurement teams prioritize multi-tier mezzanine bulk shelving systems. By utilizing heavy-duty shelving uprights as structural vertical load-bearing columns, warehouses double or triple usable floor surface area without new ground breaking.
3. Digital Twin Modeling & Rapid Factory Turnaround
Global distributors are shifting away from pre-fabricated catalog inventory toward parametric CAD/BIM customized manufacturing. Direct-to-factory suppliers that generate stamped engineering calculation packages, 3D digital twins, and export container packing simulations within 24 hours dominate international contract awards.
Engineering Decision Matrix
Technical Comparison: Bulk Rack vs. Alternative Storage Systems
Evaluate operational metrics across structural footprint, SKU handling profile, loading capacities, and capital expenditure allocation.
| Storage System Type | Typical Shelf Capacity | Loading Method | Access Profile | Ideal Inventory Category | Relative CapEx Cost |
|---|---|---|---|---|---|
| Industrial Bulk Rack | 800 - 3,500 lbs / level | Manual / Hand-Loaded | 100% Immediate Selectivity | Bulky cartons, hardware bins, unpalletized goods | Moderate / Highly Efficient |
| Standard Light Boltless | 200 - 500 lbs / level | Manual Individual Piece | 100% Open Access | Small components, retail inventory, office archive | Low Capital Investment |
| Selective Pallet Racking | 2,500 - 9,000 lbs / level | Forklift Truck Loaded | 100% Full Pallet Unit | Standard GMA 48x40 pallets, raw heavy materials | Moderate Base + Forklift |
| Carton Flow Dynamic Rack | 400 - 1,200 lbs / lane | Gravity Roller Assisted | Strict FIFO First-In-First-Out | High-velocity split-case order fulfillment, pharma | High Density / Engineered |
End-to-End Quality Management
Precision 10-Step Factory Production Pipeline
Every bulk rack beam and column produced inside our 323,000 sq ft manufacturing facility adheres to strict metallurgical and dimensional tolerances verified through automated inspection protocols.
STEP 01
Certified Coil Sourcing
Mill-test certified Q235B structural grade steel coils inspected for chemical composition and tensile elongation.
STEP 02
High-Speed CNC Slitting
Continuous rotary slitting lines shear master coils to micron-precision profile blank widths.
STEP 03
Automated CNC Punching
Multi-punch CNC tooling produces uniform teardrop and keyhole pitches on exact 50mm centers.
STEP 04
Continuous Roll Forming
18-station precision cold roll-forming machines roll heavy box beams and rigid omega upright profiles.
STEP 05
Precision Robotic Welding
Panasonic robotic weld cells fuse beam end connectors and seismic footplates with zero spatter.
STEP 06
Mechanical Deburring
Rotary edge deburring and weld seam polishing safeguard warehouse personnel from sharp edges.
STEP 07
Pickling & Phosphating
Full chemical immersion tanks remove surface oxidation and deposit a corrosion-resistant phosphate barrier.
STEP 08
Automated Powder Coating
Nordson automated electrostatic spray booths deposit uniform thermoset powder coatings in customized RAL colors.
STEP 09
Infrared Oven Curing
200°C high-temperature convection baking achieves high-grade polymer cross-linking for impact hardness.
STEP 10
Batch QA & Container Pack
Micrometer coating thickness measurement, destructive weld testing, and export pallet strapping for ocean shipping.
Enterprise Supply Chain Advantage
Why Global Distribution Centers Source Directly from Us
From single-bay distribution setups to turnkey mega-warehouse deployments across the United States, Canada, and Europe, our vertically integrated manufacturing reduces total cost of ownership by eliminating middlemen markups.
25+ Years Industrial Heritage
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has engineered over 10,000 commercial and industrial warehouse installations worldwide, delivering deep domain expertise in structural logistics.
Complimentary CAD & 3D Modeling
Our in-house design engineering department returns comprehensive AutoCAD layout schematics, imperial/metric loading charts, and realistic 3D warehouse renderings within 24 hours of receipt of floor plans.
30,000 Ton Monthly Steel Capacity
Massive raw coil purchasing power and highly automated roll-forming lines guarantee competitive raw steel pricing and reliable fulfillment timetables even during peak global freight cycles.
Full Turnkey OEM / ODM Customization
Complete flexibility in upright gauges, beam spans, powder coating RAL color matching, private branding labels, and customized export packing designed for maximum container cubic utilization.
Buyer's Due Diligence
Frequently Asked Questions for Bulk Rack Procurement
Engineering clarifications, ocean logistics handling, structural permitting protocols, and customization options for international procurement officers.
What is the weight carrying capacity difference between wire decking and steel panels?
Standard 14-gauge welded wire decking handles between 800 to 2,500 lbs of uniformly distributed load per level while offering superior light pass-through and overhead fire sprinkler water penetration required by NFPA codes. Solid or ribbed galvanized steel deck panels provide rigid, seamless surface glide for unboxed parts and heavy point loads up to 3,500 lbs per beam pair.
Do you supply engineering calculations for municipal seismic permit approval?
Yes. We generate comprehensive engineering data packages, including component steel section properties, moment connection test data, and static load calculation sheets. These documents are formatted specifically to facilitate review and PE (Professional Engineer) stamping by your local licensed engineer of record across North American and European building authorities.
How are bulk rack systems packed to prevent container transit damage?
Upright frames and beams are nested on heavy-duty timber skids with protective corrugated edge guards, bundled with heavy plastic strapping, and shrink-wrapped with waterproof industrial polyethylene. Small components like baseplates, row spacers, and safety clips are packed in heavy multi-ply export cartons and wooden crates.
What lead times can enterprise buyers expect for custom-specified production?
Standard design orders ship within 15 to 20 business days following structural drawing sign-off. For high-volume multi-container logistics rollouts (10 to 50 containers), our 30,000 ton monthly plant output allows staged production runs delivering continuous weekly container drop-ins at major global ports including Los Angeles, Houston, Rotterdam, and Vancouver.
Accelerate Your Storage Capacity with Factory-Direct Pricing
Send your warehouse floor plan, ceiling clear heights, and required load ratings. Our senior storage systems engineers will deliver a certified CAD layout and competitive quotation within 24 hours.
