Featured Industrial Storage Rack Configurations
Engineered from premium cold-rolled Q235B/Q355B structural steel, our heavy-duty and medium-duty racking systems are manufactured under strict ISO 9001:2015 and CE quality standards. Every system is optimized for international containerized shipping and seamless assembly.

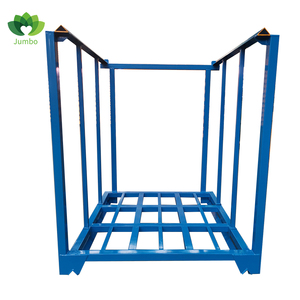

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Modular, demountable steel post pallets engineered for bulk logistics, cold-chain staging, and dynamic warehousing without permanent floor anchoring.
Highly Customizable Free Design Storage Rack For Various Heavy Duty Storing
Tailored beam profiles and heavy column uprights built to exact clear-height requirements, supporting GMA pallets, chemical drums, and heavy machinery parts.
Steel Warehouse Rack Systems Storage with Shelving Units and Stairs
Multi-level rack-supported mezzanine floors multiplying vertical cubic footprint for high-density e-commerce picking, sorting hubs, and parts depots.
Industrial Heavy Duty Steel Shelving Storage Rack with Multi-Level Protection
Plug-in boltless design featuring advanced phosphating pretreatment and multi-layer thermoset powder coating for harsh industrial atmospheres.
Light Duty Wire Shelving Standard High Quality Storage Rack System
Open wire construction maximizing overhead fire-sprinkler penetration, light dissemination, and ventilation for cleanroom, electronics, and commercial storage.
Cold Rolled Steel 5 Layer Heavy Duty Warehouse Storage Shelf
High-tensile cold-rolled steel shelving with precision punch pitch, engineered for rapid bolt-free assembly, high rigidity, and maintenance-free longevity.
Industrial Steel Sheet Storage Rack With Roll-Out Shelves
Ergonomic crank-out roll shelves allowing overhead crane or forklift access to dense sheet metal bundles, tooling dies, and structural plates without damage.

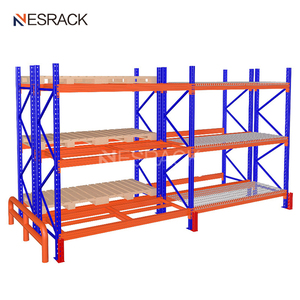

Adjustable Boltless Durable 4-Layers Heavy Duty Pallet Rack
Standard heavy selective racking with interlocking safety pins, dual-flanged box beams, and cold-formed uprights optimized for universal reach-truck operations.
Enterprise Engineering Advantages & Manufacturing Mastery
As one of China’s preeminent heavy industrial storage rack manufacturers, Guangzhou Heda Shelves Co., Ltd. (operating since 2001 from Haizhu District, Guangzhou) delivers end-to-end engineering excellence. Spanning over 30,000 square meters of high-precision roll-forming and robotic welding infrastructure, our production teams fabricate up to 30,000 metric tons of certified racking steel monthly for Fortune 500 logistics hubs, 3PL aggregators, and cold-chain cold storage enterprises across North America, Europe, and Australasia.
Rapid CAD/3D Layouts
Deliver verified CAD shop drawings, finite element calculations, and 3D architectural renders within 24 hours of receiving site blueprints and pallet load specs.
Dual Structural Standards
Full compliance with American RMI / ANSI MH16.1 specifications and European EN 15512 codes. All imperial (lbs/ft) and metric (kg/mm) tables supplied seamlessly.
ISO & CE Certification
Independently audited under ISO 9001:2015 (Cert: 18624Q00169R0M) and CE Marking (No. 2435-CPR-8605159), ensuring complete traceable metallurgical compliance.
Containerized Freight Prep
Optimized nesting, banded bundling, steel-edge protectors, and moisture-barrier shrink-wrapping designed specifically for high-cube ocean container freight.
Unlike trading intermediaries or localized assembly workshops, our integrated manufacturing model controls the entire metallurgical lifecycle. Raw steel coils of verified chemical composition arrive directly from premier domestic mills (such as Baosteel and Shougang). Our cold roll-forming lines feature variable-pitch tooling that achieves continuous profile tolerance within ±0.5mm, ensuring exact upright plumbness and column interlock across 40-foot-tall high-bay installations.
Furthermore, our engineering department provides comprehensive seismic calculation packages suitable for submittal to local North American Engineers of Record (EOR) and municipal building departments. Whether you require selective pallet racks, multi-tier rack-supported mezzanines, high-density radio shuttle lanes, or heavy cantilever arms, HEDA Shelves guarantees certified yield strengths (up to 355 MPa) and certified safety factors exceeding 1.67 under full working dead-and-live load combinations.
Our 10-Stage Precision Racking Manufacturing Lifecycle
Structural integrity in heavy racking begins with automated fabrication control. Every upright column, box beam, row spacer, and base plate follows our documented 10-stage ISO-certified quality protocol:
Raw Material QC
Spectrographic verification of chemical carbon, manganese, and yield limits on incoming steel coils.
Precision Slitting
Automated high-speed coil slitting to exact strip widths with zero edge camber or mechanical burrs.
Automated Punching
Multi-station hydraulic CNC die punching ensuring exact 50mm, 75mm, or teardrop pitch uniformity.
Cold Bending
Precision multi-radius roll-forming creating rigid multi-rib omega columns with high buckling resistance.
Roll Profile Forming
Continuous twin-C seam roll forming for interlocking box beams and step beams supporting high bending moments.
Deburring & Polish
Automated mechanical grinding and edge finishing eliminating sharp contact points for installer safety.
Robotic Welding
Gas-shielded MIG/MAG robot cells welding 3-prong and 4-prong beam connectors and heavy footplates without voids.
Pickling & Phosphating
Submersion chemical cleaning, acid derusting, and zinc-phosphating creating superior crystalline coating adhesion.
Powder Coating
Automated electrostatic spray booths curing 80-120 μm thermoset epoxy-polyester powder at 200°C.
Final QC & Packing
Thickness verification, cross-hatch adhesion testing, load deflection trials, and steel-banded bundling.
Industrial Storage Racking Engineering & Selection Matrix
Selecting the correct industrial storage rack typology requires balancing floor area utilization, pallet selectivity, SKU turnover frequency, and capital expenditure per pallet location:
| Racking System Typology | Pallet Selectivity | Space Utilization | Stock Rotation | Typical Load / Level | Capital Cost Index | Optimal Industry Application |
|---|---|---|---|---|---|---|
| Standard Selective Racking | 100% Immediate | 40% - 50% | FIFO / LIFO | 1,000 - 4,000 kg | Baseline ($) | FMCG, 3PL Distribution, General Manufacturing |
| Double-Deep Pallet Racks | 50% (Reach Truck) | 55% - 65% | LIFO | 1,000 - 2,500 kg | Low-Mid ($$) | Cold Storage, Bulk Goods, Mid-SKU Warehouses |
| Drive-In / Drive-Through | 15% - 20% | 70% - 80% | LIFO (Drive-In) / FIFO | 1,000 - 2,000 kg | Moderate ($$) | Seasonal Staging, Raw Material Bulks, Freezers |
| Push-Back Cart Racking | 25% - 50% | 65% - 75% | LIFO | 1,000 - 1,500 kg | Mid-High ($$$) | Food & Beverage Distribution, Buffer Storage |
| Pallet Flow (Gravity Roller) | Pick Face Only | 75% - 85% | Strict FIFO | 800 - 1,500 kg | High ($$$$) | Perishables, Pharmaceuticals, High-Throughput DCs |
| Radio Shuttle Automation | High Lane Selectivity | 80% - 90% | FIFO or LIFO | 1,000 - 2,000 kg | Advanced ($$$$) | Cold Chain Freezers (-25°C), Automated Staging |
| Rack-Supported Mezzanines | 100% Hand Pick | Doubled Footprint | Batch / Order Pick | 300 - 1,000 kg/m² | Turnkey ($$$) | E-commerce Fulfillment, Automotive Aftermarket |
| Heavy-Duty Cantilever Racks | 100% Frontal | 60% - 70% | Open Access | 500 - 5,000 kg/arm | Mid-High ($$$) | Structural Steel, Timber, PVC Piping, Aluminum Coils |
Strategic Racking Procurement Trends (2026–2030+)
Procurement directors and warehouse infrastructure planners are evolving past basic upfront price-per-pound quotes. Enterprise procurement strategies now incorporate total cost of ownership (TCO), geopolitical risk management, and modular agility:
TCO Over FOB Pricing
Buyers evaluate high-yield alloys (Q355B vs Q235B) to reduce total dead-weight tonnage, freight tariffs, and floor anchor stresses, saving up to 18% over the operational lifecycle.
Low-Carbon Green Steel
Global supply chains require carbon-accounting documentation (EPDs). Forward-thinking Chinese factories utilize electric arc furnace (EAF) scrap steel blends to curb Scope 3 emissions.
Agile Modular Systems
Uncertain SKU profiles drive adoption of universal slotted teardrop uprights and boltless step-beams that allow instantaneous height reconfigurations without structural demolition.
Direct Factory Integration
Integrators bypass regional distributors by contracting directly with established Chinese manufacturers offering in-house BIM modeling, custom powder coating, and pre-sorted container loading.
Technological Innovations in Industrial Storage Systems
Modern supply chain pressures require storage racks to function as high-precision mechanical interfaces for automated material handling equipment:
Robotic AS/RS Integration
Racking tolerances have tightened to within ±1.0mm per 10m height, engineered to interface with automated stacker cranes, high-speed mini-loads, and Autonomous Mobile Robots (AMRs).
Cryogenic Metallurgy
Specialized low-temperature silicon-killed steels combined with elastic polyurethane powder coats resist structural embrittlement and micro-cracking in sub-zero freezers operating at -30°C.
FEA Seismic Simulation
3D Finite Element Analysis (FEA) dynamically simulates non-linear cyclic seismic loads (P-Delta effects, joint looseness), ensuring high-rise racks withstand severe earthquake spectral accelerations.
Intelligent Sensor Anchors
Modern mega-DCs embed impact sensors and strain gauges into column baseplates, transmitting live deformation warnings to WMS platforms prior to structural buckling.
Frequently Asked Questions: Global Industrial Racking Procurement
Essential engineering, compliance, and logistics clarifications for project engineers, supply chain directors, and overseas procurement executives:
