Structural Engineering, Metallurgy, and Load Distribution Integrity

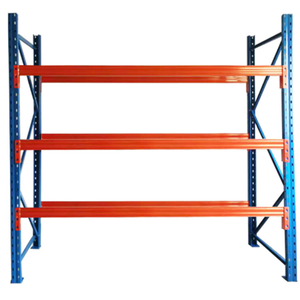

In modern high-bay logistics, pallet racking cannot be treated simply as commercial iron shelving. It represents an engineered structural frame supporting multi-ton live and dead loads under cyclic loading, forklift impact dynamics, and potential seismic lateral stresses. At HEDA Shelves, each structural component is cold-formed from certified high-strength structural grade Q235B and Q355B coils (equivalent to ASTM A36 and ASTM A572 Grade 50), ensuring continuous yield strength and ductility across all upright posts, step beams, and structural bracing channels.

The calculation of beam deflection is strictly governed by the American ANSI MH16.1 specification and the European FEM 10.2.02 design code, enforcing an elastic maximum deflection ratio of no more than L/180 (or 1/200 for automated automated AS/RS applications), where L is the horizontal clear span between upright columns. Under maximum rated working loads, beams retain elastic recovery without permanent plastic deformation, preserving locking integrity at the connector interface.

Our upright columns feature cold-roll profiling with continuous multi-stage rolling cassettes. This incremental bending process prevents localized residual stresses or micro-cracking in the bend radiuses—a flaw common in low-cost single-stage press-brake profiles. Upright perforations (50mm, 75mm, or 76.2mm teardrop pitch) are punched simultaneously via CNC automated hydraulic lines prior to cold roll-forming, preserving pin-point center-to-center hole dimensional accuracy within ±0.2mm across 12-meter tall continuous uprights.

Industrial Warehouse Racking System Architecture Comparison

Selecting the optimal pallet storage configuration requires balancing selectivity against volumetric storage density. The following technical matrix compares operational specifications across primary configurations manufactured at our facility:

* Note: Load ratings conform to uniformly distributed load (UDL) engineering criteria. Bespoke capacities exceeding 12,000 lbs per beam pair are engineered on demand via structural hot-rolled structural shapes (C-Channel, I-Beams).

Future Procurement Trends & Next-Gen Warehouse Development (2025–2030)

Procurement directors and supply chain engineers are confronting rapid transformations across intralogistics. When planning major capital expenditures (CapEx) in warehouse infrastructure, the following strategic market shifts dictate modern ROI calculations:

1. Shift from Pure Manual Handling to Autonomous & AGV-Ready Racking Infrastructure:
Traditional racking designs assumed human forklift operators with tolerances for manual alignment. Future-proof procurement requires racks engineered with tighter structural tolerances (±1mm total plumbness variance over 10m height) to interface with Autonomous Mobile Robots (AMR), Automated Guided Forklifts (AGF), and high-density 4-way automated pallet shuttles. Beam clearances and aisle bottom guide-rails (or inductive wire-guidance clearances) must be integrated into initial CAD layouts.

2. Escalating Freezer Cubic Costs Fueling Ultra-Dense Cold Chain Adoption:
Cold storage facilities face surging electrical utility costs. Warehouses storing frozen proteins, biopharma, and perishable food can no longer justify wide selective aisles. The industry is rapidly pivoting toward Radio Shuttle Racking and dynamic Gravity Flow Racking. By consolidating storage cubes, operators reduce conditioned air footprint by up to 45%, directly cutting refrigeration compressor loads.

3. Decarbonization, High-Performance Pretreatment, and Heavy Anti-Corrosive Finishes:
Global compliance mandates are forcing the elimination of toxic heavy-metal phosphating. Modern tier-1 factories utilize zirconium-based nanotech conversion coatings prior to architectural-grade TGIC-free electrostatic powder coating. This delivers 800+ hours of ASTM B117 salt-spray corrosion resistance, critical for cold storage thermal cycles that generate continuous condensation.

4. End-to-End Traceability and Material Test Report (MTR) Governance:
Regulatory authorities and insurance underwriters in North America and Western Europe increasingly require authenticated mill test certificates (EN 10204 Type 3.1) showing verified carbon equivalent (CEV), tensile yield, and elongation limits for every production heat. Factory audits now prioritize steel coil traceability from Tier-1 blast mills through roll-forming QA stamps.

Why Global Enterprises Rely on HEDA Shelves as Their Primary Racking Partner

Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a specialized roll-forming shop into an internationally certified warehouse equipment powerhouse. Operating from our 30,000 square meter (323,000 sq ft) manufacturing facility with over 300 experienced technical staff and engineers, we maintain a continuous monthly capacity of 30,000 metric tons of finished racking steel.

The 10-Step HEDA Precision Manufacturing Process

Consistency in cold-formed rack performance depends on exacting industrial process control. Each batch produced in our Guangzhou factory adheres to this documented 10-stage fabrication workflow:

1. Raw Material Inspection: Chemical spectrometer checks and tensile coupon pull-tests verify prime carbon coil properties (Q235B/Q355B).
2. High-Speed Slitting & Cutting: Precision coil slitting ensures profile width tolerances within ±0.1mm.
3. Automated Multi-Die Column Punching: CNC hydraulic punching stations punch pitch hole arrays at consistent thermal temperatures.
4. Continuous Roll Cold Forming: Multi-pass rolling cassettes shape upright column geometry with sharp structural corners and structural rigidity.
5. Box Beam & Step Beam Forming: Continuous roll-forming of interlocked double-C profiles or enclosed seam-welded box tubes.
6. Precision Robotic Welding: Automated 6-axis robotic welding cells attach beam end connectors and heavy baseplates with continuous penetration beads.
7. Mechanical Deburring & Surface Polishing: Grinding away all weld spatter and razor edges to protect personnel and shrink-wrapped pallets.
8. 7-Stage Pickling & Phosphating Pre-treatment: Acid wash, grease stripping, ultrasonic rinse, and phosphate bath ensure surface chemical bonding.
9. Electrostatic Powder Coating: Automated reciprocal spray guns apply 60–80 micron cured polyester resin baked at 200°C.
10. Final Quality Control & Ocean Bundling: Cross-hatch adhesion testing, dry film thickness (DFT) checks, bundle barcoding, and wooden container blocking.
