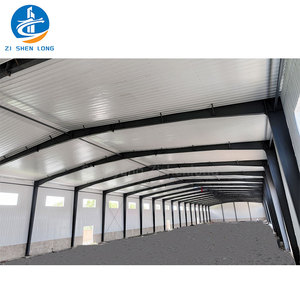

Prefab Building
Stackable Racks
Industrial Frame
Hardware Precision
Market Intelligence & OEM Directory
Top 10 Live Pallet Racking Systems Manufacturers & Factories (2025–2026 Evaluation)
Live pallet racking—often designated as pallet flow or dynamic gravity roller racking—demands zero-deflection structural tolerances, calibrated brake-roller hydraulics, and precision lane separators. Below is an engineering and supply-chain evaluation of the top ten manufacturing leaders shaping modern high-density intralogistics.
1. HEDA Shelves (Factory Direct)
Headquartered in Guangzhou with a 323,000 sq ft manufacturing campus, Guangzhou Heda Shelves Co., Ltd. (founded 2001) has emerged as the premier choice for factory-direct live pallet racking and dynamic systems. Producing up to 30,000 metric tons of engineered steel monthly, HEDA combines precision automated roll-forming, robotic welding, and customized hydraulic brake rollers. Offering 24-hour CAD layouts and complete calculation reports stamped for North American and European seismic zones, HEDA excels in delivering OEM/ODM cost efficiencies with tier-1 engineering rigour.
2. Bito-Lagertechnik
German engineering benchmark renowned for modular flow tracks, live storage rollers, and precision pick-line gravity beds. Bito specializes in tight cold-chain tolerances and ergonomic roller pitch dynamics, serving pharmaceutical and retail fulfillment operations across EMEA.
3. Interroll Group
The global gold standard in dynamic roller componentry, speed controllers, and pallet flow beds. Interroll functions as a primary tier-1 mechanism provider to system integrators, known for its magnetic brake rollers and wear-resistant centrifugal governors.
4. Mecalux S.A.
A multi-national storage titan offering high-throughput live gravity storage integrated into clad-rack automated warehouses. Mecalux features robust beam connection profiles and specialized load separation triggers at the unloading face.
5. SSI Schaefer
Specializes in comprehensive turnkey dynamic distribution hubs. SSI Schaefer provides heavy-duty live pallet tracks coupled with complex conveyor inputs, high-grade safety backstops, and integrated warehouse management software.
6. Stow Group
A European heavyweight producing high-rigidity upright frames and dynamic pallet flow systems. Stow focuses on standardized beam geometry and dense lane configurations that maximize vertical cubic volume in FMCG hubs.
7. Frazier Industrial
North America’s foremost structural steel live flow manufacturer. Utilizing structural steel channels rather than roll-formed sheet, Frazier delivers high impact resistance suited for punishing freezer applications and high-frequency forklift operations.
8. Dexion (Gonvarri Material Handling)
Longstanding pioneer in material handling systems across Europe and APAC. Dexion provides customized pallet flow systems featuring patented dynamic speed regulation for variable wooden and plastic pallet footings.
9. Nedcon
Renowned for bespoke industrial engineering and complex automation-interfaced flow channels. Nedcon excels in custom-engineered separation mechanisms, high-bay structural integration, and specialized chemical distribution centers.
10. Advance Storage Products North American Pallet Flow Specialist
Advance Storage Products specializes in heavy-duty pushback and dynamic gravity flow systems for beverage and cold storage industries in North America. Their engineered "Lo-Pro" flow configurations reduce required vertical pitch, preserving valuable overhead clear height in multi-tier warehouse configurations.
Engineering Whitepaper Analysis
Physics & Kinematics of Live Pallet Flow Racking
Live pallet storage harnesses controlled gravitational potential energy to transport heavy palletized unit loads along inclined roller tracks. Understanding the mechanical interaction between roller inertia, brake friction, and pallet structural deflection is essential for safe warehouse operation.
| System Architecture | Typical Incline Angle | Dynamic Speed Control | Floor Footprint Efficiency | Best Matched Inventory |
|---|---|---|---|---|
| Live Pallet Flow (FIFO) | 3.5% to 4.0% (1.8°–2.3°) | Centrifugal Hydraulic Brake Rollers | Maximum (~85% Cube) | Perishable Food, Pharma, Date-Coded SKUs |
| Radio Shuttle System | 0.0% (Level Guided Track) | Electric Autonomous Carrier Shuttle | Extreme (~90% Cube) | Deep Freeze (-30°C), Large Batch Production |
| Carton Live Flow | 4.0% to 5.5% (2.3°–3.2°) | Gravity Skate Wheels / Plastic Rollers | High Density (Picking) | Split-Case Fulfillment, E-Commerce, Apparel |
| Push-Back Racking (LIFO) | 2.5% to 3.0% (1.4°–1.7°) | Nested Telescopic Gravity Carts | Moderate (70% Cube) | 2 to 6 Pallet Batches, Medium Turn SKUs |
Incline & Gradient Dynamics
Proper track gradient is governed by the coefficient of rolling friction between bottom pallet runners and steel rollers. Standard GMA 48"x40" hardwood pallets operate optimally at an incline of 3.5% to 4.0% (approx. 7/16-inch drop per foot). Lower slopes risk pallet stalling, while steeper slopes generate excessive kinetic energy that damages pick faces.
Centrifugal Speed Retarders
To restrict pallet acceleration to a steady velocity below 0.3 m/s (approx. 60 ft/min), direct-gear centrifugal brake rollers are spaced every pallet length along deep channels. These self-generating hydraulic or magnetic brakes automatically modulate resistance proportional to load mass (500 lbs to 3,300 lbs).
Pick-Face Pallet Separators
In deep lanes (10 to 30 pallets deep), cumulative line pressure on the front pallet can reach thousands of pounds, posing lethal forklift hazard. Mechanical pallet separators lock incoming pallets back 12 to 18 inches until the forward pallet is lifted, ensuring safe and unhindered pallet removal.
Enterprise Manufacturing Authority
Guangzhou HEDA Shelves: Advanced Roll-Forming & Structural Engineering
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates as a vertically integrated tier-one racking factory. Spanning a 323,000 sq ft industrial campus with over 300 experienced engineers and technicians, our production lines fabricate up to 30,000 metric tons of certified racking steel monthly.
24-Hour Layout Engineering
Our dedicated engineering center produces verified AutoCAD structural drawings, 3D warehouse simulations, and load tables in both imperial (lbs, ft, in) and metric standards within 24 hours of receiving site blueprints.
Dual International Codes
Components are pre-calculated to comply with American RMI MH16.1, European EN 15512, and Australian AS 4084-2023 design standards, ready for professional engineer (PE) site stamping and municipal permitting.
Anti-Corrosion Finishing
Our 9-stage automated chemical pre-treatment incorporates high-pressure hot degreasing, ultrasonic acid pickling, and micro-crystalline zinc phosphating before automated electrostatic thermoset powder curing.
Global Export Packaging
High-density bundle packaging with custom timber skids, steel-banding edge guards, and vapor corrosion inhibitor (VCI) shrink wrap ensures 100% rust-free delivery to Los Angeles, Houston, Vancouver, and Rotterdam.
Production Excellence Standard
Inside Our 10-Stage Precision Fabrication Workflow
Every upright frame, box beam, dynamic roller track, and base plate conforms to certified manufacturing tolerances (ISO 9001:2015, CE Marking No. 2435-CPR-8605159).
01
Raw Coil QC
Yield strength tensile testing and chemical spectro-analysis on certified Q235B and Q355B strip coil.
02
Precision Slitting
High-speed rotary slitting lines trim coil margins to ±0.1mm dimensional width tolerance.
03
CNC Column Punching
Continuous hydraulic stamping dies punch 50mm / 75mm / 76.2mm teardrop and diamond pitches.
04
Cold Roll-Forming
24 to 28 continuous forming stations bend profiles smoothly without microscopic structural stress fractures.
05
Box Beam Seaming
Automated plasma/MIG seams double-C interlocking channels into monolithic, high-torsion box beams.
06
Robotic Welding
Japanese robotic welding cells fuse beam end connectors and heavy base plates under CO2 shielding.
07
Deburring & Polishing
Mechanical wheel deburring removes weld spatter, laser dross, and sharp edges for safe operator contact.
08
Pickling & Phosphating
Submersion pre-treatment removes surface oxides, depositing a rust-inhibiting crystalline zinc base.
09
Powder Coating
Swiss Gema electrostatic powder guns spray 60–90 micron thermoset polyester cured at 200°C.
10
Container Packing
Computer-modeled 40HQ container stuffing with wooden cradles, lifting straps, and barcode asset tags.
Strategic Procurement Horizons
Future Procurement & Technology Trends in Live Racking Systems
The convergence of extreme industrial land rents, rising energy costs in refrigerated logistics, and automated material handling is driving seismic shifts in how supply chain executives procure storage capital equipment.
1. Hybrid AMR Flow Interfaces
Traditional live pallet flow designs terminate at forklift pick faces. Next-generation systems feature pneumatic pop-up stop gates and optical alignment lasers engineered for Autonomous Mobile Robots (AMRs) and automated reach trucks (AGVs), facilitating fully dark, unmanned picking buffers.
2. Zero-Energy Cold Chain Density
Refrigerated and blast freezer facilities (-25°C to -30°C) represent the highest operating energy cost per square foot in global warehousing. Live gravity pallet flow operates on purely mechanical potential energy—consuming zero electricity while delivering 70% deeper cubic storage than selective racks.
3. Low-Carbon Steel & Green Scope 3
North American and European enterprise buyers increasingly audit Scope 3 embodied carbon. Direct factory suppliers that leverage scrap-recycled Electric Arc Furnace (EAF) steel and zero-solvent electrostatic powder coating processes are gaining decisive procurement advantage in multinational RFPs.
Procurement Knowledge Base
Frequently Asked Questions (Live Pallet Racking Procurement)
Critical technical, commercial, and freight considerations for engineering directors, warehouse managers, and global procurement teams sourcing directly from the factory floor.
What are the key technical differences between Live Pallet Flow and Radio Shuttle Racking?
Live Pallet Flow uses a mechanical inclined track (3.5%–4.0% slope) with roller wheels, speed controllers, and gravitational energy to advance pallets from the charge end to the pick end, enforcing true First-In First-Out (FIFO) material rotation without electronic or battery components. Radio Shuttle racking uses level steel lanes where an autonomous, lithium-battery-driven mobile cart travels beneath pallets to fetch and store loads. Radio Shuttle supports both FIFO and LIFO modes and can operate in lanes exceeding 40 meters, but involves electronic maintenance, battery swapping routines, and higher upfront electro-mechanical capital cost compared to purely passive gravity flow.
Can HEDA Shelves engineer racking calculations to pass local North American building and seismic permits?
Yes. HEDA provides comprehensive structural shop drawings, section modulus data, steel mechanical certificates, and calculation packages compliant with ANSI/RMI MH16.1 specifications for industrial steel storage racks and the International Building Code (IBC). These data packages are specifically structured so your local licensed Professional Engineer (PE) or Structural Engineer (SE) can perform regional seismic review, certify anchor embedment depth against slab PSI capacity, and stamp drawings for municipal building department permit approvals.
How does bottom pallet quality and deflection affect live roller flow reliability?
Pallet quality is the most critical variable in dynamic gravity flow. Standard GMA 48"x40" pallets must have sound bottom runner boards free of missing fasteners, dangling nails, or severe splits. Maximum allowable bottom deck board deflection under full dynamic payload is restricted to L/180 or 1/4 inch (6.35 mm). Excessive deflection causes the pallet base to sag between rollers, increasing rolling resistance and leading to mid-lane hung pallets. For captive plastic pallets or weak slip-sheets, we engineer three-rail full-width steel roller tracks or specialized cart-based pushback options.
What documentation and inspection protocols are conducted prior to container shipping?
Each production run undergoes rigorous QA sign-offs: steel raw coil mill test certificates (MTCs), laser column punch accuracy checks (±0.5mm over 12m), cross-hatch paint adhesion testing (ASTM D3359), dry film powder thickness measurement (60–90 microns), and full trial assembly mock-ups. Prior to sealing ocean containers (20GP, 40GP, 40HQ), high-resolution photographic inspection dossiers of bundling, anti-chafing cardboard corner protection, strapping integrity, and container weight balances are submitted to the client for final release clearance.
What is the standard production lead time and FOB/CIF shipping protocol for overseas projects?
Standard fabrication lead time for standard cold-rolled pallet racking systems is typically 15 to 25 working days following CAD drawing sign-off and deposit receipt. Shipping terms include factory direct FOB (Guangzhou / Shenzhen / Foshan), CIF to any major world port (e.g., Long Beach, Houston, Savannah, New York, Vancouver, Sydney, Hamburg), or DDU/DDP arrangements managed by our experienced logistics freight coordination unit.
