Industrial Storage Whitepaper & Buyer's Matrix
Top 10 Back To Back Racking Manufacturer & Supplier
An authoritative engineering handbook evaluating high-density storage configurations, RMI/ANSI MH16.1 compliance, pallet-depth economics, and international structural steel procurement frameworks.
Engineered Warehouse Racking & High-Density Storage Deployments
Engineered to handle harsh industrial duty cycles. The systems below represent verified roll-formed and structural steel configurations manufactured using precision continuous roll-forming lines, pickling-phosphating surface chemistry, and automated robotic welding.
Heavy-Duty
500KG Load Adjustable Steel Racks Multi-level Industrial Storage
500KG+ Per Tier
Modular Pitch
High Tensile Q235B
Dynamic Flow

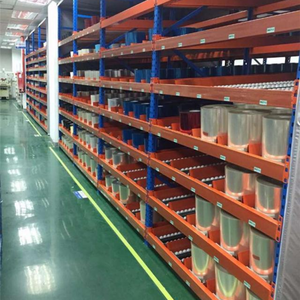

Large Capacity Steel 5-Layer Carton Flow Sorting Racking
First-In First-Out
Aluminum Rollers
Corrosion Resistant
Adjustable Metal
Light Duty Adjustable Boltless Metal Shelving & Storage Rack
Boltless Assembly
Cold-Rolled Steel
Powder Coated
Long Span
Easily Assemble 4-Layer Long Span Industrial Shelving System
High Span Utility
Stepped Beam
Steel Decking
Automated Drawer
Durable Anti-Rust Electric Sheet Metal Drawer Storage System
100% Extension
Motorized Cranks
Heavy Tooling
Core Selective
Heavy Duty Selective Pallet Rack Powder Coated Back-To-Back
Direct Pallet Access
RMI Standard Spec
Row Spacer Linked
Multi-Tier Loft
Heavy Duty Loft Platform Racking Mezzanine Floor Storage
Multi-Tier Picking
Integrated Decking
Structural Steel
2001EST.
Over 25 Years of Engineering Racking Precision
30,000TONS
Monthly High-Tensile Steel Fabrication Volume
10,000+
Turnkey Distribution Centers Globally Installed
323,000SQ FT
Advanced Manufacturing Campus & Automation Hub
Engineering Fundamentals of Back-To-Back Pallet Racking Architecture
In modern industrial logistics, Back-to-Back racking systems serve as the baseline architecture for high-density warehouse storage layouts. By connecting two single runs of selective pallet racking back-to-back using heavy-gauge mechanical row spacers, facility operators effectively eliminate 50% of the working aisle overhead required by standalone runs. The structural dynamics of back-to-back engineering rest upon mutual lateral-torsional bracing, where connected upright frames counter the horizontal impact forces generated during counterbalanced forklift and reach-truck loading cycles.
When engineering back-to-back configurations, compliance with RMI (Rack Manufacturers Institute) ANSI MH16.1 and international EN 15512 seismic mandates dictates flue-space management. North American building fire safety regulations (NFPA 13) require strict maintenance of longitudinal and transverse flue spaces—typically between 6 and 12 inches—to facilitate early ESFR sprinkler penetration and heat updraft evacuation. Row spacers are engineered not merely as positional distance ties, but as structural shear couplers engineered to distribute torsional moments across dual upright columns.
Seismic Considerations & Dynamic Mass Load Distribution
For installations in high seismic acceleration zones (such as California, the Pacific Northwest, and parts of Canada), back-to-back racking must factor in dynamic period vibrations. The interconnected rows perform as a combined spatial truss. Utilizing Q235B to Q355B cold-rolled structural steel with yield strengths exceeding 355 MPa ensures structural ductility under cyclic load reversals. Certified base plates with oversized dual wedge-anchor embeds are specified to prevent shear pullout and column displacement during ground motion acceleration events.
Modern supply chains demand precise integration between beam-to-column connector rivets and automatic locking pins. The 3-to-4-lug teardrop and custom hook connections engineered by leading manufacturers prevent beam disengagement when lift-truck operators experience hung pallets during high-velocity pallet elevation maneuvers.
Comprehensive Specification & Tolerance Comparison
Review engineering tolerances, steel specifications, and clearance metrics across selective, back-to-back, and high-density racking architectures to optimize facility floor loading.
| Structural Parameter | Standard Back-to-Back Racking | Double Deep Configuration | VNA (Very Narrow Aisle) Systems |
|---|---|---|---|
| Pallet Accessibility | 100% Direct Selectivity (Single-Deep) | 50% Immediate (Requires Pantograph Reach) | 100% Selectivity (Requires Turret Truck) |
| Aisle Width Requirements | 3.0m – 3.8m (10' – 12.5' Counterbalance) | 2.8m – 3.2m (Reach Truck Specific) | 1.5m – 1.8m (Wire/Rail Guided System) |
| Steel Yield Strength | Q235B / Q355B Hot-Rolled Strip Steel | Q355B Cold-Formed High Tensile Steel | Precision Roll-Formed Q355B Extra Stiff |
| Row Spacer Lengths | 200mm – 300mm (8" to 12" Standard Flue) | 200mm Heavy-Duty Double Braced | 250mm Engineered Flue Spacer with Tie |
| Sprinkler Alignment | Standard NFPA 13 In-Rack/Ceiling ESFR | In-Rack Sprinkler Longitudinal Placement | Strict Ceiling High-Velocity Sprinklers |
| Floor Area Utilization | ~40% - 45% Cube Storage Efficiency | ~55% - 60% High-Density Footprint | Up to 65% Maximum Volumetric Cube |
Future Sourcing & Procurement Trends in Industrial Racking
Technological advancement and shifting regulatory requirements are reshaping how warehouse procurement teams specify and deploy heavy storage assets.
Nearshore & Direct Sourcing
Purchasing teams are bypassing domestic broker intermediaries to partner directly with tier-1 OEM manufacturers, cutting CAPEX overhead by 22% to 35% on major DC fit-outs.
AMR & AGV Floor Compatibility
Modern back-to-back uprights are engineered with elevated bottom horizontal ties, allowing autonomous mobile robots to navigate underneath pick tunnels seamlessly.
High-Seismic Modular Stiffeners
Demand for bolt-on column reinforcement splices and heavy welded bullnose column protectors has surged to counter localized impact fractures from high-cycle operations.
Green Coatings & Eco-Steel
Stringent corporate ESG mandates require heavy industrial powder coatings with low-VOC formulations and full raw material traceability from certified blast furnace batches.
Enterprise Capabilities: Why Global Engineers Trust HEDA
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. integrates in-house precision steel processing, automated coating technologies, and localized North American engineering compliance.
ISO 9001 & CE Certified Quality
Every structural profile is manufactured under strict ISO 9001:2015 processes and CE structural standards (EN 1090-1 / EN 15512). Our products pass continuous tensile testing, destructive bend assessments, and coating thickness audits.
Rapid Free 3D & CAD Layouts
Our in-house structural engineering division provides fully stamped imperial CAD drawings, load-deflection tables, and full 3D facility renderings within 24 hours to accelerate permitting and local engineer-of-record reviews.
Container-Optimized Logistics
Serving major ports worldwide, our dedicated logistics specialists package long-span beams and uprights using modular dunnage to maximize ocean container cubic capacity and prevent transit abrasion across long sea voyages.
Frequently Asked Questions on Back-To-Back Racking Systems
Clear, technical explanations addressing the real-world operational questions faced by facility directors, project managers, and logistics consultants.
What is the structural distinction between Back-to-Back and Selective Pallet Racking?
Standard selective racking is arranged in single independent rows, requiring an access aisle on each face. A Back-to-Back racking system mechanically bolts two single selective rows together through structural row spacers across the rear uprights. This setup consolidates flue spacing, cuts access aisles in half, significantly improves structural rigidity, and yields up to 40% greater floor space utilization without sacrificing direct pallet selectivity.
How are row spacer lengths determined for back-to-back warehouse configurations?
Row spacer length depends on pallet overhang and local fire code compliance. A standard 48" x 40" GMA pallet resting on a 42" deep frame leaves 3 inches of pallet overhang front and rear. If local building codes (such as NFPA 13) mandate an unobstructed 6-inch longitudinal flue space, the row spacer must measure at least 12 inches (305 mm) to offset the combined 6 inches of rear overhang from opposing pallets. In seismic regions, row spacers also act as horizontal moment trusses and are placed at upright brace junction nodes.
Can Back-to-Back Racking be converted into a Double-Deep System later on?
Yes. Upgrading from standard back-to-back to double-deep is straightforward. Because the frames are already paired back-to-back, conversion primarily requires reducing the row spacer width to closely align the frames, reconfiguring beam level heights to match reach truck specs, and adjusting forklift fleet capabilities with pantograph deep-reach pantograph attachments. Uprights must also be verified to support the revised concentrated load capacities.
What surface finish provides the highest corrosion protection for cold storage?
For cold-storage and deep-freeze operations (-20°C to -30°C), temperature fluctuations generate condensation during dock transfers, elevating corrosion risks. While standard warehouses use indoor electrostatic thermosetting powder coatings (60-80 microns thick), cold-chain facilities benefit from hot-dip galvanizing (HDG) per ASTM A123/EN ISO 1461 or a heavy zinc-rich epoxy primer applied beneath high-durability polyester powder topcoats.
What documentation is required to achieve local building permit approval?
North American municipal building departments typically require a complete engineering package. This includes sealed CAD floor plan layouts, column load matrices, anchor bolt pullout shear calculations, and structural design calculations conforming to RMI ANSI MH16.1 and local IBC (International Building Code) seismic coefficients. As an experienced OEM, HEDA provides complete raw material mill test certificates, certified calculation sheets, and shop drawings ready for your local Professional Engineer (PE) of Record stamp.
Request Your Custom Back-To-Back Storage Layout
Send us your building footprint, clear roof height, and pallet load specs. Our engineering team will deliver a comprehensive CAD layout and factory-direct quotation within 24 hours.
