Automated AS/RS

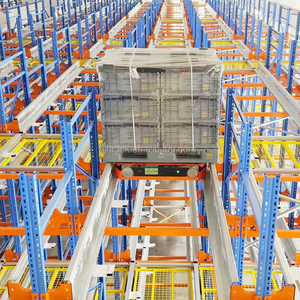

Heavy Duty 4-Way Radio Shuttle Racking System
Automated High-Density
Ultra-Deep Lanes
LIFO / FIFO
Engineered Solutions
High-Efficiency Warehouse Racking & Pallet Handling Systems
Explore heavy-duty, boltless, automated, and specialized storage assemblies designed to reduce footprint overhead, improve cubic volume utilization, and comply with international load safety standards.
Industrial Utility

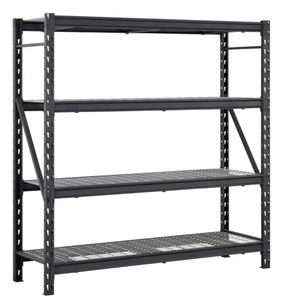

3 Layers Boltless Steel Industrial Assembly Shelving
Boltless Assembly
Adjustable Pitches
Medium-Duty
Heavy Modular
5-Layer Heavy-Duty Modular Galvanized Shelving
Anti-Corrosion
Galvanized Finish
Heavy Spans
Flexible Post

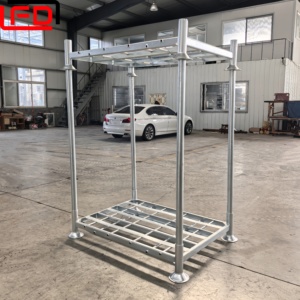

Hot-Dip Galvanized Stackable Metal Post Pallet
Stackable Logistics
Removable Posts
Weather-Resistant
Spool Storage

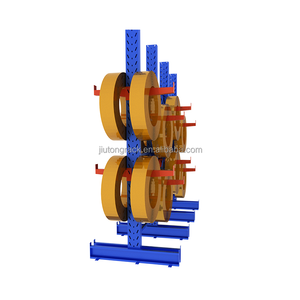

Industrial Warehouse Cable Drum & Spool Rack
Axle Integration
High Load Capacity
Dispensing Support
Standard Euro

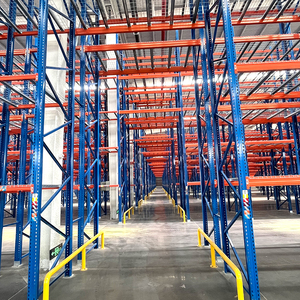

EURO Standard CE-Certified Heavy Steel Pallet Rack
FEM/EN Certified
Selective Access
Tear-Drop / Box Beam
Retail Front

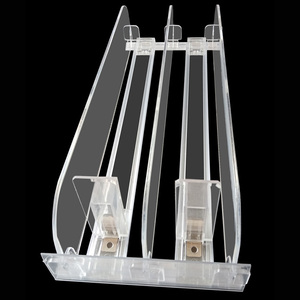

Double-Sided Automatic Spring Loaded Pusher Shelf
Automatic Facing
CE & RoHS Certified
Fast Restocking
Sub-Zero Frozen
Modular Sub-Zero Cold Room Heavy Pallet Racking
Low-Temp Steel
High Impact Durability
Condensation Guard
Industry White Paper
The Strategic Architecture of Modern Warehouse Storage Racks
Navigating the convergence of cold-formed high-tensile steel, volumetric optimization, dynamic automation integration, and seismic compliance in global supply chains.
Industrial warehousing is currently undergoing a structural transformation driven by real estate inflation, labor overhead, and accelerated order cycle times. Facilities are moving away from purely conventional, low-profile storage toward engineered, space-maximized configurations. As an experienced OEM/ODM warehouse storage racks factory & supplier, our engineering teams balance load capacities, aisle dynamics, safety deflection coefficients, and material handling ergonomics to deliver systems that do not merely store inventory, but act as core production infrastructure.
30,000t
Monthly Steel Output
323,000sq ft
Manufacturing Campus
10,000+
Completed Turnkey Projects
24h
CAD / 3D Layout Delivery
• Future Trends in Warehouse Racking Procurement (2025–2030)
Procurement leaders are no longer sourcing pallet racking purely as structural commodities priced by weight. Today's procurement methodology evaluates total cost of ownership (TCO), adaptive throughput potential, and operational versatility. Across North America, Europe, and Asia-Pacific, three fundamental sourcing shifts dominate current supply chain investments:
| Procurement Dimension | Traditional Purchasing Model | 2025-2030 Next-Gen Procurement Shift | Strategic Supply Impact |
|---|---|---|---|
| Space Efficiency | Standard Selective Racks (12 ft aisles) | Very Narrow Aisle (VNA) & 4-Way Radio Shuttles | +80% Pallet Density |
| Material Spec | Standard Carbon Steel, Primer Coated | High-Yield Q235B/Q355B with Pretreatment Phosphating | Extended Anti-Fatigue Life |
| Automation Readiness | Manual Forklift Maneuvers Only | Integrated Sensor Channels & AMR-Ready Floor Guide Tracks | Autonomous Fleet Ready |
| Engineering Verification | Generic Static Calculation Sheets | Seismic Modeling, FEM Load Testing & RMI Standard Reviews | Permit-Ready Compliance |
• Structural Evolution & Technological Trends in Rack Engineering
The manufacturing of industrial storage has advanced through modern metallurgical engineering and computerized roll forming. Upright frame designs now incorporate variable hole pitches (50mm, 75mm, 76.2mm) with interlocking diamond or teardrop punch patterns that maintain lateral stability under cyclic dynamic loading. The use of cold-formed box beams with multi-claw connectors guarantees moment resistance, distributing gravitational and seismic stress evenly to the reinforced concrete slab.
Furthermore, protective surface finishing has shifted beyond conventional spray paint. High-volume continuous powder coating lines incorporating hot pickling, phosphating, and electrostatic resin curing generate coatings exceeding 60 to 80 microns in thickness. This surface treatment provides chemical resistance, impacts scratch defense, and prevents corrosion in sub-zero cold room environments down to -30°C.
Automated Shuttle Grids
Transitioning from static access aisles to autonomous multi-directional radio shuttles that maneuver deep into storage channels, optimizing pallet intake speed without forklift entry wear.
Seismic Structural Design
Every frame assembly is simulated for seismic zone compliance (UBC / IBC / EN15512), featuring custom-gauge baseplates, heavy back-bracing trusses, and anchor-lock floor bolting.
Rapid Digital Prototyping
Complete deployment of 2D AutoCAD and 3D architectural visualizations within 24 hours of receiving site boundaries, matching material specs directly against warehouse forklift clearances.
Manufacturing Excellence
Direct Factory OEM/ODM Strengths & Engineering Pedigree
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. is an established manufacturer of high-tolerance storage racking systems, industrial mezzanines, and automated material handling structures. Our 30,000 square meter (approx. 323,000 sq ft) production base integrates continuous automated cold roll-forming lines, computerized multi-station CNC punching, automatic welding robots, and fully enclosed electrostatic powder coating tunnels.
-
✓Over 25 Years of Domain Leadership: Proven track record of executing 10,000+ complex warehouse racking installations globally.
-
✓Massive 30,000-Ton Monthly Capacity: Rapid order completion guarantees timely multi-container project shipments to US, Canadian, and European ports.
-
✓Turnkey Engineering Support: Certified shop drawings, imperial/metric load rating tables, component testing, and PE-stamp readiness.
-
✓Container Load Optimization: Scientific grouping, bundled nesting, and moisture barrier wrapping ensure damage-free maritime transit.
Custom Tooling
OEM extrusion dies, custom punch profiles, and tailored upright connector configurations.
Batch Quality QC
Spectrometric steel verification, weld penetration testing, and powder coat adhesion assays.
Global Logistics
FOB, CIF, and DDP shipments to Long Beach, Houston, Savannah, Vancouver, and Rotterdam.
Dedicated Teams
Direct communication with bilingual structural engineers without broker friction.
ISO 9001:2015
Quality Management System (Cert #18624Q00169R0M)
CE Marking EN 1090
Factory Production Control (Cert #2435-CPR-8605159)
RoHS & REACH Compliant
Heavy Metal-Free Electrostatic Powder Coatings
RMI & FEM Standard
Engineered Alignment with North American & EU Codes
Procurement Knowledge Base
Frequently Asked Questions on Commercial Racking Procurement
Essential guidance for warehouse operators, purchasing directors, and logistics engineers sourcing factory-direct rack systems from China.
What essential parameters are required to generate an accurate CAD layout and engineering quote? +
To provide a fully calculated layout and firm pricing within 24 hours, our engineering department needs:
(1) Warehouse architectural drawings showing clear ceiling height, column grids, dock doors, and fire egress pathways;
(2) Pallet specifications including overall dimensions (length × width × height, such as standard 48"×40" GMA or 1200×800mm Euro pallets) and maximum loaded weight;
(3) Forklift model, turning radius, and maximum reach height;
(4) Operational rotation philosophy (LIFO vs. FIFO) and seismic zone category if applicable.
Can your factory supply imperial measurements, structural calculations, and permit documentation for US & Canadian projects? +
Yes. We regularly produce shop drawings, architectural plan views, elevation diagrams, and load capacity plaques in imperial units (pounds, inches, and feet) specifically formatted for North American building inspectors and local structural engineers of record. Our calculation dossiers include section modulus, beam deflection criteria (L/180 standard), and steel tensile grade verifications ready for local PE stamp submission.
What steel grades are used in your upright columns and load-bearing beams? +
We utilize certified high-tensile hot-rolled steel coils, predominantly Q235B (yield strength ≥ 235 MPa) and high-yield Q355B (yield strength ≥ 355 MPa, comparable to ASTM A572 Grade 50) for critical vertical columns and heavily loaded spans. Mill test certificates (MTCs) certifying chemical composition and mechanical tensile limits accompany all export consignments.
How do you protect pallet racks from damage during ocean container transport? +
Racking components present irregular geometry and high tare weight. We employ heavy-gauge timber dunnage, protective corrugated strapping sleeves, steel-band bundling, and stretch wrap with industrial desiccant bags to prevent moisture accumulation and sea-fog corrosion. Upright frames and beams are nested to maximize container volume while allowing safe forklift unloading on your dock.
What is the typical production lead time for full-container projects? +
Standard OEM production for standard selective pallet racking ranges from 15 to 25 business days following drawing sign-off and deposit receipt. Specialized systems, such as automated 4-way radio shuttles, galvanized cantilever structures, or multi-level rack-supported mezzanine floors, typically require 25 to 35 business days to permit precision robotic welding, batch hot-dip galvanizing, and pre-shipment assembly verification.
Ready to Maximize Your Cubic Storage Density?
Submit your building floor plan, clear height, and pallet load profiles today. Our engineering specialists will deliver a complete 2D/3D CAD layout, structural capacity report, and itemized factory-direct quotation within 24 hours.
