High-Payload Certified Warehouse Storage Solutions
Engineered with Q235B/Q355B structural steel, electrostatic powder shielding, and high-precision connection clips. Explore the core 8 heavy-duty systems configured for overseas distribution centers.
100% Selective
- 1000-4500 kg/Beam
- Q235B Certified
- GMA Pallet Fit
Dynamic FIFO
- High-Density Roller
- Auto Speed Brakes
- FIFO Rotation
Standard Duty
- 1000kg/Layer Rating
- 50/75mm Pitch
- Toolless Adjust
Longspan Racks
- Box Beam Profile
- Heavy Deck Panels
- Manual/Cart Pick
Anti-Fall Safety
- Fire Code Compliant
- Drop-In Flanged
- Zinc Galvanized
High Capacity
- Reinforced Column
- Seismic Baseplates
- Cold Storage Rated
Modular Scaling
- Up to 5000kg/Tier
- Custom Span Width
- Epoxy Shielded
Teardrop Standard
- USA Interchangeable
- Auto Spring Locks
- Anti-Dislodge Pin
Anti-Collapse & Fall-Arrest Racking Engineering
In high-throughput distribution environments, pallet racking collapses and overhead fall incidents represent catastrophic operational liabilities. Structural failures stem almost exclusively from under-engineered upright column buckling, neglected dynamic impact loads from reach trucks, or substandard connector locking clips. As a primary manufacturer specializing in OEM/ODM export, our systems resolve structural risk at the raw metallurgy and cold-forming geometry stages.
We integrate continuous cold-roll forming with multiple stiffening ribs along upright upright webs. Every connection point utilizes high-tensile safety locking pins withstanding shear stresses exceeding 10.5 kN, eliminating accidental dislodgement caused by upward forklift forks.
- Deflection Ratio Strictness: Horizontal beam design adheres strictly to ANSI MH16.1 and FEM 10.2.02 deflection limits not exceeding L/200 under full rated design loads.

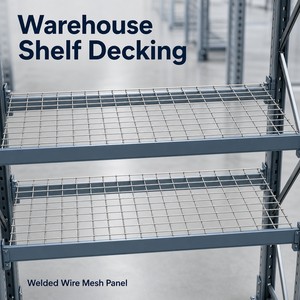

- Overhead Fall Prevention: Heavy drop-in welded wire mesh decks and back-of-rack safety arrest nets contain unpalletized or broken case goods from falling into working pedestrian aisles.
- Impact Barrier Ecosystem: Heavy-gauge wrap-around column protectors, aisle end guards, and seismic anchor bolt matrices dissipate kinetic impacts up to 400 J.
Why Tier-1 Importers Partner with HEDA Shelves
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. provides factory-direct custom fabrication, turnkey engineering, and international port logistics for heavy industrial storage infrastructures.
25+ Years Industrial Heritage
Established in 2001, our engineering team has designed, fabricated, and exported over 10,000 completed warehouse installations worldwide, delivering deep institutional expertise in racking stability.
Rapid 24h CAD & 3D Modeling
Provide your building dimensions, clear height, and forklift models. Our engineers supply comprehensive CAD floorplans, 3D warehouse renderings, and imperial load capacity charts within 24 hours.
ISO 9001 & CE Certified
Production conforms to ISO 9001:2015 (Cert No. 18624Q00169R0M) and CE Construction Products Regulation (No. 2435-CPR-8605159), meeting ANSI MH16.1 North American and EN 15512 standards.
Full Ocean Freight Optimization
Direct ocean freight handling to Los Angeles/Long Beach, Houston, Savannah, New York/NJ, Vancouver, and European hubs. High-cube container packing eliminates transport transit deformation.
Industrial Pallet Racking Comparative Analysis
Selecting the optimal pallet storage configuration requires balancing floor footprint density, selective SKU accessibility, forklift mast limitations, and inventory turnover velocity.
| Racking Architecture | SKU Selectivity | Space Utilization | Inventory Rotation | Anti-Fall Protection Feature | Best Suited Logistics Application |
|---|---|---|---|---|---|
| Selective Pallet Rack | 100% Immediate Access | 40% - 50% Footprint | FIFO or LIFO | Wire mesh decks & safety pins | High-SKU distribution, 3PL logistics, retail FMCG |
| Double-Deep Racking | 50% Immediate Access | 60% - 65% Footprint | LIFO Rotation | Pallet backstops & floor guides | Multi-pallet SKU batches, cold storage warehousing |
| Drive-In / Drive-Thru | Low (Lane-by-Lane) | 75% - 85% Footprint | LIFO (Drive-In) / FIFO | Heavy-duty structural load rails | Homogeneous bulk commodities, frozen food storage |
| Push-Back Racking | Medium (Cart Faces) | 70% - 75% Footprint | LIFO Rotation | Nested gravity linked safety carts | 2 to 6 deep storage, food processing staging |
| Pallet Flow (Gravity) | High on Pick Face | 80% - 85% Footprint | Strict FIFO | Centrifugal speed governors & end stops | Date-sensitive pharma, perishables, fast-moving items |
| Radio Shuttle System | Automated Lane-Level | 85% - 90% Footprint | FIFO & LIFO Flexible | Laser positioning & anti-runaway sensors | Ultra-deep automation, high-throughput refrigerated DCs |
OEM & ODM Custom Fabrication Capabilities
We provide full-spectrum contract manufacturing for racking distributors, system integrators, and industrial brands seeking customized specifications with private labeling.
Custom Tooling & Punch Pitch
Tooling dies available for North American standard 2-inch teardrop profiles, European 50mm pitch, 75mm standard pitch, and Redirack compatible systems. Customized roll-forming punch dies engineered upon request.
Custom Steel Grades & Coatings
Mill-certified Q235B, Q355B structural steel, and cold-resistant alloys rated for -30°C freezer applications. Automated powder coating delivers 60–90μm thickness in custom RAL corporate colors or hot-dip galvanizing.
OEM Private Branding & Crating
Full private labeling including client barcode stamping, customized structural capacity load plaques, color-coded bundle straps, and custom container loading maps that reduce field assembly hours by 35%.
Future Procurement Trends in Warehouse Storage (2025–2030)
Global warehouse operations are evolving rapidly. Strategic enterprise buyers must engineer their storage assets to align with automation, sustainability standards, and changing freight dynamics.
1. High-Bay Verticality & ASRS Convergence
With industrial land costs rising globally, procurement is moving from standard 8-meter selective heights toward 18-to-30-meter high-bay automated rack-clad architectures. Modern racking must satisfy tighter deflection tolerances (±1.5mm) to accommodate robotic automated crane shuttles.
2. Container-Optimized Modular Knockdown Kits
Ocean container spot freight volatility has made shipping efficiency paramount. Importers increasingly procure modular bolted-upright systems instead of fully welded upright frames. Knockdown uprights increase 40HQ container steel density from 14 tons to maximum legal payload (26+ tons).
3. Cold-Chain Anti-Embrittlement Metallurgy
Booming frozen pharmaceutical and perishable food logistics require steel capable of withstanding thermal contraction stress without brittle failure. The trend leans heavily toward low-temperature Charpy V-notch tested steel and zinc phosphate electro-coatings resistant to ice condensation.
Frequently Asked Questions for Warehouse Racking Importers
Essential engineering, regulatory, and logistics inquiries answered by our structural design department.
How do your racking systems comply with North American RMI (ANSI MH16.1) and European EN 15512 standards?
What measures are taken to prevent catastrophic upright collapse and falling pallet loads?
Can you provide load ratings and layout calculations in Imperial units (lbs, feet, inches)?
How are components packaged to prevent damage and corrosion during long ocean transit?
What is the typical production lead time and minimum order quantity (MOQ)?
What specific data is required from our engineering team to generate an exact quotation?
Ready to Engineer Your High-Density Storage Project?
Connect directly with our senior racking engineering division in Guangzhou. Receive full technical layouts, imperial load capacity ratings, and comprehensive CIF/FOB pricing within 24 hours.
