High-Precision Identification & Load Architecture
Standardized Warehouse Racking & Numbering Hardware
Engineered to eliminate scanning discrepancies, optimize pick-path travel trajectories, and sustain harsh warehouse conditions with industrial powder-coated structural steel.

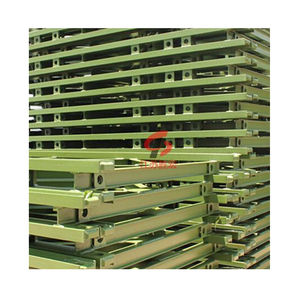

Steel Pallet Storage Rack Base Frame Structural Support for Warehouse Handling
Base Level Identifier
Get a Quote
Engineering Whitepaper & Strategic Forecast
Technical Architecture of Racking Numbering & Identification Systems
A comprehensive assessment of structural coordinate algorithms, optical retro-reflective materials, and AMR/AGV sensor interoperability for high-throughput fulfillment facilities.
Alphanumeric Coordinate Encoding
Traditional sequential labeling yields spatial ambiguity during fleet scaling. Modern logistics architecture implements standard Zone-Aisle-Bay-Level-Position (Z-A-B-L-P) topological coding schemes. Our OEM/ODM tooling embeds precise laser-etched or high-adhesion magnetic identification brackets designed according to ANSI MH16.1 specifications, maintaining uniform datum reference planes from floor mount to high-bay clearance.
Multimodal 1D/2D Retro-Reflective Optical Nodes
To eliminate high-angle read degradation in narrow-aisle (VNA) operations exceeding 40 feet, location plates integrate long-range industrial grade retro-reflective micro-prismatic substrates. When paired with directional 2D matrix symbologies (DataMatrix, QR, Code 128), scan engines onboard turret trucks and high-reach forklifts achieve sub-second decodes without parallax or angular reflection distortion.
Autonomous Navigation & Vision Calibration
Emerging automated guided vehicles (AGVs) and autonomous mobile robots (AMRs) increasingly utilize visual SLAM and optical landmark calibration rather than magnetic strip navigation. Our factory develops pre-drilled, precision-calibrated upright frames with integrated fiducial targets (AprilTags and ArUco markers) ensuring zero-drift autonomous pallet putaway and cycle-counting accuracy.
Specification Matrix
Selection Guide: Warehouse Rack Identification & Structural Integration
Optimize your capital expenditure by comparing substrate resilience, thermal threshold limits, and automation integration across diverse storage environments.
| Identification Hardware Class | Base Material & Treatment | Thermal Operability Range | Automation/WMS Compatibility | Recommended Deployment Topology |
|---|---|---|---|---|
| Pre-Punched Beam Placards | Q235B Cold-Rolled Steel / Powder Coat | -40°C to +85°C | 1D/2D Handheld Scanners & Vision Systems | High-Throughput Selective & Double-Deep Racks |
| Magnetic Polycarbonate Plates | Lexan Polycarbonate with Neodymium Backing | -25°C to +70°C | Long-Range Imagers (Up to 50 ft) | Dynamic Flow & Push-Back Racks with Variable SKUs |
| Anodized End-Cap Aisle Totems | Structural Aluminum 6061-T6 / Iron T-Frame | -50°C to +120°C | Overhead Drone Barcode Validation & Visual SLAM | Cold Storage, Distribution Cross-Docks & Mezzanines |
| Direct-Laser Etched Upright Markers | Electro-Galvanized Structural Carbon Steel | Cryogenic to +300°C | AGV / AMR Multi-Angle Fiducial Camera Arrays | ASRS (Automated Storage & Retrieval Systems) |
Strategic Procurement Outlook (2025–2030): Global supply chain demands dictate a shift from post-installation labeling toward factory-integrated OEM racking identification systems. Modern distribution facilities require racking components delivered with pre-engineered, CNC-punched coordinate slots, standardized color-coded beam caps, and durable coatings that survive automated wash-downs and low-temperature condensing environments. By sourcing racking structures and coordinate numbering frameworks as an engineered unit from a single ISO 9001:2015 and CE-certified manufacturer, facility operators eliminate field-drilling errors, decrease site commissioning timelines by up to 35%, and secure complete structural warranty cohesion under RMI and EN 15512 safety protocols.
Why Partner With Us
Global Manufacturing Scale & Engineering Pedigree
Operating a high-capacity production campus in Guangzhou, HEDA Shelves delivers turn-key OEM/ODM racking and layout infrastructure trusted across North America, Europe, and Asia-Pacific.
Free 24-Hour CAD & 3D Modeling
Our dedicated engineering department converts your building footprints, clear ceiling clearances, and forklift fleet specifications into precise CAD elevation schematics and 3D operational simulations within 24 hours, completely free of charge.
Full Regulatory & Seismic Compliance
Every structural upright, beam connector, and rack numbering bracket is engineered using high-grade Q235B carbon steel subjected to rigorous pickling, phosphating, and electrostatic powder coating. Certified under ISO 9001:2015 and CE Marking standards.
Container-Optimized Port Logistics
We pack and bundle racking profiles, beam shelves, and numbering hardware in 20ft/40ft containers engineered for zero-damage maritime transport to major US, Canadian, and global ports (Los Angeles, Long Beach, Houston, Savannah, Vancouver).
Technical FAQ
Frequently Asked Questions on Racking Numbering & Sourcing
Essential guidance for procurement directors, warehouse systems engineers, and logistics facility managers.
How does an OEM warehouse rack numbering system integrate with WMS software?
Warehouse Management Systems (WMS) such as SAP EWM, Manhattan Associates, and Oracle WMS rely on hierarchical string formats (Zone, Aisle, Bay, Level, Position). Our OEM numbering manufacturing can custom fabricate markers and barcodes matched identically to your WMS database export, ensuring zero translation friction during field go-live.
What materials best withstand deep-freeze (-30°C) cold storage environments?
Standard self-adhesive labels peel and crack under sub-zero thermal cycling. For cold storage and blast freezers, we manufacture heavy-gauge magnetic backings with polyolefin overlaminates, or directly screw-mounted anodized steel plates treated with anti-frost micro-textures to prevent barcode scanner scattering.
Can you manufacture rack numbering accessories with imperial measurements for North America?
Yes. All shop drawings, beam slot positions, aisle totem dimensions, and load capacity plates can be rendered and manufactured using imperial standards (inches, feet, and pounds) in full compliance with North American RMI standards and OSHA warehouse visibility criteria.
What is the standard production and shipping lead time for customized configurations?
Initial CAD approval and structural calculations are completed within 24 hours. Batch manufacturing takes approximately 15 to 25 calendar days across our 30,000 m² factory campus, with maritime transit arranged via primary container shipping lines directly to your nominated destination port.
Transform Your Warehouse Throughput & Inventory Traceability
Submit your facility dimensions, pallet dimensions, and WMS location requirements. Our senior warehouse storage engineers will formulate a comprehensive 3D layout, structural analysis, and factory-direct quotation within 24 hours.
