Heavy-Duty RMI
American Standard Heavy-Duty Warehouse Storage Pallet Rack
- Capacity: 2,000 to 8,800 lbs/layer
- Profile: Standard Teardrop Compatible
- Steel Grade: Certified Q235B / Q345B
Factory Direct Product Range
Engineered Warehouse Storage Racks & Industrial Shelving Systems
Explore our precision-formed selective pallet racks, high-density drive-in systems, heavy-duty cantilever storage, modular multi-tier mezzanines, and industrial logistics accessories. Each component is manufactured from certified high-tensile steel with custom roll-formed profiles and high-durability electrostatic powder coating.
Selective Racking
Selective Industrial Pallet Racking System for Factory Logistics
- Access: 100% Direct Pallet Selectivity
- Pallet Compatibility: 48x40 GMA, Euro
- Finish: Thermoset Epoxy Powder Coat
Boltless High-Bay
Boltless Heavy-Duty Storage High Pallet Racking System
- Upright Heights: 6.5 ft to 39 ft (12m)
- Pitch Adjustment: 50mm / 75mm / 76.2mm
- Safety Locks: Auto Spring Pin Connectors

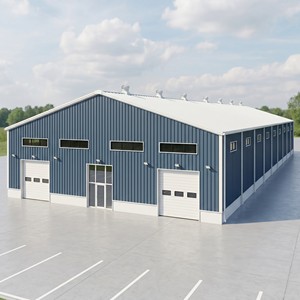

Steel Structure
Prefabricated Steel Structure Workshop Industrial Building
- Design: Turnkey Structural Engineering
- Primary Frame: H-Beam / Hot-Rolled I
- Application: Logistics Hubs, Factories

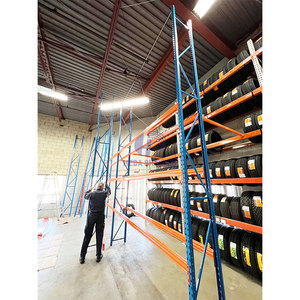

Specialty Tire Rack
Industrial Heavy-Duty Automotive Tire Pallet Racking
- Beam Configuration: Angled Saddle Beam
- Deformation Prevention: Contour Support
- Compatibility: Passenger, Truck, OTR
Picking & Storage
PP Corrugated Plastic Stackable Warehouse Picking Bins
- Material: 100% Virgin Polypropylene (PP)
- Features: Front-Drop Hopper Opening
- Properties: Oil, Acid, & Moisture Proof
High-Density LIFO
5-Layer High-Density Metal Drive-In Pallet Racking
- Capacity: 2,000 kg (4,400 lbs) / Pallet
- Space Utilization: Up to 80% Floor Gain
- Application: Cold Store, Bulk Identical SKUs
Multi-Tier Frame
Multi-Level Thickened Removable Steel Pallet Rack Frame
- Upright Thickness: 1.8mm to 2.5mm Solid
- Modularity: Fully Demountable Uprights
- Design Standard: Certified ISO 9001:2015
2001.
Established Year
25+ Years Racking Metallurgy
323,000+
Factory Floor Space (Sq Ft)
30,000 m² Modernized Campus
30,000t
Monthly Steel Output
High-Volume Contract Fulfillment
10,000+
Global Projects Built
Shipped to USA, Canada & Europe
Enterprise OEM/ODM Infrastructure
Precision Cold-Forming, Robotic Fabrication & Engineering Rigor
As a leading Chinese direct-manufacturer and exporter, Guangzhou Heda Shelves Co., Ltd. operates integrated metallurgical roll-forming and robotic welding plants. We provide turnkey OEM/ODM contract engineering for international distributors, system integrators, and Fortune 500 logistics operations.
Free 2D/3D CAD & BIM Engineering
Our in-house structural engineering department generates comprehensive AutoCAD floor plans, Revit 3D architectural models, and calculation sheets within 24 hours.
Standard-Compliant Structural Calculations
Components engineered to ANSI MH16.1 (RMI specification), EN 15512, and AS4084 standards. Ready for local Professional Engineer (PE) seismic stamps in the USA & Canada.
Automated Continuous Roll-Forming
State-of-the-art multi-station roll-forming mills shape continuous high-yield steel coils into upright columns and step/box beams with tight dimensional tolerances under ±0.5mm.
Pre-Treatment & Powder Coating
10-stage automated surface finishing including degreasing, acid pickling, zinc phosphating, and electrostatic epoxy coating cured at 200°C for superior scratch and salt-spray resistance.
Inside Our 10-Stage Metallurgical Fabrication Process
Strict ISO 9001:2015 quality control checkpoints monitor raw coil uncoiling, piercing, forming, welding, and final pack-out.
STEP 01
Raw Steel Inbound
Certified Q235B & Q345B steel coil inspection with physical Mill Test Certificates (MTC).
STEP 02
CNC Slitting & Shearing
High-speed slitting lines cut wide master coils to exact strip tolerances with deburred edging.
STEP 03
Precision Punching
Automated hydraulic mechanical presses pierce teardrop, diamond, or hex hole patterns at 50mm pitches.
STEP 04
Cold Roll Bending
Progressive cold bending dies form structural return flanges, enhancing column radius resistance.
STEP 05
Profile Roll-Forming
18-24 pass roll mills engineer heavy-gauge uprights and interlocking dual-C box beams.
STEP 06
Mechanical Deburring
Automated brush deburring and weld seam grinding eliminate sharp edges and spatters.
STEP 07
Robotic MAG Welding
Robotic multi-axis workcells weld beam end-connectors and baseplates with deep acoustic penetration.
STEP 08
Acid Pickling/Phosphate
Full-immersion chemical cleaning line strips scale and forms a nano-crystalline rust-inhibiting layer.
STEP 09
Electrostatic Coating
Reciprocating spray guns deposit thermoset powder coat at 60-80 microns thickness across all faces.
STEP 10
QC & Container Stowing
Dimensional gauge checks, thickness testing, strapping, timber-cushioned container loading for 40HQ.
ISO 9001:2015
Cert No. 18624Q00169R0M
CE Marking Approved
EN 15512 European Standard
RoHS Material Compliance
Non-Toxic Lead-Free Powders
Procurement Selection Guide
Warehouse Racking Systems Comparative Engineering Matrix
Selecting the ideal storage geometry requires balancing clear ceiling height, SKU volume, forklift fleet kinematics, and picking velocity. The following data matrix outlines critical performance metrics for supply chain decision-makers.
| System Architecture | Pallet Selectivity | Volumetric Density | Stock Rotation | Forklift Aisle Clear | Relative Cost Index | Primary Industrial Fit |
|---|---|---|---|---|---|---|
| Standard Selective Pallet Rack | 100% Direct | Moderate (40-50%) | FIFO / LIFO Arbitrary | 10.0 – 12.5 ft (Counterbalance) | Baseline (1.0x) | FMCG, 3PL Warehousing, High SKU Distribution |
| Double-Deep Pallet Racking | 50% Immediate Access | High (55-65%) | LIFO Controlled | 9.5 – 11.0 ft (Reach Pantograph) | 1.25x | Mid-velocity goods, Cold stores, Manufacturing WIP |
| Drive-In / Drive-Through Rack | Low (Per Lane Face) | Very High (70-80%) | Strict LIFO (FIFO Drive-Thru) | Continuous Drive Channel | 1.45x | Beverage production, Cold storage, Seasonal bulk SKUs |
| Push-Back Cart Racking (2-6 Deep) | Lane-Selective Face | High (65-75%) | LIFO Gravity Return | Standard Counterbalance/Reach | 2.10x | Medium SKU assortment, Cross-dock staging buffers |
| Pallet Flow (Gravity Roller Beds) | Dedicated Pick Face | Maximum (80-85%) | Guaranteed FIFO | Separated Load & Unload Aisles | 3.20x | Perishable food, Pharmaceutical inventory, High-turnover lines |
| Radio Shuttle Semi-Automated | Lane-Selective via AGV | Ultra High (85-90%) | FIFO or LIFO Selectable | Minimal Transfer Aisle Only | 3.80x | Freezer storage (-30°C), Raw ingredient reserves, High-throughput hubs |
| Heavy-Duty Cantilever Racking | 100% Unobstructed Face | Variable Vertical | Direct Crane / Forklift Access | Wide Side-Loader / Forklift Aisle | 1.60x | Steel pipes, Lumber, Aluminum extrusions, Building drywall |
| Multi-Tier Mezzanine Platform | 100% Human Floor Pick | Doubles/Triples Footprint | Manual Cart / Conveyor Fed | Pedestrian Picking Walkways | 2.40x | E-commerce fulfillment, Garment hanging, Auto parts bin picking |
*Calculations assume standard 48"x40" GMA or 1200x800mm EUR wooden pallets loaded with uniform distributed loads (UDL). Seismic anchor sizing depends on municipal engineering codes.
Contact Us
Macro Market Intelligence
Warehouse Racking Procurement & Technology Trends (2026–2035)
The international warehousing landscape is undergoing unprecedented transformation fueled by land inflation, cold chain surges, autonomous mobile robot (AMR) adoption, and stringent carbon border adjustment mechanisms. Enterprise procurement managers must analyze these four macro trends.
1. Automated Material Handling & AMR Compatibility
Traditional manual forklift aisles are rapidly giving way to automated guided vehicles (AGVs) and autonomous mobile robots (AMRs). Modern OEM rack designs demand ultra-tight manufacturing tolerances (±1.0mm plumb deviation over a 12-meter height) and integrated guidance rail extrusions. Buyers are shifting away from standalone racks toward system-compatible, robot-ready geometries that feature sensor reflectors, floor bar-code alignments, and high-precision baseplates.
2. Total Landed Cost (TOC) vs. Direct OEM Sourcing
With global logistics volatility and fluctuating steel tariffs, North American and European logistics operators are bypassing domestic intermediaries to source directly from qualified Chinese OEM/ODM factories. By collaborating directly with primary manufacturers offering custom roll-forming and pre-assembled upright trusses, buyers reduce capital procurement costs by 28% to 42%, while gaining direct engineering oversight over raw steel certifications and weld integrity.
3. Seismic Performance & Finite Element Analysis (FEA)
Seismic requirements (ASCE 7-22, IBC 2024, and NFPA 13 sprinkler clearances) have made generic off-the-shelf shelving obsolete. Racking frameworks must now undergo exhaustive computer-simulated Finite Element Analysis (FEA) to confirm plastic hinge formation at the beam-to-column connector under dynamic ground accelerations. Forward-thinking procurement requires factories to supply certified baseplate moment connection matrices and anchor bolt pull-out calculations.
4. High-Density Cold Chain Thermal Efficiency
Refrigerated warehouse electrical consumption is directly correlated with internal cubic air volume. The rapid expansion of frozen pharmaceutical distribution and fresh food e-commerce drives demand for semi-automated 4-way radio shuttle and drive-in systems. Modern metallurgical finishes must be rated for embrittlement resistance down to -30°C without micro-fracturing under impact loads from reach trucks.
5. ESG Decarbonization & Circular Metallurgy
Tier-1 international supply chains require verifiable environmental product declarations (EPD) for structural steel. Our factory utilizes scrap-fed electric arc furnace (EAF) coil inputs whenever specified, paired with zero-VOC thermoset powder formulations and closed-loop wash water recycling. This reduces Scope 3 embodied carbon emissions, ensuring full compliance with EU CBAM and corporate ESG mandates.
6. OEM Custom Private-Labeling for Integrators
Material handling distributors and racking installers are expanding high-margin private label product portfolios. We engineer custom beam connectors, proprietary teardrop punch geometries, custom corporate RAL powder shades, and branded protective packaging. This allows regional racking dealers to present an engineered, branded system backed by high-capacity factory fabrication.
Procurement Knowledge Base
Frequently Asked Questions (Technical & Commercial FAQ)
Clear answers to critical questions regarding structural load ratings, export container stowing, local building code approvals, and custom OEM manufacturing.
How are beam deflection and structural load capacities verified?
Under ANSI MH16.1 (RMI standard) and EN 15512, maximum permissible beam deflection under a uniformly distributed load (UDL) must not exceed L/180 (length divided by 180). For high-precision automated systems, we engineer beams to L/240 or tighter. Every beam profile is verified through destruction load testing and finite element computational modeling to ensure a structural safety factor of 1.65 to 1.9.
Can your engineering team support US and Canadian building permit approvals?
Yes. We supply comprehensive structural engineering calculation packets, component cross-sectional properties (moment of inertia Ix, section modulus Zx), and detailed 2D anchor layout drawings. These engineering packages are prepared to enable your local licensed Professional Engineer (PE) or Structural Engineer (SE) to review, seal, and submit drawings to local municipal building authorities.
How are ocean shipping containers packed to prevent transit damage?
Heavy structural components are bundled using high-tensile steel banding, cushioned by timber dunnage and protective corrugated corner wraps. Beam connectors and column feet are shrink-wrapped to prevent metal-on-metal abrasion. Our dispatch engineers create custom 3D container loading diagrams for 40ft HQ containers to maximize payload up to 26 metric tons while protecting the powder-coated finish.
What steel grades and mill certifications are utilized in fabrication?
We use certified prime steel coils conforming to Chinese standard Q235B (yield strength ≥ 235 MPa, comparable to ASTM A36) and high-strength low-alloy Q345B / Q355B (yield strength ≥ 355 MPa, comparable to ASTM A572 Grade 50). Full metallurgical Mill Test Certificates (EN 10204 3.1 MTC) detailing chemical composition and tensile strength are provided with every production heat number.
Do you offer custom roll-forming tooling for proprietary upright profiles?
Yes. In addition to universal North American teardrop and European 50mm pitch hook-in designs, our precision tooling division engineers custom roll-forming dies and stamping blocks for proprietary OEM customer requirements. Tooling design, sample roll-outs, and lab testing are typically completed within 25 working days from CAD sign-off.
What is the standard production lead time for full container orders?
Standard catalog configurations (selective pallet racking in RAL 5015 blue and RAL 2004 orange) typically ship within 14 to 20 calendar days from drawing approval. Custom-engineered structural mezzanines or radio shuttle racking systems require 25 to 30 calendar days, including full pre-shipment assembly and dimensional testing.
Request a Complete Engineering CAD Layout & Landed Price Quote
Collaborate directly with our senior application engineers. We evaluate your warehouse footprint, concrete slab capacity, forklift turn radii, and SKU velocity to optimize storage density and reduce costs per pallet position.
- Turnkey 2D & 3D CAD Drawing in 24h
- Structural Engineering Calculation Book
- Factory Direct FOB, CIF, or DDP Terms
- Custom RAL Color & OEM Branding
Project Scoping Data
To expedite your quotation, please prepare: building clear height, pallet dimensions (W × D × H), maximum pallet weight, forklift model, and floor slab specifications.
Guangzhou Heda Shelves Co., Ltd. • 25+ Years Manufacturing Excellence
